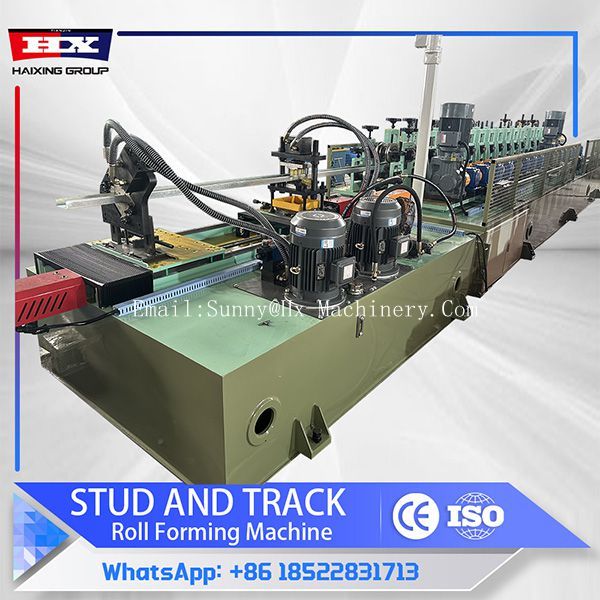

The Auto Stud Roll Forming Machine is designed to automate the production of steel studs with precision and speed. This advanced machine offers an efficient solution for manufacturers looking to streamline their framing production process. With the Auto Stud Roll Forming Machine, you can create high-quality steel studs consistently, ensuring they meet strict industry standards. The machine features automatic control systems, allowing for fast setup and seamless operation, even with minimal operator involvement.
| Details of Auto Stud roll forming machine | |
| Suitable to process | (Prepainted)galvanized steel strips |
| Rollers | 14 Rollers |
| Main frame | Base frame: welded box plate, aged treatment; work platform precision machined using a large gantry milling machine.Panel thickness 25㎜, Q235 iron plate material (gantry milling plane processing) |
| Transfer method | Gearbox drive (Model T7) |
| Wallboard size | Memorial arch,thickness 42mm |
| Dimensions | 9.5*1.5*1.6m |
| Opening and closing servo motor power | 3KW |
| Weight | About 4.6T |
| Main motor power | 15Kw(2 units 7.5KW)，K77 series |
| Servo motor replacement | 3KW |
| Hydraulic pump station | 11KW (2 units of 5.5KW with air cooling) |
| Thickness of the plate | 0.4-1.0mm |
| Production speed | C-shaped: ≤40 m/min; U-shapeU-shape: ≤80 m/min |
| Roller diameter | Φ50mm |
| Spacer | 70mm |
| Voltage | 220V 60Hz 3Phases |
| Length tolerance | ±2mm |
Click to know more about our machine or other machine!
Some part of machine：

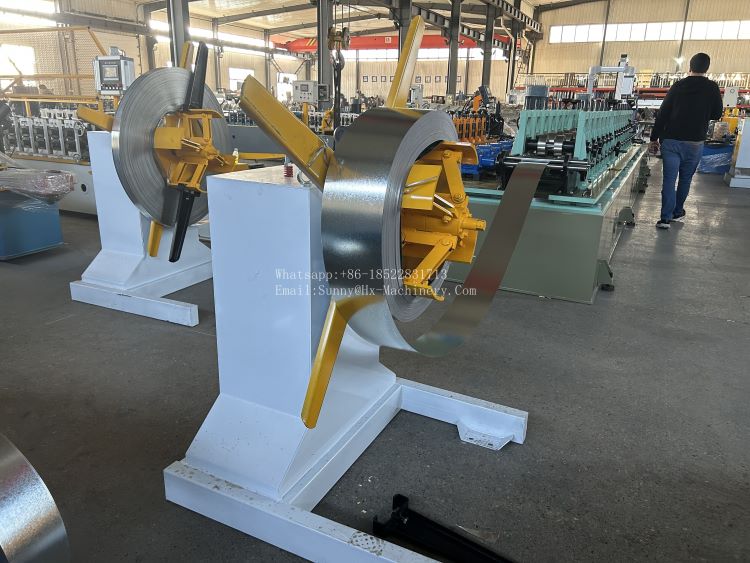

| A.Manual Uncoiler Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3.0T, Inner diameter: 500-508mm
|
| B.Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.
|

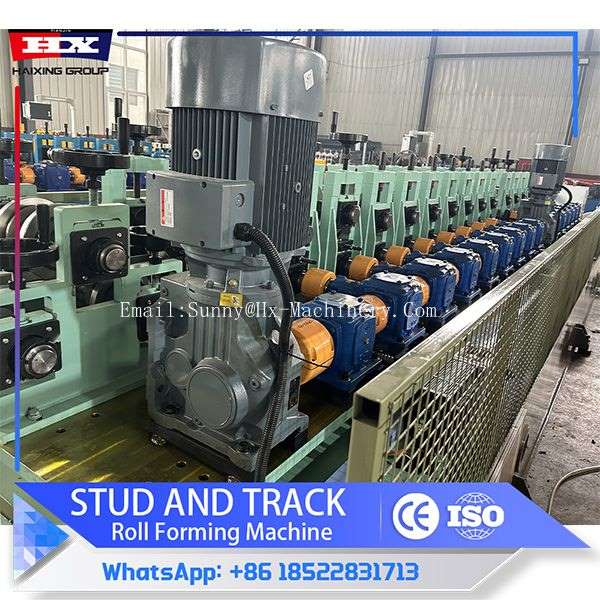

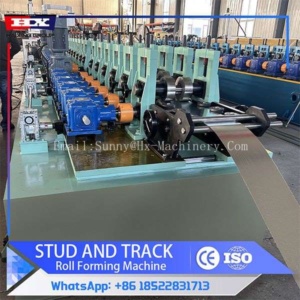

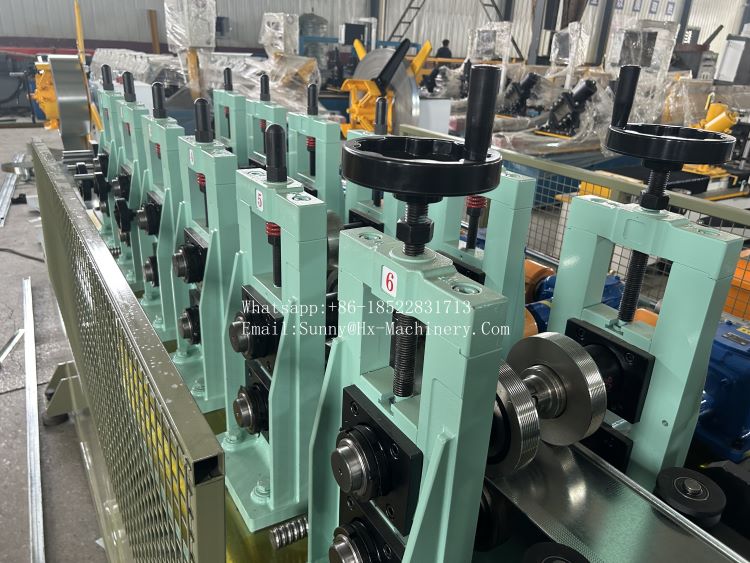

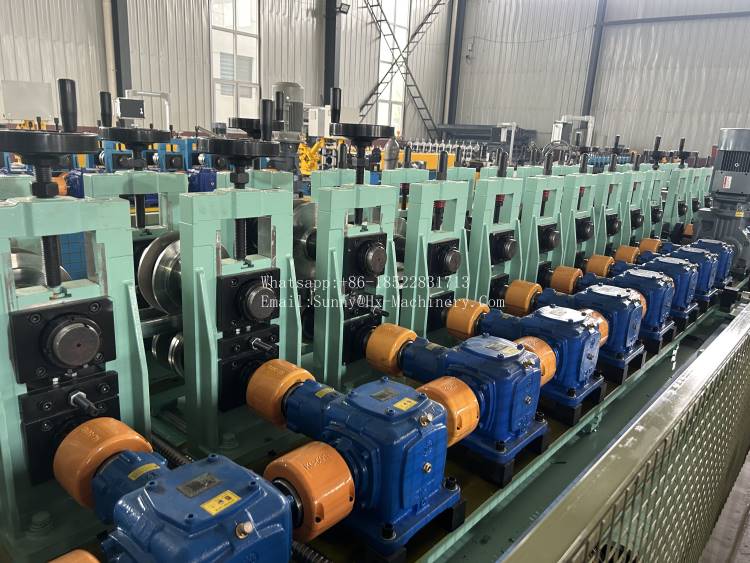

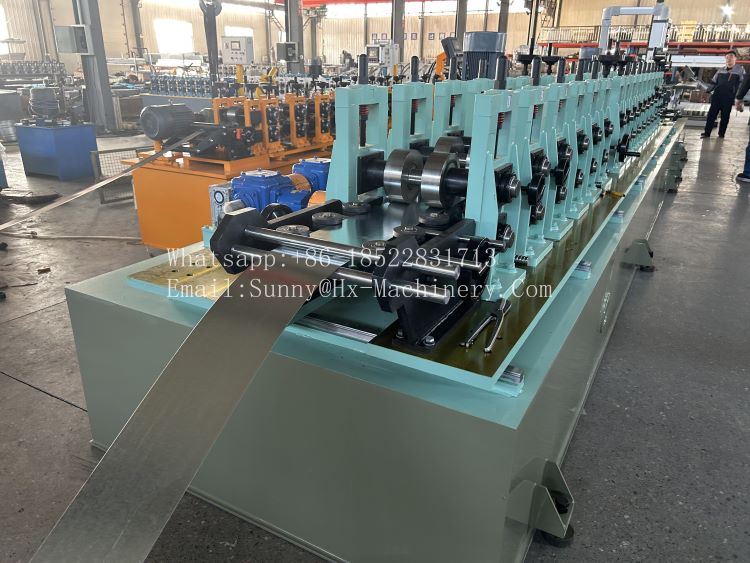

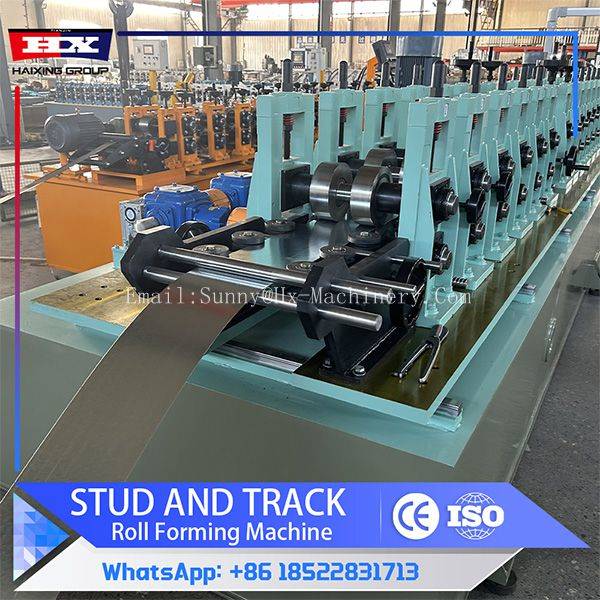

| C.Main Roll Forming Machine
Material of rollers: High grade C12Mov bearing steel ,roller surfaces polishing, hard plating,
|

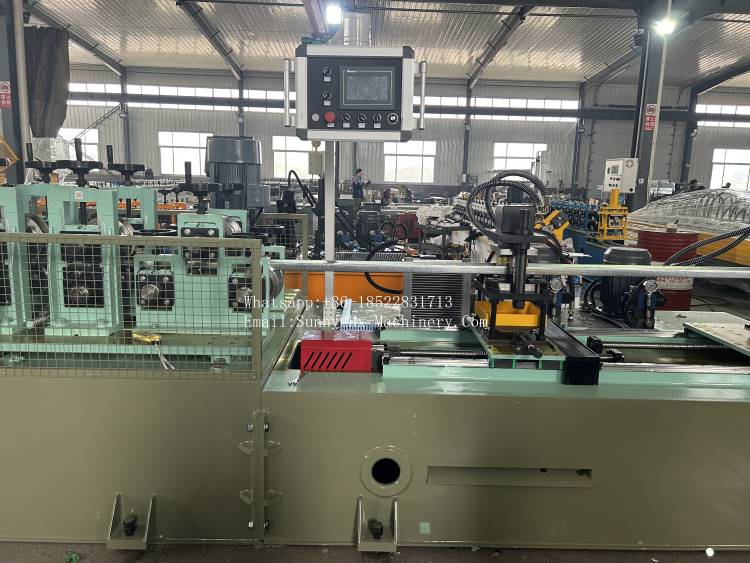

| D.Computer Control Cabinet
Frequency Converter:Delta
|

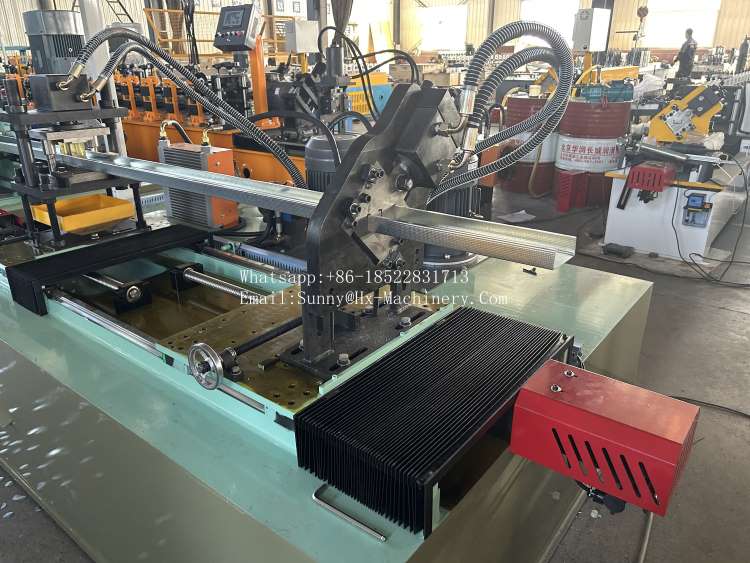

| E.Servo tracking cutting system
It adopts the Motor drive and automatic location to decide the dimension and cut the target products.
|
Loading and shipment：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
