Automatic Cut to Length Line is designed to provide fast, precise, and efficient cutting of metal coils into specified lengths. Ideal for industries that require high-volume, high-precision cutting, this line automates the entire process, ensuring minimal manual intervention and maximum productivity.
The system includes key components such as uncoiling, leveling, cutting, conveying, and receiving sections. With its advanced technology, the line can handle a variety of metals, including steel, aluminum, and stainless steel, with a wide range of thicknesses and widths. The automatic setup ensures consistent and accurate results with every cut, optimizing your manufacturing workflow.

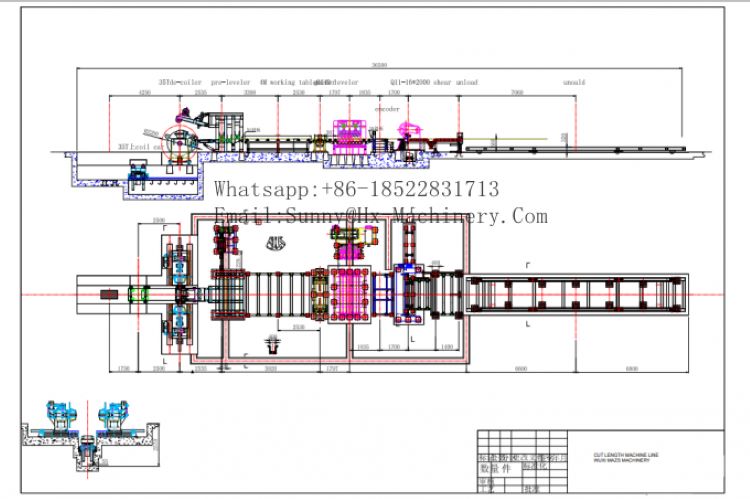

This is the operating process of our cut to length coil line：
Here are the parameters for our Automatic cut to length line:
| Suitable to process | Galvanized/color steel coil |
| Thickness of raw material | ≤1.0mm |
| Materials width | Materials width |
| Accuracy | ±2.0mm |
| Roller station | Up :5 rollers Down:6 rollers |
| Cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Main motor | 4KW |
| Voltage | 380V,50HZ,3Phase |
| 380V,50HZ,3Phase | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠90mm |
| Chain size | 1 Inch |
| Hydraulic pump | 4Kw,Lichao |
| Touch screen/PLC | Delta ,Taiwan |
| Transmission | Gear transmission |
| Machine size | 2600x2000x2000m |
| Machine weight | About 2.5Tons |
| Slitting blade | 3 blade 4 pieces |
| Slitting blade materials | Cr12Mov |
If you like our machine click to get a quote and a favorable price！

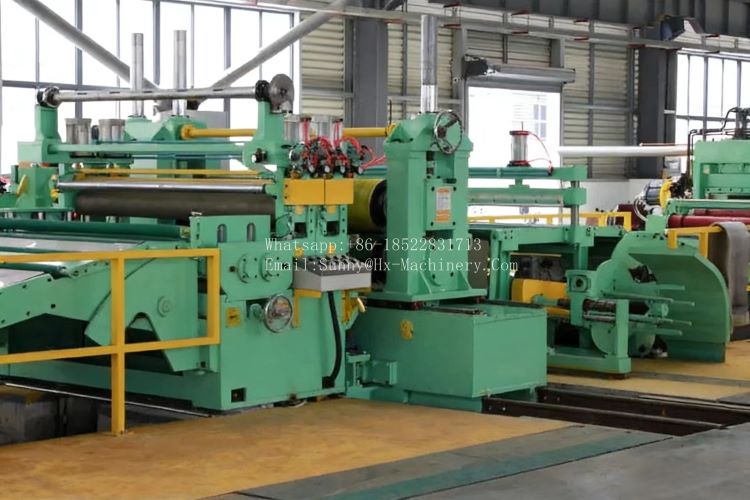

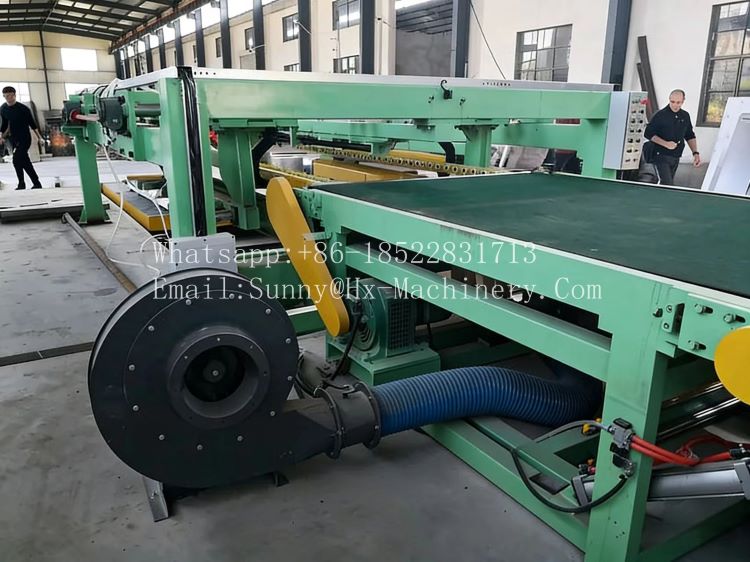

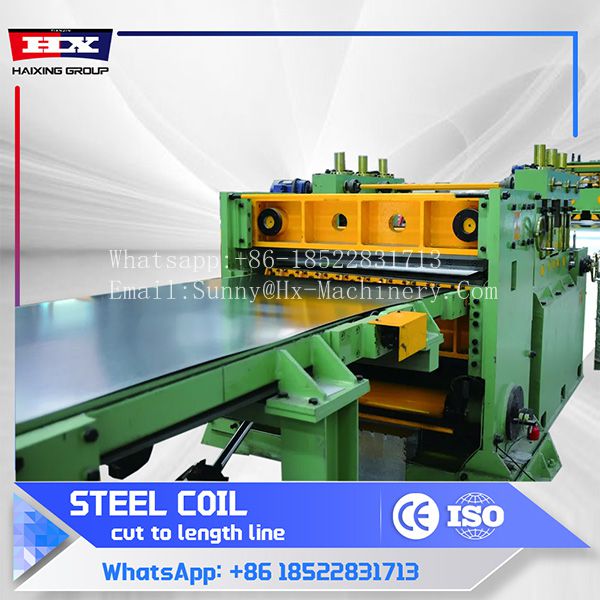

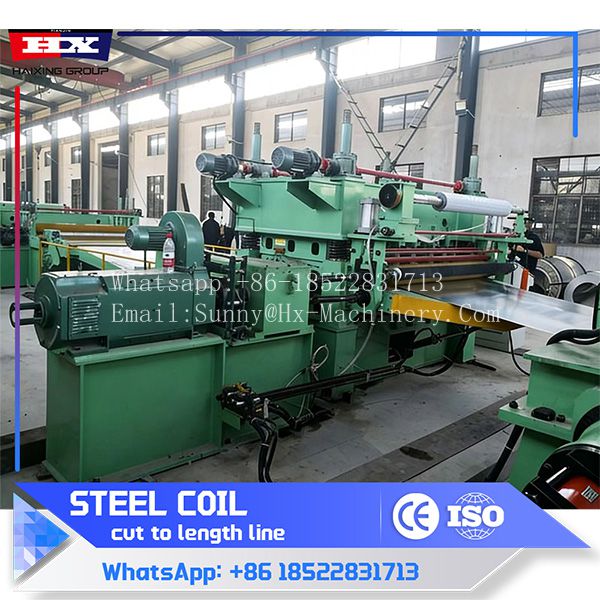

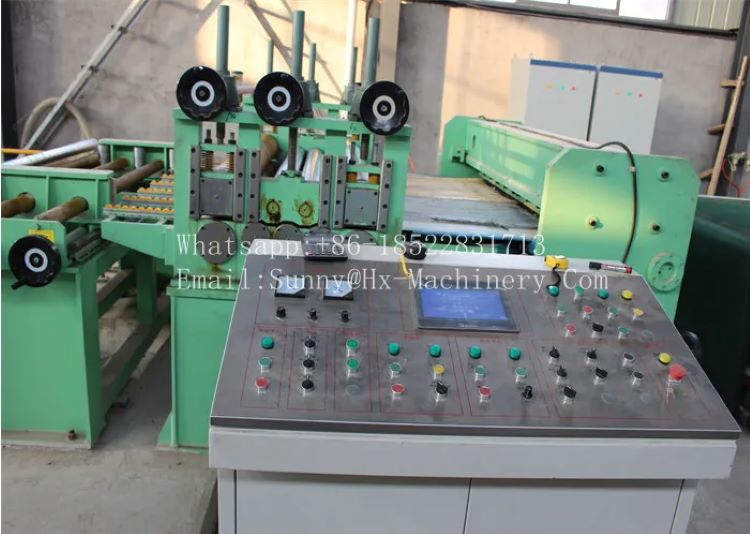

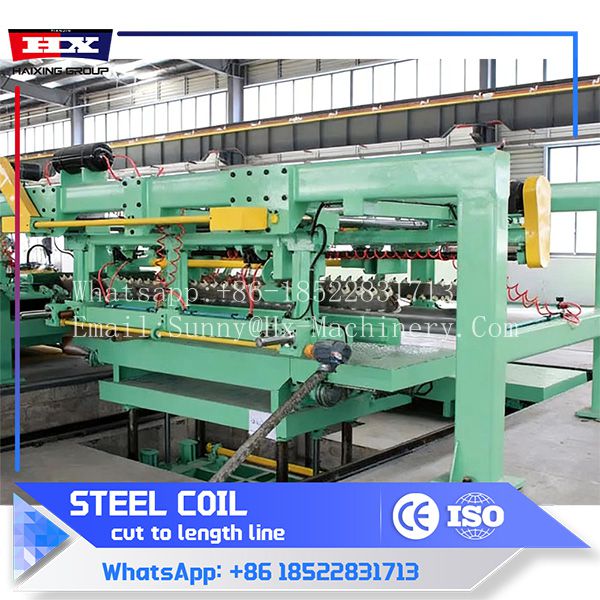

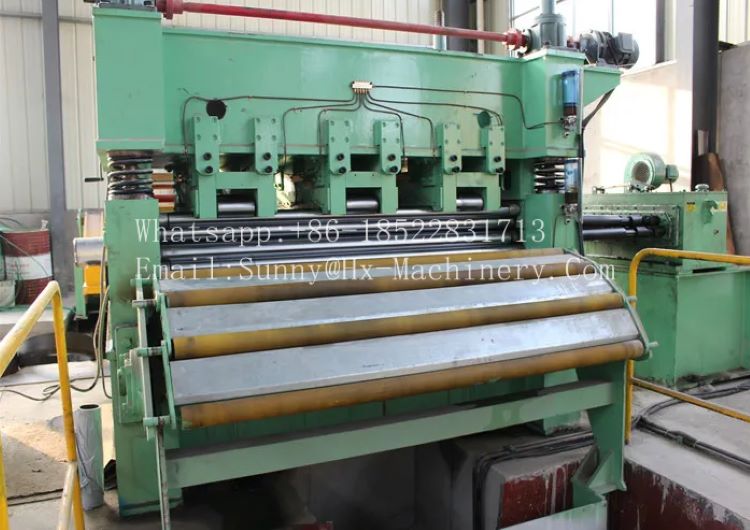

The cut to length machine consists of several parts: the uncoiling section, leveling section, cutting section, conveying section, receiving section, and includes a slitting section as well.Here are photos of this machine:
Key Features of our heavy gauge cut to length line:
| Full Automation | Reduces labor costs and increases efficiency |
| High-Speed Operations | Delivers faster cutting and maximizes output |
| Precision Cutting | Achieves tight tolerances for high-quality results |
| Versatile | Suitable for various metals and dimensions |
| Low Maintenance | Durable construction minimizes downtime |

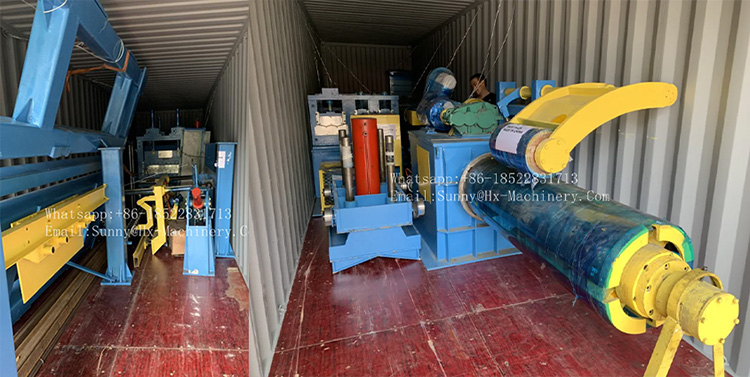

Automatic Cut to Length Line loading and shipment ：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
