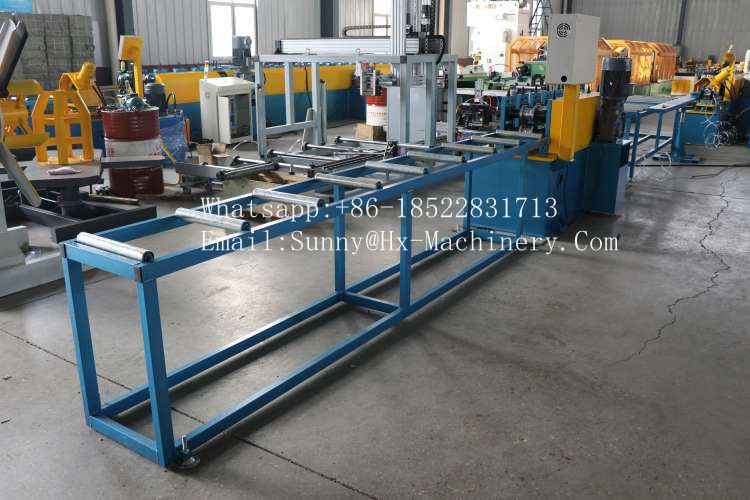

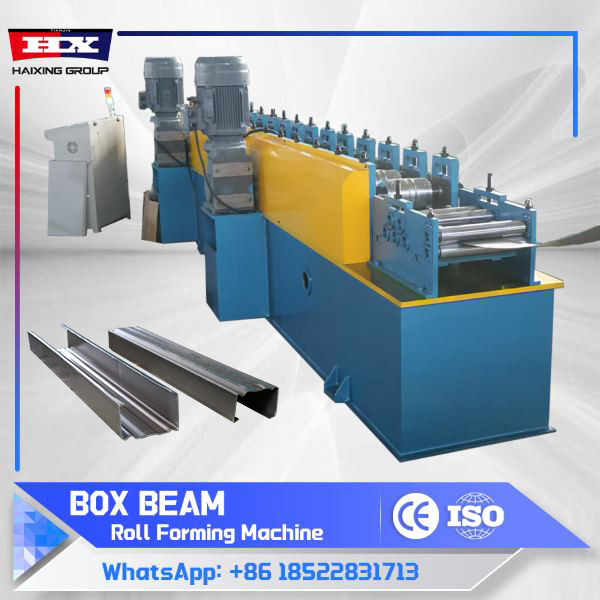

Beam roll forming machine

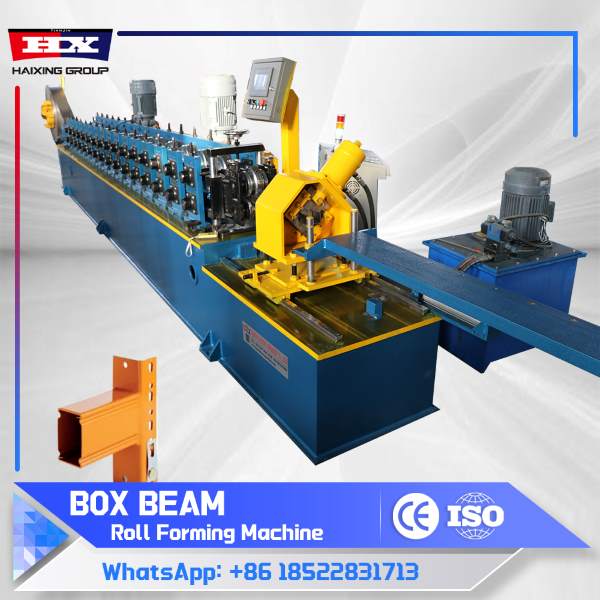

Beam roll forming machine:The beam is a critical component in the design of rack shelving systems, providing structural support and stability. It connects the uprights of the shelving unit and supports the weight of the stored goods, ensuring the entire structure’s durability and safety. Beams are used in various storage solutions, such as pallet racking, heavy-duty shelving, and automated storage systems, offering flexibility and strength to accommodate different types of inventory. And our Beam roll forming machine can produce durable beams for you.

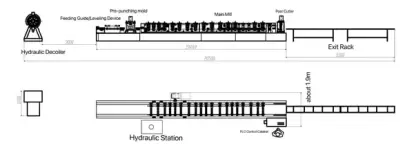

Production Process: Passive discharge—Leveling—Forming—Servo tracking cutoff—Discharge

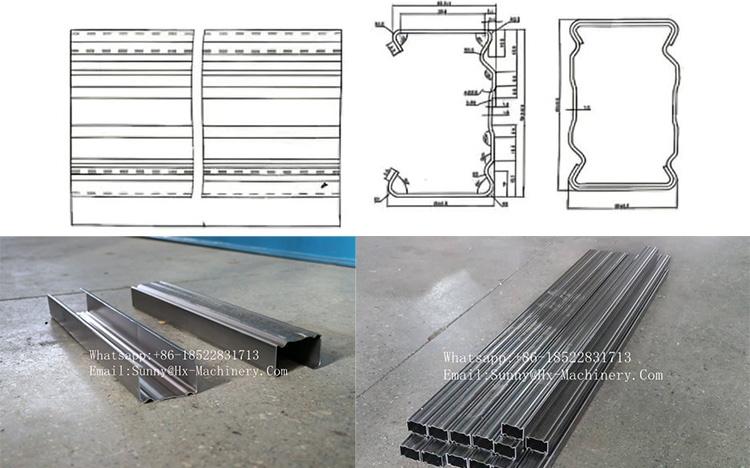

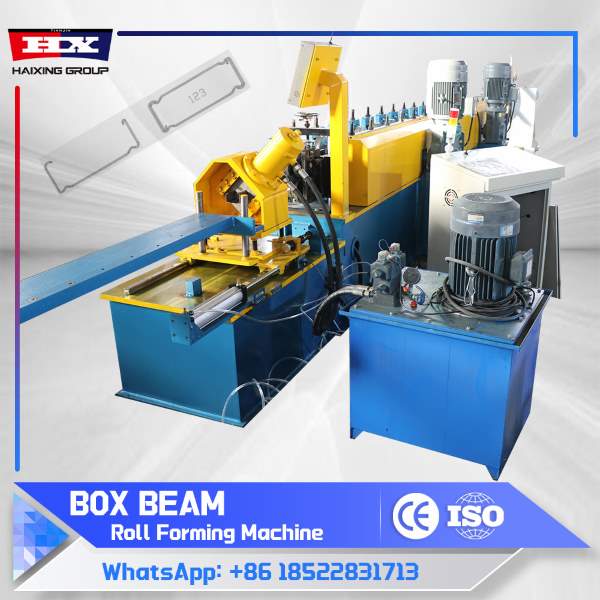

Beam roll forming machine Drawing Model：Bottom:80-160mm technical details :

Beam roll forming machine manufacturers parameters
1	Equipment area	About 35*1.5*1.5m
2	Equipment feeding direction	In left and out right
3	Voltage	380V 50HZ 3Phase
4	Hydraulic oil	46# hydraulic oil
5	Gear oil	18# hyperbolic gear oil
6	Rolling strip width	450-950 mm
7	Rolled strip thickness	1.5(±0.03)—2.0(±0.03) mm
8	Rolled strip material	Q235 cold rolled strip steel,galvanized coil
9	Rolling workpiece length	2000-6000 mm
10	Produce speed	6-12m/min
11	Motor explosion-proof grade	ExdIICT4
12	Motor protection grade	IP55
13	LCD display	Display Electric
14	Total installed capacity of equipment	About 25KW
15	Electrical low voltage control components Control system	Delixi or Chint
16	Frequency system	INVT
17	Bearings	Harbin Bearing
18	Reducer	Beijing Ruibofeng Reducer Co., Ltd.
19	Length Tolerance	±1.5mm

Beam roll forming machine manufacturers detailed images for reference

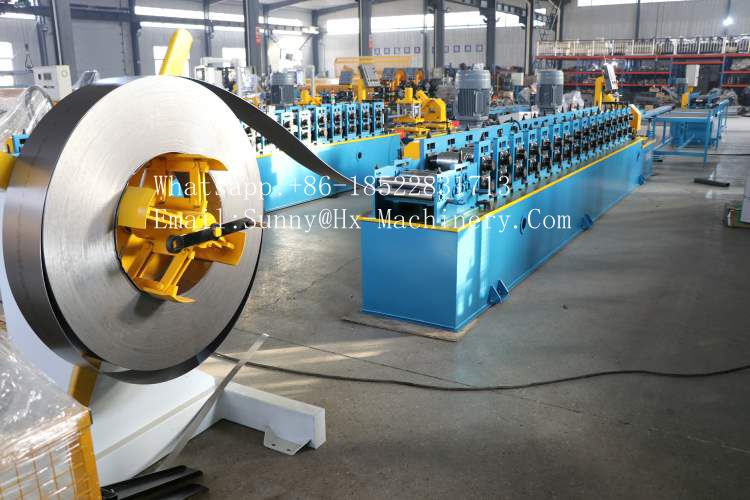

A.Uncoiler Decoiler  1. Maximum load-bearing capacity: 3T 2. Maximum tray diameter: 1.6m 3. Inner diameter of roll: ф460-510 mm 4. Hydraulic tensioning, electric unwinding

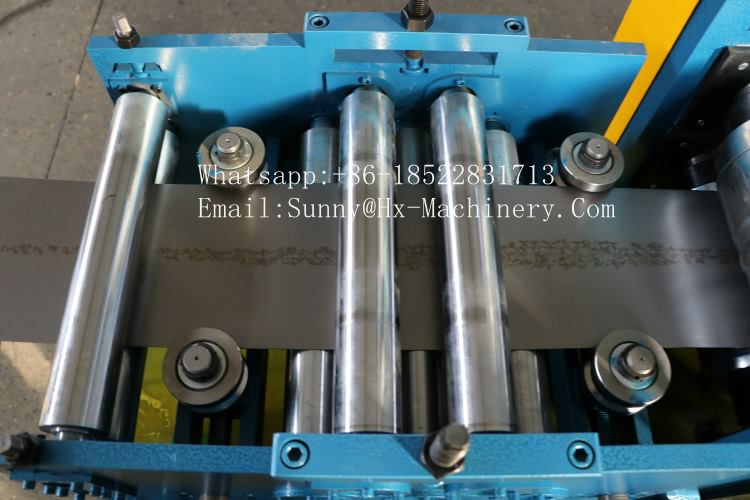

B.Leveling servo feeding machine 1.5 roller leveling 2. Leveling roller diameter: 70mm

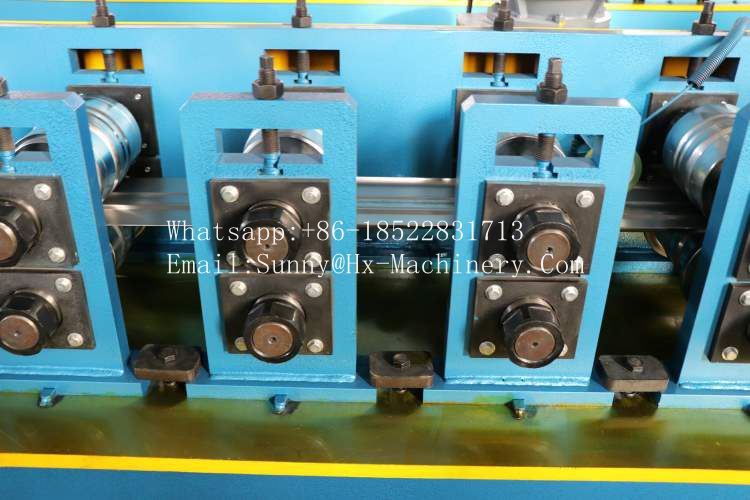

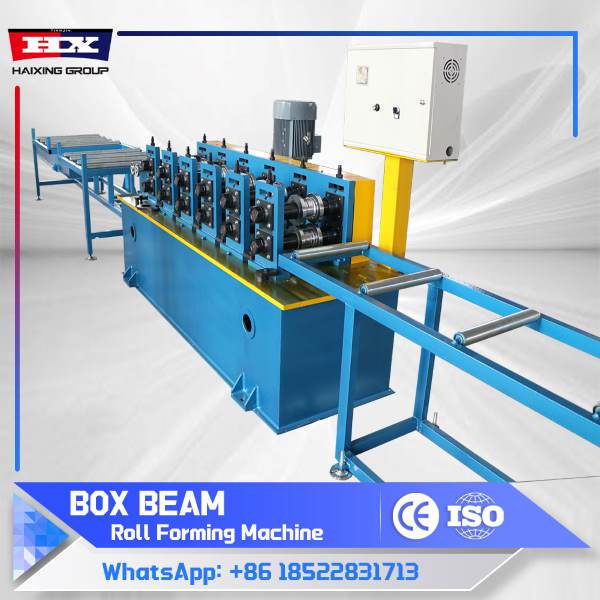

C.Roll forming part 1. Shaft diameter φ65mm 2. shaft material 45# steel 3. Main motor power 7.5Kw*2 4. Roller material Cr12 5. Roller hardness HRC58-62

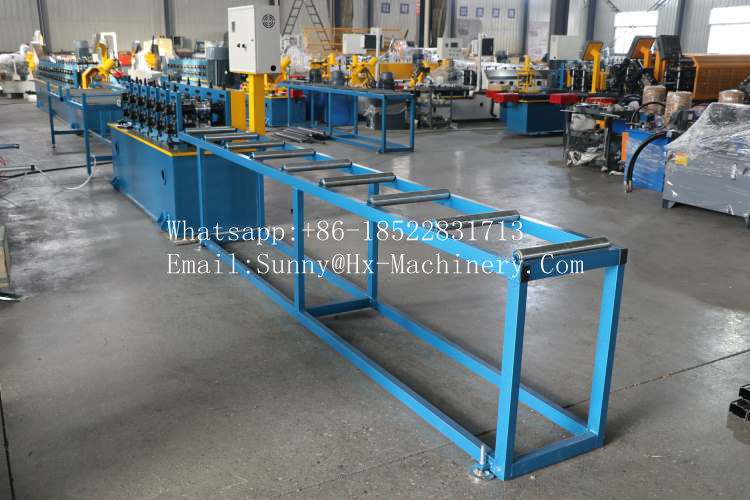

D.Discharging platform 1. 3m platform 2. Roller type 3. No power

Perforated beam roll forming machine loading and shipment

Host packaging	Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame
Electronic control system	Packed in protective film or placed in individual wooden boxes
Precision parts	They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper.
Spare parts and tools	All spare parts are placed in wooden boxes
Packaging labeling	There are usually clear markings on the outside of the box

Advantages of using a beam roll forming machine line for beam roll production include:

High Precision	Ensures consistent dimensions and shapes for beams.
Material Efficiency	Minimizes waste and reduces production costs.
Automation	Reduces manual labor and errors, increasing production speed.
High Efficiency	Continuous operation speeds up production and shortens cycles.
Flexibility	Produces various beam sizes, adaptable to different racking systems.
Energy Saving	Reduces energy consumption and aligns with eco-friendly practices.
