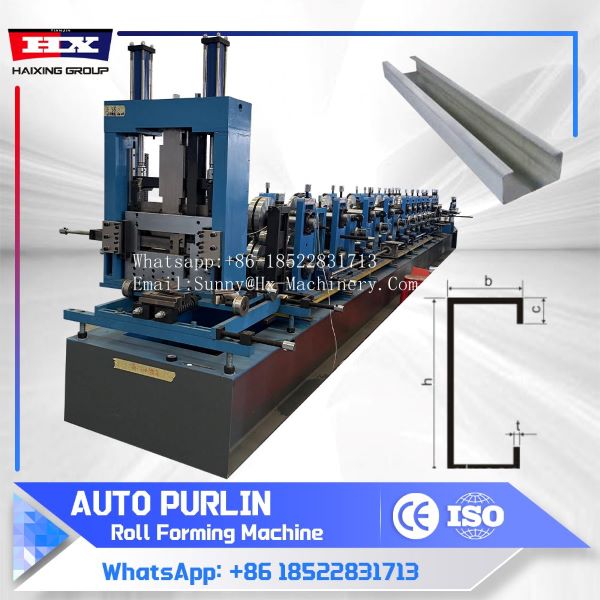

The C and Z Purlin Machine is designed to produce both C and Z-shaped purlins quickly and accurately. This machine uses advanced roll forming technology to create strong and consistent purlins for various construction needs. It can easily switch between C and Z shapes, offering versatility for different projects. With adjustable settings, the machine can produce purlins in various sizes and thicknesses to meet specific requirements.

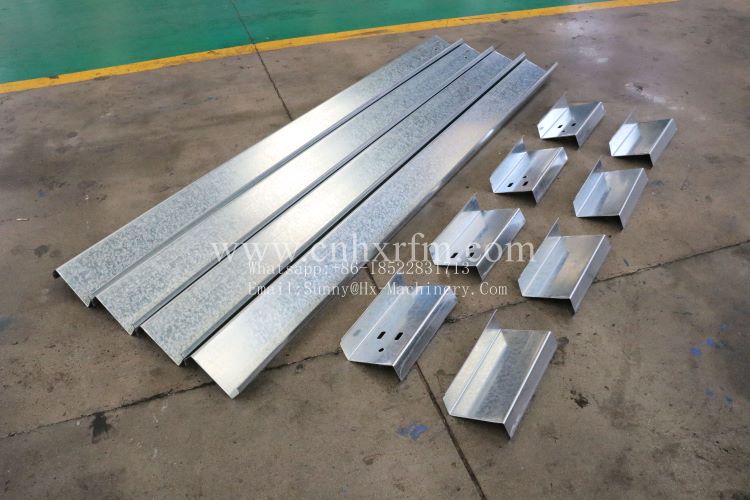

C and z purlin machine Drawing Model：C:Bottom:80-300mm Waist high:40-80mm
Z:Bottom:50-80mm Waist high:120-300mm
| Main data of the C and z purlin machine | |
 |
|
| Dimensions | 9.5*1.5*2.0m |
| Weight | About 10.5 Tons(not include decoiler weight and spares) |
| Main structure of the machine | 450 H stee,Heat treatment and polishing surface |
| Side panel of machine | 25mm( A3 steel) |
| Suitable to process | Galvanized/Cold steel strips |
| Yield strength of raw material | G350 |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Voltage | 380V 50HZ 3Phase |
| Thickness of the raw material | 1.0-3.0mm |
| Rollers | 18 rollers |
| Diameter of the shaft | Φ80mm(Change sliding part 65mm) |
| Operating Mode | Automatic CZ Free Replacement By Motor Drive |
| Main Motor size | Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L |
| Chain Wheel and Cycle Chain | 2.0 Inch |
Click to know more about us and get a more favorable price！
Detailed Images for reference：

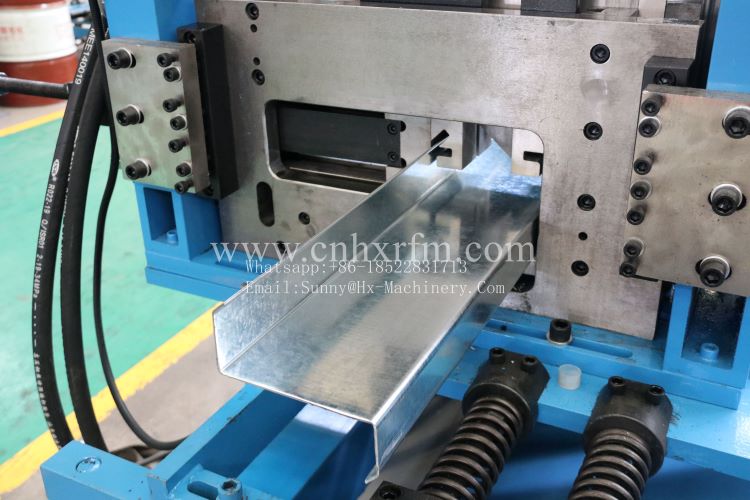

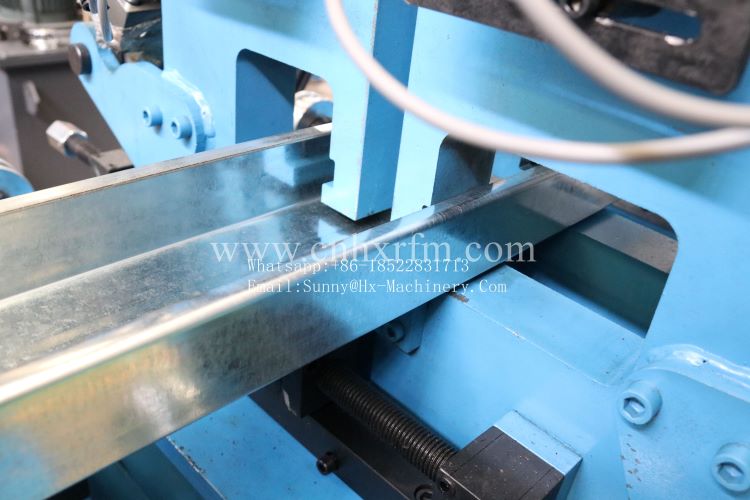

| A.Cutting device
Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension,according to the hydraulic drive and PLC computer control system
|

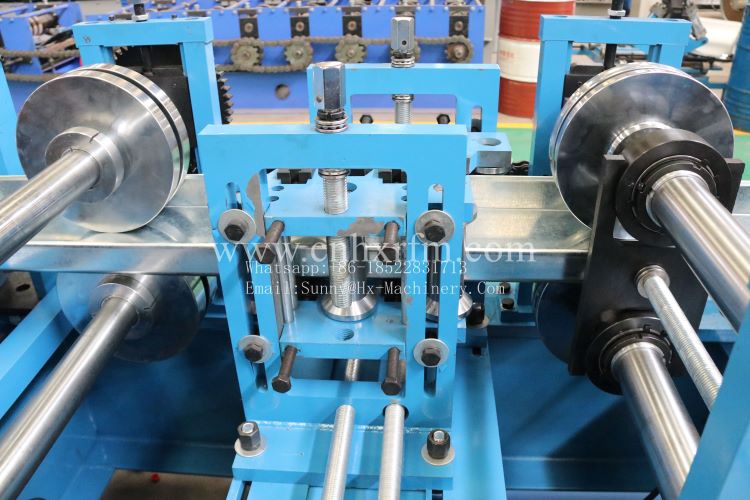

| B.Roller System
Material: GCr15(bearing steel)hard chrome plated after heat treatment
|

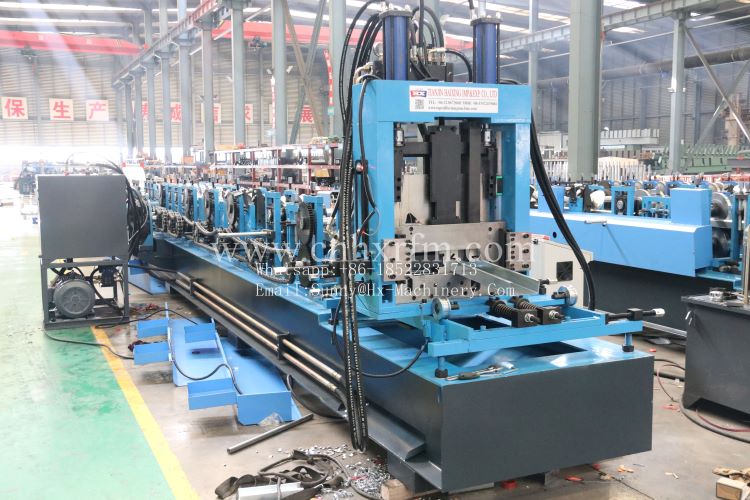

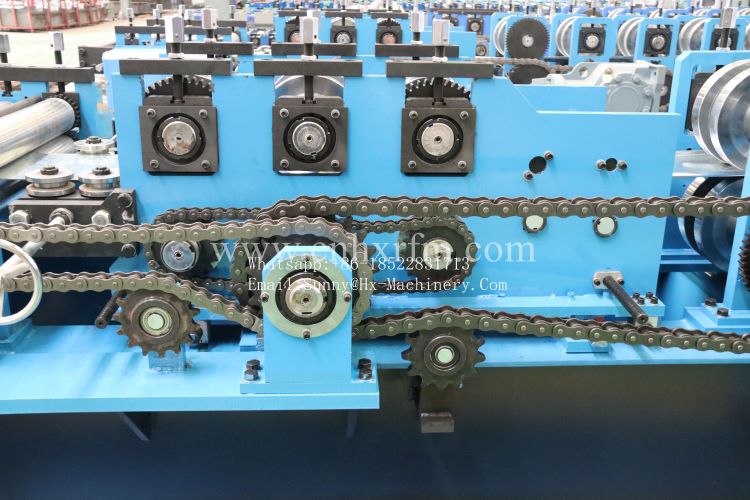

| C.Main Drive mode
Hydraulic motor drive for high precision
|

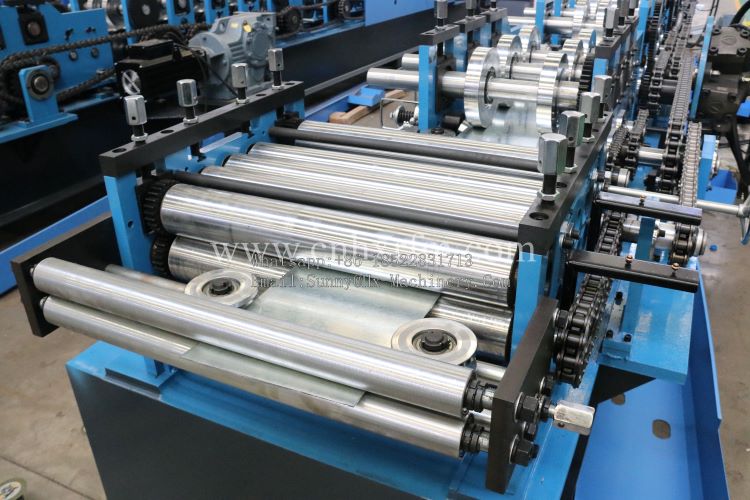

| D.Feeding leveling
The Pre-hand place with leveing rollers
|

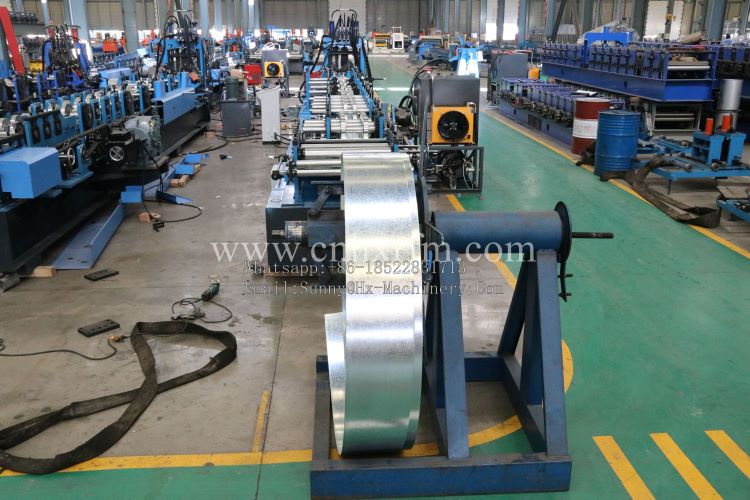

| E.Manual Uncoiler
Un-powered, manual control steel coil inner bore shrinkage and stop
|
