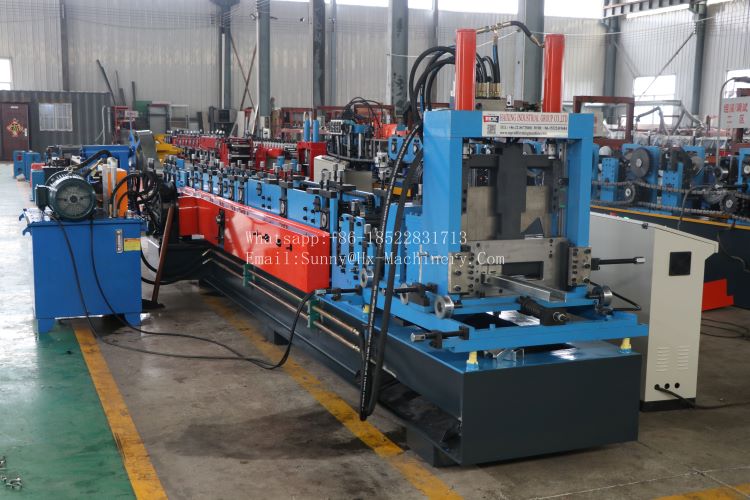

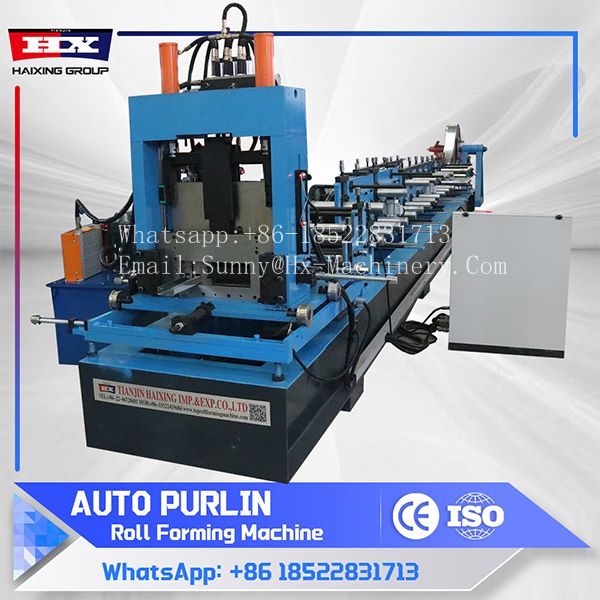

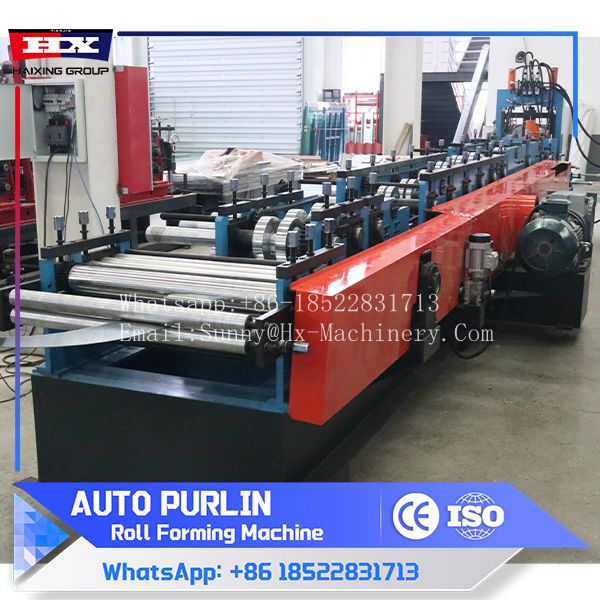

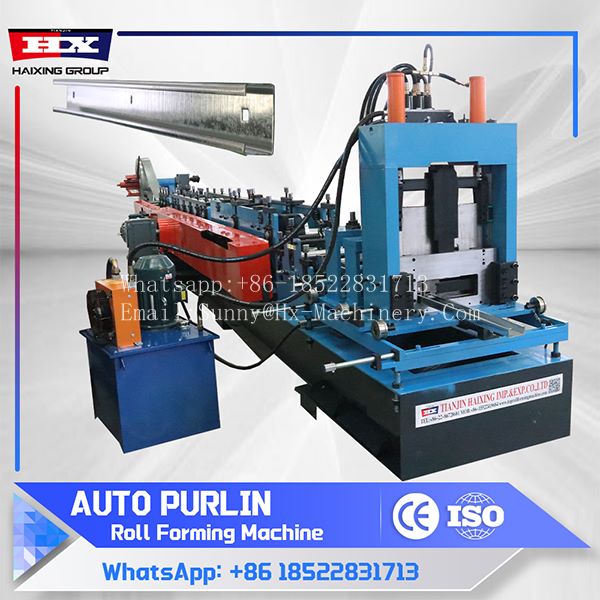

C Purlin Forming Machine is designed for the efficient production of high-quality C-shaped purlins used in construction. It operates with advanced technology to provide precise and consistent results. This machine is ideal for producing purlins of various sizes and thicknesses, ensuring flexibility for different projects.
Built with durability in mind, the C Purlin Forming Machine features a robust structure that can handle heavy workloads. It delivers fast production speeds while maintaining excellent quality control. The user-friendly interface allows easy adjustments to settings, making it simple to optimize production based on specific requirements. Whether you’re working on commercial buildings or industrial projects, this machine offers a reliable and cost-effective solution for your purlin needs.
The workflow of our c purlin forming machine：
| Main parameter of C purlin forming machine | |
| Dimensions | 10.5*1.2*1.8m |
| Weight | About 8.5Tons |
| Main structure of the machine | 400 H steel |
| Main structure of the machine | 20mm（A3 steel） |
| Suitable to process | Galvanized/Cold steel strips |
| Thickness of the raw material | 1.0mm-3.0mm |
| Yield strength of raw material | G350 |
| Rollers | 14 Rollers |
| Rolling material | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Diameter of the shaft | Φ80mm |
| Shaft material | 40Cr Modulation of heat treatment after polishing hard chromium plating |
| Voltage | 380V 50HZ 3Phase |
| Hydraulic pump | Pump station 15Kw |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58℃-60℃ |
| Control system | PLC control (Delta) |
| Productivity | Speed: 20-25m/Min |
| Punching hole | After forming, punch single hole + double hole, with round holes Φ14mm and Φ16mm and elliptical holes 28×16mm and 28×14mm can be selected |
Click to know more about our machine!
Whether you’re working on commercial buildings or industrial projects, this machine offers a reliable and cost-effective solution for your purlin needs.
And here are some part of the machine:

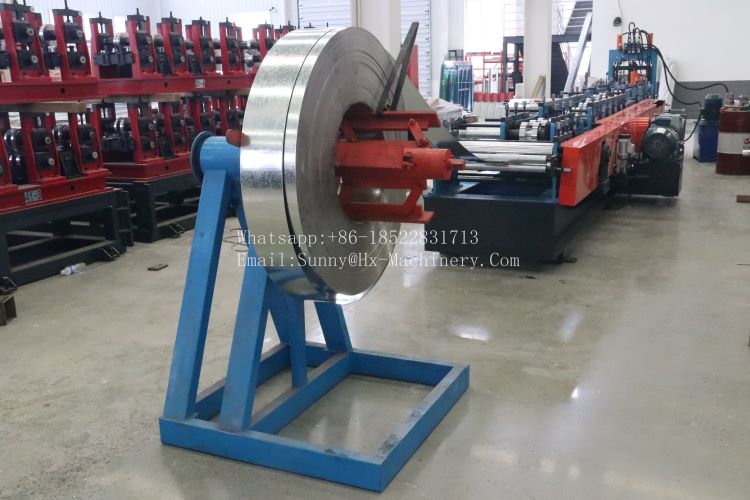

| 1.Manual Uncoiler
Un-powered, manual control steel coil inner bore shrinkage and stop
|

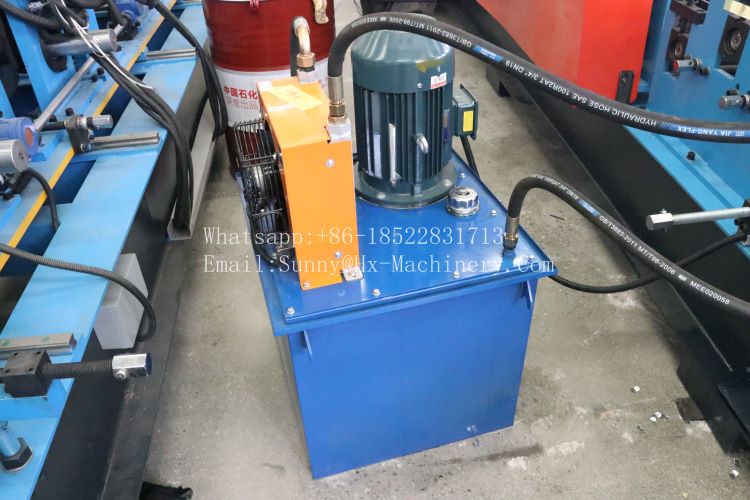

| 2.Hydraulic station
Power: depends on final design
|

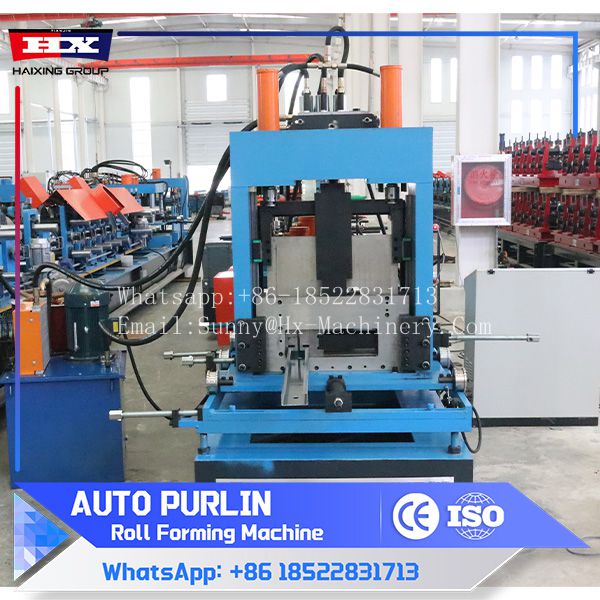

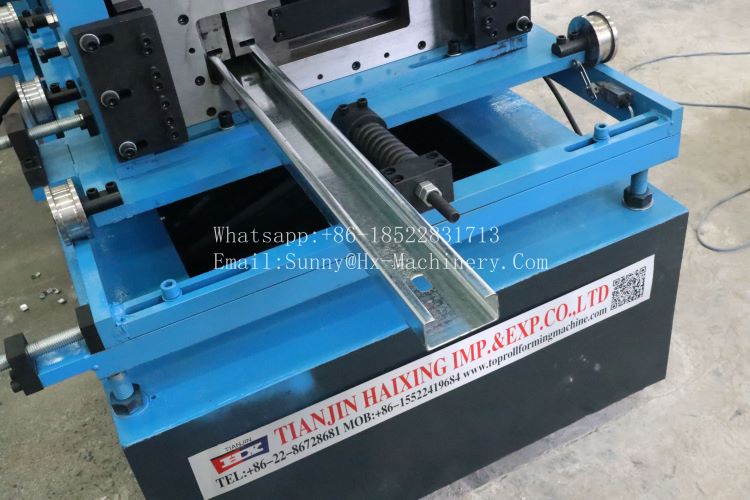

| 3.Cutting Device
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
|

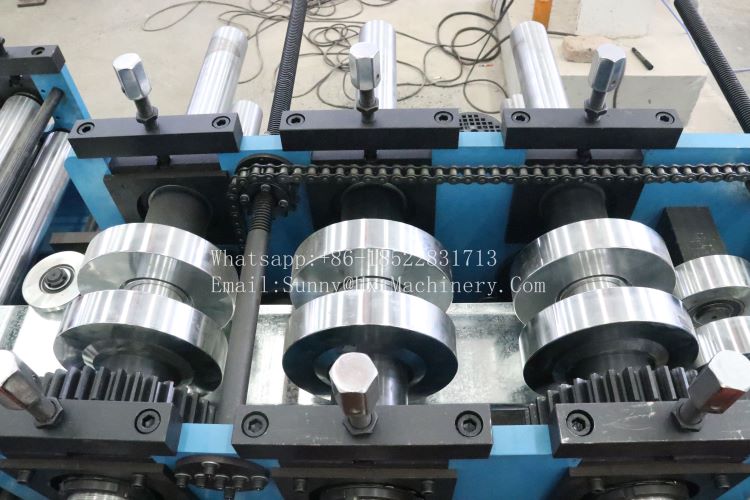

| 4.Roller System
Roller station:14rollers forming+4 groups of changeable modules+ leveling shaft+straightening shaft
|

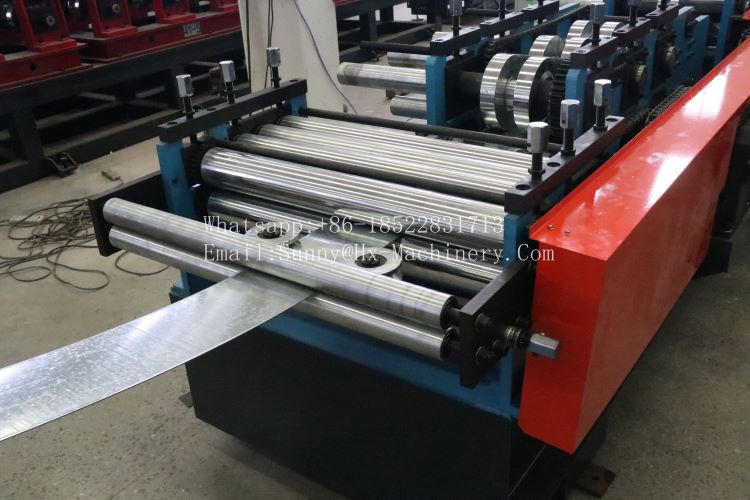

| 5.Feeding leveling
The Pre-hand place with leveing rollers Can make coil become more better when production
|
Main features of c purlin forming machine:
| 1.Produce different purlin size without changing rollers or spacers. |
| 2.No need changing cutter for different size. |
| 3.Easy operation, low maintenance cost |
| 4.Infinite sizing(any size within machine range),help to save material |
| 5.Optional Punch hole at any position of purlin web side and flange side |
