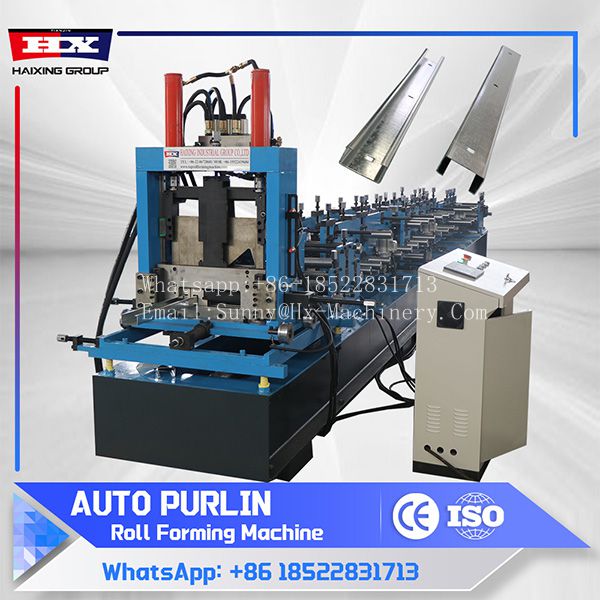

C Purlin Machine cuts, forms, and shapes steel purlins with high speed and accuracy. It handles various sizes and thicknesses to fit different construction needs. The machine features an easy-to-use control panel and sturdy components that last long. It reduces material waste and improves production efficiency, making it ideal for factories, warehouses, and roofing projects.

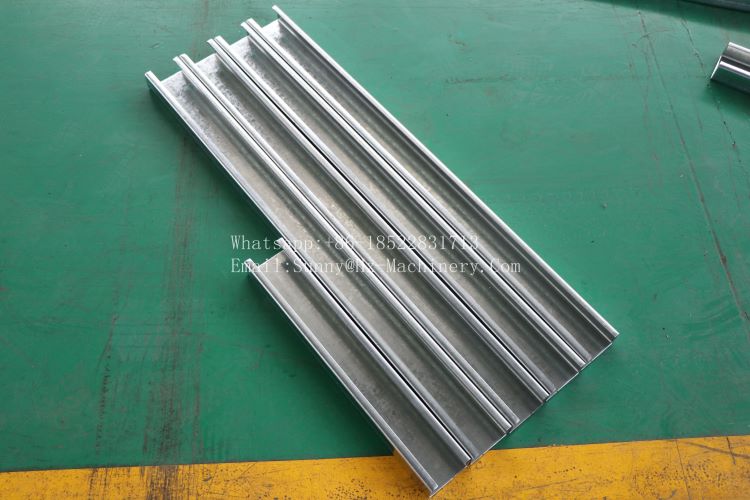

C purlin machine Drawing Model：Bottom:80-300mm Waist high:40-80mm technical details :
| Main data of C purlin machine | ||
 |
||
| 1 | Dimensions | 10.5*1.2*1.8m |
| 2 | Weight | About 8.5Tons |
| 3 | Main structure of the machine | 400 H steel |
| 4 | Side panel of machine | 20mm( A3 steel) |
| 5 | Suitable to process | Galvanized/Cold steel strips |
| 6 | Thickness of the raw material | 1.0mm-3.0mm |
| 7 | Yield strength of raw material | G350 |
| 8 | Rollers | 14rollers forming+4 groups of changeable modules+ leveling shaft+straightening shaft |
| 9 | Diameter of the shaft | Φ80mm |
| 10 | voltage | 380V 50HZ 3Phase |
| 11 | Hydraulic pump | Pump station 15Kw |
| 12 | Material of the cutting blade | Cr12MoV,Quenched treatment 58℃-60℃ |
| 13 | Control system | PLC control (Delta) |
| 14 | Drive mode | Hydraulic motor, Outer five-star piston connecting rod type (Ningbo Hanzhu) |
| 15 | Chain Wheel and Cycle Chain | 2.0 Inch |
| 16 | Productivity | 20-25m/min |
You can click this to know more about our machine！
Boost your steel production with the C channel forming machine. It forms precise purlins fast, saves materials, and works reliably for all construction projects.

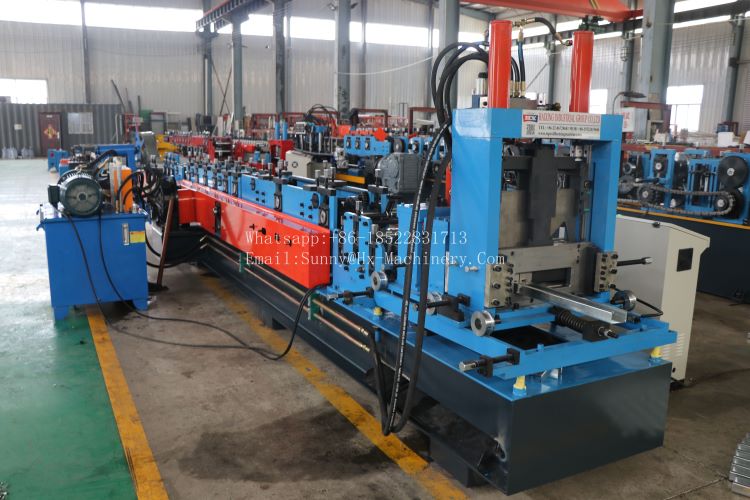

Details images of C purlin machine：

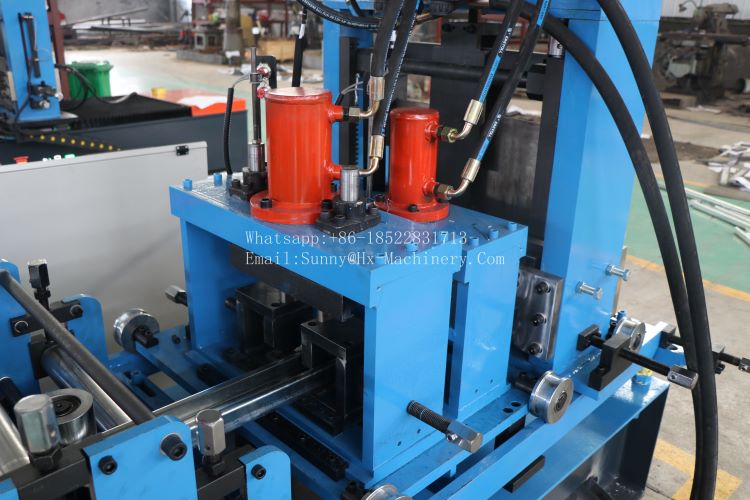

| 1.Cutting Device
|

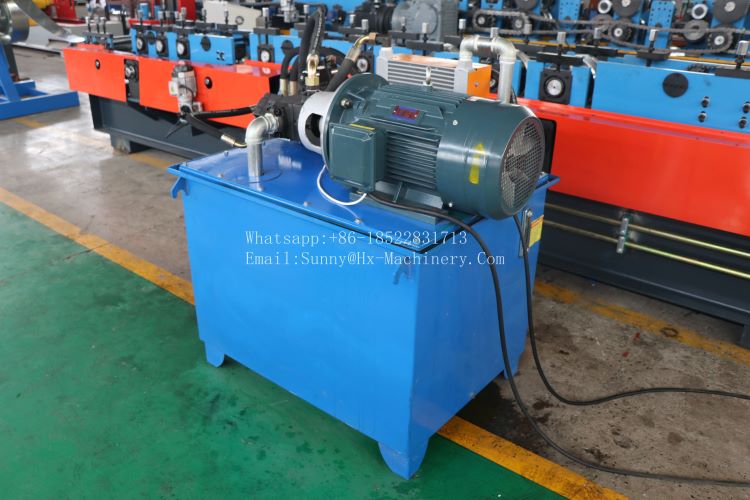

| 2.Hydraulic station
|
| 3.Roller System
|

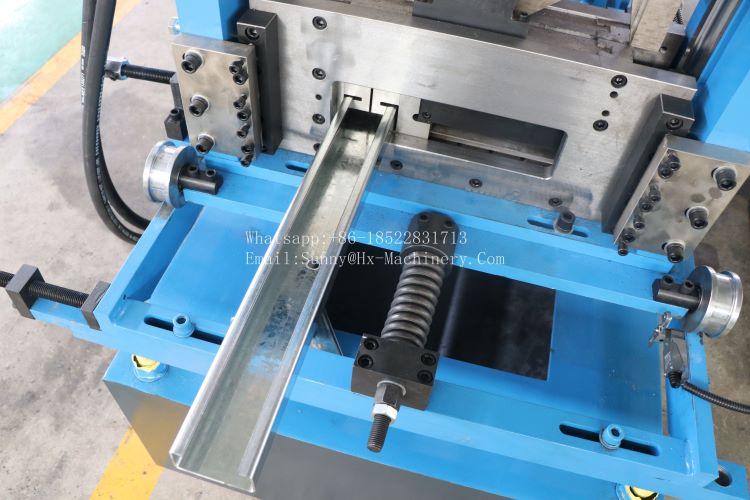

| 4.Feeding leveling
|
C purlin machine loading and shipment ：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
