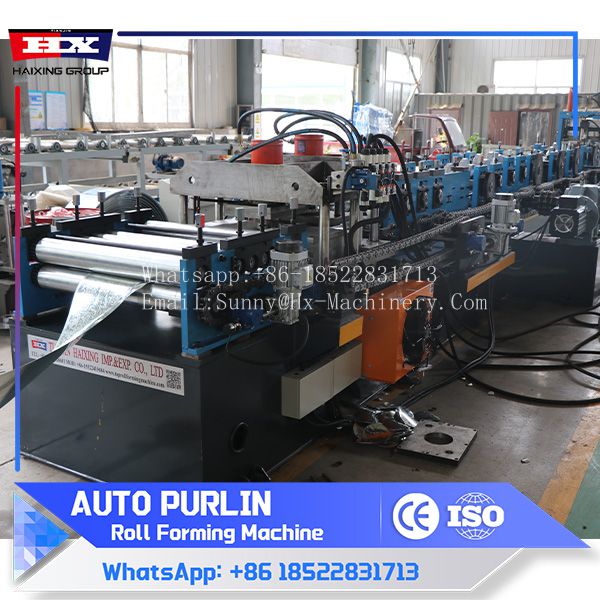

C purlin machine manufacturers

C Purlin Machine Manufacturers design and produce reliable machines for shaping steel purlins. These machines handle various sizes and thicknesses, ensuring precise and consistent results. Operators control the machines easily through intuitive panels, which save time and reduce errors. The machines use durable components to minimize maintenance and maximize productivity. Ideal for factories, warehouses, and construction projects, these machines help businesses increase efficiency and lower material waste.

The workflow of our C purlin machine manufacturers：

Main parameter of C purlin machine manufacturers
Dimensions	10.5*1.2*1.8m
Weight	About 8.5Tons
Main structure of the machine	400 H steel
Main structure of the machine	20mm（A3 steel）
Suitable to process	Galvanized/Cold steel strips
Thickness of the raw material	1.0mm-3.0mm
Yield strength of raw material	G350
Rollers	14 Rollers
Rolling material	GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Diameter of the shaft	Φ80mm
Shaft material	40Cr Modulation of heat treatment after polishing hard chromium plating
Voltage	380V 50HZ 3Phase
Hydraulic pump	Pump station 15Kw
Material of the cutting blade	Cr12MoV,Quenched treatment 58℃-60℃
Control system	PLC control (Delta)
Productivity	Speed: 20-25m/Min
Punching hole	After forming, punch single hole + double hole, with round holes Φ14mm and Φ16mm and elliptical holes 28×16mm and 28×14mm can be selected

Click to know more about our machine!

Whether you’re working on commercial buildings or industrial projects, this C purlin machine manufacturers offers a reliable and cost-effective solution for your purlin needs.

And here are some part of the machine:

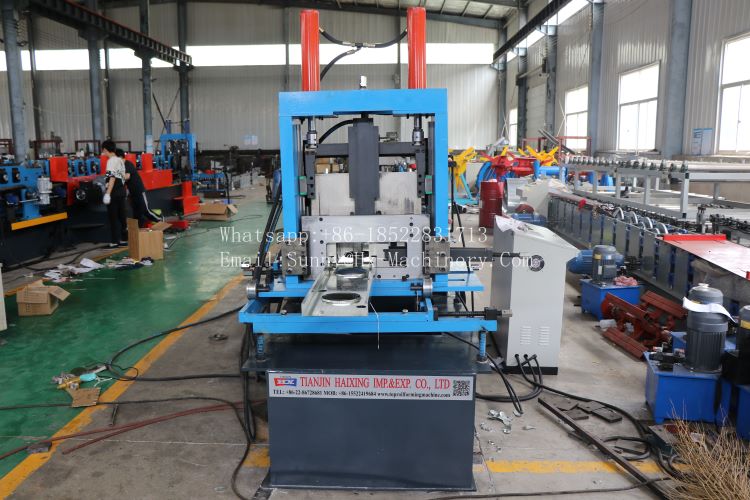

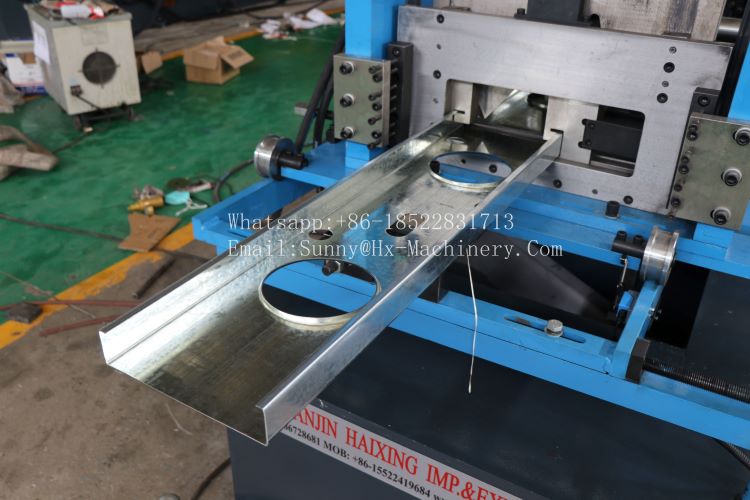

1.Cutting Device Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension according to the hydraulic drive and PLC computer control system

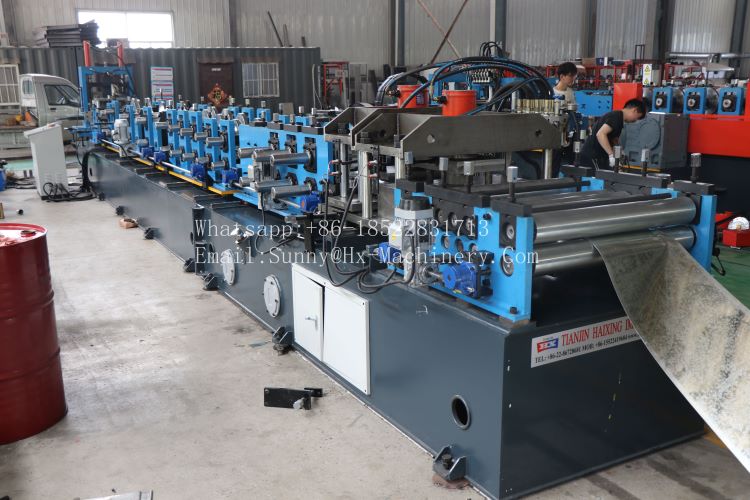

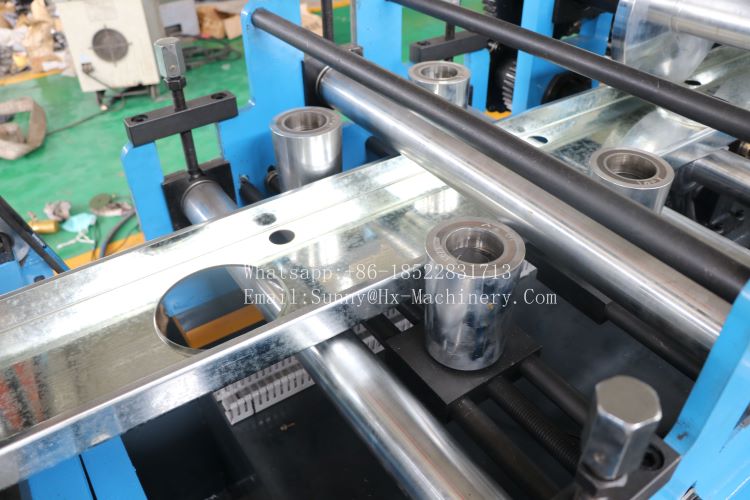

	2.Roller System Material: GCr15(bearing steel)hard chrome plated after heat treatment Roller station:14rollersforming+4 groups of changeable modules+leveling shaft+straightening shaft Thickness of feeding material: 1-3.0mm

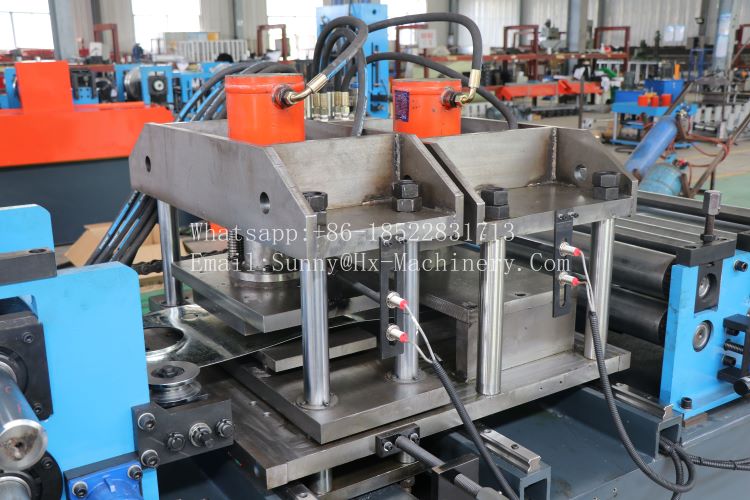

3.Punching section
	4.Feeding leveling The Pre-hand place with leveing rollers Can make coil become more better when production
5.Uncoiler Un-powered, manual control steel coil inner bore shrinkage and stop Max. feeding width: 508mm, coil ID range 470mm±30mm Capacity: Max. 5Ton

Main features of C purlin machine manufacturers:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side
