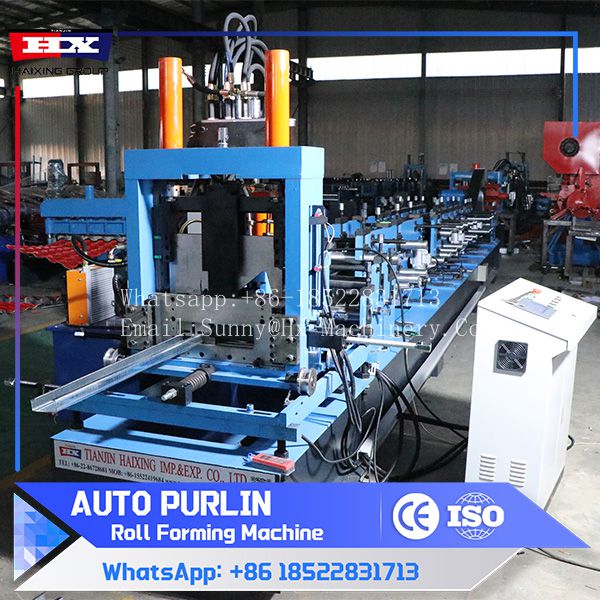

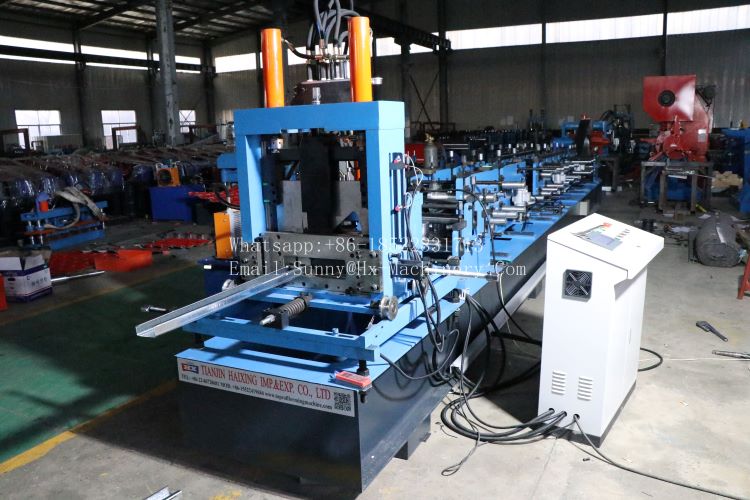

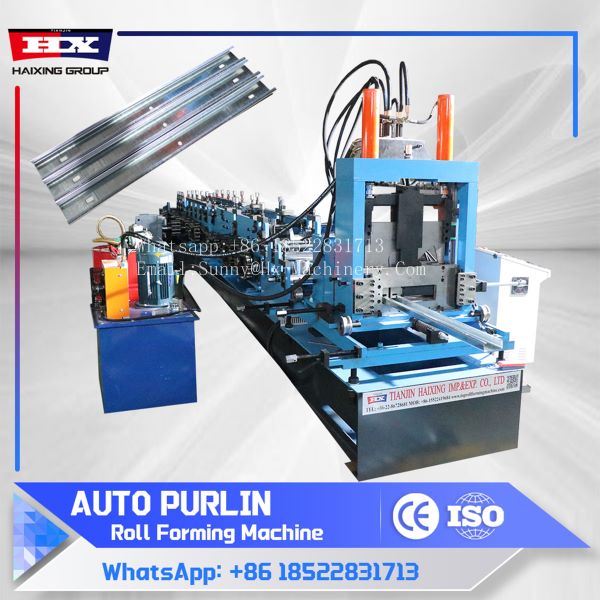

C Purlin Roll Forming Machine delivers high efficiency and precise performance for manufacturing C-shaped steel profiles. It features a robust frame, high-quality rollers, and a reliable drive system that ensures smooth operation. Operators can easily adjust the machine for different profile sizes and material thicknesses. With its user-friendly control panel and energy-efficient design, the machine reduces downtime and production costs while maintaining consistent product quality.
The workflow of our c purlin forming machine：
| Main parameter of C purlin roll forming machine | |
 |
|
| Dimensions | 10.5*1.2*1.8m |
| Weight | About 8.5Tons |
| Main structure of the machine | 400 H steel |
| Main structure of the machine | 20mm（A3 steel） |
| Suitable to process | Galvanized/Cold steel strips |
| Thickness of the raw material | 1.0mm-3.0mm |
| Yield strength of raw material | G350 |
| Rollers | 14 Rollers |
| Rolling material | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Diameter of the shaft | Φ80mm |
| Shaft material | 40Cr Modulation of heat treatment after polishing hard chromium plating |
| Voltage | 380V 50HZ 3Phase |
| Hydraulic pump | Pump station 15Kw |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58℃-60℃ |
| Control system | PLC control (Delta) |
| Productivity | Speed: 20-25m/Min |
| Punching hole | After forming, punch single hole + double hole, with round holes Φ14mm and Φ16mm and elliptical holes 28×16mm and 28×14mm can be selected |
Click to know more about our machine!

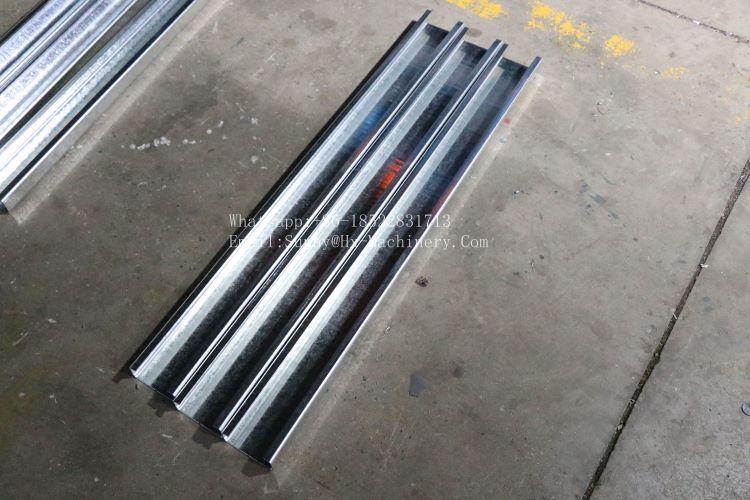

No matter if you are tackling commercial constructions or industrial projects, this machine provides a dependable and efficient solution for all your C purlin requirements.
And here are some part of the machine:
| 1.Manual Uncoiler
Un-powered, manual control steel coil inner bore shrinkage and stop
|

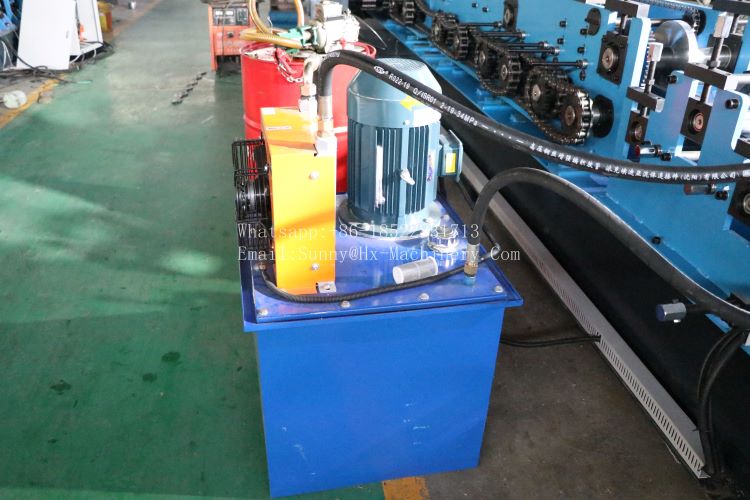

| 2.Hydraulic station
Power: depends on final design
|

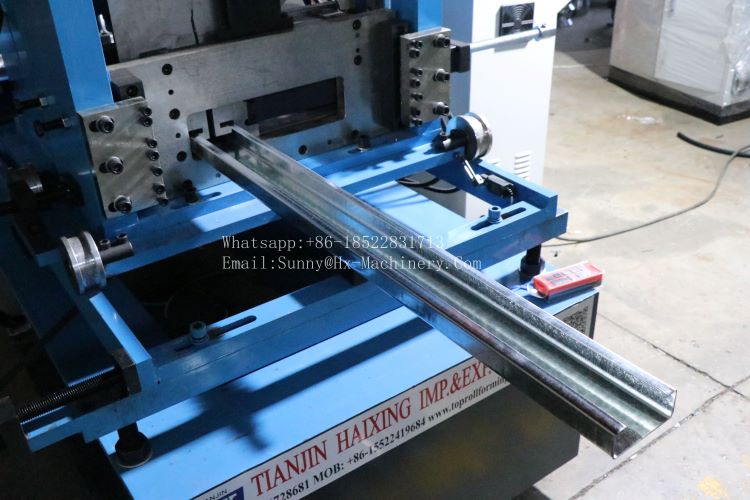

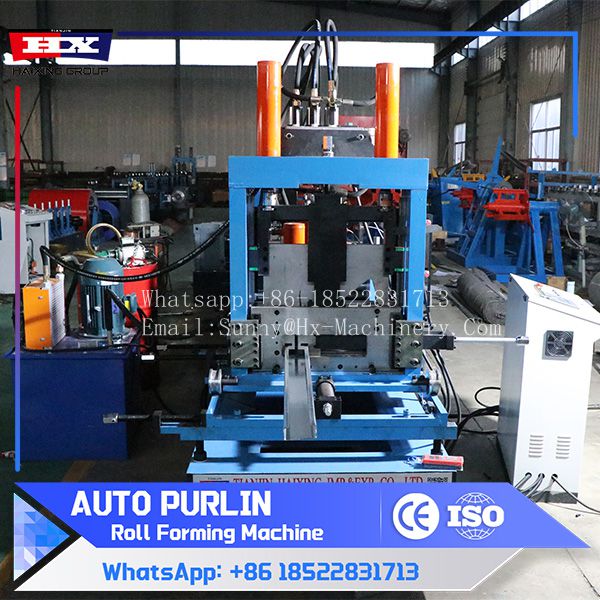

| 3.Cutting Device
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
|

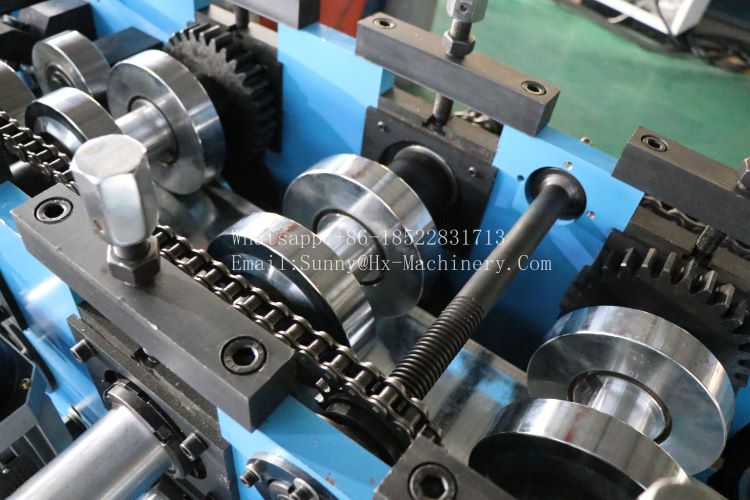

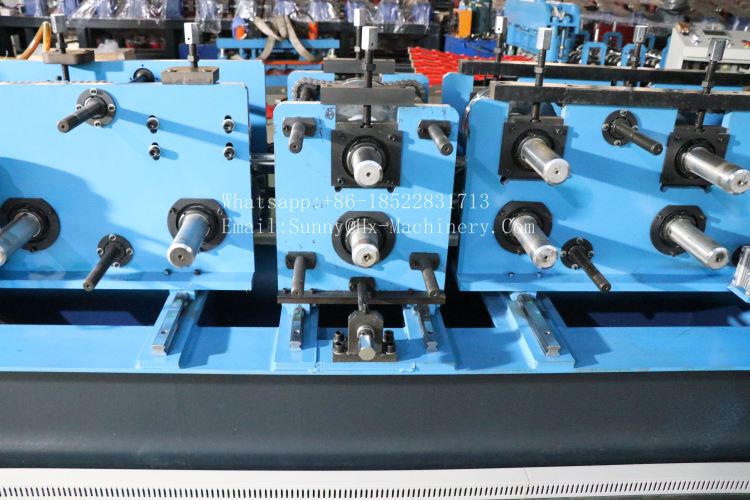

| 4.Roller System
Roller station:14rollers forming+4 groups of changeable modules+ leveling shaft+straightening shaft
|
Main features of C purlin roll forming machine:
| High Precision Rollers | Ensure accurate and consistent C purlin profiles |
| Adjustable Profile Sizes | Easily change width, height, and material thickness |
| Durable Construction | Sturdy frame and high-quality components for long-term operation |
| User-Friendly Control System | Simple operation with clear interface and easy monitoring |
| Energy-Efficient Design | Reduces power consumption and operating costs. |
