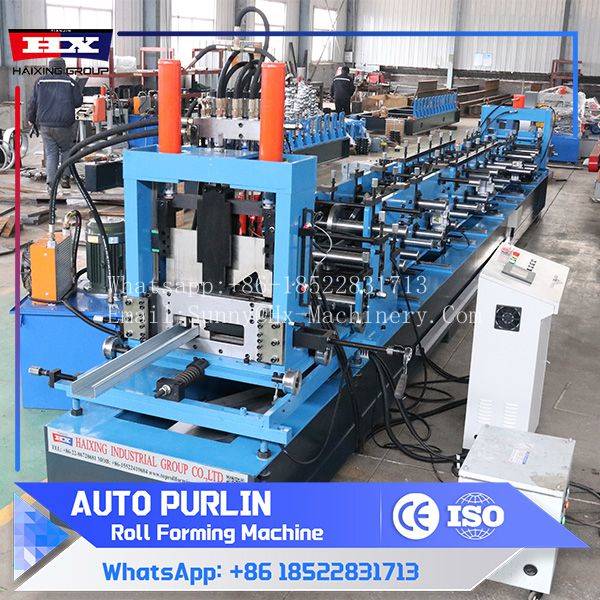

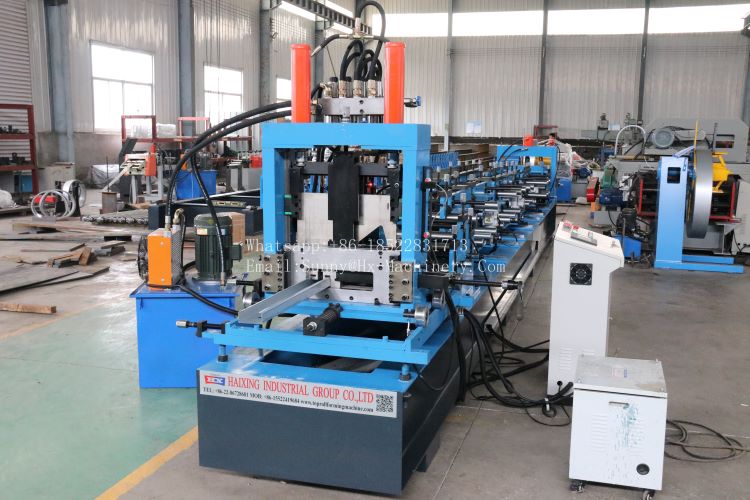

C purlins machine

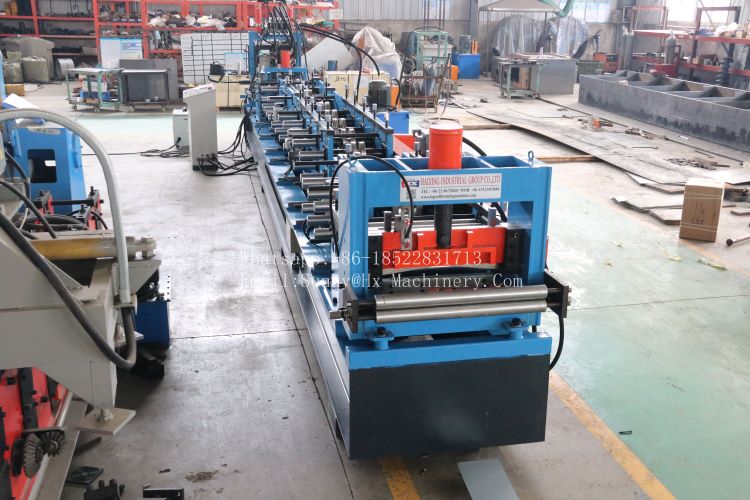

C Purlins Machine is designed to efficiently produce high-quality C-shaped steel profiles for construction and industrial applications. It features a sturdy frame, precision rollers, and a reliable drive system, ensuring smooth operation and consistent output. Operators can quickly adjust the machine to handle different profile sizes and material thicknesses.

Equipped with a user-friendly control panel and energy-efficient design, the C Purlins Machine reduces downtime and lowers operating costs. Its durable components and stable performance make it a dependable solution for long-term production, delivering accurate and uniform steel purlins every time.

Main parameter of C purlins machine
Dimensions	10.5*1.2*1.8m
Weight	About 8.5Tons
Main structure of the machine	400 H steel
Main structure of the machine	20mm（A3 steel）
Suitable to process	Galvanized/Cold steel strips
Thickness of the raw material	1.0mm-3.0mm
Yield strength of raw material	G350
Rollers	14 Rollers
Rolling material	GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Diameter of the shaft	Φ80mm
Shaft material	40Cr Modulation of heat treatment after polishing hard chromium plating
Voltage	380V 50HZ 3Phase
Hydraulic pump	Pump station 15Kw
Material of the cutting blade	Cr12MoV,Quenched treatment 58℃-60℃
Control system	PLC control (Delta)
Productivity	Speed: 20-25m/Min
Punching hole	After forming, punch single hole + double hole, with round holes Φ14mm and Φ16mm and elliptical holes 28×16mm and 28×14mm can be selected

Click to know more about our machine!

And here are some part of the machine:

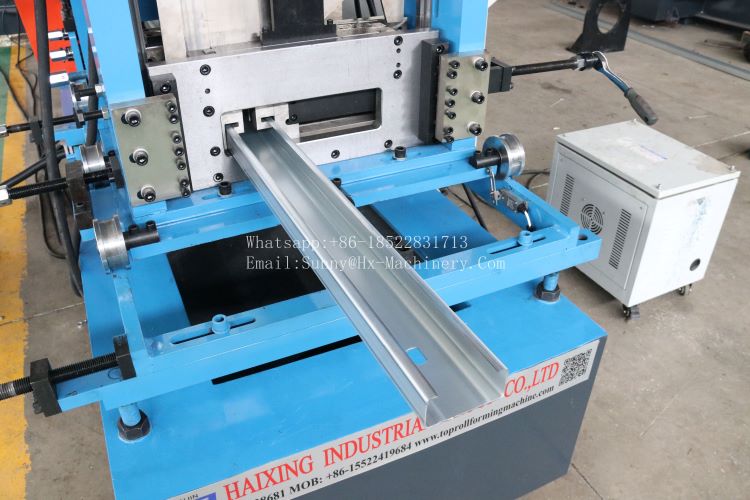

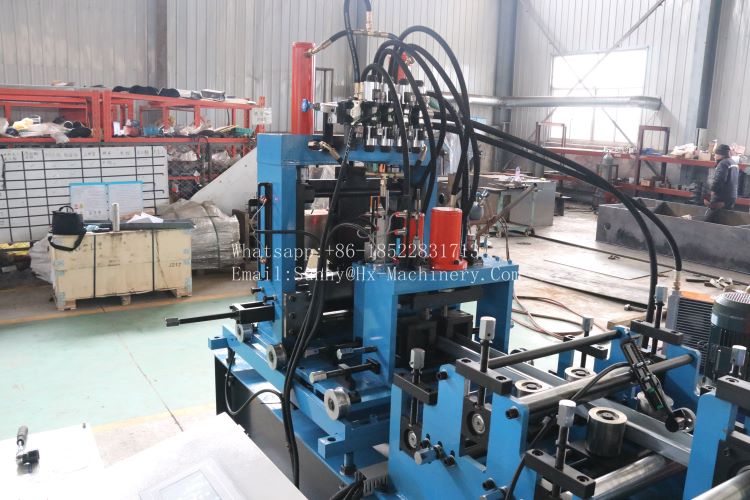

1.Cutting Device Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension according to the hydraulic drive and PLC computer control system

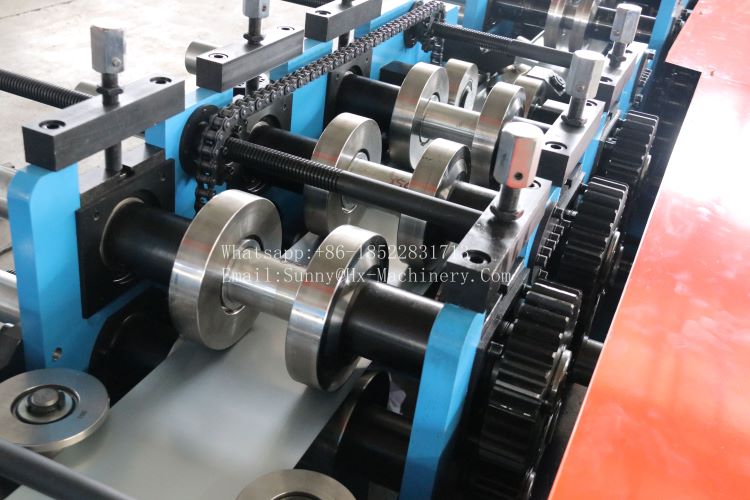

	2.Roller System Material: GCr15(bearing steel)hard chrome plated after heat treatment Roller station:14rollersforming+4 groups of changeable modules+leveling shaft+straightening shaft Thickness of feeding material: 1-3.0mm

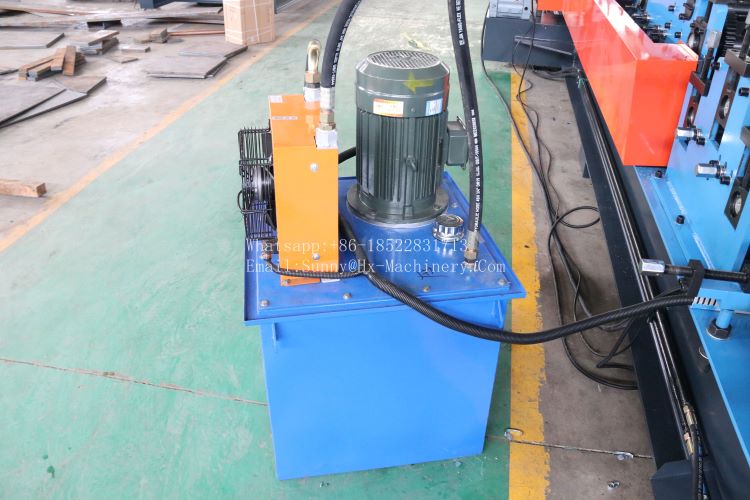

3.Hydraulic station Power: depends on final design Hydraulic oil: 46# hydraulic oil Work pressure: 12-16Mpa adjustable Solenoid valve: 1groups Color: as customer’s request The Power :22Kw
	4.Feeding leveling The Pre-hand place with leveing rollers Can make coil become more better when production
5.Uncoiler Un-powered, manual control steel coil inner bore shrinkage and stop Max. feeding width: 508mm, coil ID range 470mm±30mm Capacity: Max. 5Ton

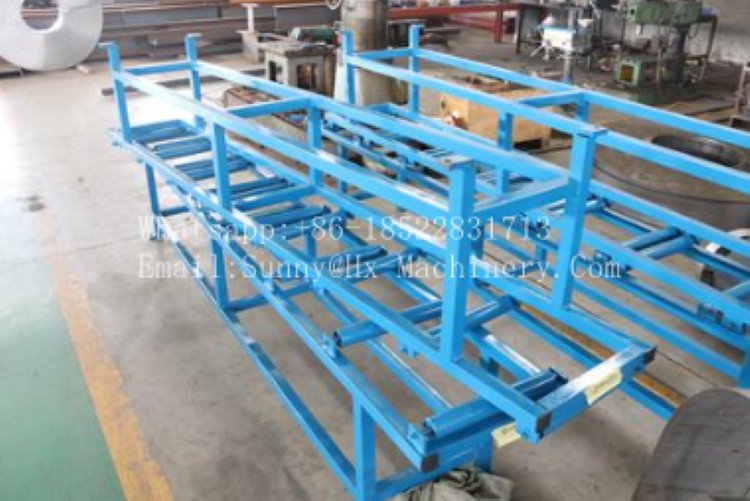

	6.Receiving Table It is used for transmitting and collecting the finished products 3Meters*2Pieces

C purlins machine loading and shipment：

Host packaging	Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame
Electronic control system	Electronic control system
Precision parts	They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper.
Spare parts and tools	All spare parts are placed in wooden boxes
Packaging labeling	There are usually clear markings on the outside of the box

Main features of C purlin machine manufacturers:

1.Produce different purlin size without changing rollers or spacers

2.No need changing cutter for different size

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side
