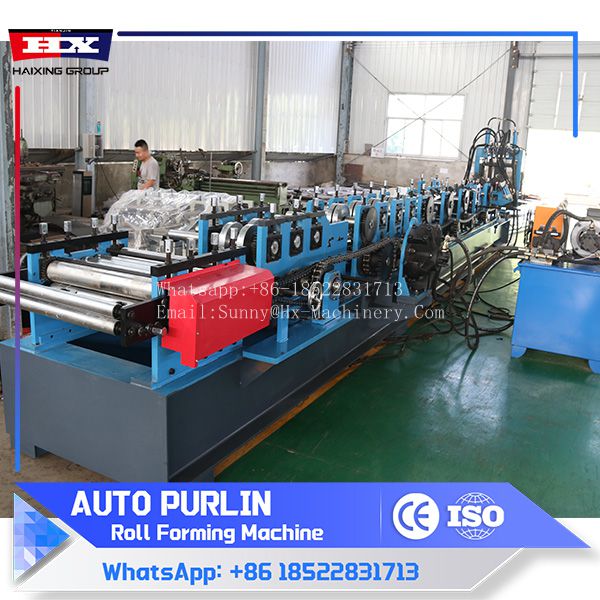

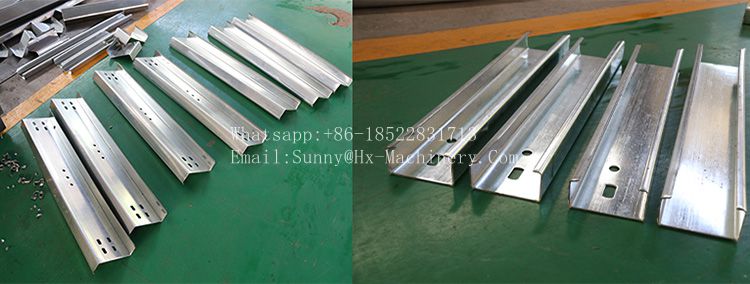

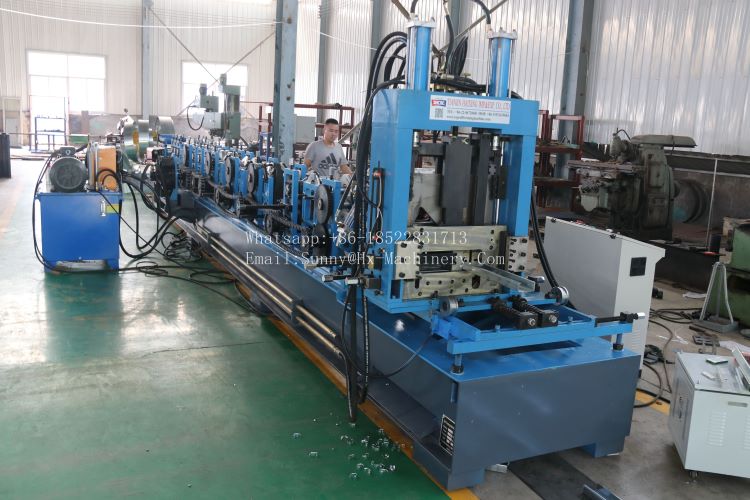

C & Z Purlin Machine produces strong and precise C and Z shaped purlins quickly and efficiently. This machine suits factories, workshops, and construction material manufacturers. It delivers high-quality purlins while reducing material waste and saving energy. Users enjoy simple operation, low maintenance, and stable performance. The machine also provides flexible options, including punch holes on both web and flange sides, helping businesses increase productivity, reduce costs, and maintain consistent purlin production.
C and z purlin machine Drawing Model：C:Bottom:80-300mm Waist high:40-80mm
Z:Bottom:50-80mm Waist high:120-300mm
| Main data of the C & z purlin machine | |
| Dimensions | 9.5*1.5*2.0m |
| Weight | About 10.5 Tons(not include decoiler weight and spares) |
| Main structure of the machine | 450 H stee,Heat treatment and polishing surface |
| Side panel of machine | 25mm( A3 steel) |
| Suitable to process | Galvanized/Cold steel strips |
| Yield strength of raw material | G350 |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Voltage | 380V 50HZ 3Phase |
| Thickness of the raw material | 1.0-3.0mm |
| Rollers | 18 rollers |
| Diameter of the shaft | Φ80mm(Change sliding part 65mm) |
| Operating Mode | Automatic CZ Free Replacement By Motor Drive |
| Main Motor size | Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L |
| Chain Wheel and Cycle Chain | 2.0 Inch |
Click to know more about us and get a more favorable price！
Detailed Images for reference：

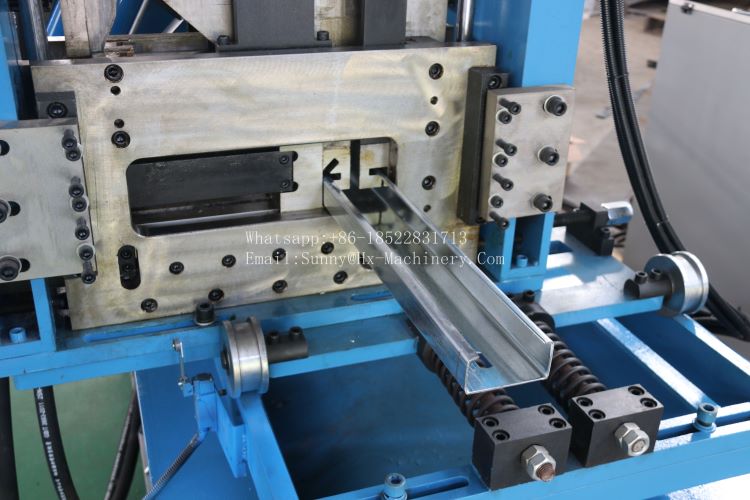

| 1 | Cutting Device
Blade and mold material: Cr12Mov steel with quenched 60-62°C |
 |

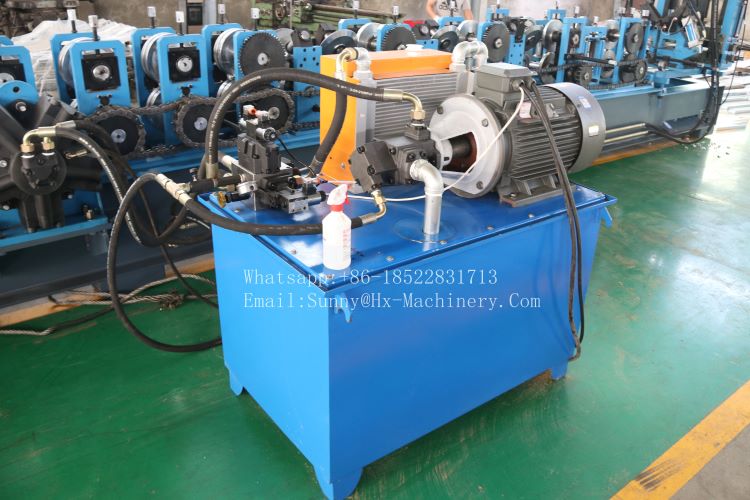

| 2 | Hydraulic station
Power: depends on final design |
 |

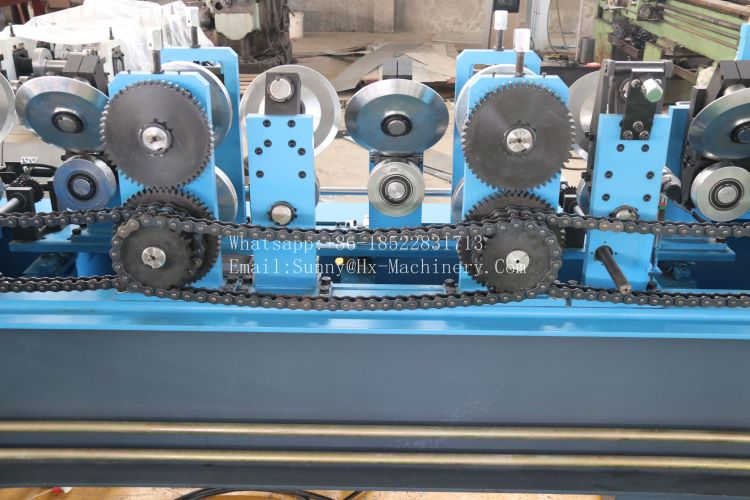

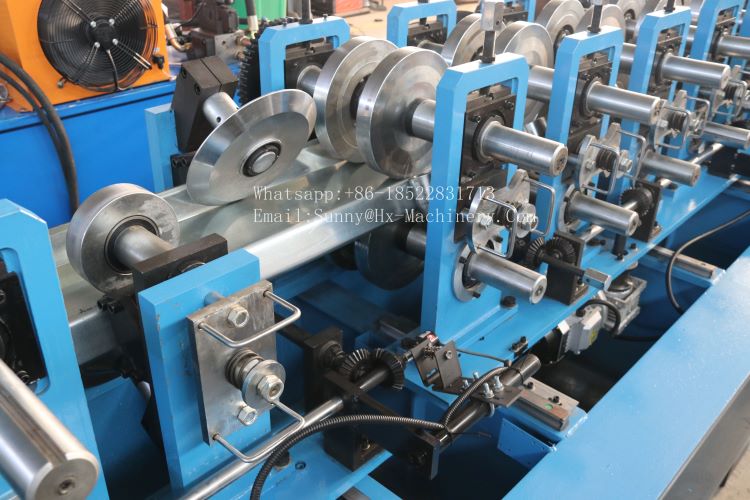

| 3 | Roller System
Material: GCr15(bearing steel)hard chrome plated after heat treatment |
 |
| 4 | Main Drive mode
Hydraulic motor drive for high precision |
 |
| 5 | Receiving Table
It is used for transmitting and collecting the finished products |
 |
About us:
Our campany Haixing Tianjin is a leading manufacturer of cold roll forming machines, specializing in a wide range of products. Our main offerings include roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction machinery.
With extensive experience serving diverse international markets, we cater to various customer needs, including profile drawing, operation language preferences, material thickness ranges, instruction manuals, installation services, and ongoing online after-sales support. Our machines feature medium to high-end configurations, incorporating top-quality PLCs, motors, frequency converters, long-lasting components, remote control capabilities, multifunctional features, and energy-efficient designs.
