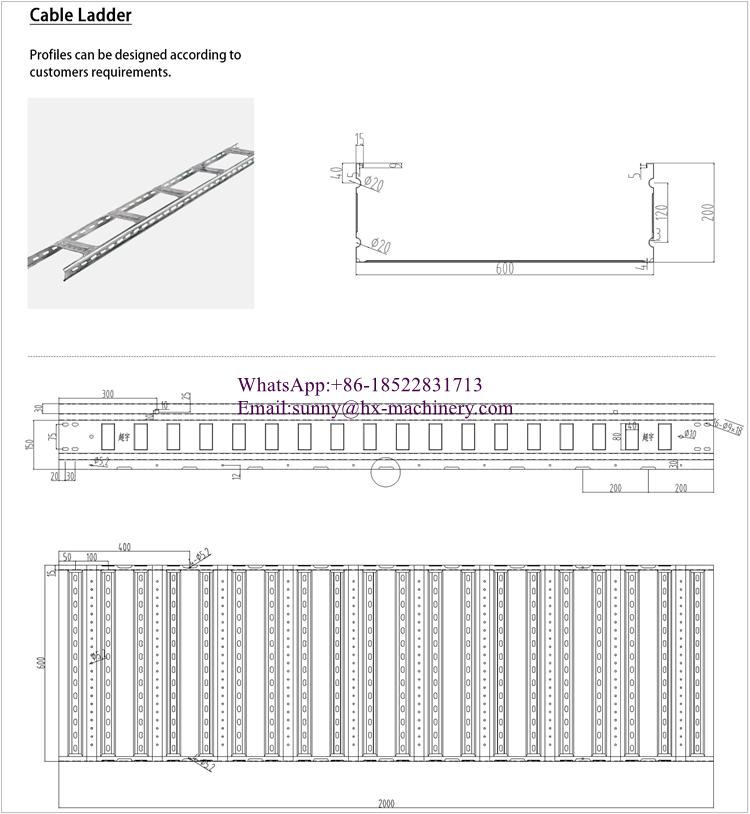

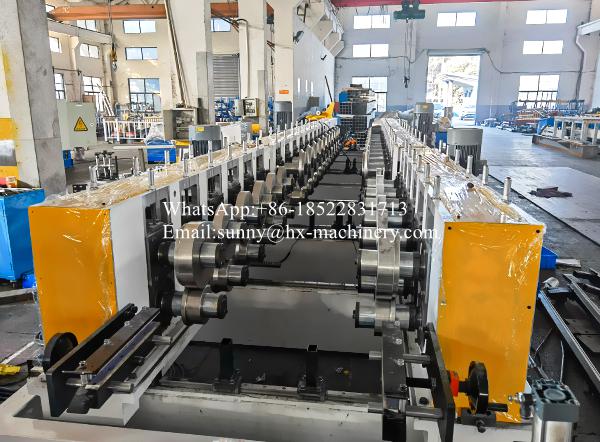

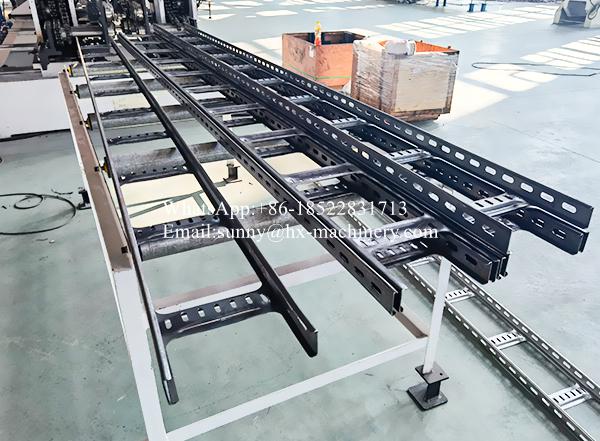

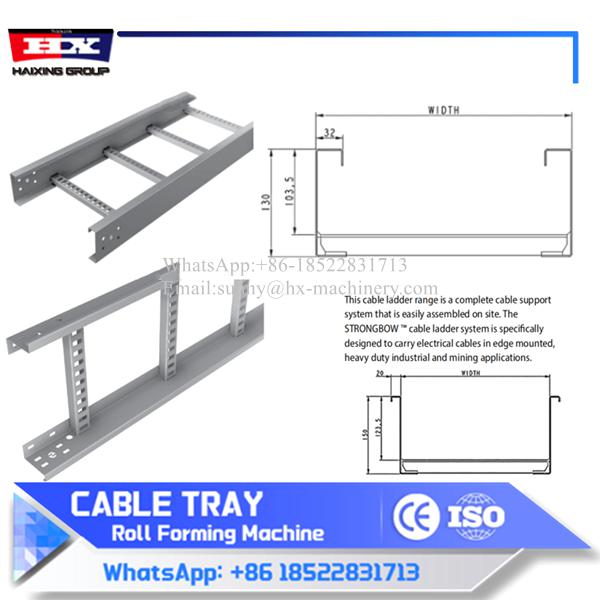

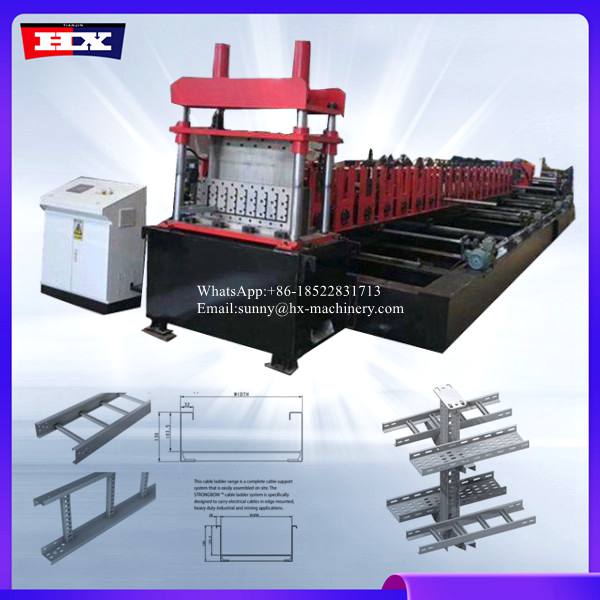

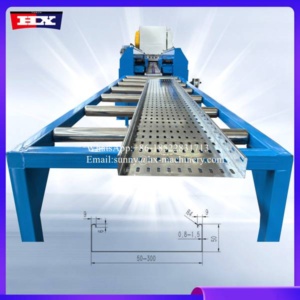

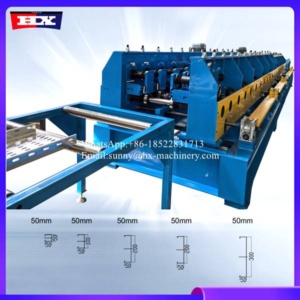

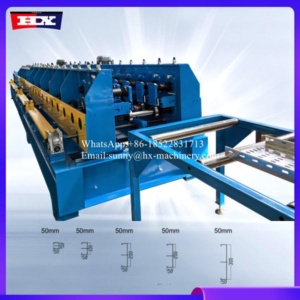

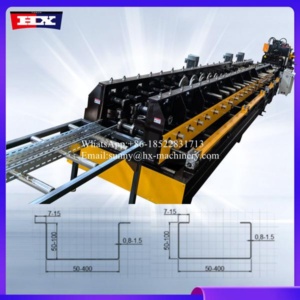

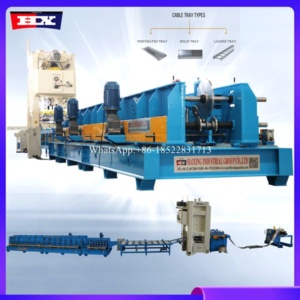

Cable ladder machine stepped cable tray roll forming ladder-type cable trays is a fully automated production line dedicated to manufacturing ladder-type cable trays.These trays, characterized by their two side rails connected by individual cross rungs (resembling a ladder), are widely used for supporting heavy-duty power cables in industrial plants, data centers, and infrastructure projects. This machine efficiently produces these trays from raw metal coil into finished, cut-to-length products with minimal operator intervention.

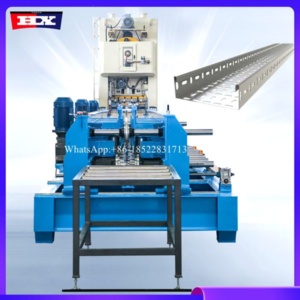

Cable Ladder Roll Forming Machine Production Line
| Perforated cable tray roll forming machine parameters | ||
| 1 | Equipment area | About 38×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-950 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 40KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |

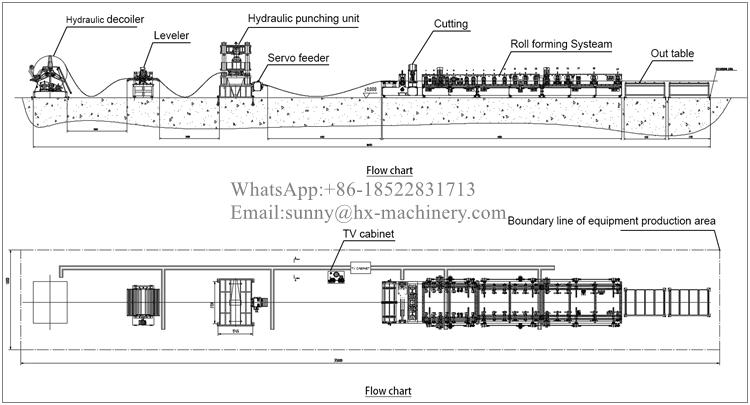

Cable ladder roll forming machine production line detailed images

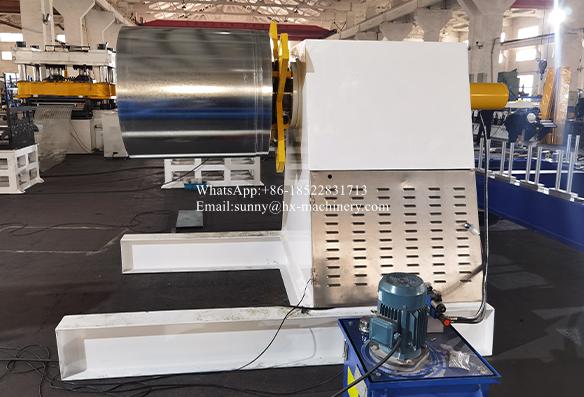

| 1 | Uncoiler & Decoiling System Holds and feeds the large metal coil (steel or aluminum) into the production line |
 |

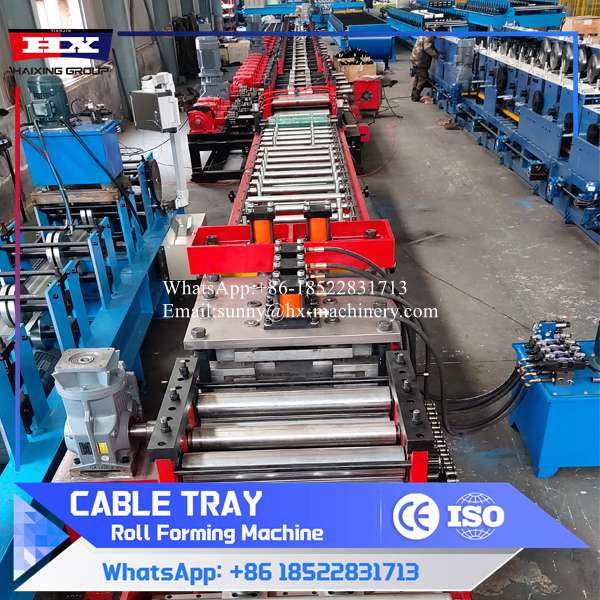

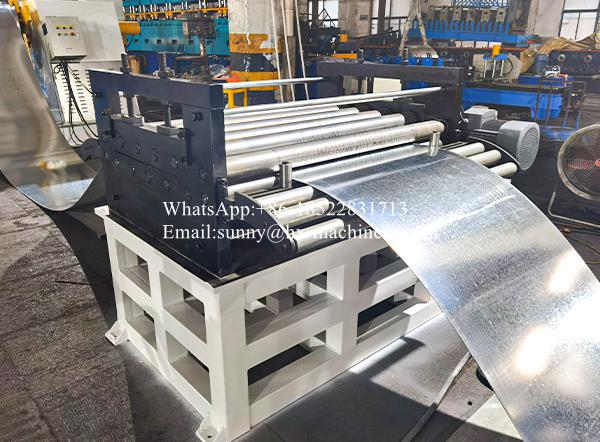

| 2 | Feeding & Leveling Unit Precisely guides the metal strip and flattens it to ensure a perfect starting material for forming. |
 |

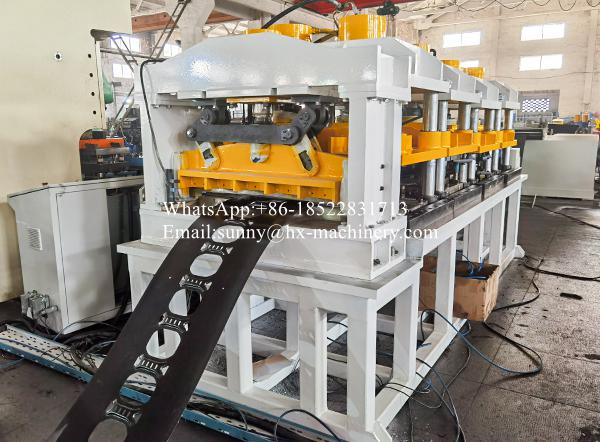

| 3 | Punching System A critical station that precisely punches holes in the side rails for installation (bolt holes) and may also notch the material to facilitate the forming of the rungs. |
 |

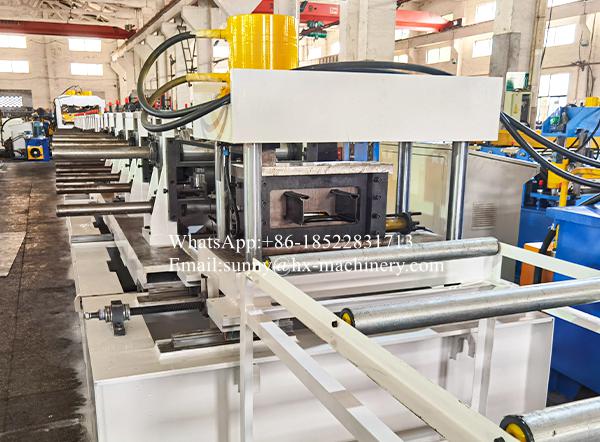

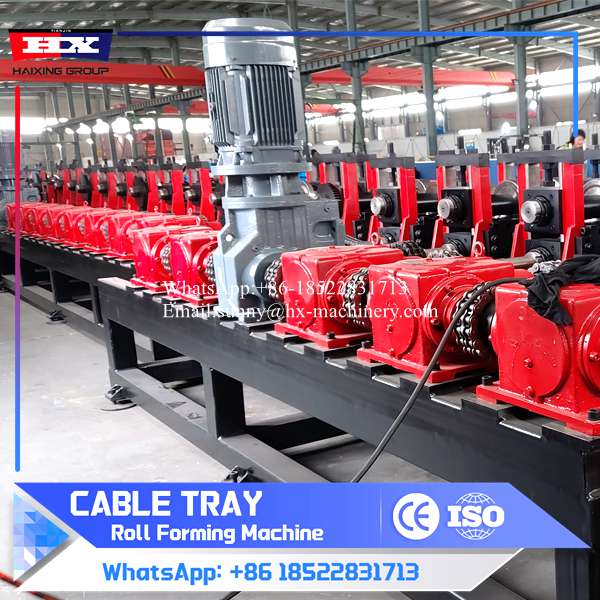

| 4 | Roll Forming Station The heart of the machine. It comprises a series of paired rollers, organized in stands. Each set of rollers progressively bends the metal strip step-by-step into the final profile of the ladder tray, including the side rails and the integration of the cross rungs. |
 |

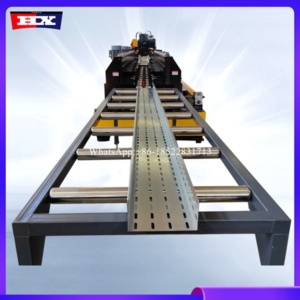

| 5 | Cutting System Accurately cuts the continuously formed tray to the pre-set length.This can be a flying cut (saw or shear that moves with the material for a clean, burr-free cut) or a stationary shear. |
 |

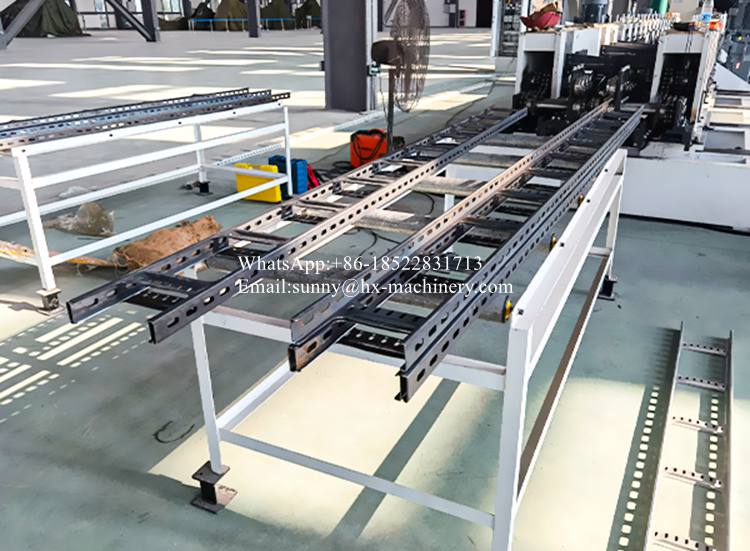

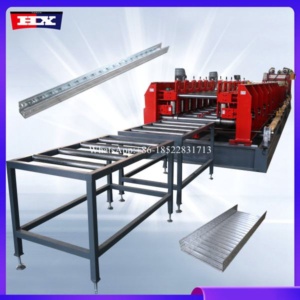

| 6 | Output Conveyor & Stacking System Receives the finished trays and transports them away for convenient collection and packaging. |
 |
Perforated cable tray roll forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
About our service for galvanized cable tray making machine
| Pre-sales consultation and customization | Provide equipment selection suggestions and production line configuration solutions based on your needs (such as bridge type, material, specifications, and output), and accept customized designs |
| Equipment installation and debugging | Professionals will come to install the equipment and conduct on-site debugging to ensure the normal operation of the equipment and the production of qualified products. |
| Technical training and operation | Provide training for your operation and maintenance personnel, including equipment operation, programming (such as touch screen settings), daily maintenance, simple troubleshooting, etc. |
| After-sales service and support | Provide warranty period (usually 1 year or as agreed), remote technical guidance, fault response, and regular return visits. |
| Repair and spare parts supply | Provide equipment maintenance services and supply original spare parts (such as rollers, dies, wearing parts, etc.) to ensure the service life and accuracy of the equipment. |
