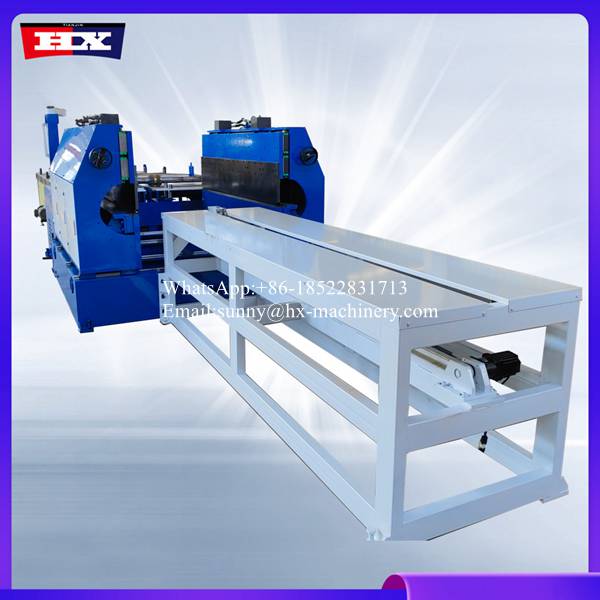

Cable tray bending machine belong to fully automatic double-head bending machine. Specifications: 800/200-100/50.
The cable tray equipment we provide is brand new, advanced, mature, complete, safe and reliable, and its technical performance and functions meet the technical requirements.
Cable tray roll forming machine manufacturers :
| Cable tray bending machine parameters | ||
 |
||
| 1 | Equipment area | About 6.5×2.5×2.0m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 200-1250 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 2000 mm |
| 10 | Online punching production speed | 4-6 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 50KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |

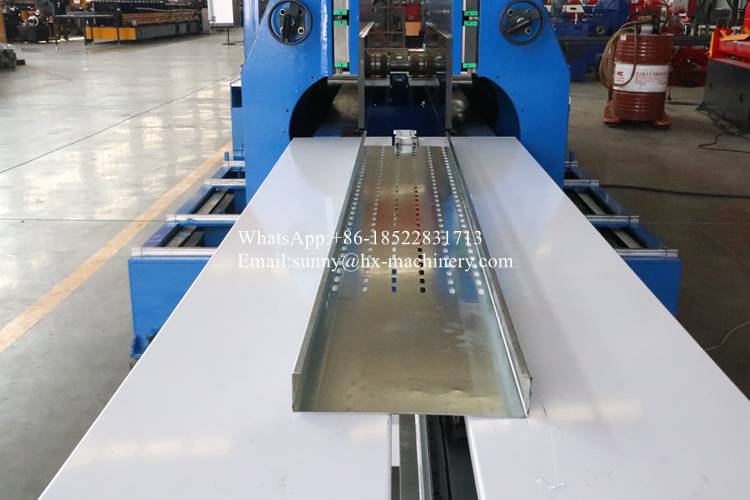

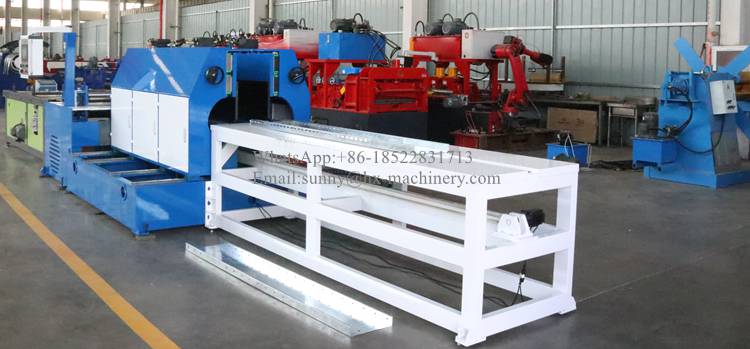

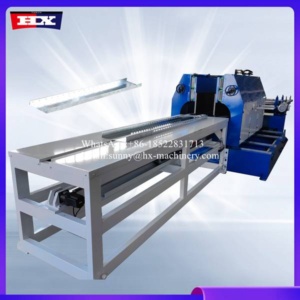

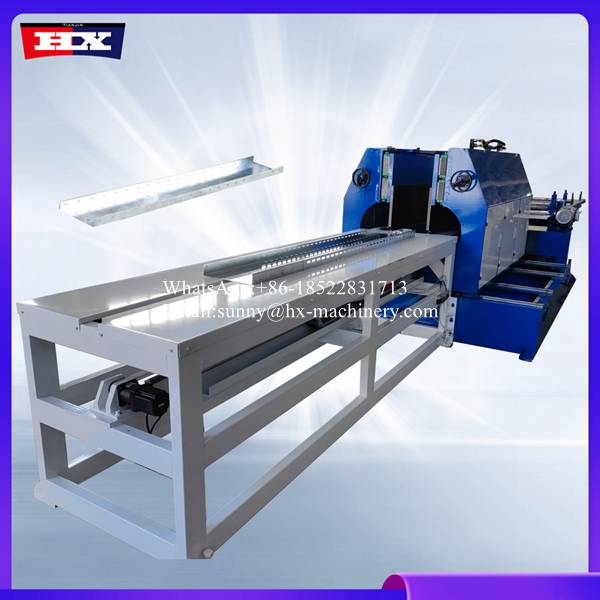

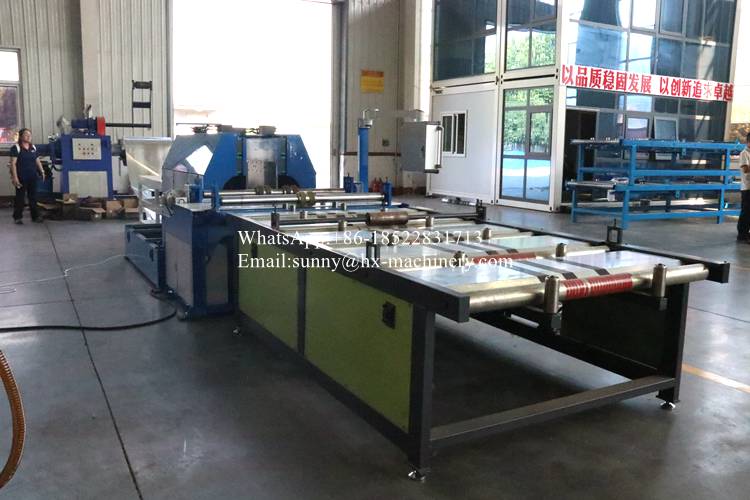

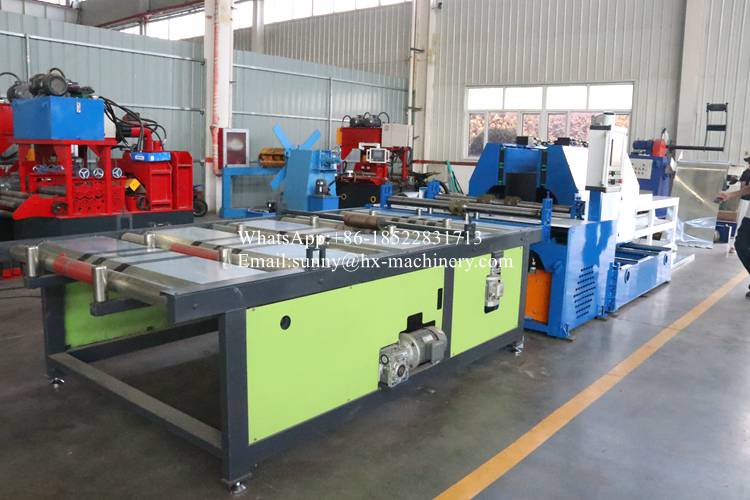

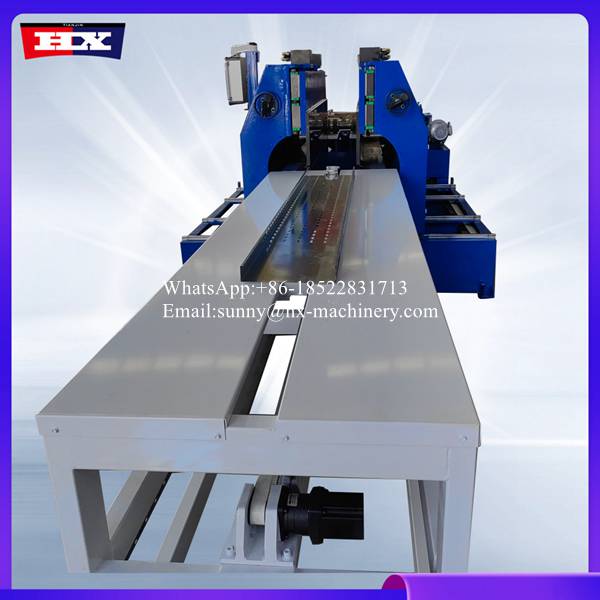

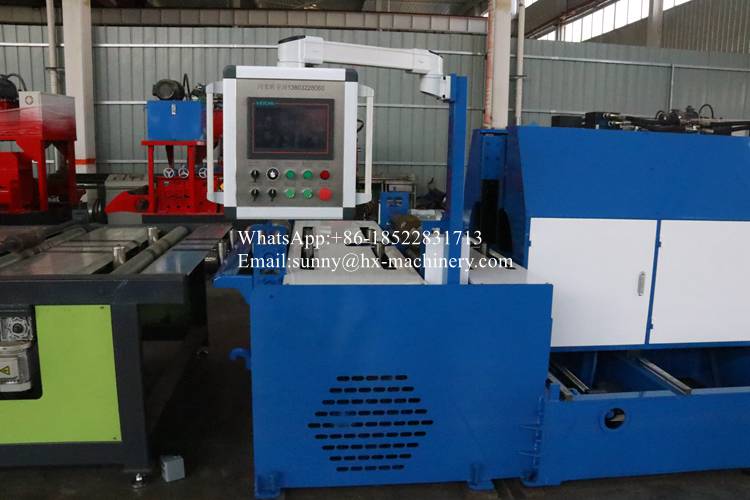

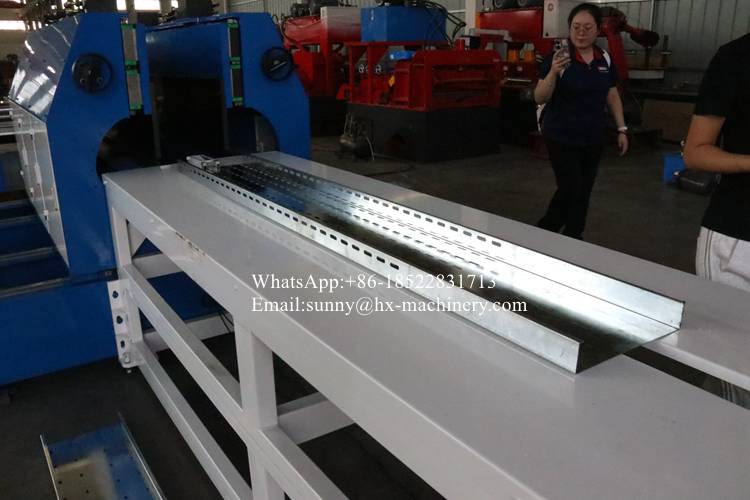

Cable tray bending machine production line photos showing
Cable tray bending machine production line loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Why choose us?
| 1 | Complete after-sales service and technical support |
| 2 | Excellent performance and high-precision processing |
| 3 | High flexibility and versatility |
| 4 | Excellent reliability and durability |
