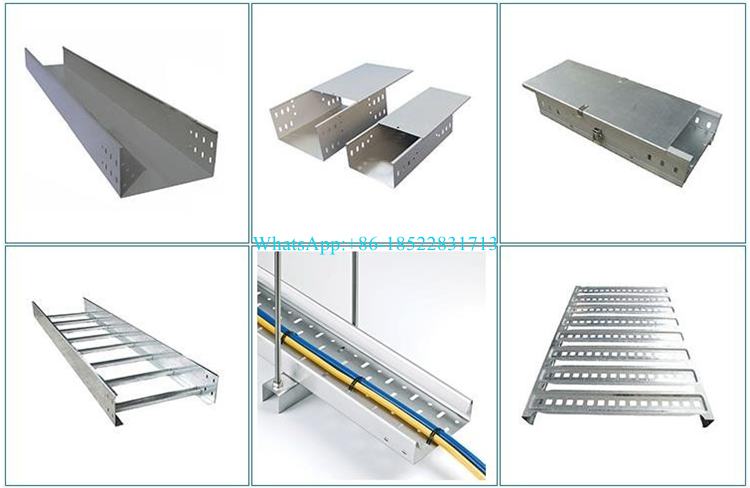

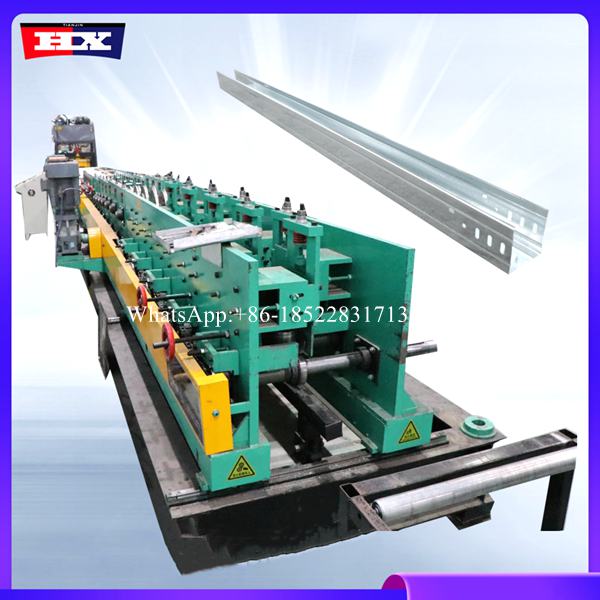

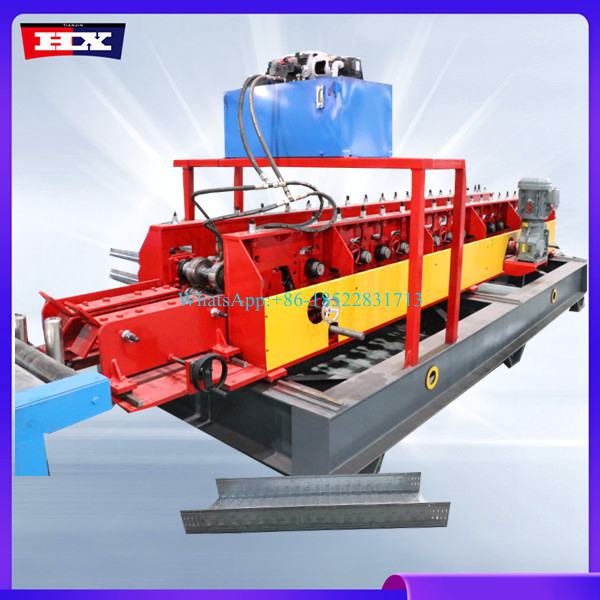

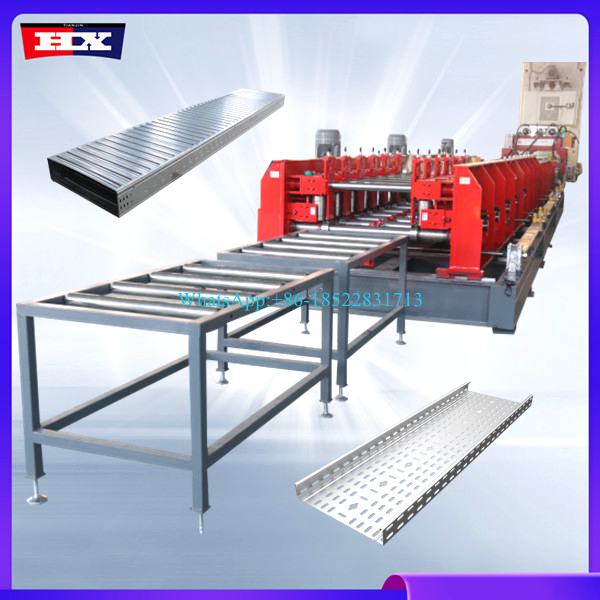

Cable tray machine is for producing cable trays with pre-punched holes.The width of the cable trays is various.

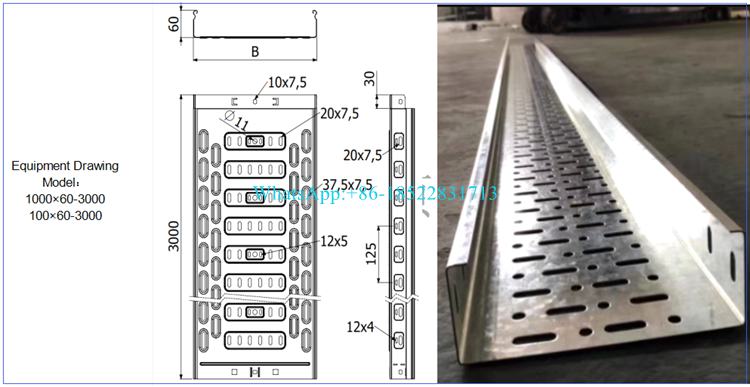

Cable tray machine Drawing Model：Bottom:100-1000 Waist high:60-200 technical details :
| Cable tray machine parameters | ||
| 1 | Equipment area | About 40×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-1150 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 50KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |
Cable tray machine detailed images for reference

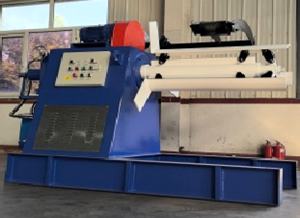

| 1 | 6T Uncoiler | 1. Maximum load-bearing capacity: 6T 2. Maximum roll width: 12-850mm 3. Inner diameter of roll: ф460-520 mm 4. Outer diameter of roll: ≤1600mm 5. Hydraulic tensioning, electric unwinding |
 |
| 2 | Leveling servo feeding machine | 1.8 roller leveling 2. Leveling roller diameter: 90mm 3. Leveling motor: 4KW |
 |
| 3 | 200 Ton punching machine | 500 Ton punching machine with servo feeding |  |
| 4 | Punching molds | Punching molds 100-60 ;200-60; 300-60;400-60 600-60;800-60; 1000-60 |
 |
| 5 | High-speed platform | 1. Heavy-duty roller feed: 6 meters 2. Main motor power: 1.5KW 3. Electric opening and closing motor power: 0.75KW |
 |

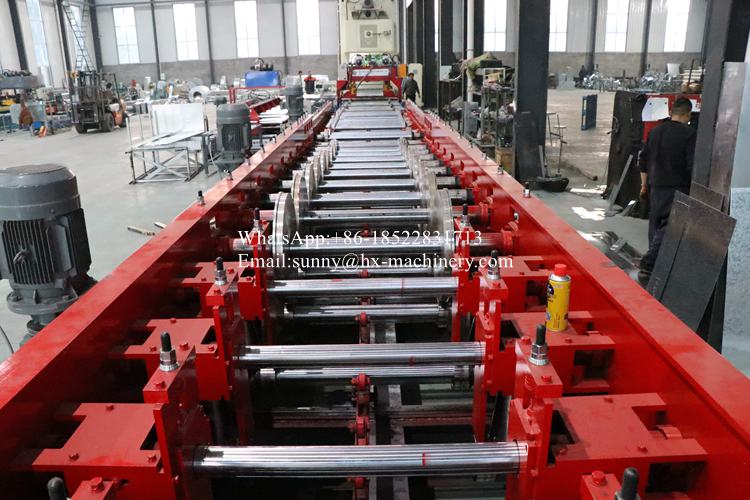

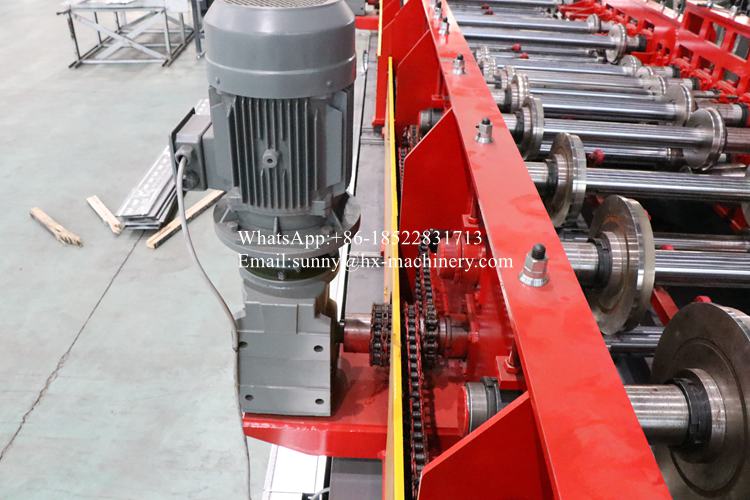

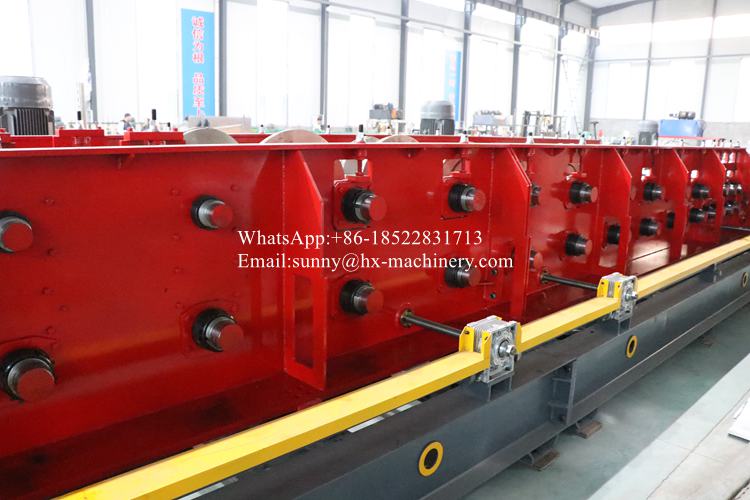

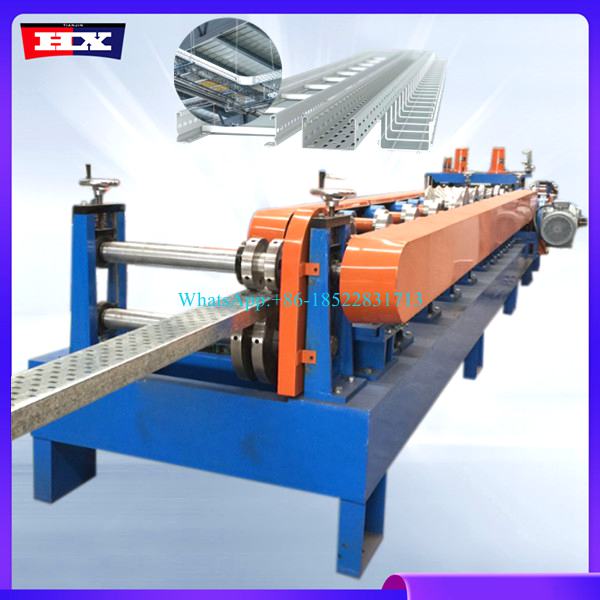

| 6 | Roll forming part | 1. Shaft diameter φ65mm 2. Shaft material 45# steel 3. Forming pass number 32 4. Main motor power 7.5Kw 5. Automatic opening and closing motor 1.5KW 5. Roller material Cr12 6. Roller hardness HRC58-62 |
|

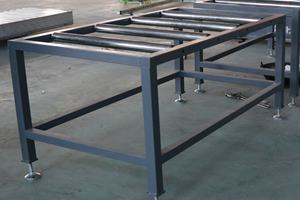

| 7 | Discharging platform | 1. 3m platform 2. Roller type 3. No power |
 |

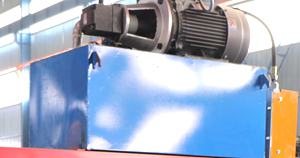

| 8 | Hydraulic station | Multiple solenoid valves Solenoid overflow valves Cooling system |
 |
