Cable tray punching machine price

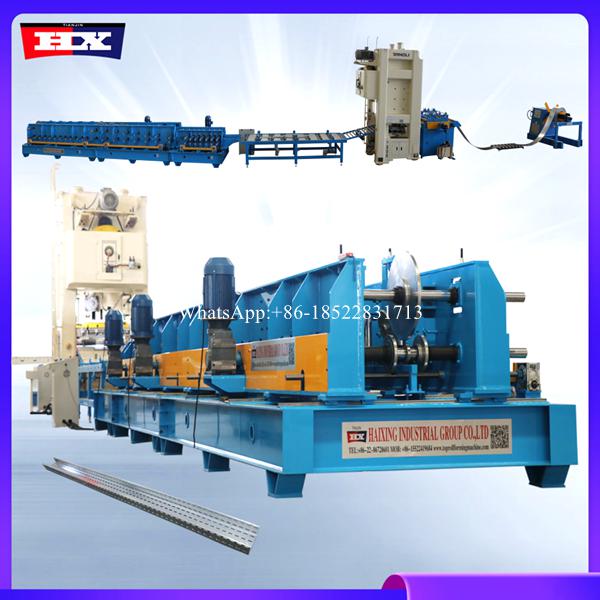

Cable tray punching machine price are reasonable.Cable tray forming machine belong to continuous roll forming: Through multiple passes (typically 10-20 or more) through forming rollers, coiled material (such as galvanized sheet or stainless steel) is gradually and continuously bent into the designed bridge cross-sectional shape (such as stepped, trough, or tray-shaped). This process is uninterrupted, with production speeds reaching 10-30 meters per minute, significantly improving production efficiency and reducing labor costs.

Cable tray punching machine price  Drawing Model：Bottom:100-800   Waist high:50-200  technical details :

Cable tray manufacturing machine price parameters
1	Equipment area	About 38×1.5×1.6m
2	Equipment feeding direction	In left and out right
3	Voltage	380V 50HZ 3Phase
4	Hydraulic oil	46# hydraulic oil
5	Gear oil	18# hyperbolic gear oil
6	Rolling strip width	450-950 mm
7	Rolled strip thickness	1.0(±0.03)—2.0(±0.03) mm
8	Rolled strip material	Q235B cold rolled strip steel,hot rolled strip steel
9	Rolling workpiece length	3000 mm
10	Online punching production speed	6-8 m/min
11	Motor explosion-proof grade	ExdIICT4
12	Motor protection grade	IP55
13	LCD display	Display Electric
14	Total installed capacity of equipment	About 40KW
15	Electrical low voltage control components Control system	Delixi or Chint
16	Frequency system	INVT
17	Bearings	Harbin Bearing
18	Reducer	Beijing Ruibofeng Reducer Co., Ltd.
19	Length Tolerance	±2mm

Cable tray punching machine price detailed images for reference

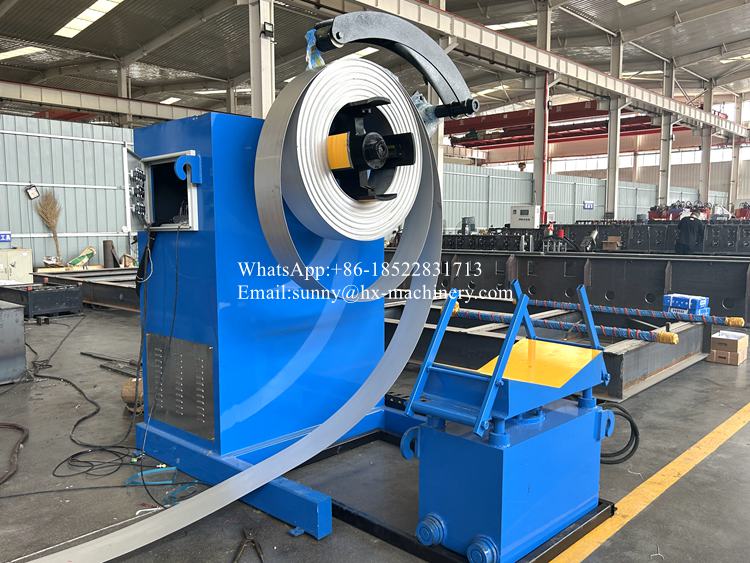

A.6T Uncoiler Decoiler  1. Maximum load-bearing capacity: 6T 2. Maximum roll width: 120-950mm 3. Inner diameter of roll: ф460-520 mm 4. Outer diameter of roll: ≤1600mm 5. Hydraulic tensioning, electric unwinding

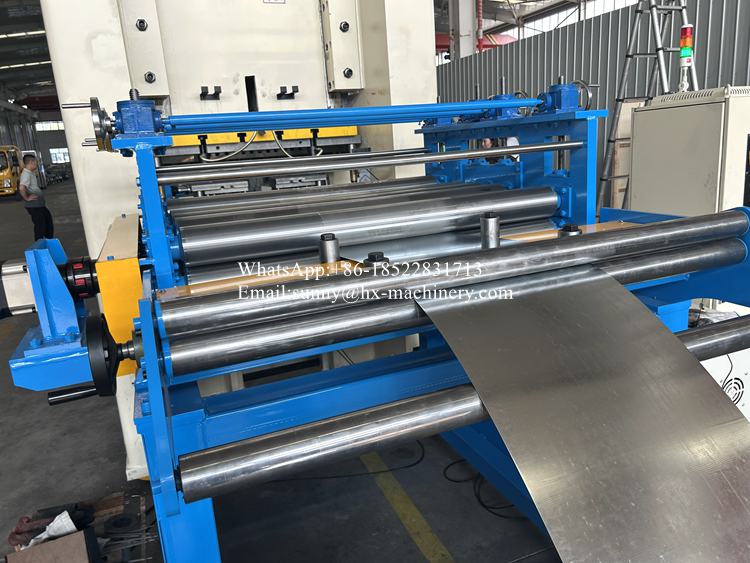

B.Leveling servo feeding machine 1.8 roller leveling 2. Leveling roller diameter: 90mm 3. Leveling motor: 4KW

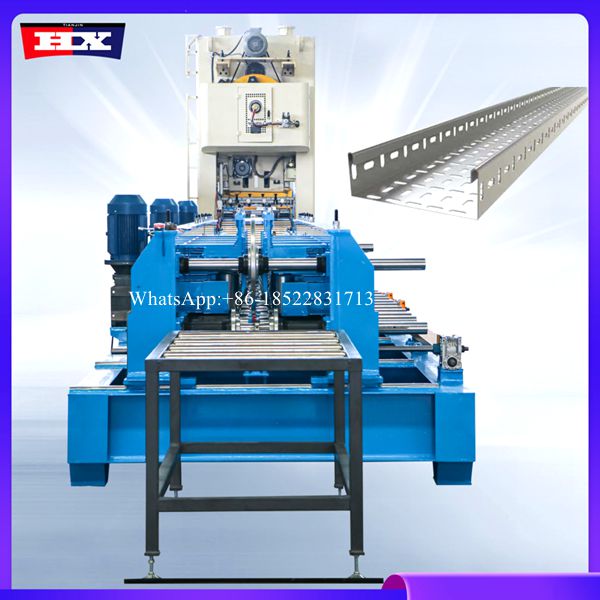

C.200 Ton punching machine :200 Ton punching machine with servo feeding

D.High-speed platform  1. Heavy-duty roller feed: 6 meters 2. Main motor power: 1.5KW 3. Electric opening and closing motor power: 0.37KW

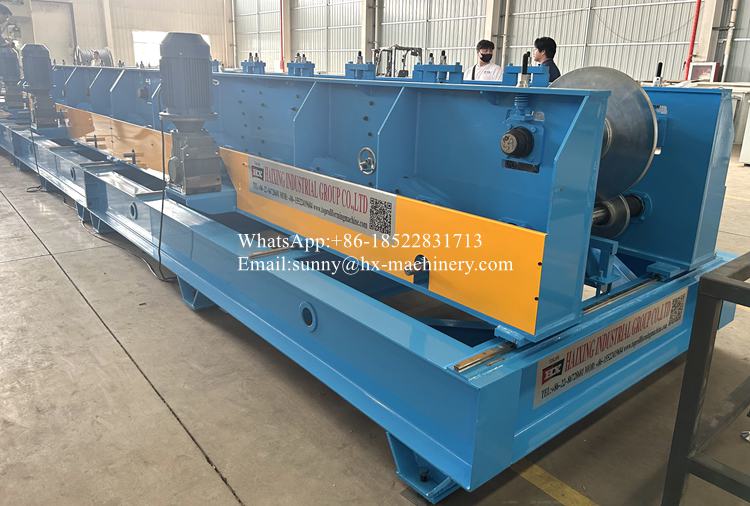

E.Roll forming part 1. Shaft diameter φ65mm 2. Shaft material 45# steel 3. Forming pass number 32 4. Main motor power 7.5Kw*2 5. Automatic opening and closing motor 1.5KW*2 5. Roller material Cr12 6. Roller hardness HRC58-62

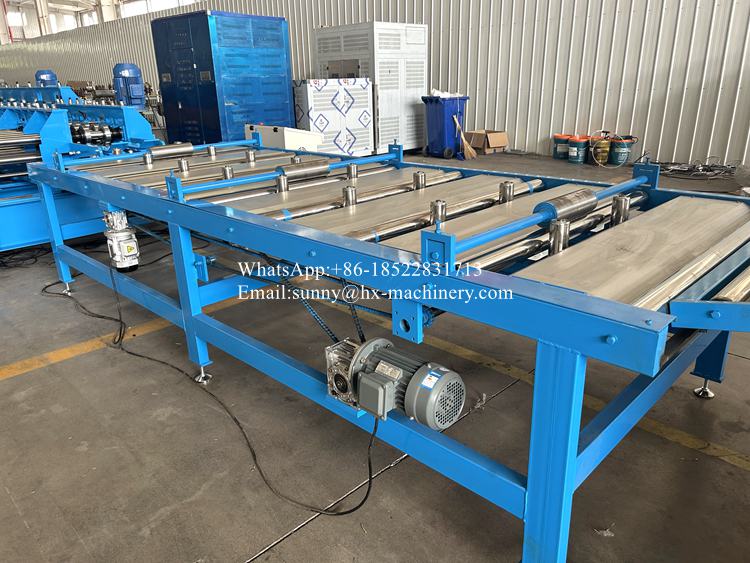

F.Discharging platform 1. 3m platform 2. Roller type 3. No power

Cable tray punching machine price loading and shipment

Host packaging	Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame
Electronic control system	Packed in protective film or placed in individual wooden boxes
Precision parts	They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper.
Spare parts and tools	All spare parts are placed in wooden boxes
Packaging labeling	There are usually clear markings on the outside of the box

About our service for cable tray forming machine

Pre-sales consultation and customization	Provide equipment selection suggestions and production line configuration solutions based on your needs (such as bridge type, material, specifications, and output), and accept customized designs
Equipment installation and debugging	Professionals will come to install the equipment and conduct on-site debugging to ensure the normal operation of the equipment and the production of qualified products.
Technical training and operation	Provide training for your operation and maintenance personnel, including equipment operation, programming (such as touch screen settings), daily maintenance, simple troubleshooting, etc.
After-sales service and support	Provide warranty period (usually 1 year or as agreed), remote technical guidance, fault response, and regular return visits.
Repair and spare parts supply	Provide equipment maintenance services and supply original spare parts (such as rollers, dies, wearing parts, etc.) to ensure the service life and accuracy of the equipment.
