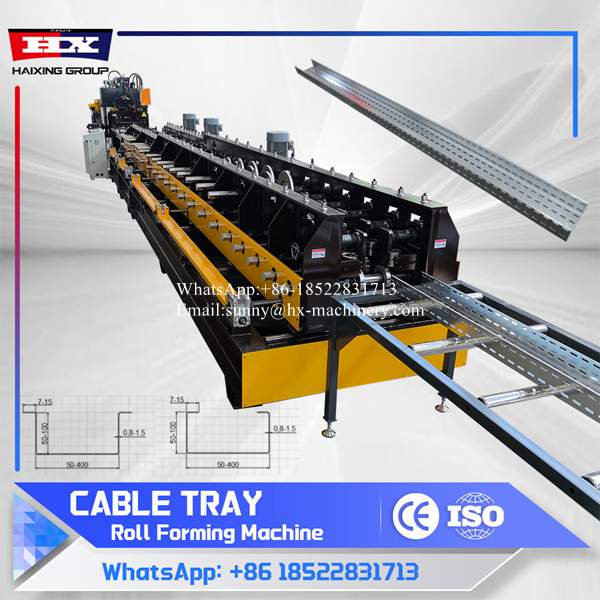

Cable Tray Roll Forming Line is an automated production system designed to continuously manufacture cable trays—metal channels used to support and organize electrical cables and wiring in commercial, industrial, and infrastructure applications.
The line typically uncoils metal strips (usually steel or aluminum), passes them through a series of roll forming stations, where they are progressively shaped into the desired profile. Additional processes may include punching, notching, cutting to length, and embossing. The finished product is a strong, uniform, and customizable cable tray section ready for assembly and installation.
Punching process: Active feeding —- Leveling —- Punching —- Cutting —- Conveying platform —- Forming —- Discharge
Cable tray roll forming line Drawing Model：Bottom:50-100 Waist high:50-400 technical details :
| Cable tray forming machine manufacturers parameters | ||
 |
||
| 1 | Equipment area | About 35×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-950 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 40KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |
Cable tray roll forming line manufacturers detailed images for reference

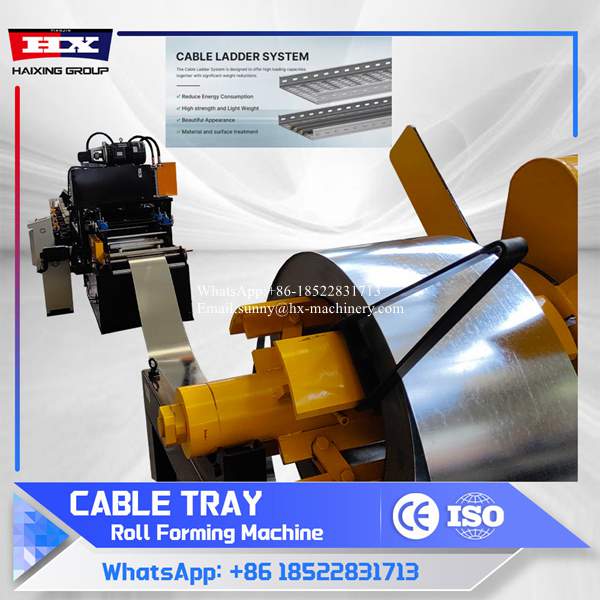

| A.6T Uncoiler Decoiler
1. Maximum load-bearing capacity: 6T
|
| B.Leveling servo feeding machine
1.8 roller leveling
|
| C. punching machine part:Leveling, punching and cutting integrated machine
|
| D.High-speed platform
1. Heavy-duty roller feed: 6 meters
|

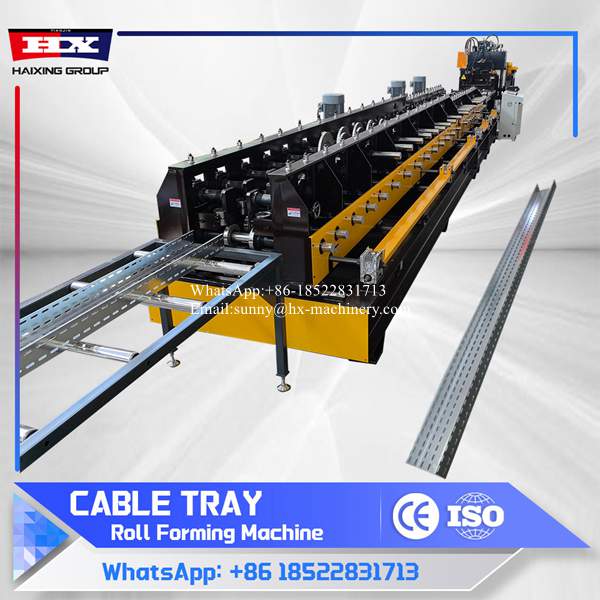

| E.Roll forming part
1. Shaft diameter φ65mm
|

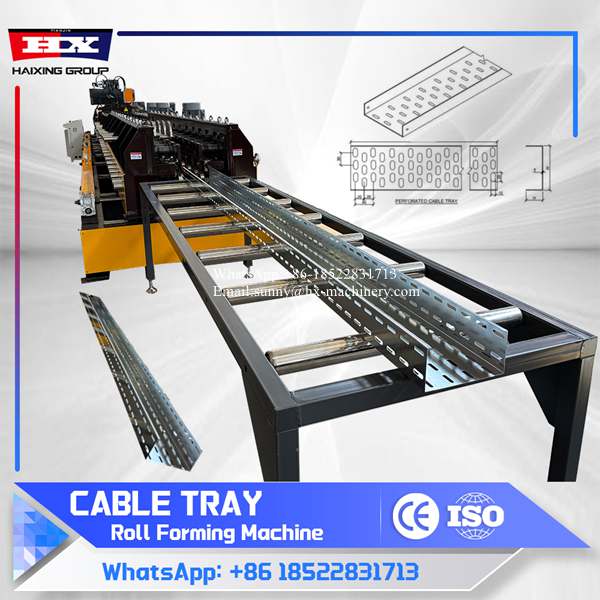

| F.Discharging platform
1. 3m platform
|
perforated cable tray roll forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Advantages of using a roll forming line for cable tray production include:
| High efficiency | Continuous, high-speed production |
| Consistent quality | Precise dimensions and repeatability |
| Material savings | Optimized use of coil stock |
| Flexibility | Quick tooling changeovers for different tray designs |
| Strength | Work-hardening during forming enhances durability |
| Applications | This method is widely adopted for producing ladder-type, trough, and wire mesh cable trays in varying widths, depths, and metal gauges. |
