Cable tray roll forming machine also called multi-size cable tray roll forming machine.That’s meaning one this cable tray forming machine can production various lengths and heights cable tray,suitable for thicknesses of 1.0-2 mm.
Our company with extensive experience in different punching designs, we cater to the diverse demands of different industries, providing flexible and precise solutions.
Cable tray roll forming machine Drawing Model：Bottom:50-600 Waist high:50-150 technical details :
| Cable tray roll forming machine parameters | ||
| 1 | Equipment area | About 38×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 150-750 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 40KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |

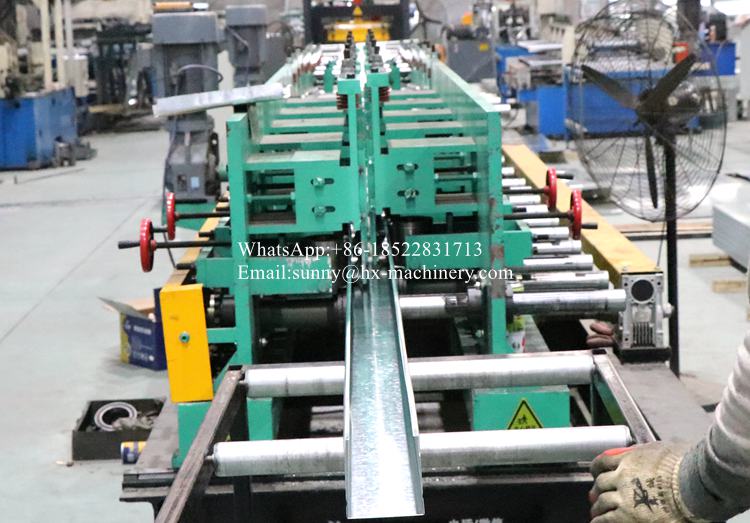

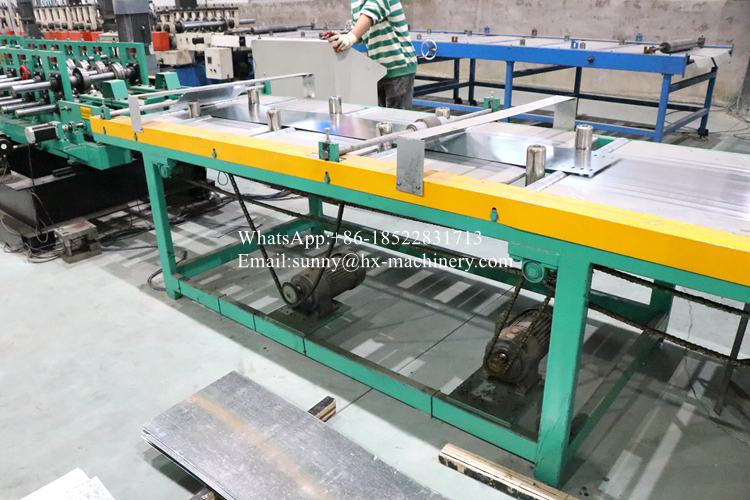

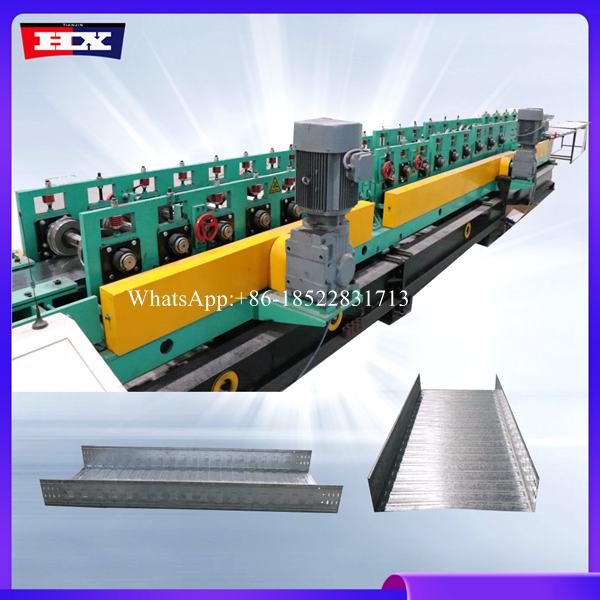

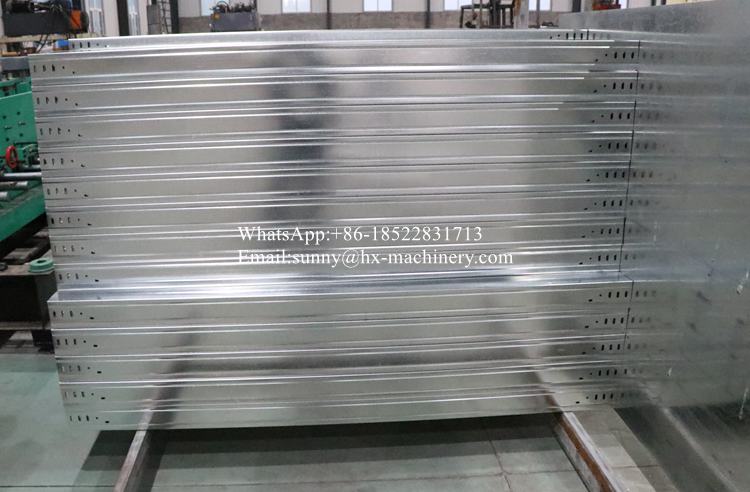

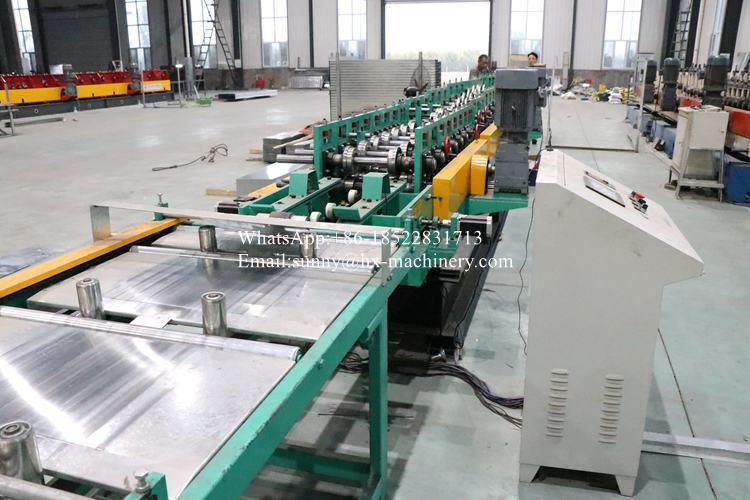

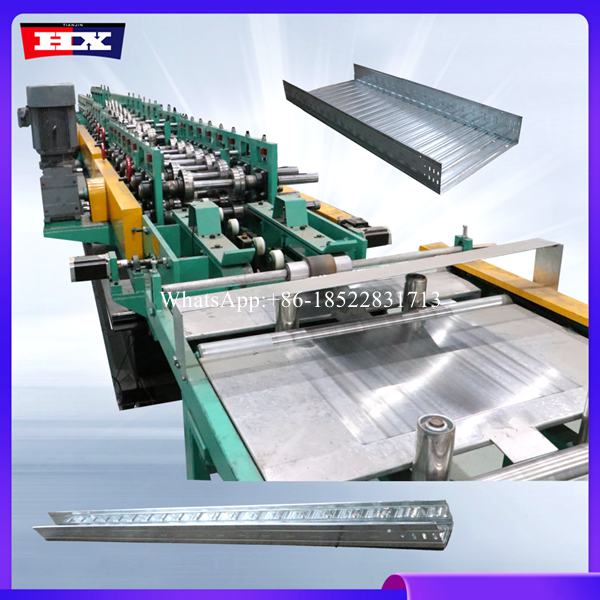

Cable tray roll forming machine detailed images for reference
| 1 | 6T Uncoiler | 1. Maximum load-bearing capacity: 6T 2. Maximum roll width: 12-850mm 3. Inner diameter of roll: ф460-520 mm 4. Outer diameter of roll: ≤1600mm 5. Hydraulic tensioning, electric unwinding |
 |
| 2 | Leveling servo feeding machine | 1.8 roller leveling 2. Leveling roller diameter: 90mm 3. Leveling motor: 4KW |
 |
| 3 | 200 Ton punching machine | 200Tons Yangli press machine |  |
| 4 | Punching molds | Machine use the punching molds |  |
| 5 | High-speed platform | 1. Heavy-duty roller feed: 6 meters 2. Main motor power: 1.5KW 3. Electric opening and closing motor power: 0.37KW |
 |
| 6 | Roll forming part | 1. Shaft diameter φ65mm 2. Shaft material 45# steel 3. Forming pass number 32 4. Main motor power 5.5KW×3 5. Automatic opening and closing motor 1.5KW×3 5. Roller material Cr12 6. Roller hardness HRC58-62 |
 |
| 7 | Discharging platform | 1. 3m platform 2. Roller type 3. No power |
 |
| 8 | Hydraulic station | Multiple solenoid valves Solenoid overflow valves Cooling system |
 |

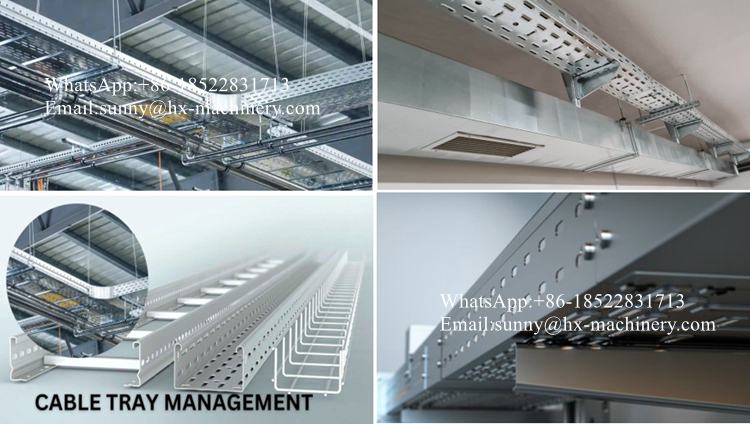

About cable tray applications
Cable tray are essential structures used to support insulated electrical cables for power distribution, control, and communication.They serve as an efficient alternative to open wiring or electrical conduit systems, providing a secure pathway for cables in various environments. Cable trays are ideal for running large quantities of data cables overhead or under-floor and are commonly referred to as baskets, trunking, or cable ladders.
