Cable tray production line punching process: active unloading–leveling servo feeding–punching machine (punching, cutting)–conveying platform–forming–discharging.

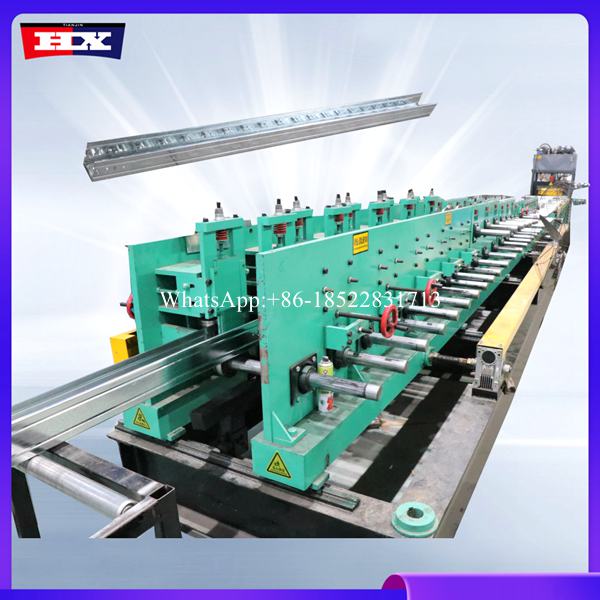

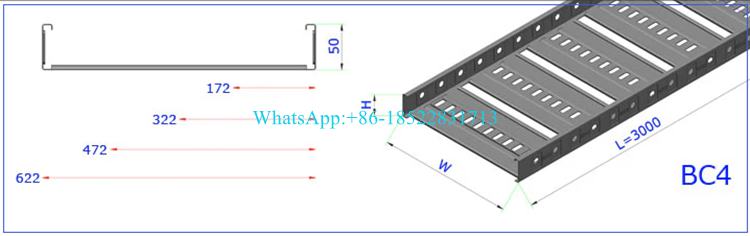

Considering the various sizes of cable tray, the roll forming machine is designed in a quick interchangeable type. which can adjust the web and flange sizes automatically. The web size is from 50-650mm while flange is 50-200mm. TIANJIN HAIXING Company cable tray manufacturing machine also accept customzized requirements.

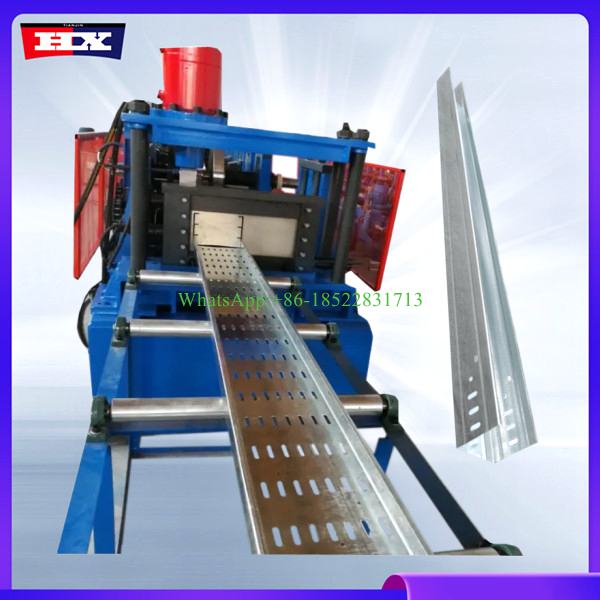

Cable tray punching machine line
| cable tray production line parameters | ||
| 1 | Equipment area | About 38×1.5×1.6m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 50-650 mm |
| 7 | Rolled strip thickness | 1.0(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235B cold rolled strip steel,hot rolled strip steel |
| 9 | Rolling workpiece length | 3000 mm |
| 10 | Online punching production speed | 6-8 m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 40KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±2mm |
cable tray production line detailed images for reference
| 1 | 6T Uncoiler | 1. Maximum load-bearing capacity: 6T 2. Maximum roll width: 12-850mm 3. Inner diameter of roll: ф460-520 mm 4. Outer diameter of roll: ≤1600mm 5. Hydraulic tensioning, electric unwinding |
 |
| 2 | Leveling servo feeding machine | 1.8 roller leveling 2. Leveling roller diameter: 90mm 3. Leveling motor: 4KW |
 |
| 3 | 200 Ton punching machine | 200Tons Yangli press machine |  |
| 4 | Punching molds | Machine use the punching molds |  |
| 5 | High-speed platform | 1. Heavy-duty roller feed: 6 meters 2. Main motor power: 1.5KW 3. Electric opening and closing motor power: 0.37KW |
 |

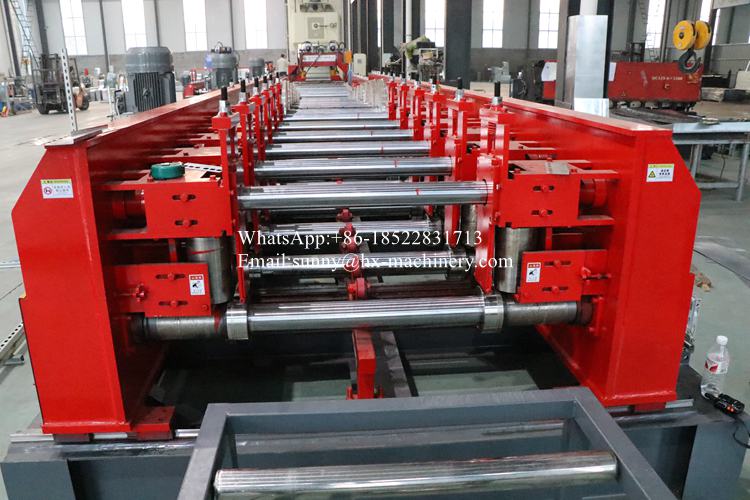

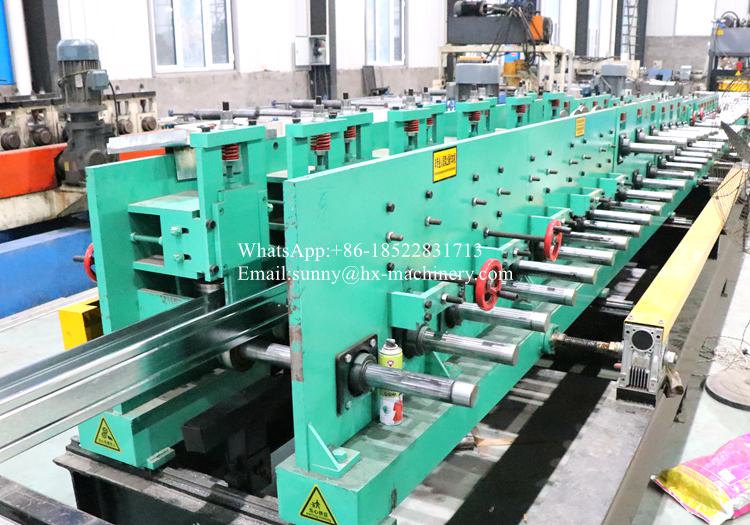

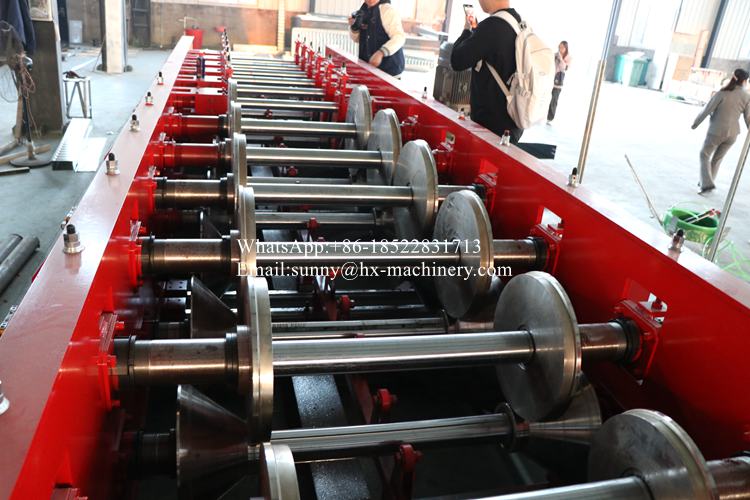

| 6 | Roll forming part | 1. Shaft diameter φ65mm 2. Shaft material 45# steel 3. Forming pass number 32 4. Main motor power 5.5KW×3 5. Automatic opening and closing motor 1.5KW×3 5. Roller material Cr12 6. Roller hardness HRC58-62 |
 |
| 7 | Discharging platform | 1. 3m platform 2. Roller type 3. No power |
 |
| 8 | Hydraulic station | Multiple solenoid valves Solenoid overflow valves Cooling system |
 |
About our company-TIANJIN HAIXING
We, Haixing Tianjin is a professional cold roll forming machine manufacturer,main machine includes roof roll forming machine,light keel roll forming machine, floor deck roll forming machine, purlin machine, leveling and slitting machine, metal fence roll forming machine, gutter roll forming machine, downspout roll forming machine, door frame machine, shutter door roll forming machine, highway guardrail roll forming machine, and other related construction equipment. We have extensive experience in the needs of different countries, such as profile drawing, operation languages, thickness range, instruction manual, installation, after-sales online support. Our equipment is mainly of medium and high configuration, such as famous brand PLC and Motor, Frequency converter, Long Service Life, Remote Control, Multifunctional, Energy saving.

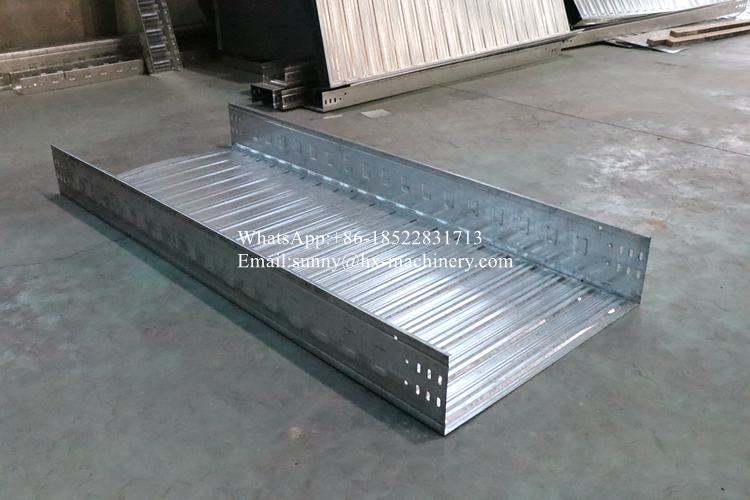

Cable tray production line have different shapes,for example :
A.Ladder Type Cable Tray
B.Solid Bottom Cable Tray
C.Trough Cable Tray
D.Channel Cable Tray
D.Wire Mesh Cable Tray
E.Single Rail Cable Tray
F.Perforated Cable Tray
