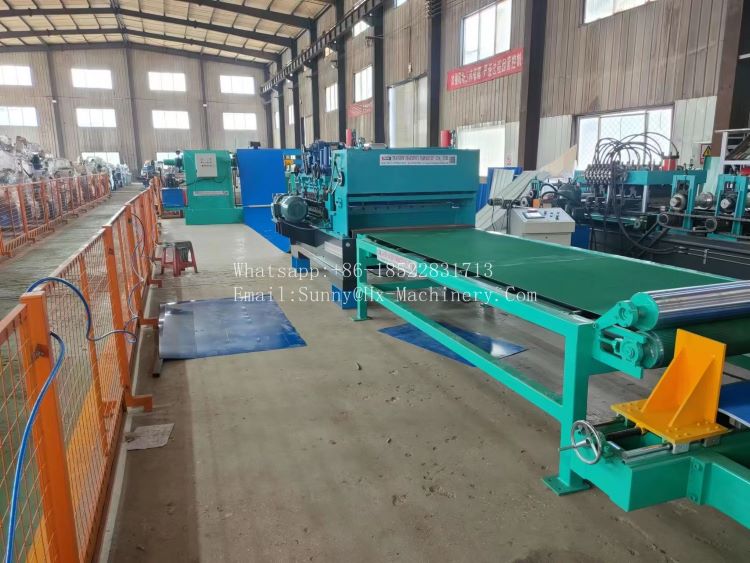

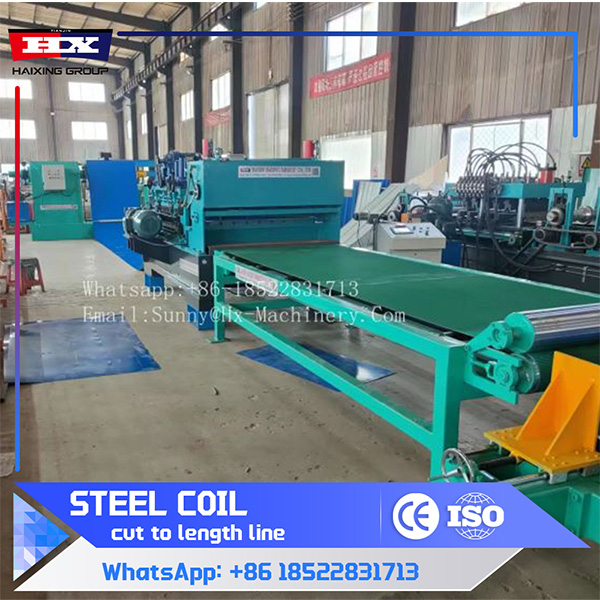

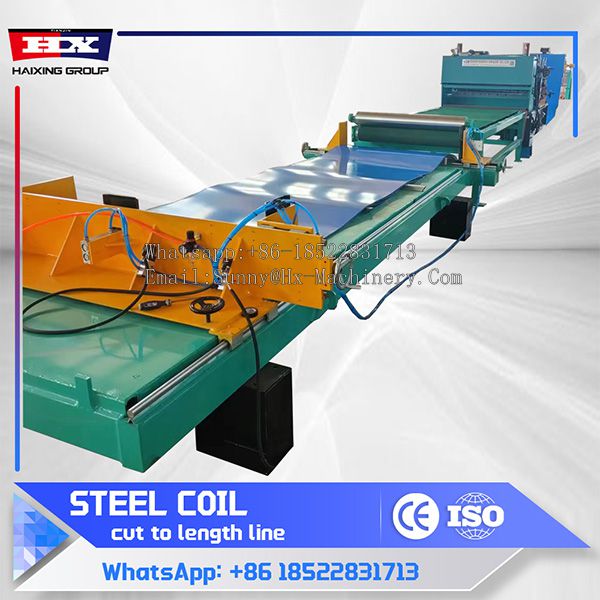

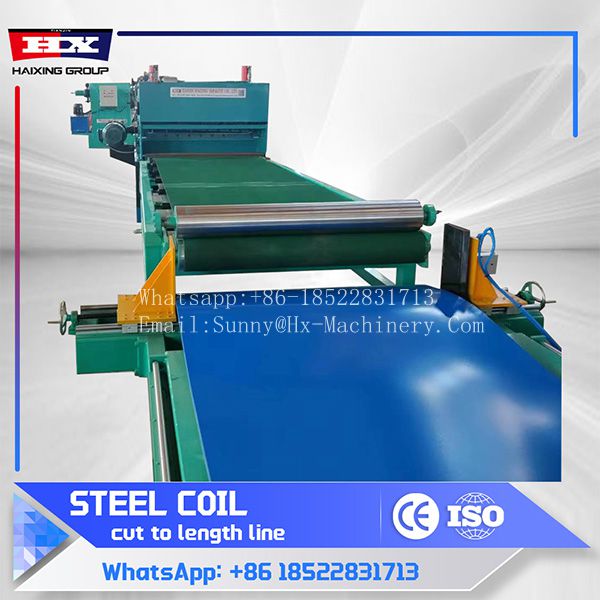

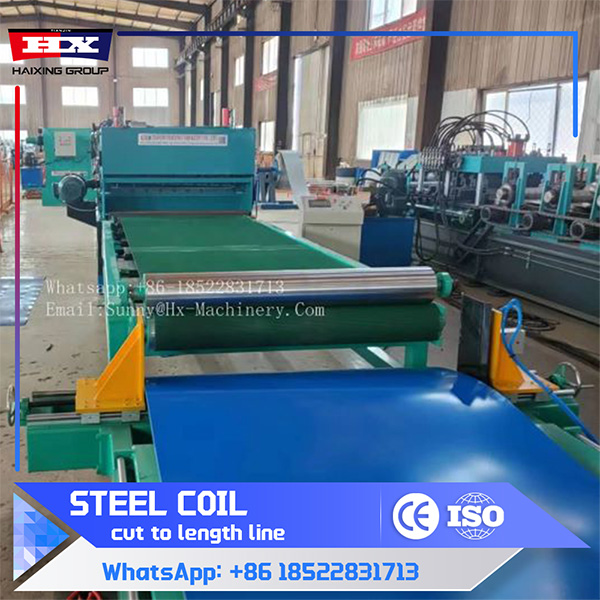

Coil cut to length line

Model：HX-Coil cut to length line
PaymentMethod：30% as deposit ,balance payment after inspection while before delivery.
Production Period:About 30-40 working days after the 30% deposit.
Warranty:24months limited warranty
Components and parts are free during warranty.

Send Inquiry

Category: Cut to length line Tags: cut to length coil line, cutting to length line, Sheet coil cutting machine, Slitting and cut to length line

Description

Coil Cut to Length Line cuts metal coils into precise sheets of the required length. It works fast and efficiently, ensuring minimal waste and high-quality results. This line is easy to operate and ideal for industries like automotive, construction, and manufacturing. It can handle various materials, including steel and aluminum. The robust design guarantees long-term durability, even under heavy usage. Improve your production process and get consistent, accurate cuts with the Coil Cut to Length Line.

This cut to length machineis divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, and receiving section. And here are some parameters of diferent parts:

Main parameter of Coil cut to length line

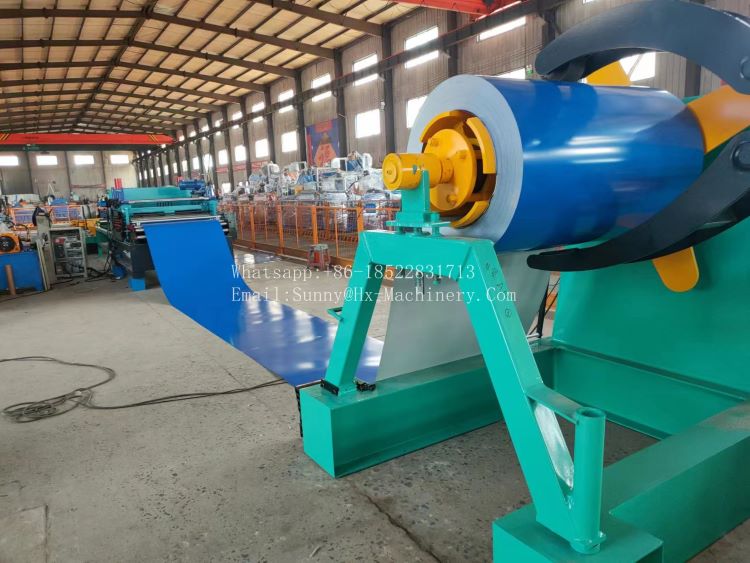

1.uncoiling section
Size	3.61.81.9meters
Weight	About 3.6Tons (Include a coil car)
Main axis	Thick-walled seamless steel pipe, Shaft diameter 198*50mm
Hydraulic cylinder	Cylinder diameter 125mm
The whole box iron plate	16 mm
Main motor	PM250 steel shell reducer (Speed ratio 40:17 ) 5.5Kw
Max put weight	10 tons
Coil Inner diameter range	470-530mm,if ave special need advance notice
Power	380V 50HZ 3phase

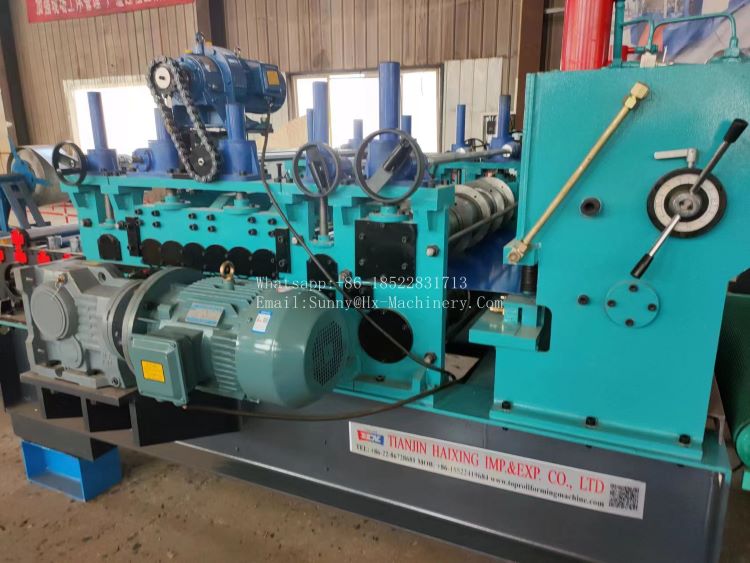

2.Leveling section
Thickness of raw material	Max thickness less 2.0mm
Materials width	Max 1600mm
Max 1600mm	±2.0mm
Roller station	Up :7 rollers Down:8 rollers
Speed	10-15m/min
Slitting to min width	120mm (If need can add )
Voltage	380V,50HZ,3Phase
Main frame	350 H beams
Side-wall thickness	40mm
Diameter of shaft	￠110mm
Main power	5.5kw+5.5Kw
Machine size	3000x2000x2000m
3.conveying section
Engine power	2.2Kw
Transfer speed	≤20m/min
Conveyor belt size	3000 mm*1600mm
Voltage	380V,50HZ,3 phase

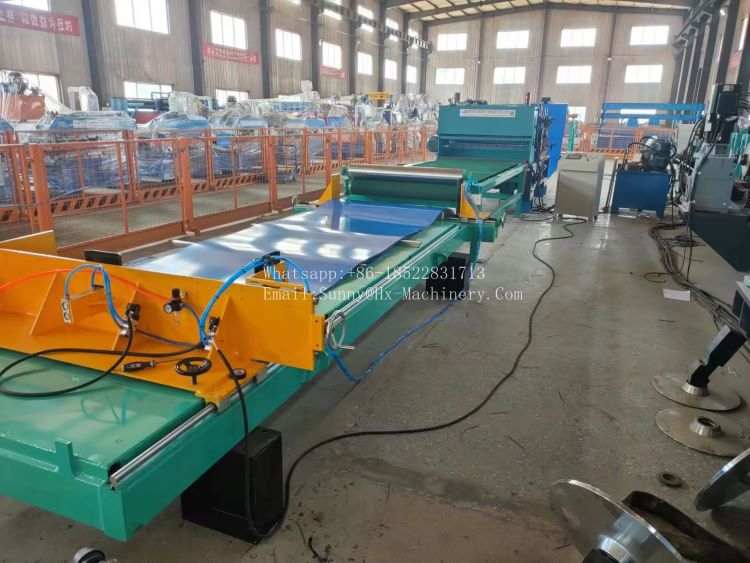

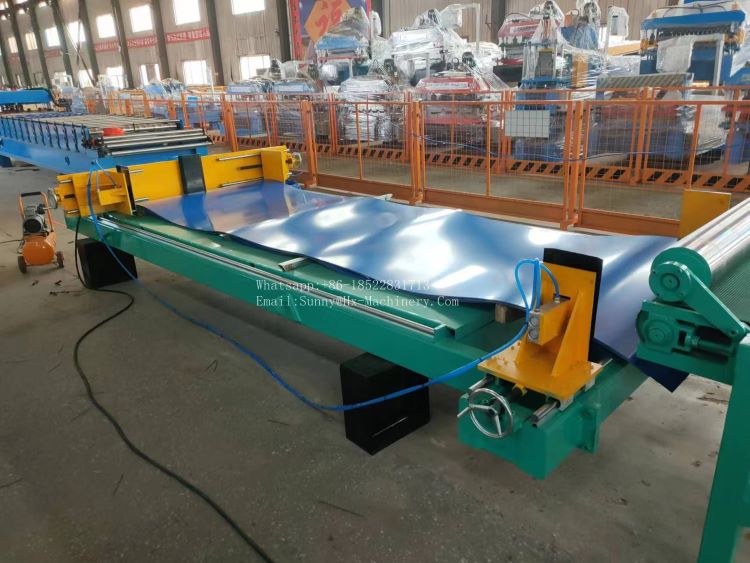

4.receiving section
Size	4000*1250mm
Minimum material	1000*1000mm
Voltage	380V,60HZ,3 phase

Click to know more about our machine and a favorable quote!

Benefits of Coil cut to length line:

High Efficiency	It quickly and accurately cuts coils into specified lengths
Precision	The line ensures smooth, accurate cuts, reducing material waste
User-Friendly	Simple operation and easy to control, making it suitable for various production environments
Durable Design	Built to last, the machine handles heavy-duty workloads with ease
Flexible	Supports a wide range of materials, including steel, aluminum and more

Coil cut to length line
