Our coil cut to length machine offers a fast and reliable way to process metal coils. It uncoils the material, straightens it, and cuts it to your precise specifications. And this system handles various materials, including steel, aluminum, and stainless steel. It boosts your production efficiency and reduces material waste. The robust construction ensures long-lasting performance and minimal maintenance. It can help you to improve your production speed too.

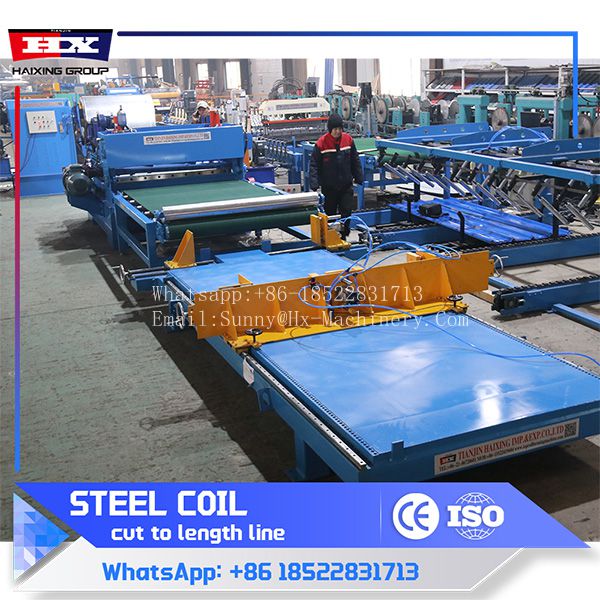

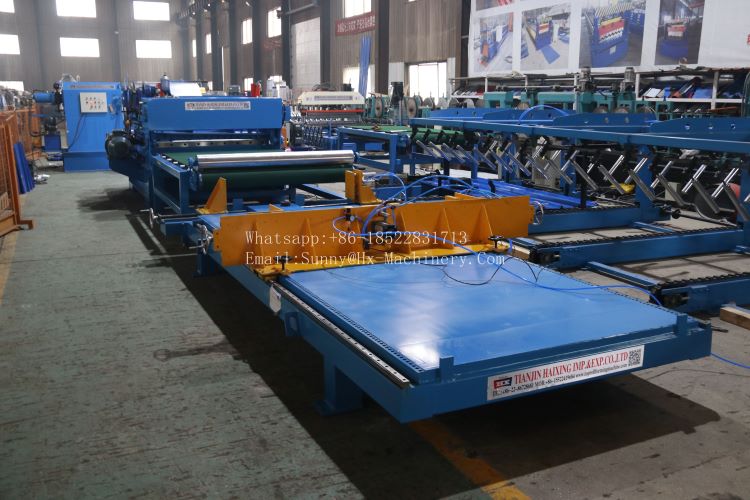

This machine is divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, and receiving section. And here are some parameters of diferent parts:
| Main parameter of Coil cut to length machine | |

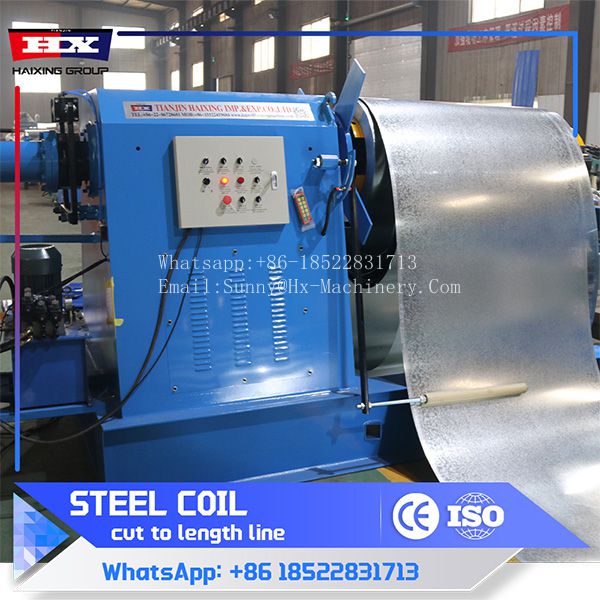

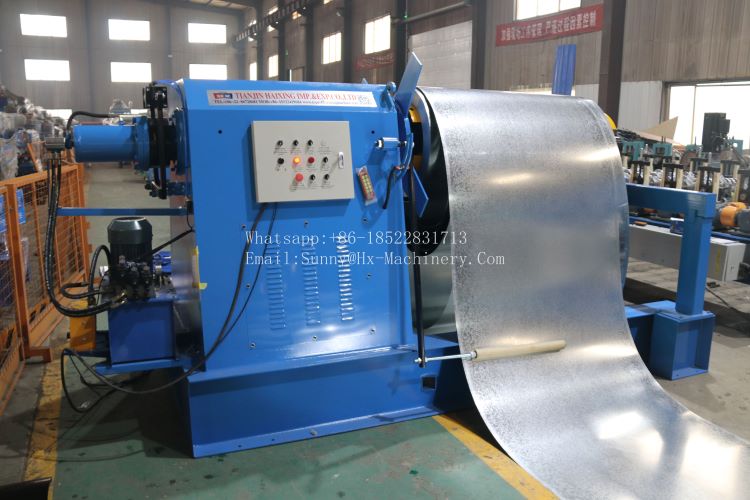

| 1.uncoiling section | |
| Size | 3.6*1.8*1.9meters |
| Weight | About 3.6Tons (Include a coil car) |
| Main axis | Thick-walled seamless steel pipe, Shaft diameter 198*50mm |
| Hydraulic cylinder | Cylinder diameter 125mm |
| The whole box iron plate | 16 mm |
| Main motor | PM250 steel shell reducer (Speed ratio 40:17 ) 5.5Kw |
| Max put weight | 10 tons |
| Coil Inner diameter range | 470-530mm,if ave special need advance notice |
| Power | 380V 50HZ 3phase |
 |
|

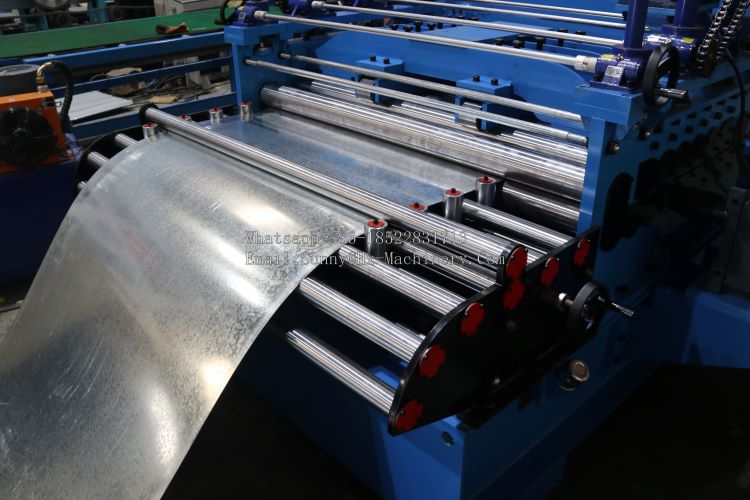

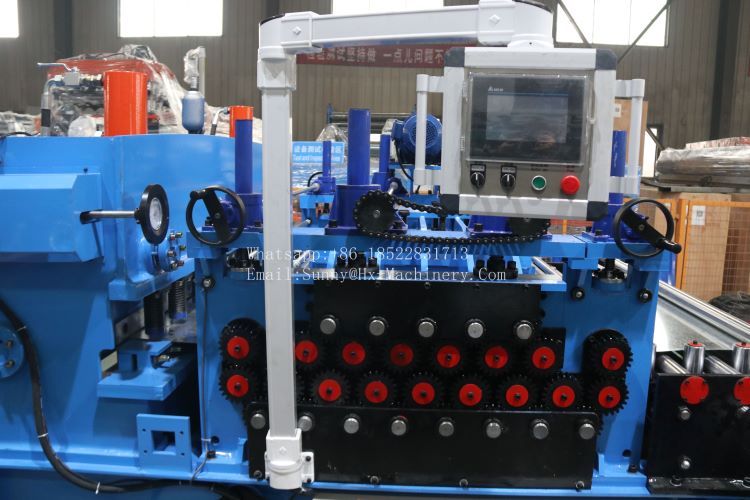

| 2.Leveling section | |
| Thickness of raw material | Max thickness less 2.0mm |
| Materials width | Max 1600mm |
| Max 1600mm | ±2.0mm |
| Roller station | Up :7 rollers Down:8 rollers |
| Speed | 10-15m/min |
| Slitting to min width | 120mm (If need can add ) |
| Voltage | 380V,50HZ,3Phase |
| Main frame | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠110mm |
| Main power | 5.5kw+5.5Kw |
| Machine size | 3000x2000x2000m |
 |
|
| 3.conveying section | |
| Engine power | 2.2Kw |
| Transfer speed | ≤20m/min |
| Conveyor belt size | 3000 mm*1600mm |
| Voltage | 380V,50HZ,3 phase |
 |
|

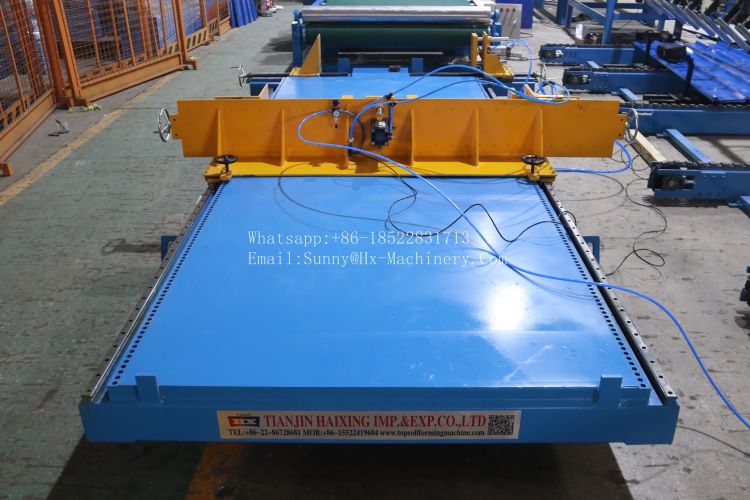

| 4.receiving section | |
| Size | 4000*1250mm |
| Minimum material | 1000*1000mm |
| Voltage | 380V,60HZ,3 phase |
 |
|
Click to know more about our machine and a favorable quote!
Benefits of Coil cut to length machine:
| Fast Operation | The machine operates at high speeds, cutting down on cycle time and increasing overall output |
| Flexible Setup | It accommodates different coil sizes and materials, making it versatile for a range of industries |
| Durability | Built with robust materials, it offers long-term reliability and can handle coils of various thicknesses and widths |
| High Precision | Achieve accurate cuts with minimal tolerance. The machine’s advanced control system ensures perfect length every time |
About us:
Haixing Tianjin is a professional manufacturer of cold roll forming machines. Our main products include roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction equipment.
We have extensive experience meeting the needs of different countries. This includes profile drawing, operation languages, thickness range, instruction manuals, installation, and after-sales online support. Our equipment features medium to high configurations, including top-brand PLCs, motors, frequency converters, long service life, remote control, multifunctionality, and energy-saving capabilities.
