coil slitting line is designed for precise and efficient processing of metal coils into narrower strips. This machine is ideal for handling various materials, including steel, aluminum, and other alloys. It offers high-speed operation, allowing for smooth and accurate cuts with minimal waste. The slitting line features advanced control systems for consistent performance, with adjustable settings to accommodate different coil sizes and thicknesses. Its robust design ensures durability and reliable operation in demanding industrial environments.
| Main parameters of coil slitting line | |
| Raw materials grade | Galvanized steel coil/Cold rolled coil/Color coil |
| Raw materials thickness | 0.3~3.0mm |
| Raw materials width | 1250mm |
| Raw materials inner diameter | Φ508mm/610mm |
| Raw materials outer diameter | ≤Φ1500mm |
| Raw materials coil weight | 5Tons |
| Slitting speed | 0~25m/min（During normal work） |
| Land occupation area | About 35m×5m |
This line mainly includes: hydraulic uncoiler, slitter and cutter, conveyor, hydraulic recoiler, or with roll forming machine,etc.

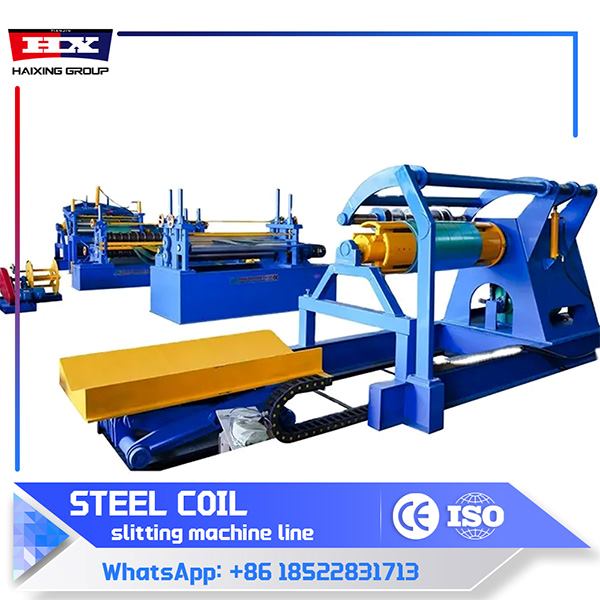

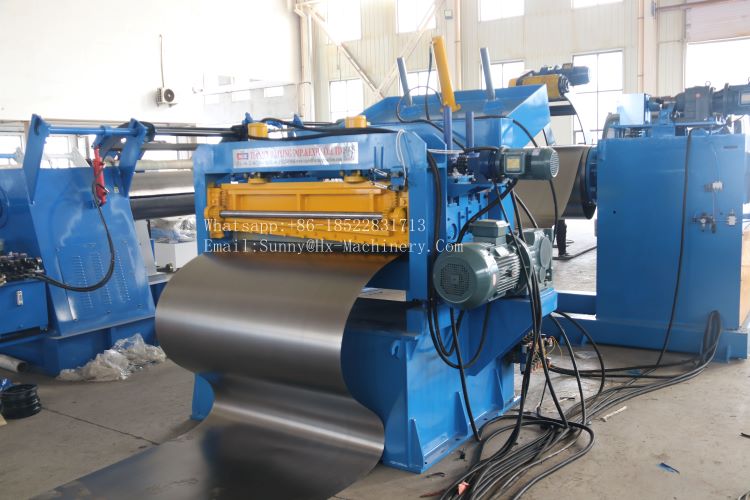

our machine enjoy excellent quality and some photos to show you：
Some parts of the machine：

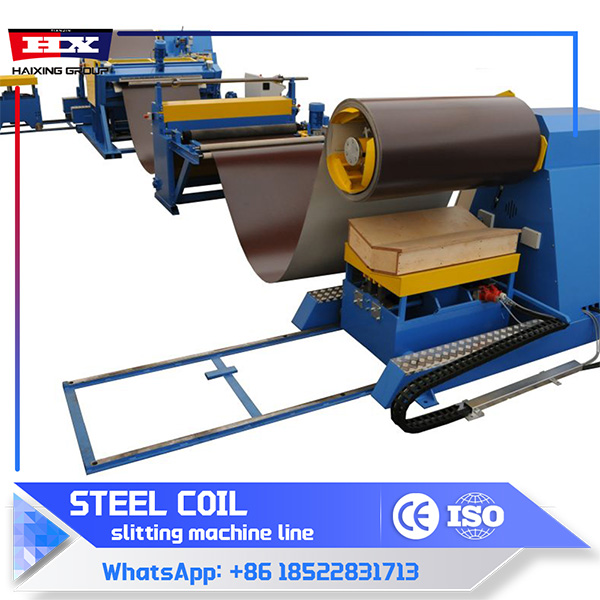

| A.Decoiler
Single cantilever structure bearing capacity 5Tons Support range：470-530mm hydraulic tension electric unwinding power：5.5KW frequency conversion and main motor 5.5KW Hydraulic pump 4KW
|
| B.Leveling
Hydraulic shovel head with two shaftsand total 11rollers(Up 5rows ,down 6rows ) roller diameter 90mm
|
| C.Slitting
slitting roll diameter 140mm-160mm Blade tool outer diameter 240-260mm Main motor power :7.5KW
|
| D.Damping
Double cylinder diameter 80mm Main frame use 10 mm thick iron plate welding Upper and Down iron plates with a thickness of 14 mm
|
| D.Collect waste
Power 2.7Kw*1set
|
| E. Hydraulic re-decoiler with coil car
|
Click to get more information about our machine and a more favorable price!
Some advantages of coil slitting line：
| High Precision Cutting | Ensures consistent strip width and high-quality cuts for metal coils. |
| Increased Productivity | Fast, continuous operation boosts production capacity and reduces downtime. |
| Reduced Material Waste | Precise cuts optimize material use, minimizing waste and cutting costs. |
| Flexible Adjustments | Adjustable cutting width and speed to accommodate various material specifications. |
| Higher Automation | Automated operation improves efficiency, reduces manual intervention, and stabilizes production. |
