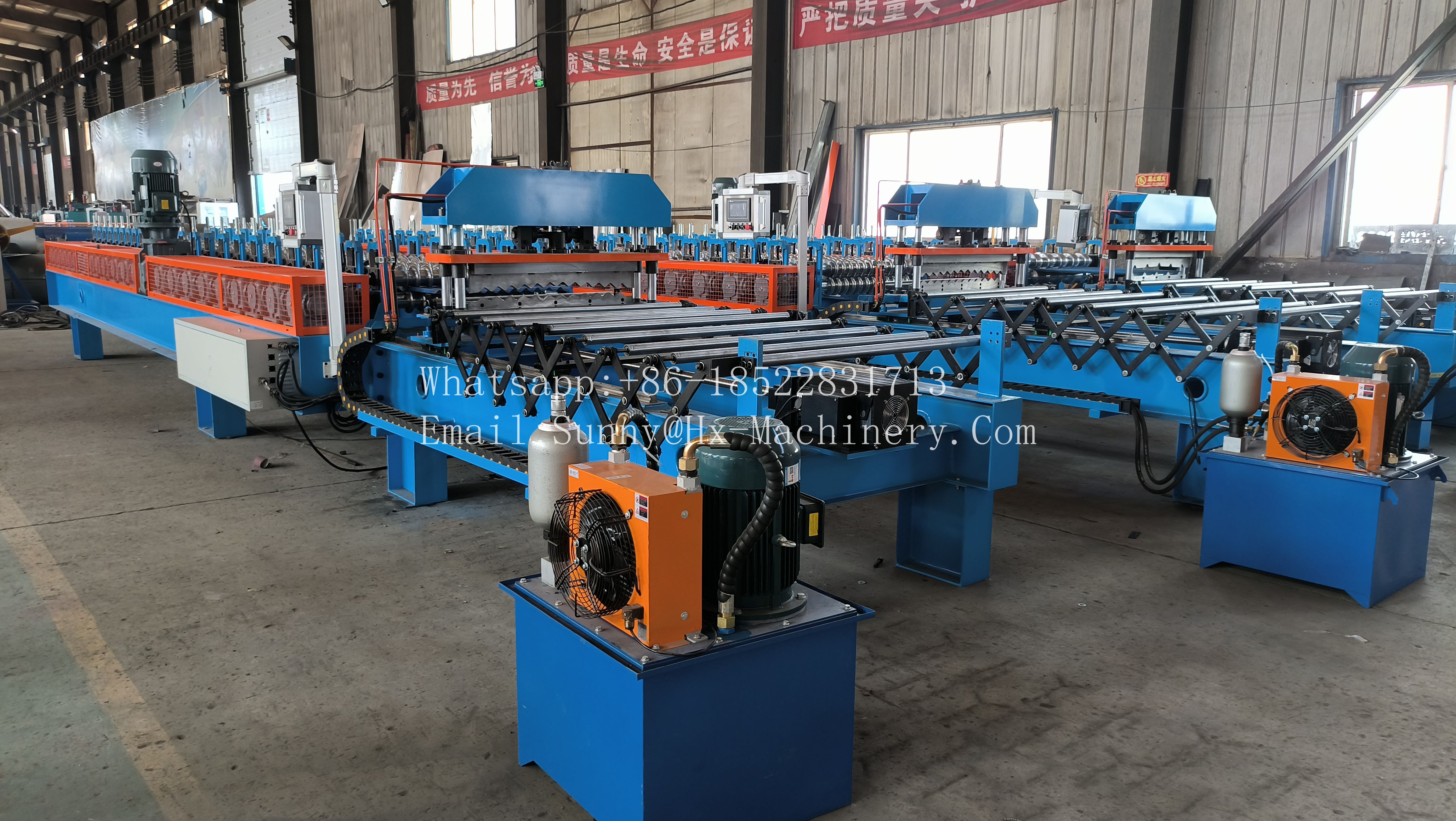

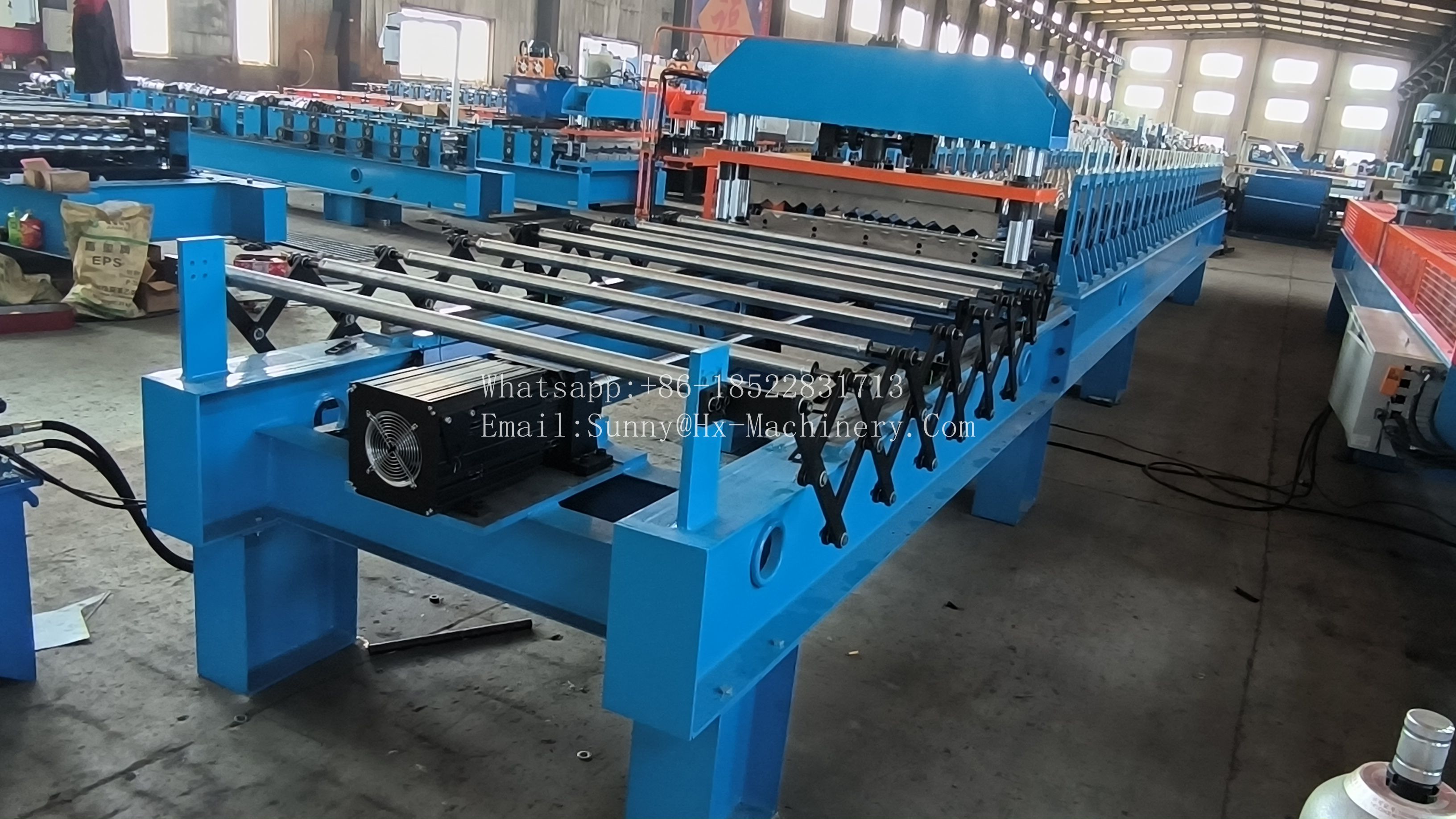

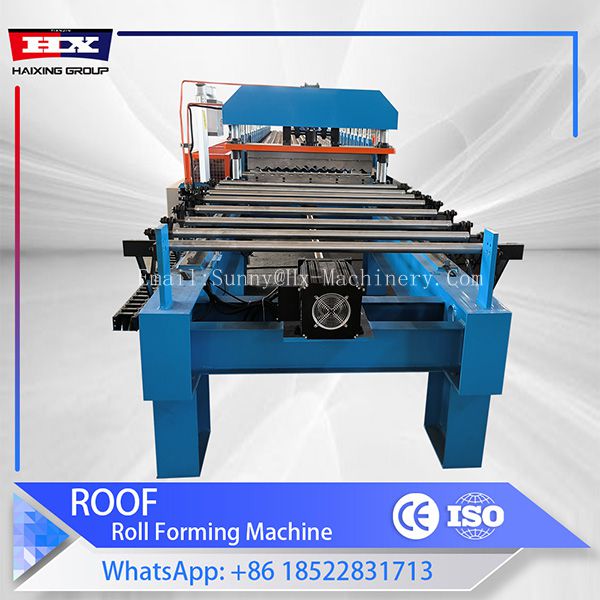

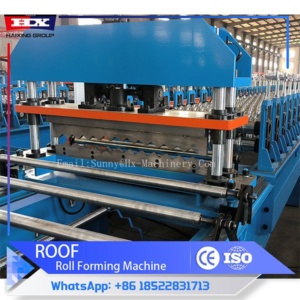

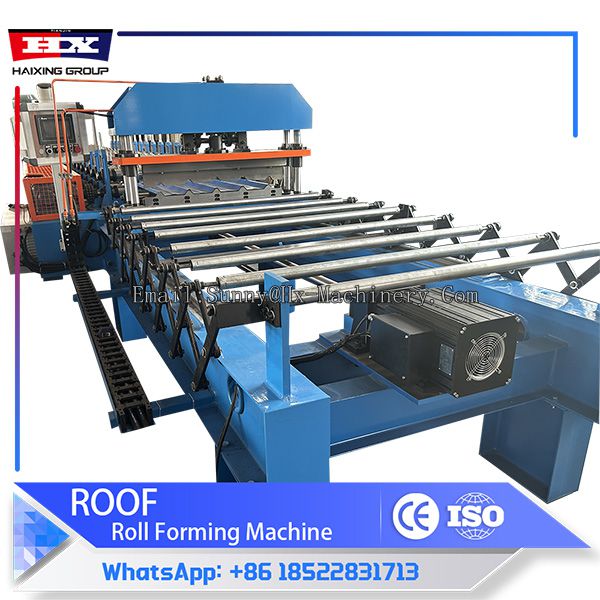

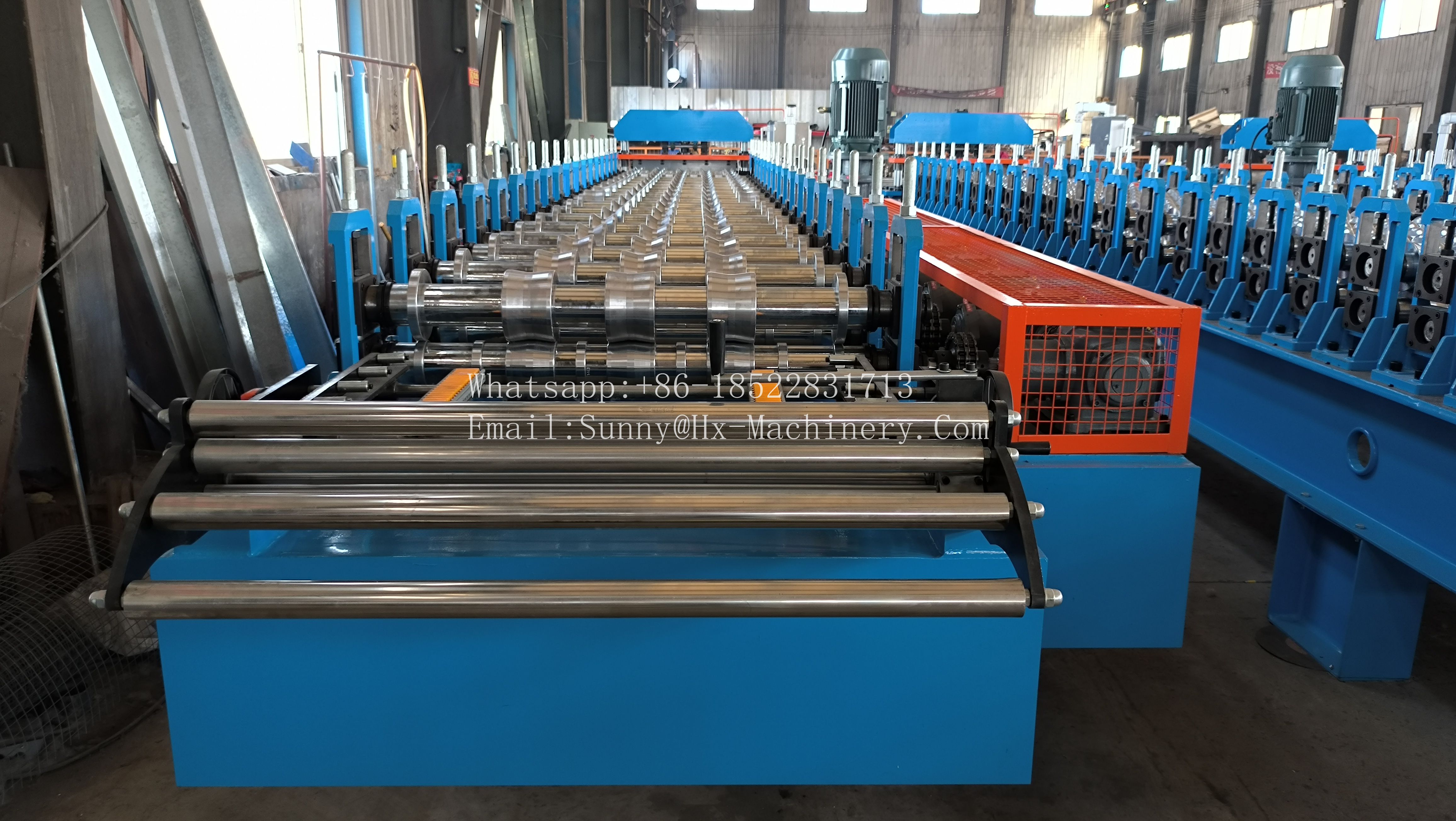

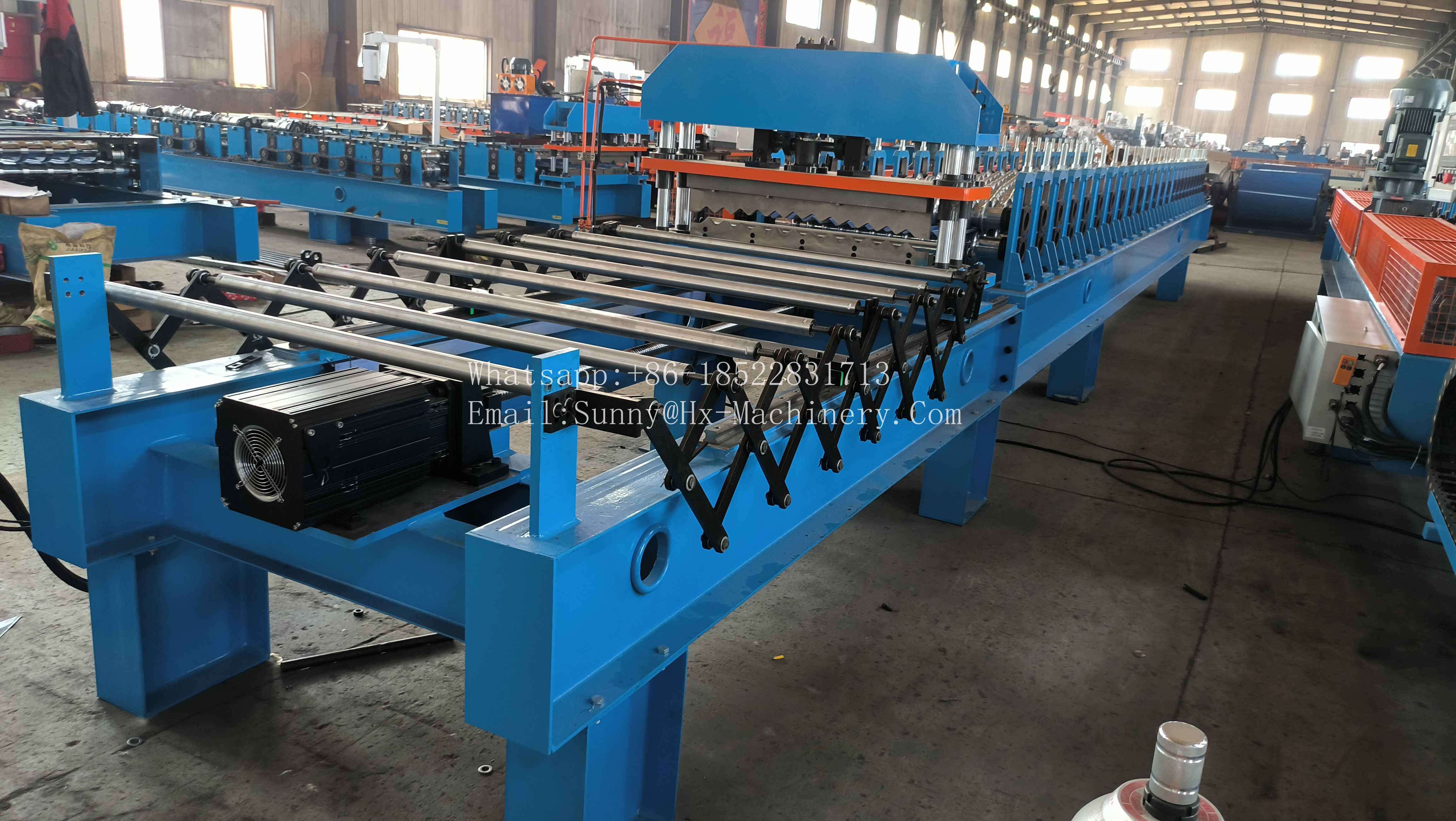

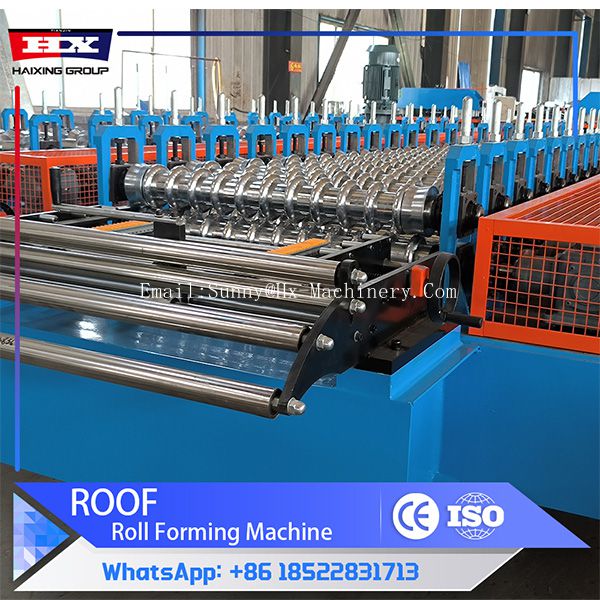

Corrugated Iron Making Machine is a fully automated, high-performance industrial solution designed for the continuous production of corrugated iron sheets. Widely used in roofing, wall cladding, agricultural buildings, and industrial structures, this machine ensures precision, efficiency, and durability in sheet metal forming. It supports various materials including galvanized steel, aluminum, and color-coated coils.
| Parameters of Corrugated iron making machine | |
| Weight of machine | 5800kg |
| Size of machine | 9500*1450*1900mm |
| Rollers | 24 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.18-0.4mm |
| Feed width | 900mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 7.5KW |
| Pump motor power | 4KW（with fan） |
| oltage | 440V, 50HZ, 3-phase electricity |
| Shear error | ±1.0mm |
| Cutting Method | Servo Cutting |
| Forming Speed | 10-15m/min |
Advantages：
| Energy Efficiency | Advanced drive systems reduce many power consumption |
| Low Maintenance | Durable components and easy-access design minimize downtime |
| Customization Options | Adaptable for special profiles, lengths, and material types |
| Global Support | Comprehensive after-sales service, training, and spare parts supply |
Why Choose Our Machine?
Proven reliability in harsh working environments
User-friendly operation with minimal training required
Cost-effective production with reduced material waste
Compatible with auxiliary equipment (automatic decoilers, Conveyor belt, stackers)
About us：
Since 1996 year, HAIXING GROUP main products have evolved from a standard roll forming machine to a customized automated roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners.And we always adhering to the concept of “honesty is our aim, win win is our pursuit”, insisting on the service principles of “customer first, quality first, service first, after sales first”, efficiently and professionally complete the products required by customers.
