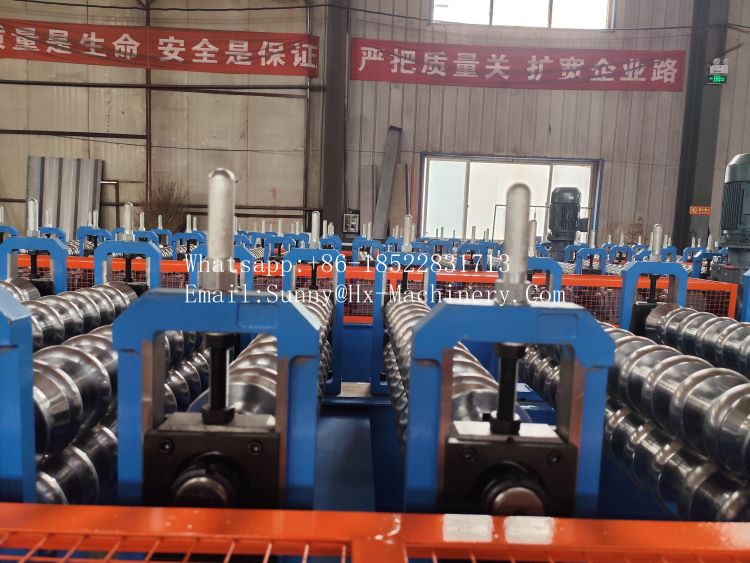

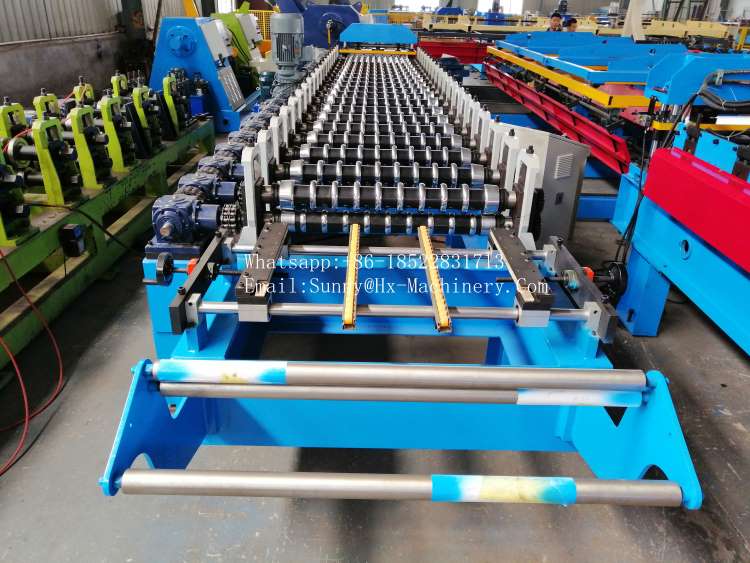

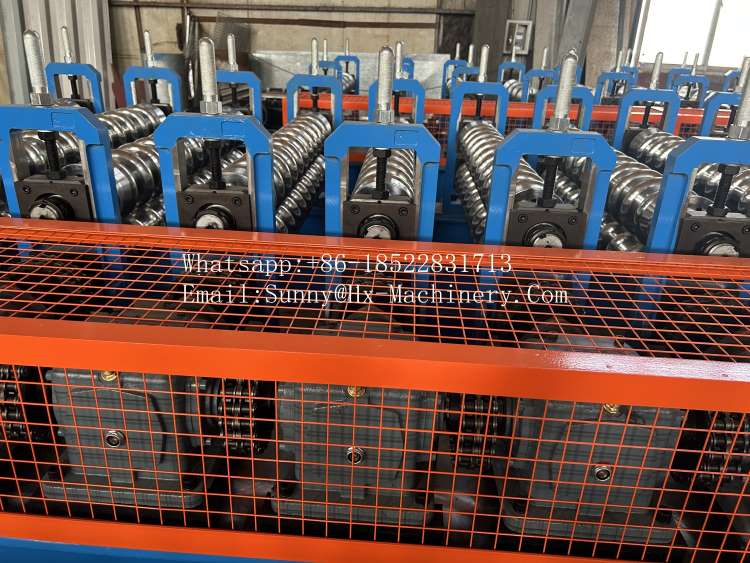

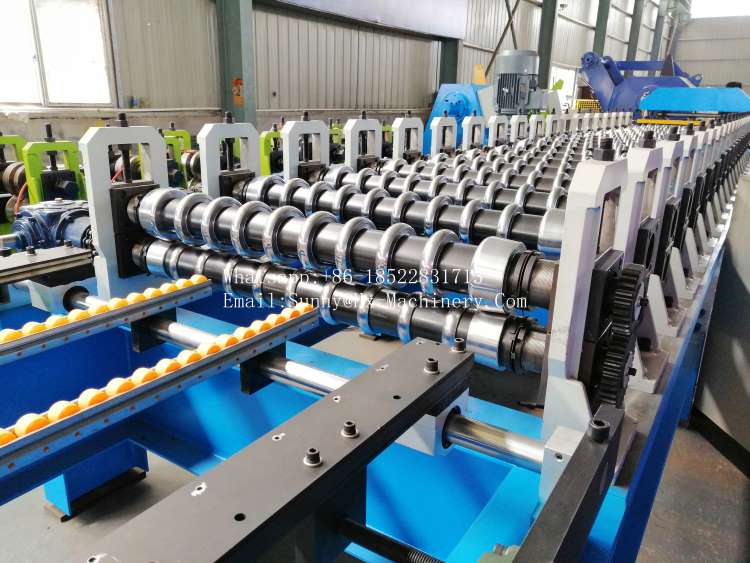

| Parameters of Corrugated sheet roll forming machine | |
| Weight of machine | 5800kg |
| Size of machine | 9500*1450*1900mm |
| Rollers | 24 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.18-0.4mm |
| Feed width | 900mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 7.5KW |
| Pump motor power | 4KW（with fan） |
| Voltage | 440V, 50HZ, 3-phase electricity |
| Shear error | ±1.0mm |
| Cutting Method | Servo Cutting |
| Forming speed | 10-15m/min |
To get a favorable price and more machines of our machine factory!
Key Features:
Advanced Roll Forming Technology: Customizable forming rolls produce uniform corrugated profiles (e.g., PV4, PV5, PV6, PV8) with high accuracy.
High-Speed Production: Automates continuous sheet forming, significantly increasing output while reducing labor costs.
Robust Construction: Built with heavy-duty materials and precision components for long-term reliability and minimal maintenance.
User-Friendly Control System: Equipped with an intuitive PLC interface for easy operation, parameter adjustment, and real-time monitoring.
Energy-Efficient Design: Optimized power consumption reduces operational costs without compromising performance.
Some advantages of Corrugated sheet roll forming machine：
| High Efficiency | Fully automated from coil to finished sheets |
| Consistent Quality | Each sheet is precise and uniform |
| Material Versatility | Works with steel, aluminum, and coated metals |
| Cost Saving | Reduces labor and material waste |

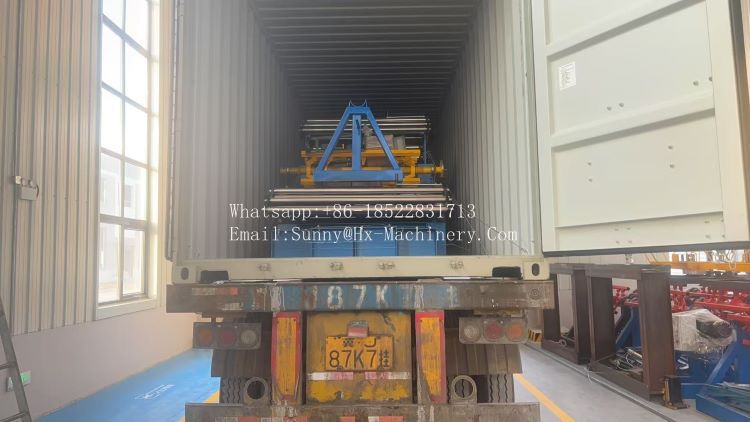

loading and shipment :
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
