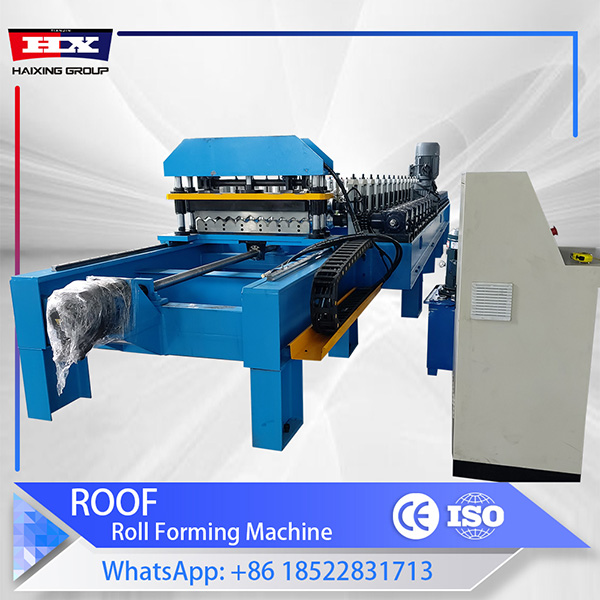

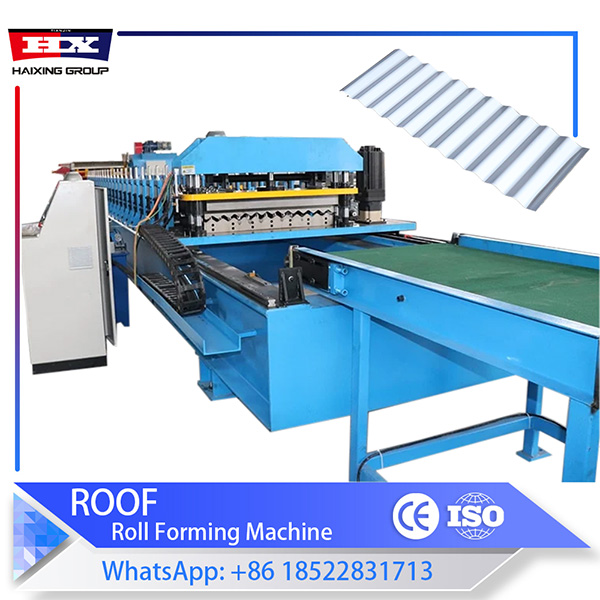

Corrugated sheet rolling machine integrates a complete automated production system, including an automatic decoiler, conveyor belts, and a stacking/palletizing unit. This seamless workflow ensures continuous operation from coil feeding to final sheet stacking, significantly reducing manual intervention and boosting productivity. Designed for high-volume output, the machine guarantees consistent quality while minimizing material waste and labor costs.
| Parameters of Corrugated sheet rolling machine | |
| Weight of machine | 5800kg |
| Size of machine | 9500*1450*1900mm |
| Rollers | 24 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.18-0.4mm |
| Feed width | 900mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 7.5KW |
| Pump motor power | 4KW（with fan） |
| oltage | 440V, 50HZ, 3-phase electricity |
| Shear error | ±1.0mm |
| Cutting Method | Servo Cutting |
| Forming Speed | 10-15m/min |
And our machine contains a standout feature of our machine is its 360° rotating electrical control box, which provides unparalleled convenience for operators. The fully programmable PLC interface allows easy access and adjustment from any angle, simplifying setup, monitoring, and maintenance. This user-centric design ensures efficient troubleshooting and adaptability to various workshop layouts, enhancing both safety and workflow efficiency.
Durable Construction with Advanced Technical Support

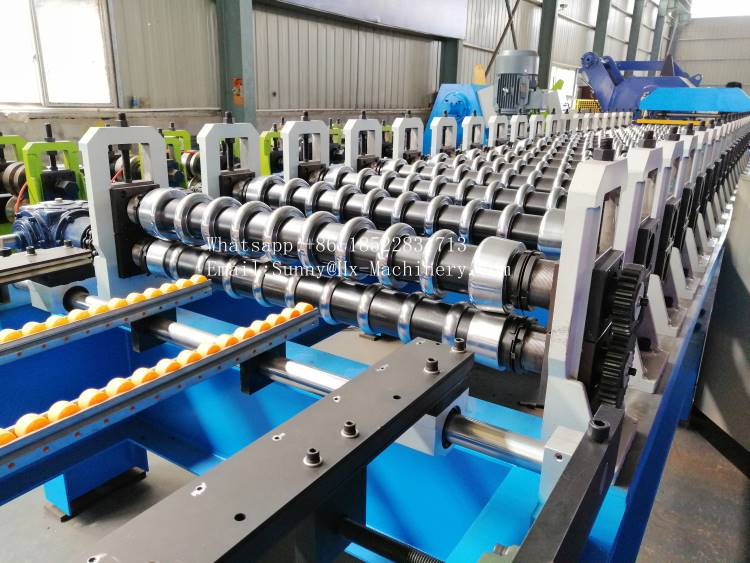

Built with hardened alloy steel rolls and a reinforced frame, our machine ensures long-term reliability even under demanding conditions. It supports multiple corrugated profiles and materials like galvanized steel or aluminum. Backed by global technical support and training, we offer customized solutions to meet specific production needs—helping you achieve precision, speed, and durability in every sheet produced.
The loading and shipment :
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
