Cut to Length Line is a highly efficient solution designed to cut metal coils into precise, fixed-length sheets. It is ideal for industries that require high-quality, accurate cuts with minimal waste. This line handles various materials such as steel, aluminum, and copper, ensuring versatility in production.

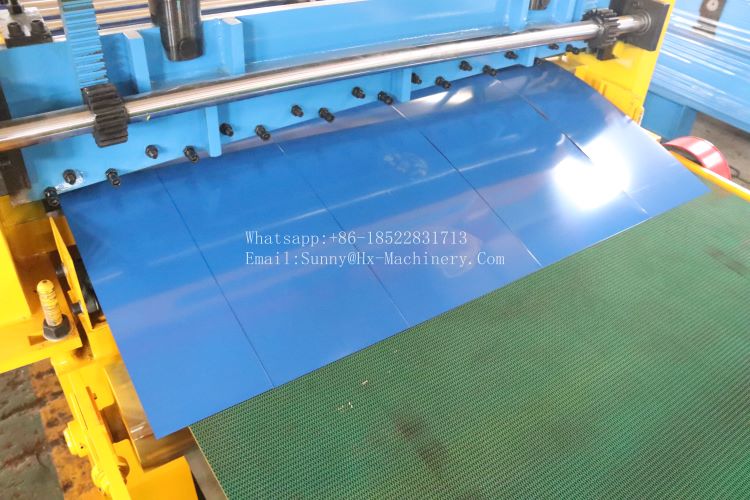

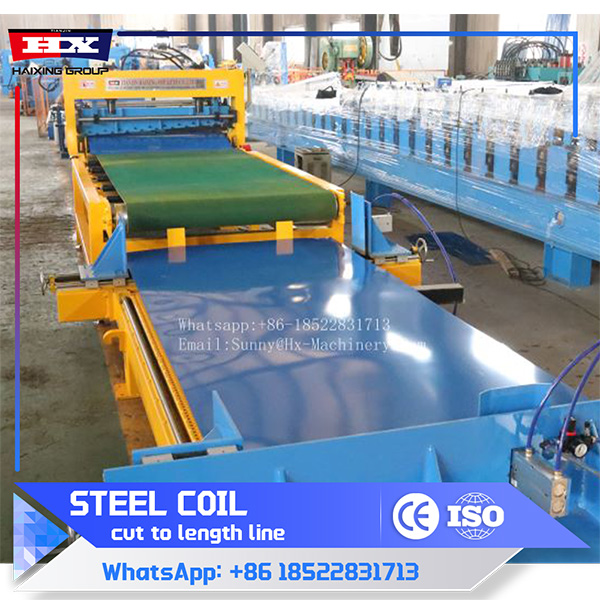

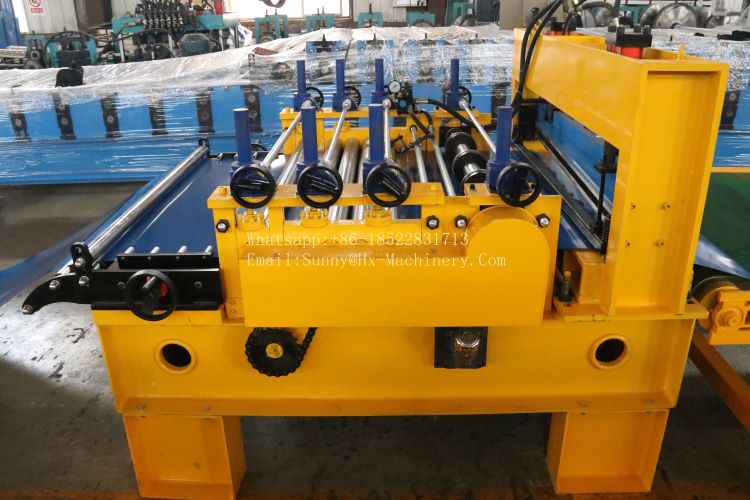

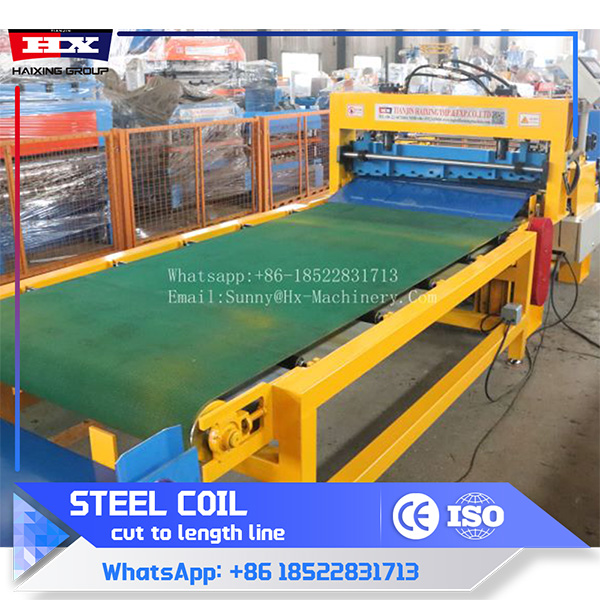

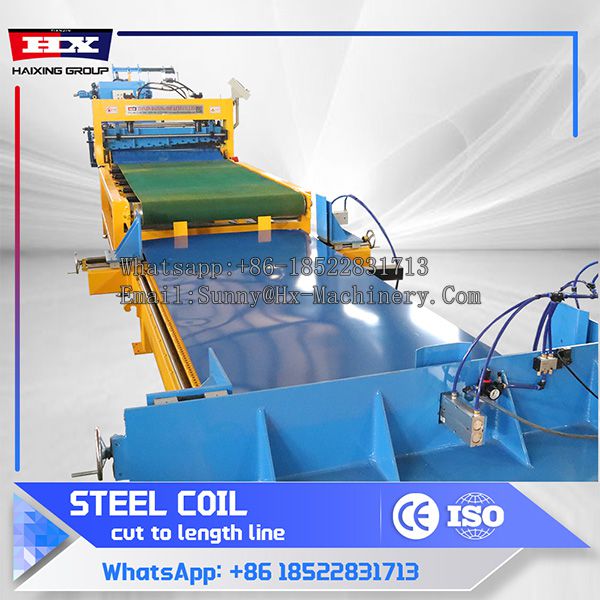

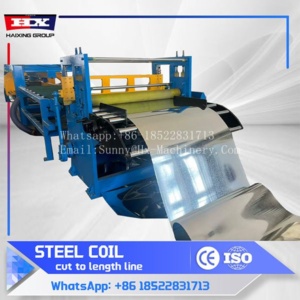

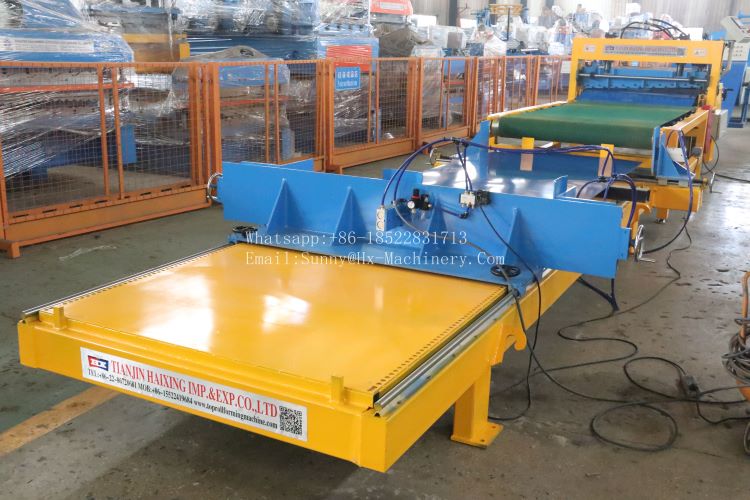

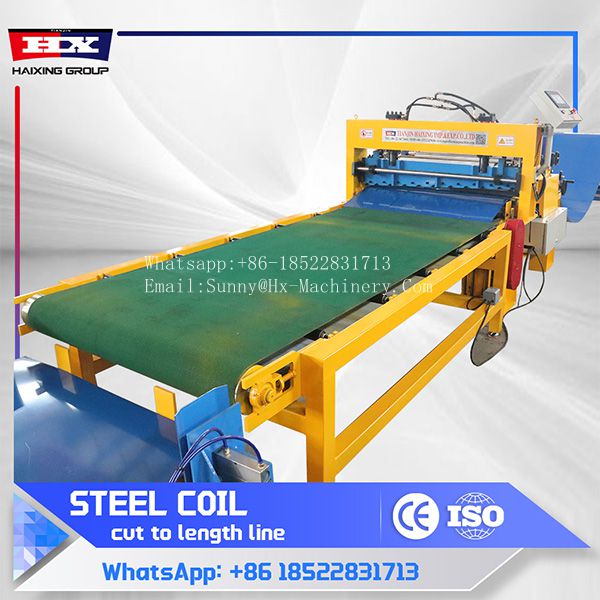

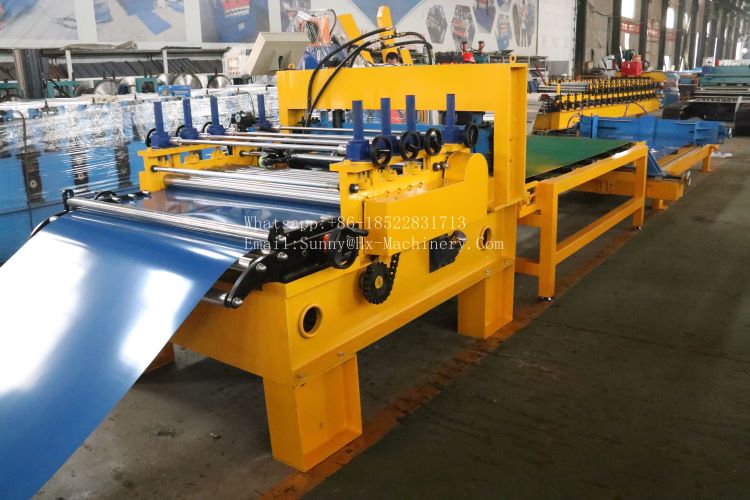

This steel coil cut to length line divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, receiving section and this machine including slitting section. And here are some benefits and photos of machine parts：
1.Versatile: Supports a wide range of materials and thicknesses.
2.Durability: Built with robust components to ensure long-term performance
3.Precision Cutting and slitting: Delivers accurate, high-quality cuts every time
Here are parameters of our cut to length line：
| Suitable to process | Galvanized/color steel coil |
| Thickness of raw material | ≤1.0mm |
| Materials width | Materials width |
| Accuracy | ±2.0mm |
| Roller station | Up :5 rollers Down:6 rollers |
| Cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Main motor | 4KW |
| Voltage | 380V,50HZ,3Phase |
| 380V,50HZ,3Phase | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠90mm |
| Chain size | 1 Inch |
| Hydraulic pump | 4Kw,Lichao |
| Touch screen/PLC | Delta ,Taiwan |
| Transmission | Gear transmission |
| Machine size | 2600x2000x2000m |
| Machine weight | About 2.5Tons |
| Slitting blade | 3 blade 4 pieces |
| Slitting blade materials | Cr12Mov |
If you like our machine click to get a quote and a favorable price！
About us:

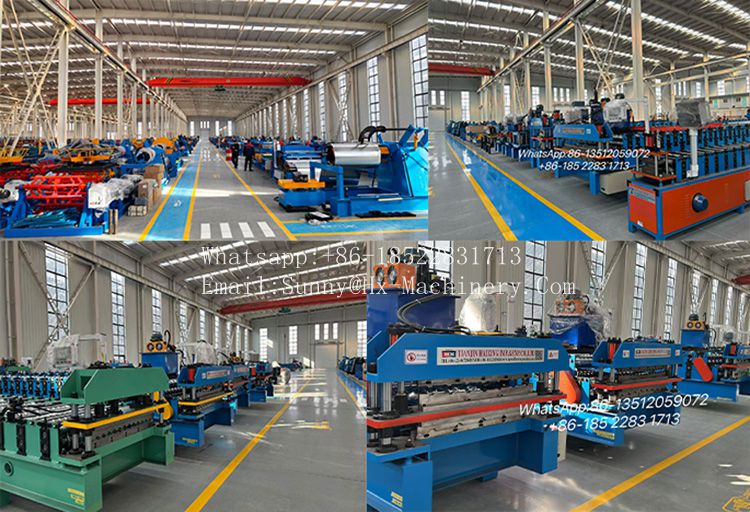

Our campany Haixing Tianjin is a leading manufacturer of cold roll forming machines, specializing in a wide range of products. Our main offerings include roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction machinery.
With extensive experience serving diverse international markets, we cater to various customer needs, including profile drawing, operation language preferences, material thickness ranges, instruction manuals, installation services, and ongoing online after-sales support. Our machines feature medium to high-end configurations, incorporating top-quality PLCs, motors, frequency converters, long-lasting components, remote control capabilities, multifunctional features, and energy-efficient designs.
