Our Cut to Length Production Line is a state-of-the-art solution designed for high-precision cutting of metal coils into specific lengths. This automated system delivers fast, efficient, and consistent results, making it ideal for industries that require precise cut pieces such as steel, aluminum, and other metals. Equipped with advanced control systems, the line offers excellent cutting accuracy, smooth operation, and minimal material waste. Whether you’re processing thin or thick coils, the Cut to Length Production Line can be easily adjusted to accommodate different coil sizes, thicknesses, and grades, providing unmatched flexibility.

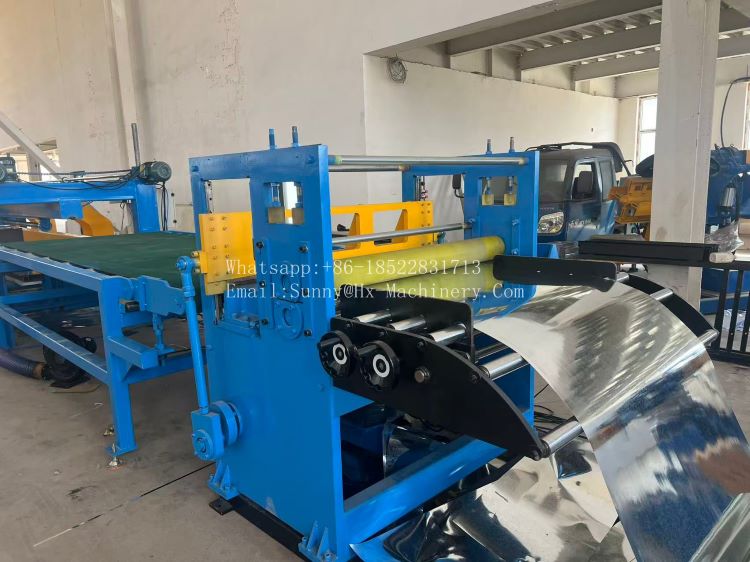

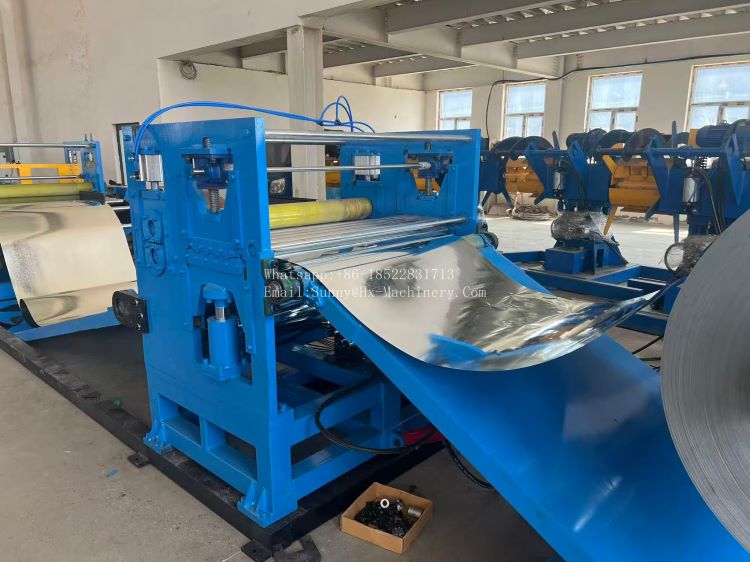

This steel coil cut to length line divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, receiving section and this machine including slitting section. And here are some details and photos of machine parts：

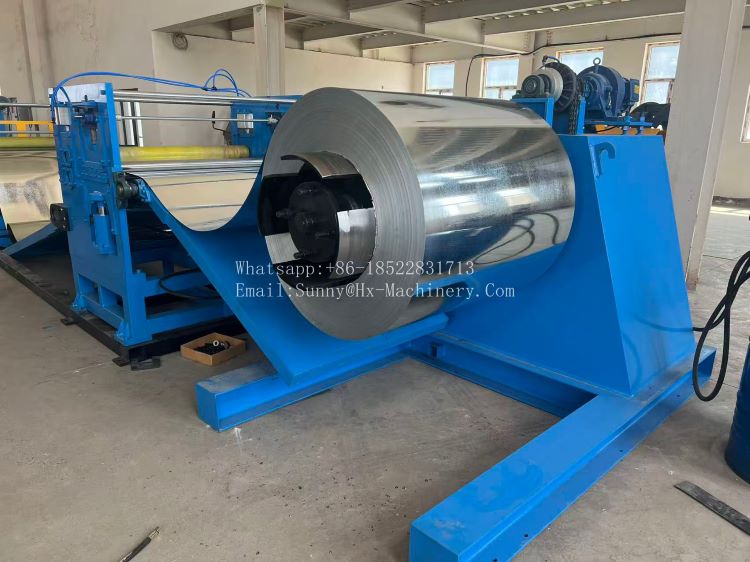

1.10T Uncoiler
Loading-bearing： 10 tons
Support range：¢480mm－￠600mm
Power：4KW
2.Direction device
The deviation of the fixed steel plate, and to prevent the edge curling of thin plates
3.conveyor belt
Using an overall scratch-resistant overall belt conveyor,
Length 3000mm, flat belt drive, does not damage the board surface

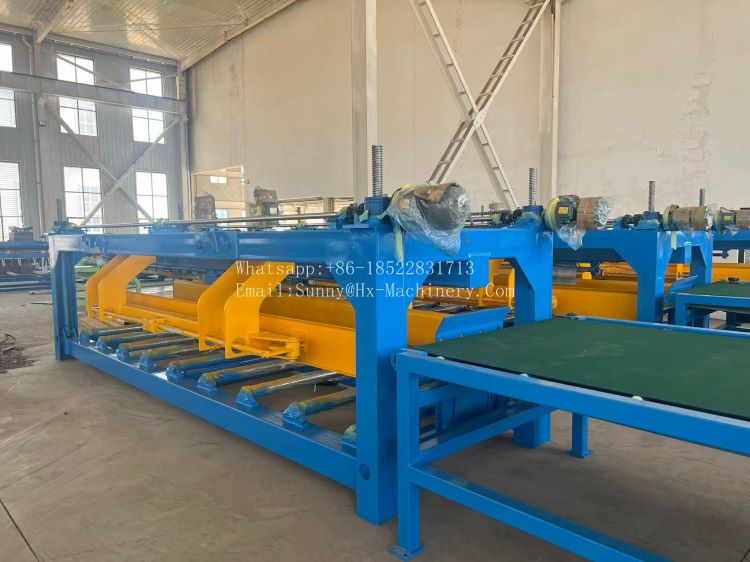

4.Lifting and stacking machine
Hydraulic lifting system, automatically lowers according to the height of the stacked steel plates，
Make it convenient for packing and hoisting.
Here are parameters of our Cut to length production line：
| Suitable to process | Galvanized/color steel coil |
| Thickness of raw material | ≤1.0mm |
| Materials width | Materials width |
| Accuracy | ±2.0mm |
| Roller station | Up :5 rollers Down:6 rollers |
| Cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Main motor | 4KW |
| Voltage | 380V,50HZ,3Phase |
| 380V,50HZ,3Phase | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠90mm |
| Chain size | 1 Inch |
| Hydraulic pump | 4Kw,Lichao |
| Touch screen/PLC | Delta ,Taiwan |
| Transmission | Gear transmission |
| Machine size | 2600x2000x2000m |
| Machine weight | About 2.5Tons |
| Slitting blade | 3 blade 4 pieces |
| Slitting blade materials | Cr12Mov |
