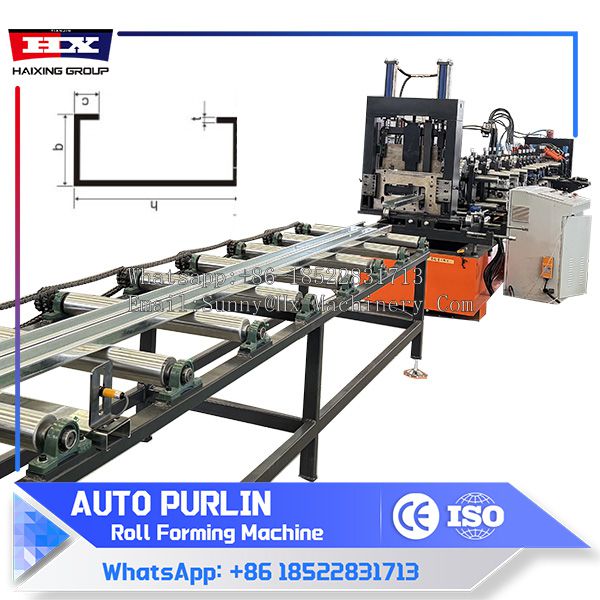

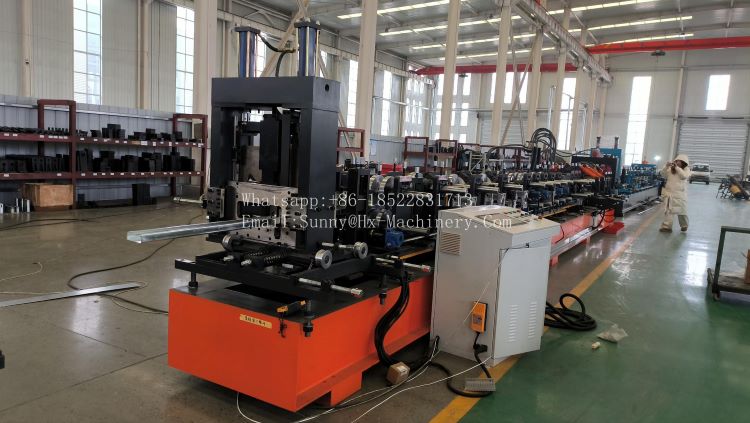

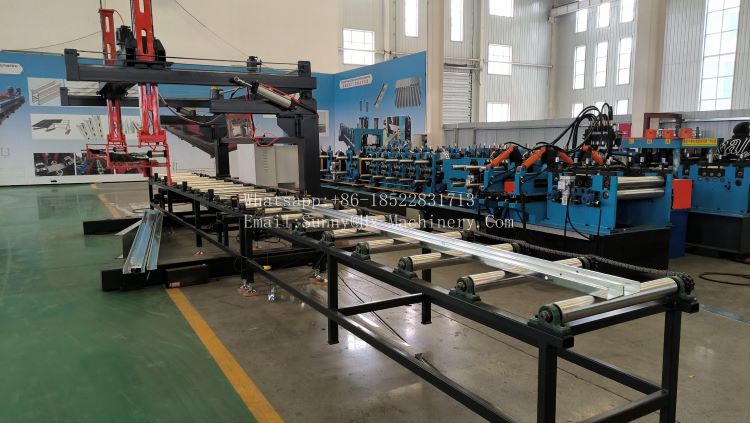

Cz purlin roll forming machine

CZ Purlin Roll Forming Machine shapes steel CZ purlins quickly and accurately. It handles different sizes and thicknesses to meet various construction needs. Operators control the machine easily with a simple interface. The machine runs smoothly, reduces material waste, and improves production efficiency. Its durable parts ensure long-term reliability and minimal maintenance. This machine suits factories, warehouses, and roofing projects that require precise and consistent steel profiles.

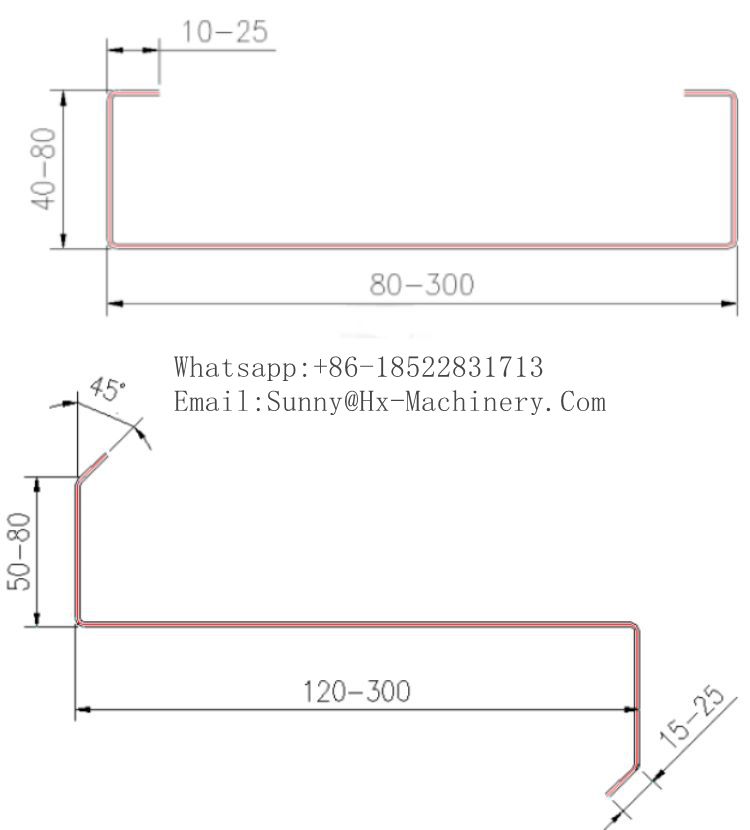

C and z purlin machine Drawing Model：C:Bottom:80-300mm  Waist high:40-80mm

                                                                    Z:Bottom:50-80mm  Waist high:120-300mm

Main data of the Cz purlin roll forming machine
Dimensions	9.5*1.5*2.0m
Weight	About 10.5 Tons(not include decoiler weight and spares)
Main structure of the machine	450 H stee,Heat treatment and polishing surface
Side panel of machine	25mm( A3 steel)
Suitable to process	Galvanized/Cold steel strips
Yield strength of raw material	G350
Rolling materials	GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Voltage	380V 50HZ 3Phase
Thickness of the raw material	1.0-3.0mm
Rollers	18 rollers
Diameter of the shaft	Φ80mm(Change sliding part 65mm)
Operating Mode	Automatic CZ Free Replacement By Motor Drive
Main Motor size	Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L
Chain Wheel and Cycle Chain	2.0 Inch

Click to know more about us and get a more favorable price！

Detailed Images for reference：

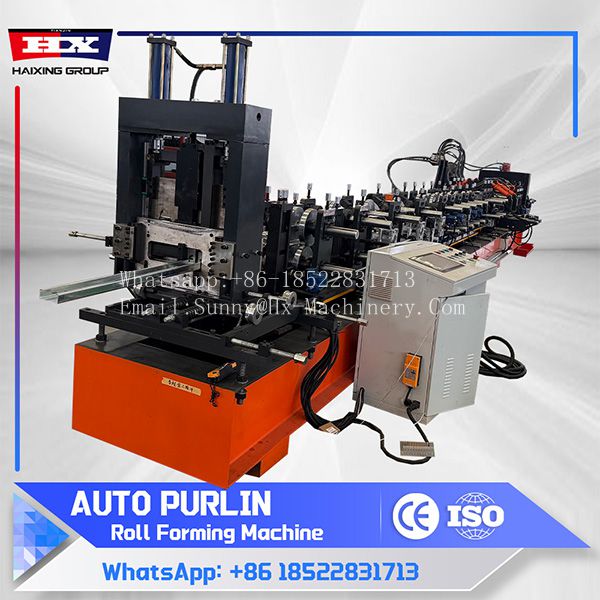

A.Cutting device Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension,according to the hydraulic drive and PLC computer control system

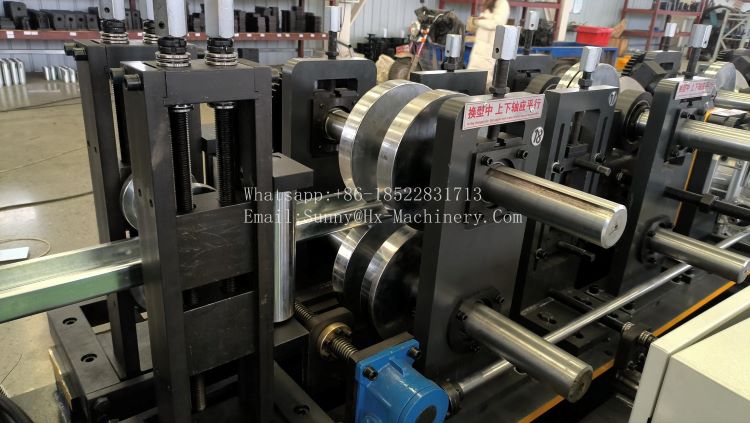

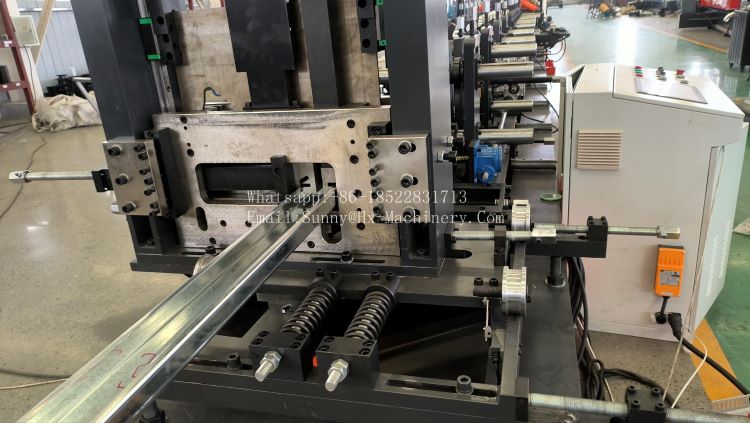

B.Roller System Material: GCr15(bearing steel)hard chrome plated after heat treatment Roller station:14rollersforming+4 groups of changeable modules+leveling shaft+straightening shaft Thickness of feeding material: 1-3.0mm

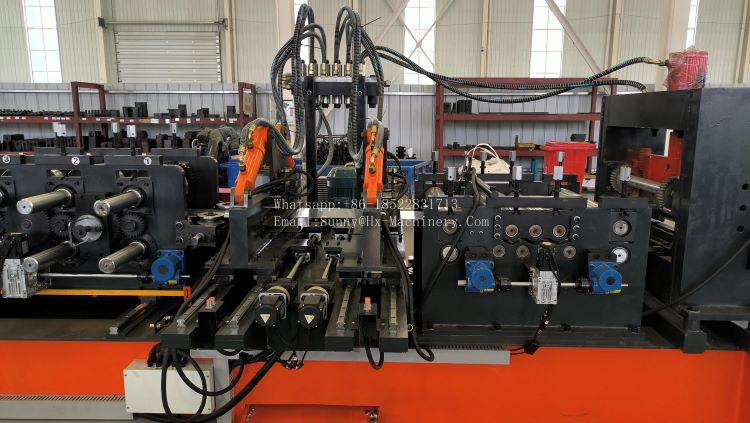

C.Punching section

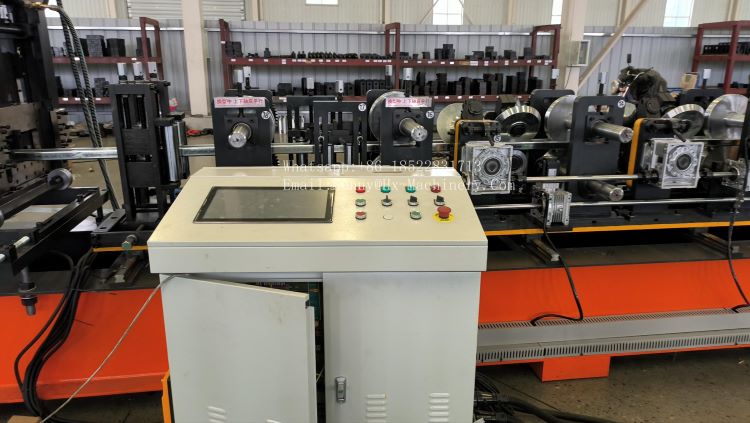

D.Automatic Control System Screen: touch screenAutomatic length measurement Automatic quantity measurement Computer is used to control length and quantity. Length inaccuracy can be amended easily. Machine will automatically cut to length and stop when required quantity is achieved.

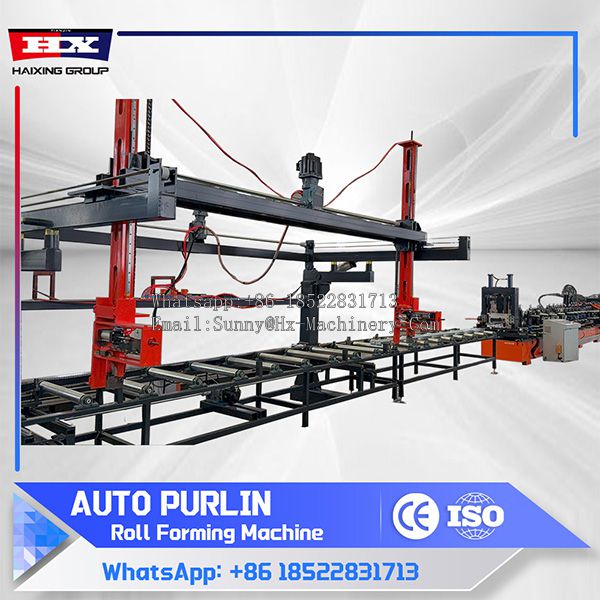

E.Receiving Table(3Meters*2Pieces)
