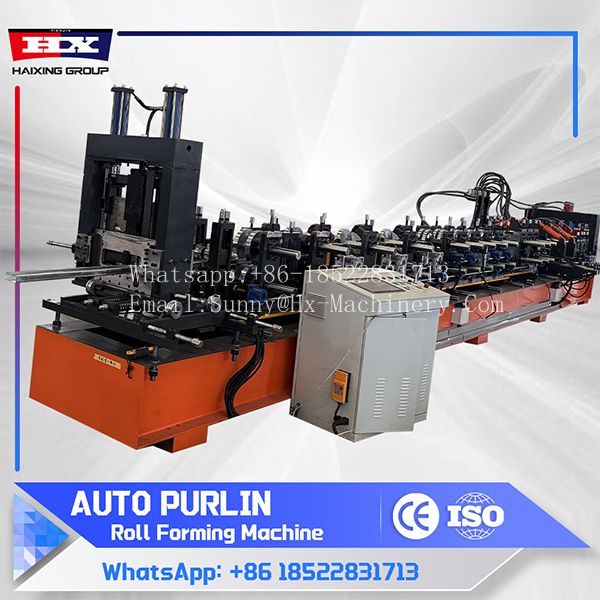

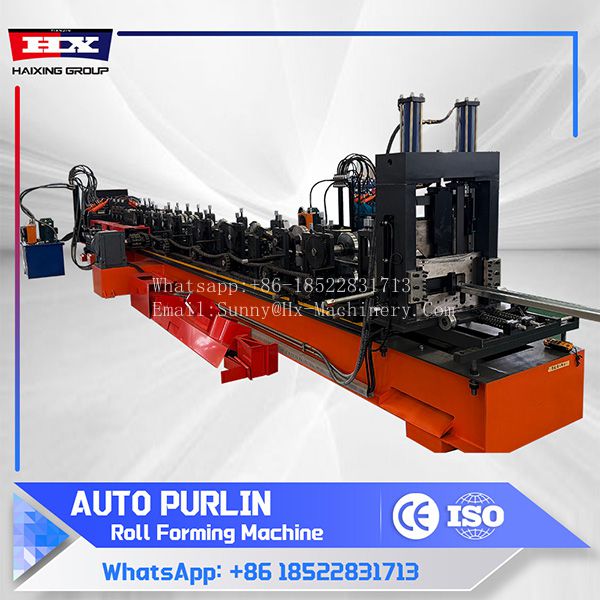

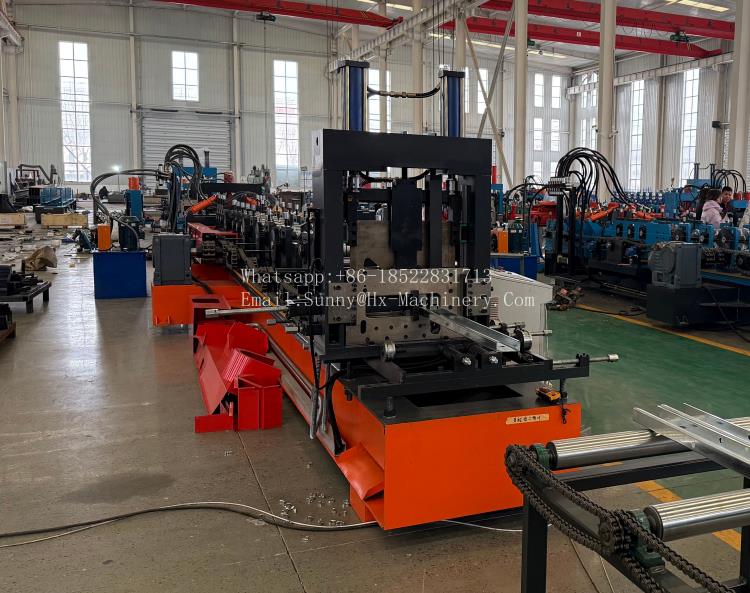

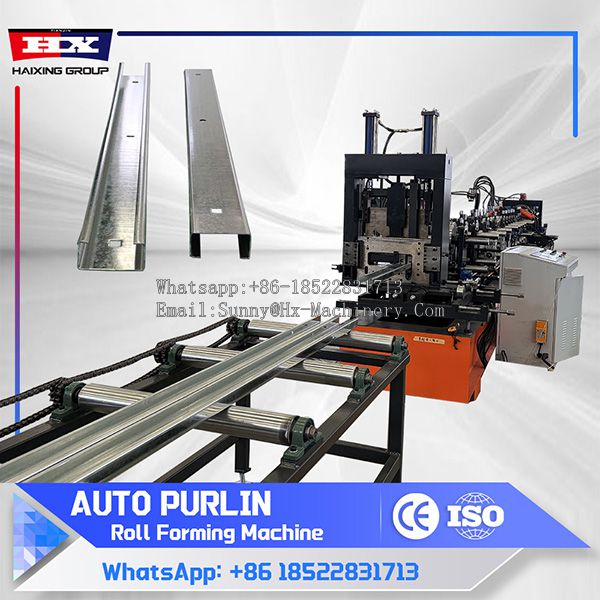

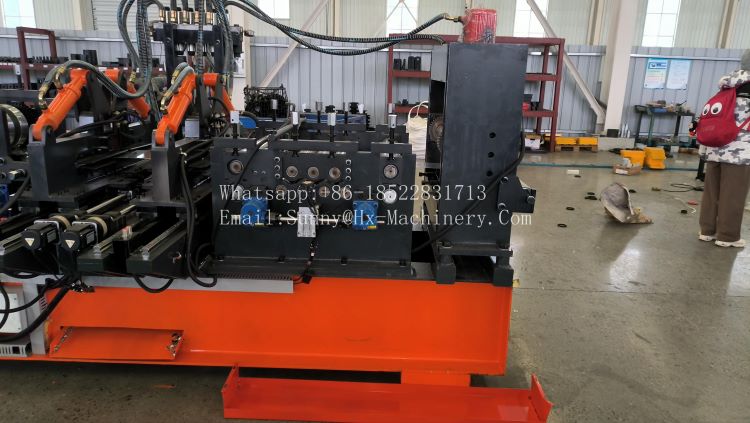

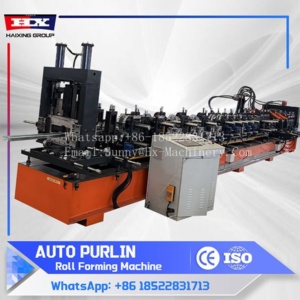

Cz Roll Forming Machine shapes steel CZ profiles quickly and accurately. It handles various sizes and thicknesses to fit different construction needs. The machine features a simple control panel, making operation easy for any worker. Durable components ensure long-lasting performance, and the design minimizes material waste. This machine works efficiently in factories, warehouses, and roofing projects, helping businesses save time and improve production output.
Cz roll forming machine Drawing Model：C:Bottom:80-300mm Waist high:40-80mm
Z:Bottom:50-80mm Waist high:120-300mm
| Main data of the Cz roll forming machine | |
| Dimensions | 9.5*1.5*2.0m |
| Weight | About 10.5 Tons(not include decoiler weight and spares) |
| Main structure of the machine | 450 H stee,Heat treatment and polishing surface |
| Side panel of machine | 25mm( A3 steel) |
| Suitable to process | Galvanized/Cold steel strips |
| Yield strength of raw material | G350 |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Voltage | 380V 50HZ 3Phase |
| Thickness of the raw material | 1.0-3.0mm |
| Rollers | 18 rollers |
| Diameter of the shaft | Φ80mm(Change sliding part 65mm) |
| Operating Mode | Automatic CZ Free Replacement By Motor Drive |
| Main Motor size | Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L |
| Chain Wheel and Cycle Chain | 2.0 Inch |
Click to know more about us and get a more favorable price！
Shape steel CZ profiles fast and accurately with the Cz Roll Forming Machine. Save materials, run smoothly, and boost efficiency for all construction projects.
Detailed for reference：

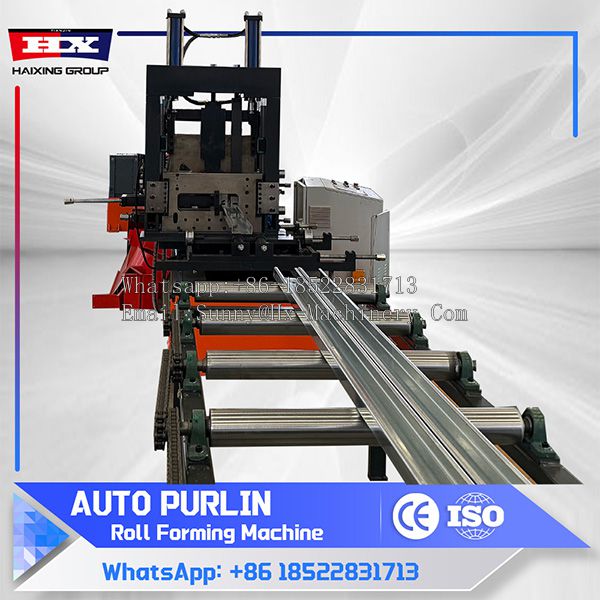

| A.Cutting device
Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension,according to the hydraulic drive and PLC computer control system |

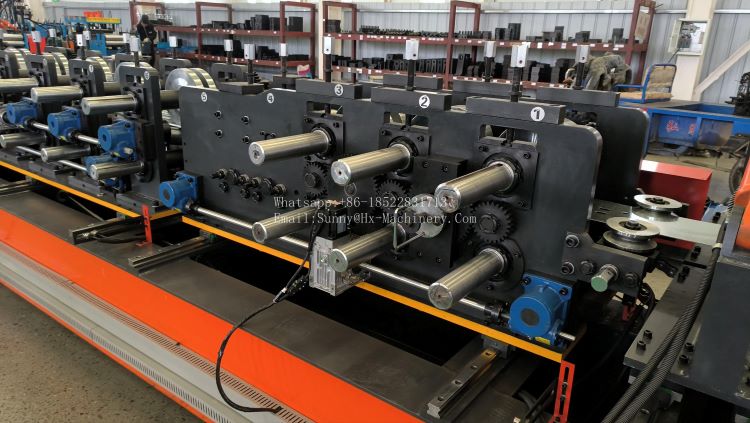

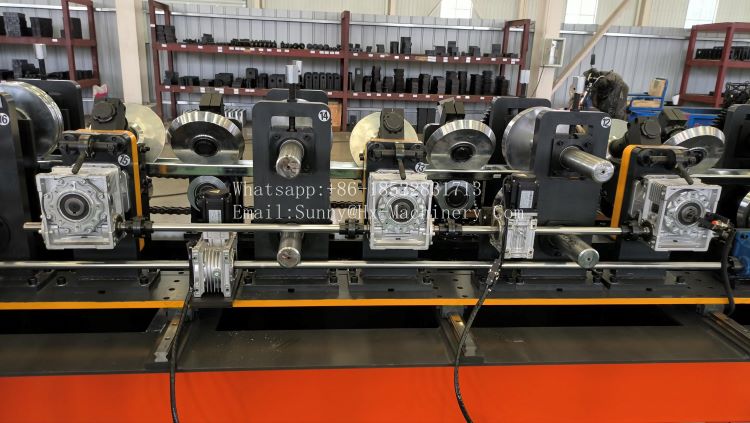

| B.Roller System
Material: GCr15(bearing steel)hard chrome plated after heat treatment |
| C.Main Drive mode
Hydraulic motor drive for high precision |
| D.Feeding leveling
The Pre-hand place with leveing rollers |
| E.Manual Uncoiler
Un-powered, manual control steel coil inner bore shrinkage and stop |
The advantages of Cz roll forming machine are as follows:
| 1 | Produce different purlin size without changing rollers or spacers. |
| 2 | No need changing cutter for different size. |
| 3 | Easy operation, low maintenance cost |
| 4 | Easy operation, low maintenance cost |
| 5 | Optional Punch hole at any position of purlin web side and flange side |
