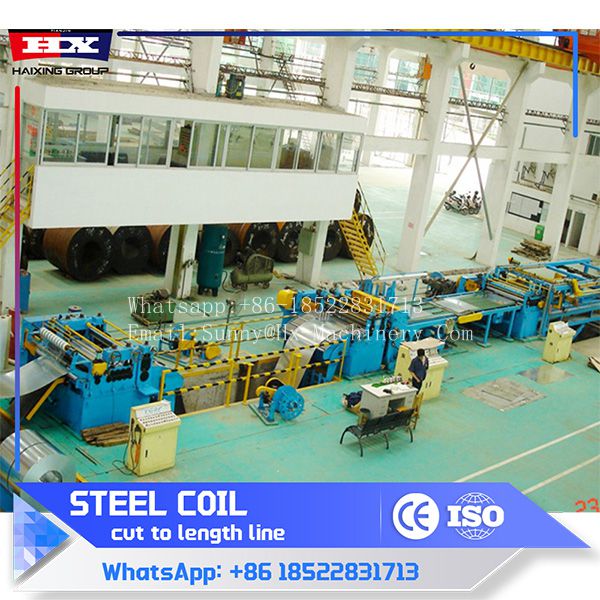

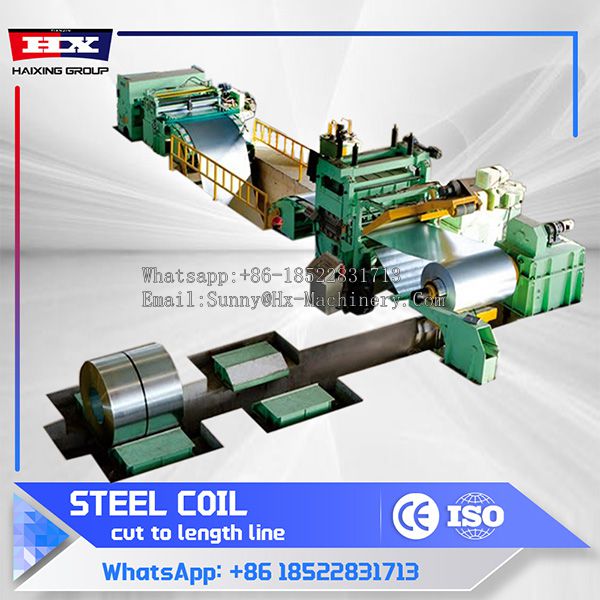

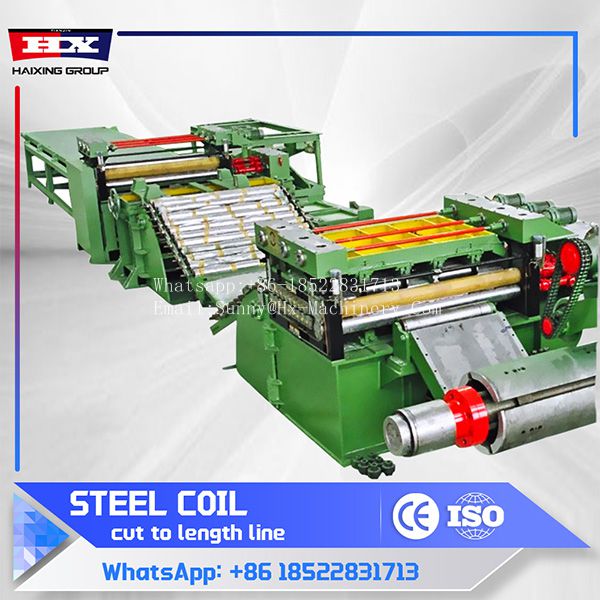

Heavy gauge cut to length line

Model：HX-Heavy gauge cut to length line
PaymentMethod：30% as deposit ,balance payment after inspection while before delivery.
Production Period:About 30-40 working days after the 30% deposit.
Warranty:24months limited warranty
Components and parts are free during warranty.

Send Inquiry

Category: Cut to length line Tags: cut to length machine manufacturers, Sheet coil cutting machine, Slitting and cut to length line

Description

Heavy Gauge Cut to Length Line is a reliable system designed to cut thick steel coils into precise lengths. It is built to handle heavy-duty materials, providing efficient and accurate cutting for industries that require strong and durable steel products.

The Production process：

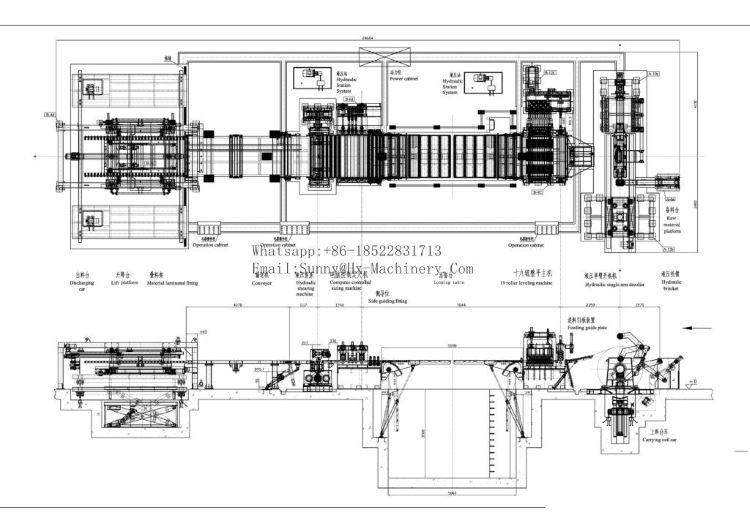

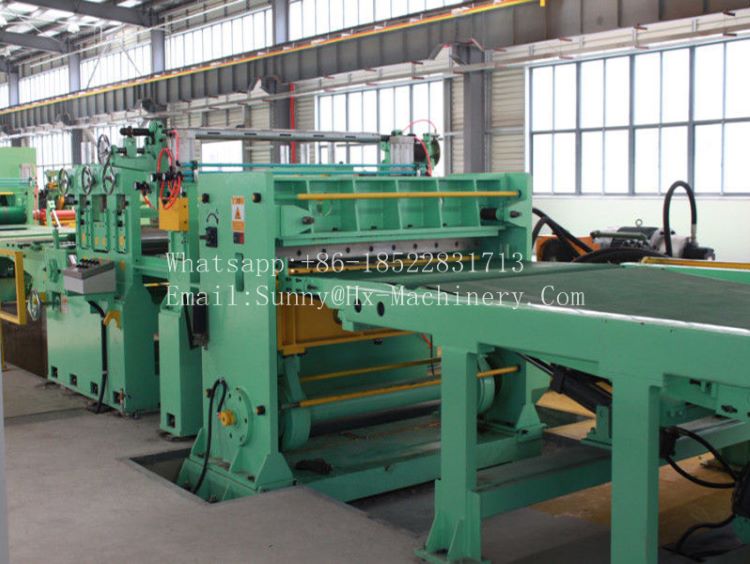

This cut to length machineis divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, and receiving section. And here are some parameters of diferent parts:

Main parameter of Heavy gauge cut to length line

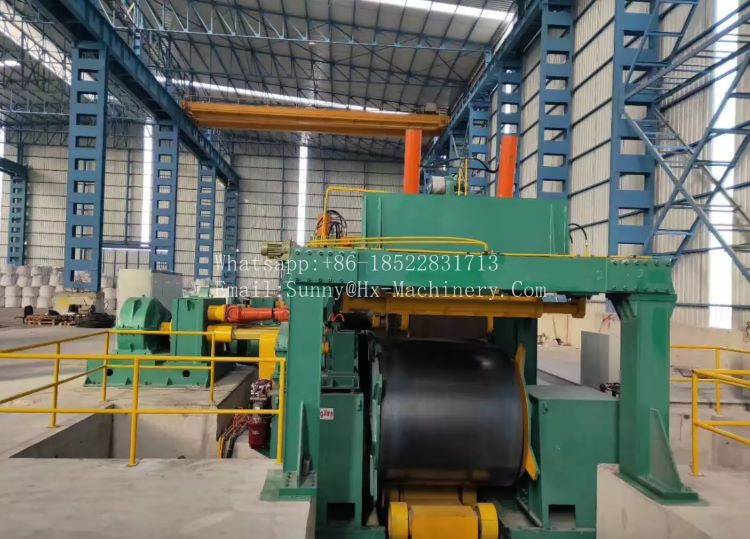

1.uncoiling section
Size	3.61.81.9meters
Weight	About 3.6Tons (Include a coil car)
Main axis	Thick-walled seamless steel pipe, Shaft diameter 198*50mm
Hydraulic cylinder	Cylinder diameter 125mm
The whole box iron plate	16 mm
Main motor	PM250 steel shell reducer (Speed ratio 40:17 ) 5.5Kw
Max put weight	10 tons
Coil Inner diameter range	470-530mm,if ave special need advance notice
Power	380V 50HZ 3phase

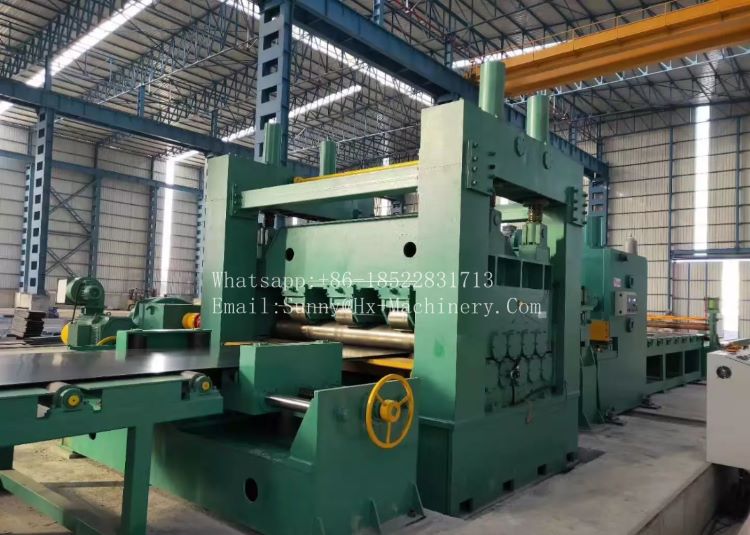

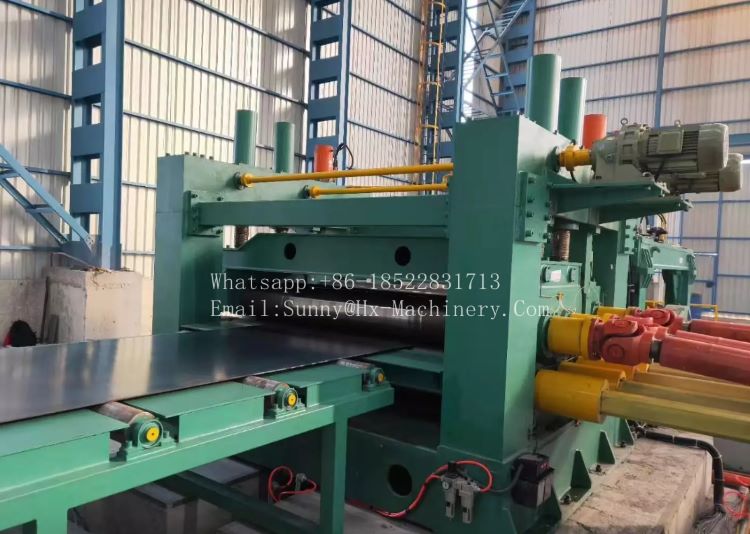

2.Leveling section
Thickness of raw material	Max thickness less 25mm
Materials width	Max 1600mm
Max 1600mm	±2.0mm
Roller station	Up :7 rollers Down:8 rollers
Speed	10-15m/min
Slitting to min width	120mm (If need can add )
Voltage	380V,50HZ,3Phase
Main frame	350 H beams
Side-wall thickness	40mm
Diameter of shaft	￠110mm
Main power	5.5kw+5.5Kw
Machine size	3000x2000x2000m

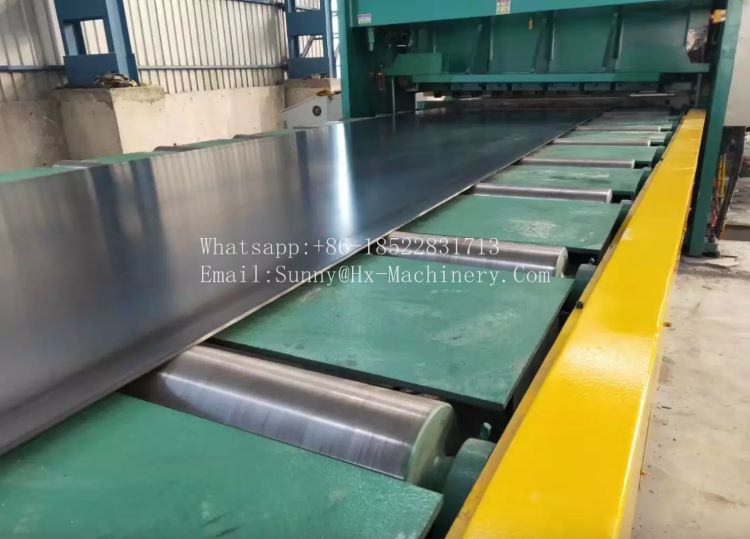

3.conveying section
Engine power	2.2Kw
Transfer speed	≤20m/min
Conveyor belt size	3000 mm*1600mm
Voltage	380V,50HZ,3 phase

4.receiving section
Size	4000*1250mm
Minimum material	1000*1000mm
Voltage	380V,60HZ,3 phase

Click to know more about our machine and a favorable quote!

The Heavy gauge cut to length line applicate in different area：

application：

Construction Industry: Cutting thick steel plates for structural applications, such as beams, columns, and reinforcement bars.
Shipbuilding: Processing heavy steel sheets for building ship hulls, decks, and other marine structures.
Heavy Machinery Manufacturing: Producing large, strong steel parts for industrial machinery, mining equipment, and presses.

Heavy gauge cut to length line

About us:

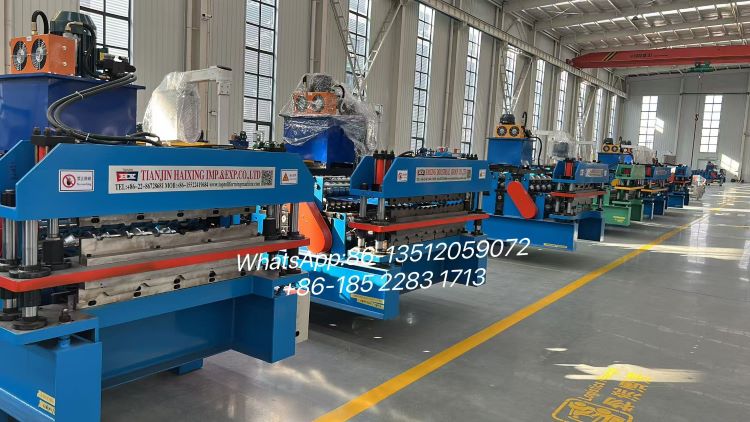

Haixing Tianjin is a professional manufacturer of cold roll forming machines. Our main products include roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction equipment.
