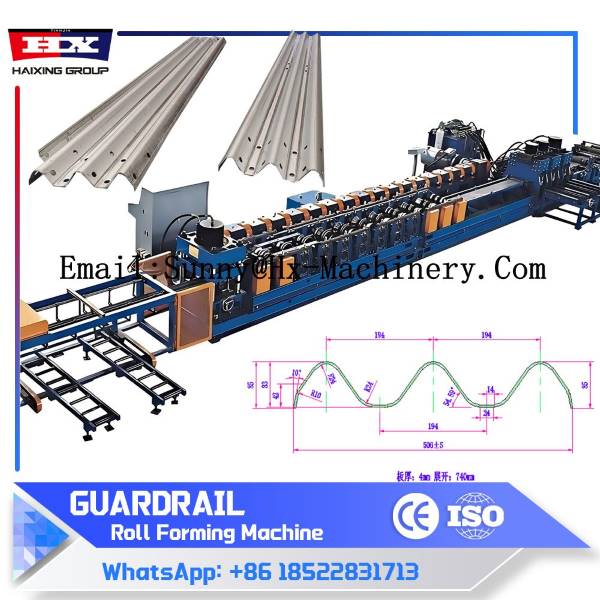

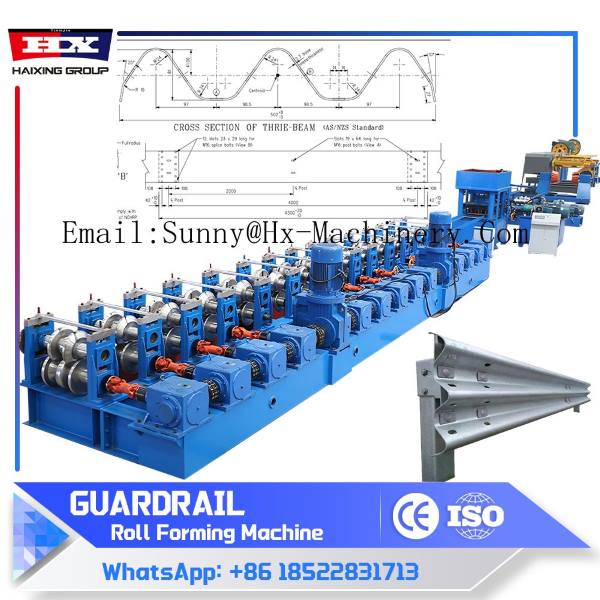

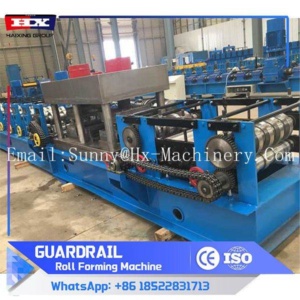

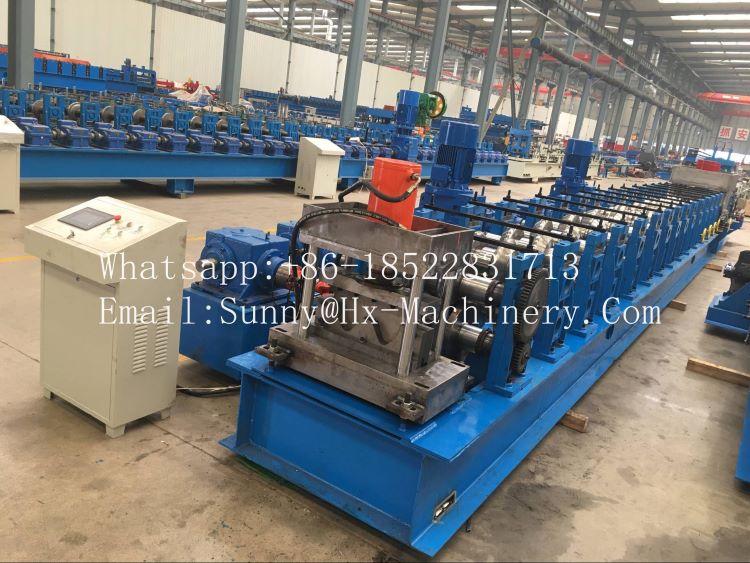

Highway Guardrail Forming Machine: Our machine is designed for efficient production of high-quality guardrails used on highways. It operates quickly and accurately, helping businesses boost production while maintaining precision. The machine is easy to set up and adjust for different guardrail sizes and designs. With its durable construction, it offers long-lasting performance and low maintenance costs. Whether you’re starting a new project or upgrading your production line, this machine is a reliable solution for your business needs.

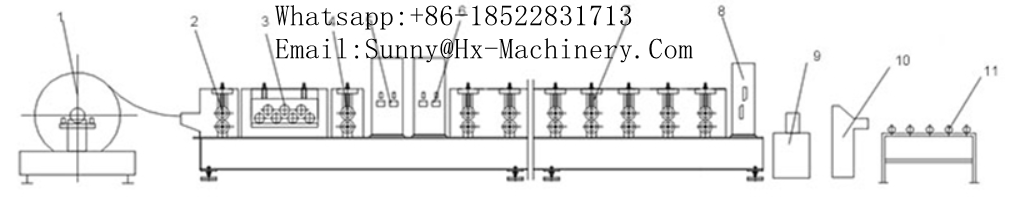

Product process:Feeding—Leveling—Punching—Forming—Cutting—Discharge
The size of our product(can customized with your need):
| highway guardrail forming machine manufacturers parameters | ||
| 1 | Decoiler | 8 Ton single-arm decoiler |
| 2 | Machine body frame | 500H Beams welding |
| 3 | Forming guide feed frame | Side arch type |
| 4 | Forming Machine Type | 55 portal frame with chain drive |
| 5 | Diameter of shaft | Ø120 mm |
| 6 | Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| 7 | Main Motor Power | Dual 22 kW motors with K107 reducer |
| 8 | Forming Speed | 5-15 m/min |
| 9 | Roller station | 15-18 rows |
| 10 | Material of rollers | High-quality CR12, quenched and precision machined |
| 11 | Hydraulic system power | 22 KW with four-valve plunger pump |
| 12 | Cutting Method | Hydraulic triple-blade shearing |
| 13 | Punching Units | Three sets (one for center hole, two for side holes) |
| 14 | Cutting blade | Cr12, Quenched treatment 58℃-62℃ |
| 15 | Forming Thickness | 2.0-4.0 mm ( Length Tolerance: ±2 mm) |
| 16 | Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| 17 | Machine Dimensions | 1400mm*2400mm(L*W) |
Those photos about product process:
| A.Decoiler
Bearing weight: 8t
|
| B.Feeding
|
| C.Punching
With Three sets (one for center hole, two for side holes)
|

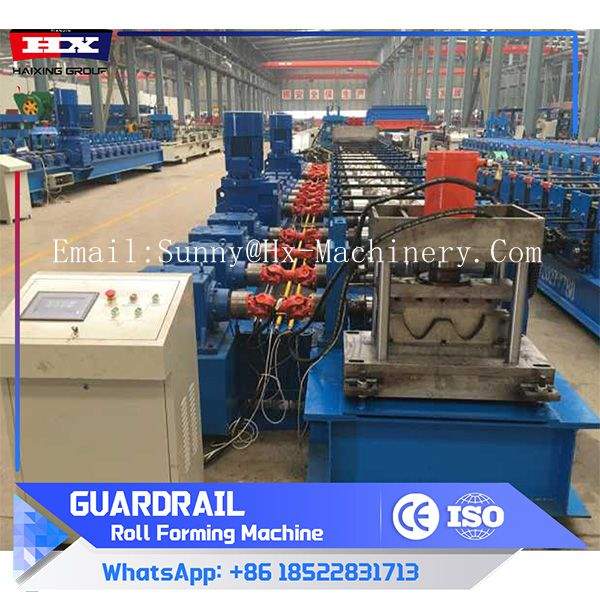

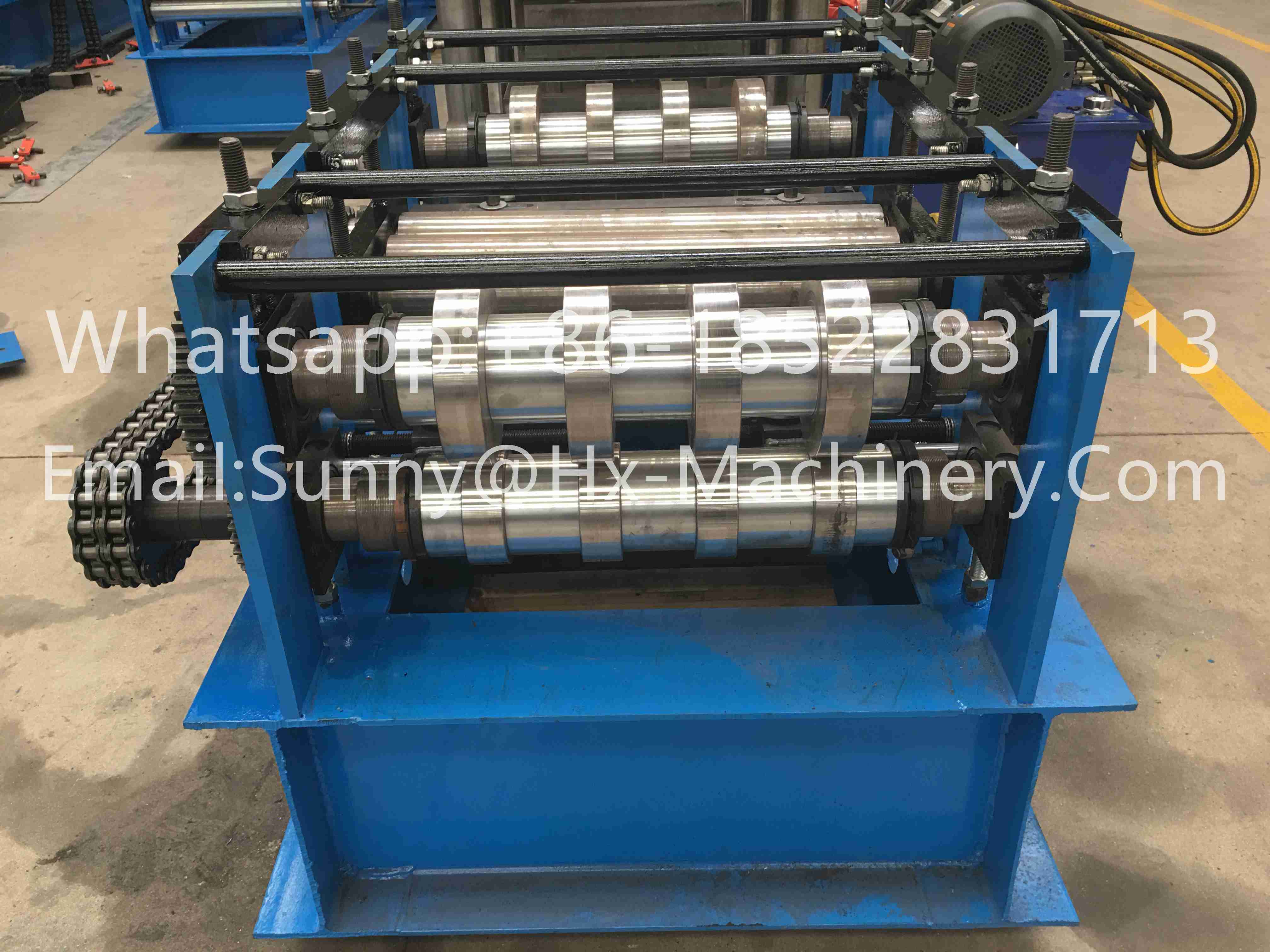

| D.Forming
1.The speed:5-15m/min 2.The thickness:2.0mm-4.0mm
|
| E.Cutting
1.The blade:Cr12, Quenched treatment 58℃-62℃ 2.The method:Hydraulic triple-blade shearing
|

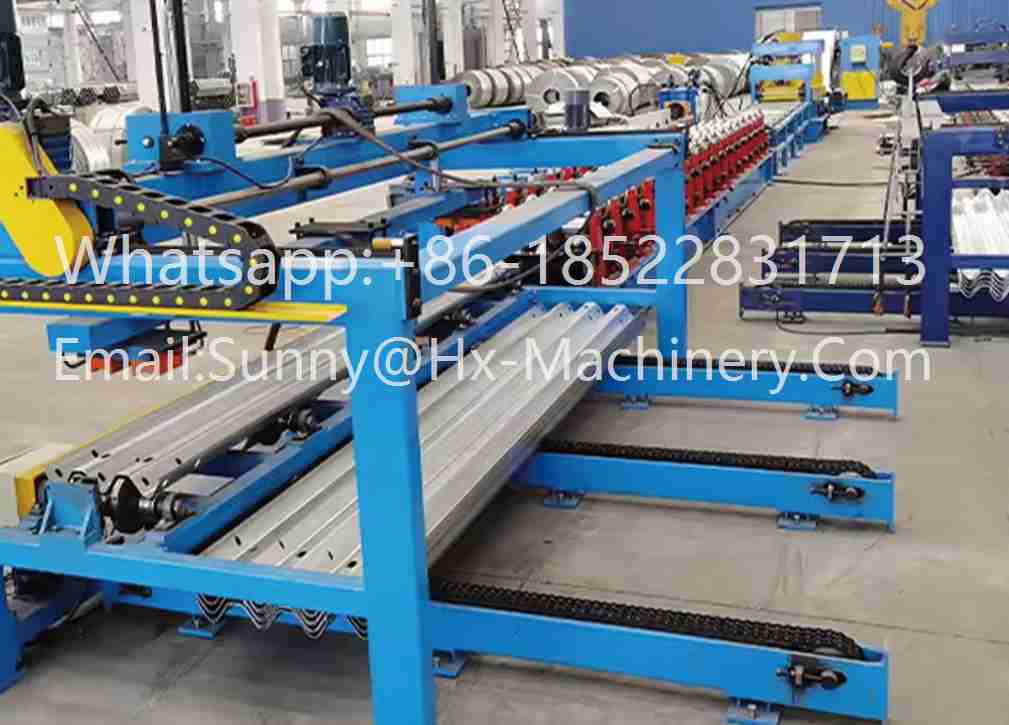

| F.Discharge
|
Perforated highway guardrail forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Advantages of using a highway guardrail forming machine include:
| High Efficiency | Speeds up production, minimizing downtime |
| Precision | Ensures consistent, high-quality guardrails |
| Flexible Production | Easily adjusts for various designs and sizes |
| Low Maintenance | Durable and cost-effective with minimal upkeep |
| Cost-Effective | Lowers labor costs and boosts profitability |
| Energy-Efficient | Consumes less energy, reducing costs |
