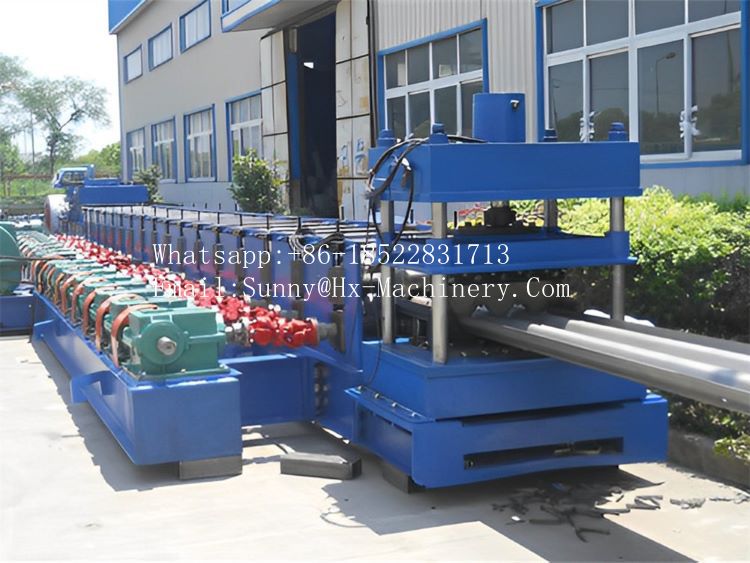

Highway guardrail machine:The machine is an essential piece of equipment in modern road construction, offering efficient, precise, and safe solutions for building highways, urban roads, and other transportation infrastructure. As technology advances, the performance of guardrail machines continues to improve, and they will play a crucial role in more road safety projects in the future.
The Key Features：
Efficient Production: The highway guardrail machine is characterized by high speed and precision and saving significant labor costs and time.
Multi-functional Design: Many models of guardrail machines can not only produce straight guardrails but also manufacture curved guardrails as needed, adapting to various road environments.
Durability: The highway guardrail machine uses high-strength steel and advanced manufacturing processes, enabling it to withstand harsh working environments.
Energy-saving and Environmentally Friendly: Modern guardrail machines are equipped with efficient motors and environmentally friendly designs, reducing energy consumption.

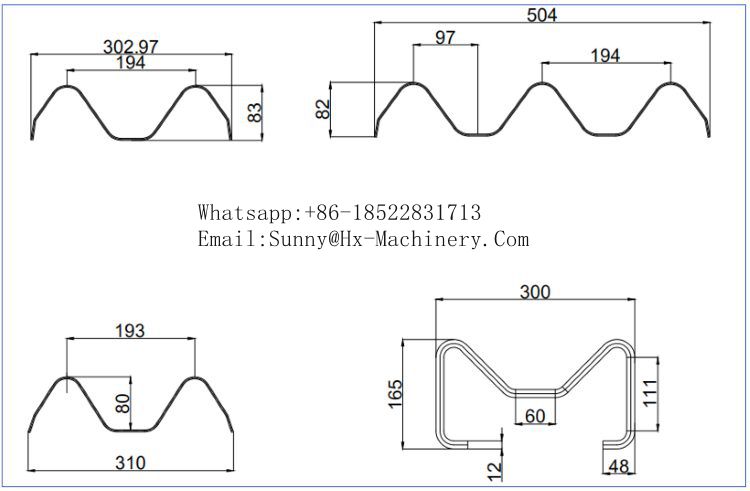

The size of our product(can customized with your need):
| Highway guardrail machine manufacturers parameters | ||
| 1 | Decoiler | 8 Ton single-arm decoiler |
| 2 | Machine body frame | 500H Beams welding |
| 3 | Forming guide feed frame | Side arch type |
| 4 | Forming Machine Type | 55 portal frame with chain drive |
| 5 | Diameter of shaft | Ø120 mm |
| 6 | Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| 7 | Main Motor Power | Dual 22 kW motors with K107 reducer |
| 8 | Forming Speed | 5-15 m/min |
| 9 | Roller station | 15-18 rows |
| 10 | Material of rollers | High-quality CR12, quenched and precision machined |
| 11 | Hydraulic system power | 22 KW with four-valve plunger pump |
| 12 | Cutting Method | Hydraulic triple-blade shearing |
| 13 | Punching Units | Three sets (one for center hole, two for side holes) |
| 14 | Cutting blade | Cr12, Quenched treatment 58℃-62℃ |
| 15 | Forming Thickness | 2.0-4.0 mm ( Length Tolerance: ±2 mm) |
| 16 | Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| 17 | Machine Dimensions | 1400mm*2400mm(L*W) |
In general, the highway guardrail machine is an indispensable piece of equipment in modern road construction. Providing efficient, precise, and safe solutions for the construction of highways, urban roads, and other transportation infrastructure. With advancements in technology, the performance of guardrail machines continues to improve. And they will play an increasingly important role in future road safety projects.
Those photos about product process:

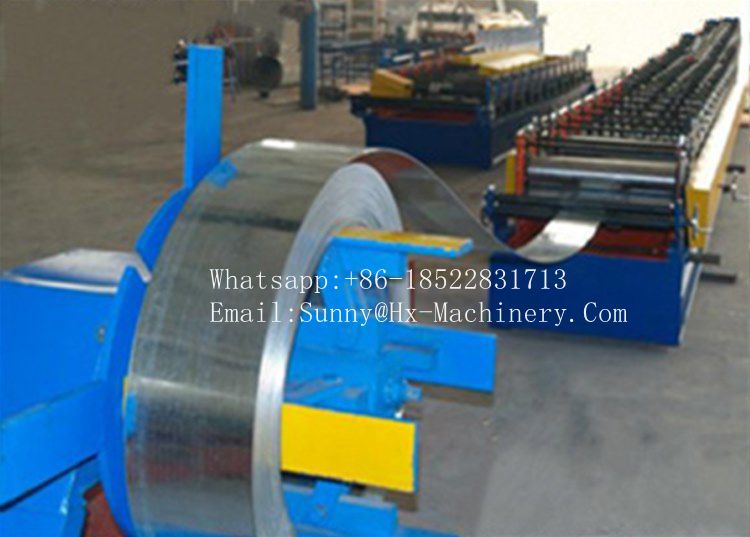

| A.Decoiler
Bearing weight: 8t
|
| B.Feeding
|
| C.Punching
With Three sets (one for center hole, two for side holes)
|

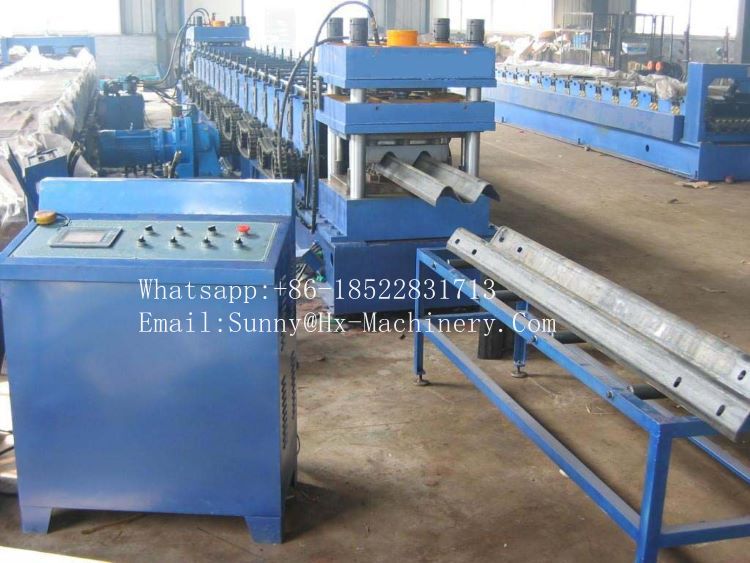

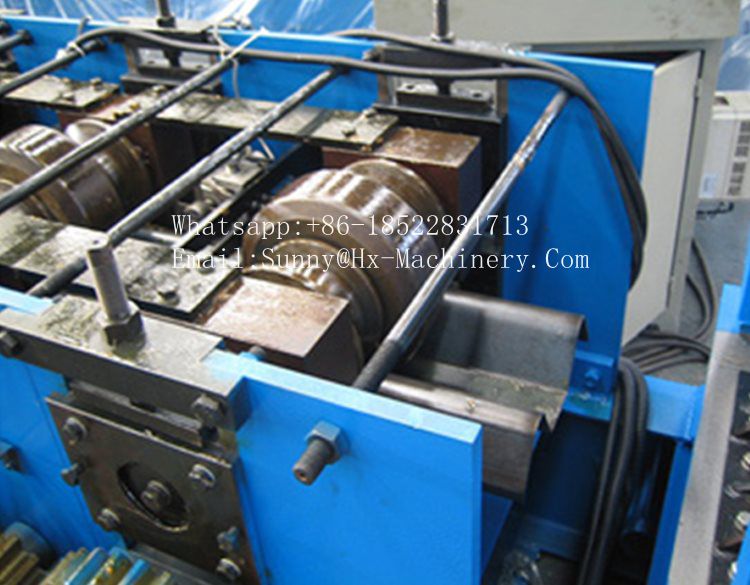

| D.Forming
1.The speed:5-15m/min 2.The thickness:2.0mm-4.0mm
|
| E.Cutting
1.The blade:Cr12, Quenched treatment 58℃-62℃ 2.The method:Hydraulic triple-blade shearing
|

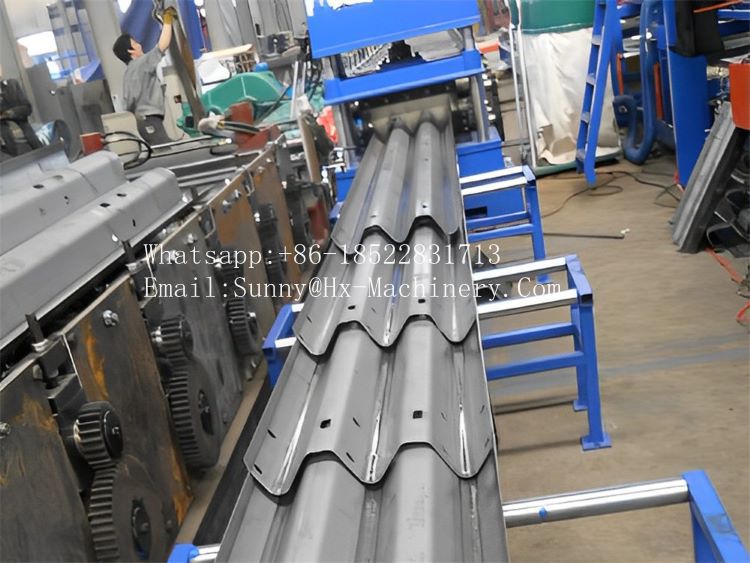

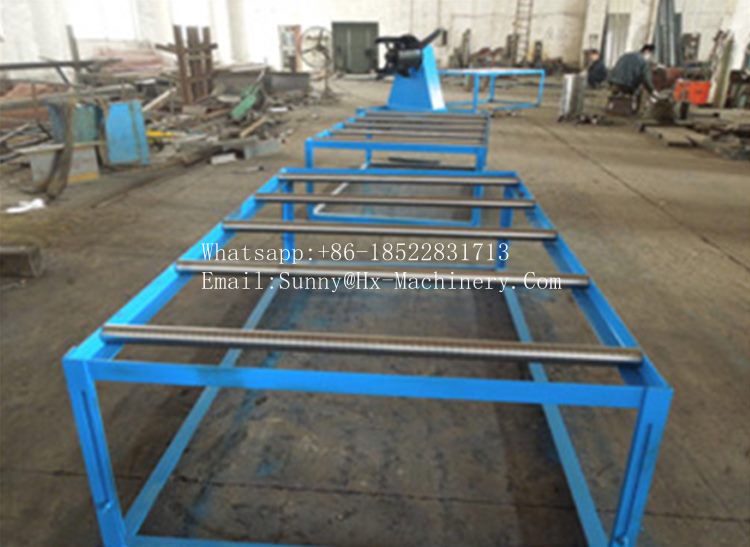

| F.Discharge
|
Perforated highway guardrail machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Advantages of using a highway guardrail machine include:
| High Efficiency | Speeds up production, minimizing downtime |
| Precision | Ensures consistent, high-quality guardrails |
| Flexible Production | Easily adjusts for various designs and sizes |
| Low Maintenance | Durable and cost-effective with minimal upkeep |
| Cost-Effective | Lowers labor costs and boosts profitability |
| Energy-Efficient | Consumes less energy, reducing costs |
