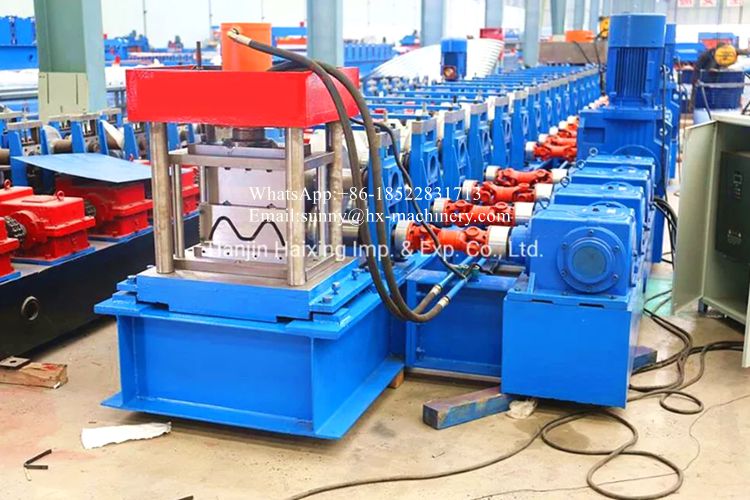

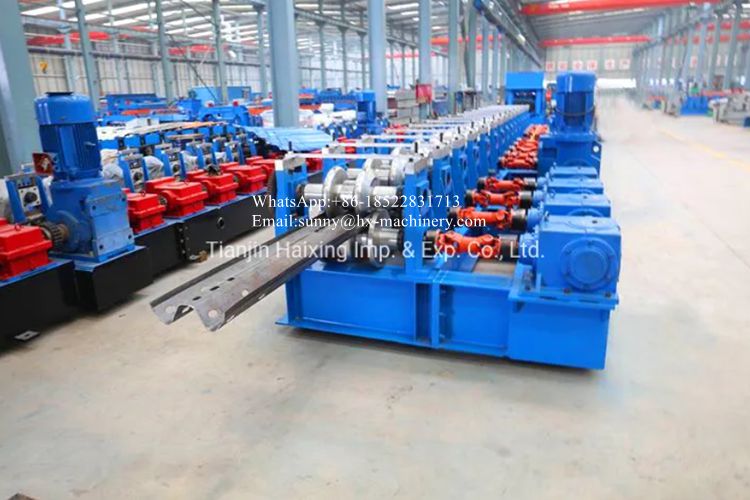

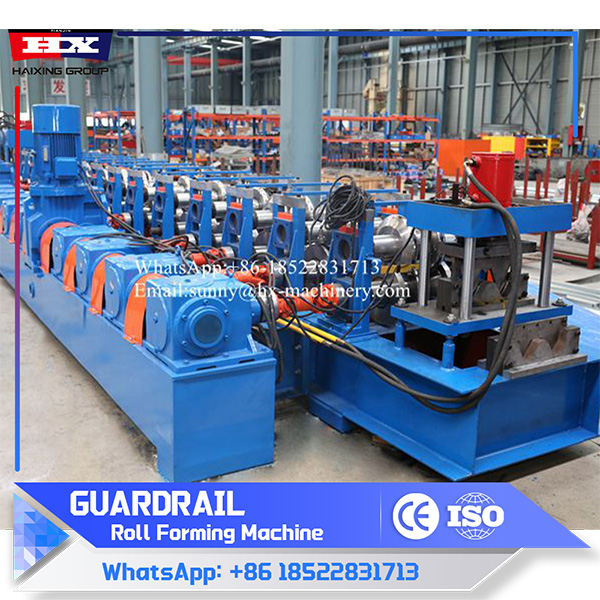

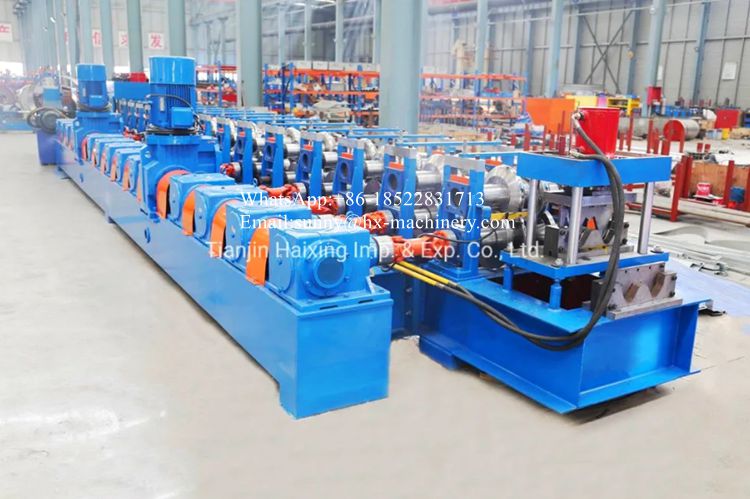

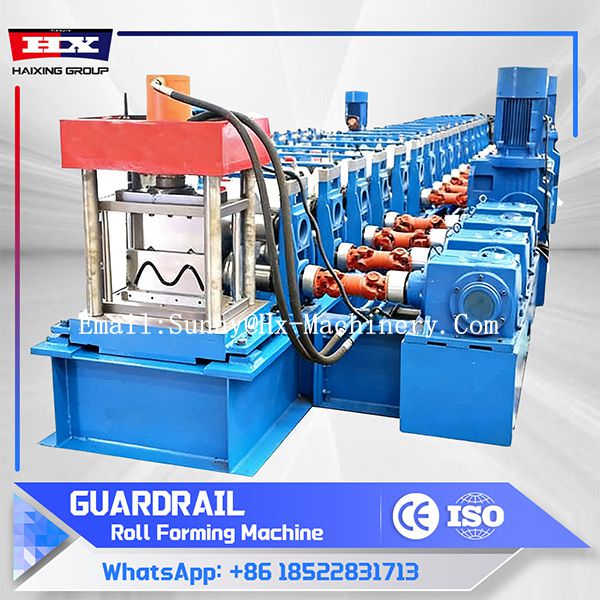

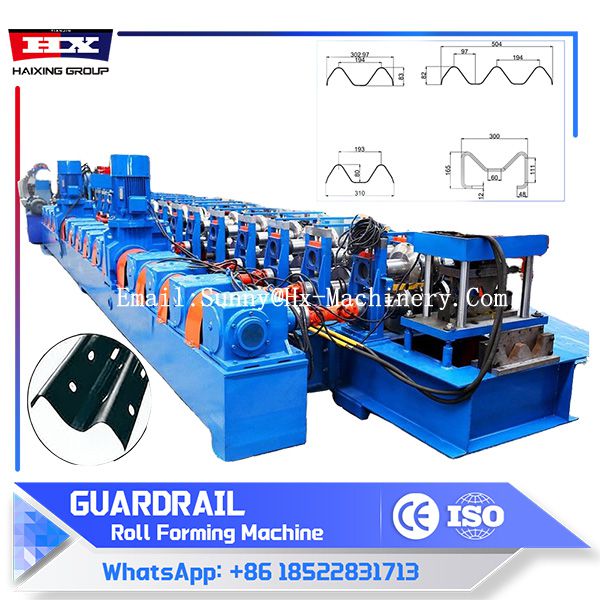

The Highway Guardrail Making Machine efficiently produces high-quality road safety barriers.It shapes and forms metal sheets into durable guardrails, commonly used on highways and bridges. This machine ensures precise profiles, such as W-beam and Thrie-beam, with fast and consistent output.
The machine is easy to operate and requires minimal maintenance, making it ideal for large-scale production. It provides flexibility to adjust settings for different guardrail specifications. With its robust design, the Highway Guardrail Making Machine helps manufacturers produce reliable barriers that meet safety standards for road infrastructure projects.
The size of our product(can customized with your need):
| highway guardrail making machine parameters | ||
| 1 | Decoiler | 8 Ton single-arm decoiler |
| 2 | Machine body frame | 500H Beams welding |
| 3 | Forming guide feed frame | Side arch type |
| 4 | Forming Machine Type | 55 portal frame with chain drive |
| 5 | Diameter of shaft | Ø120 mm |
| 6 | Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| 7 | Main Motor Power | Dual 22 kW motors with K107 reducer |
| 8 | Forming Speed | 5-15 m/min |
| 9 | Roller station | 15-18 rows |
| 10 | Material of rollers | High-quality CR12, quenched and precision machined |
| 11 | Hydraulic system power | 22 KW with four-valve plunger pump |
| 12 | Cutting Method | Hydraulic triple-blade shearing |
| 13 | Punching Units | Three sets (one for center hole, two for side holes) |
| 14 | Cutting blade | Cr12, Quenched treatment 58℃-62℃ |
| 15 | Forming Thickness | 2.0-4.0 mm ( Length Tolerance: ±2 mm) |
| 16 | Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| 17 | Machine Dimensions | 1400mm*2400mm(L*W) |
Those advantages of highway guardrail making machine：
| Precision | Ensures accurate production of guardrail profiles |
| Speed | Enables fast, high-volume production |
| Ease of Use | Simple operation with minimal training required |
| Customizable | Adjustable settings for different guardrail specifications |
| Low Maintenance | Designed for easy upkeep and long-lasting performance |
| Cost-Effective | Reduces material waste and lowers production costs |
| Consistency | Delivers uniform, high-quality guardrails every time |
Perforated highway guardrail making machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
About our company-TIANJIN HAIXING
We, Haixing Tianjin is a professional cold roll forming machine manufacturer,main machine includes roof roll forming machine,light keel roll forming machine, floor deck roll forming machine, purlin machine, leveling and slitting machine, metal fence roll forming machine, gutter roll forming machine, downspout roll forming machine, door frame machine, shutter door roll forming machine, highway guardrail roll forming machine, and other related construction equipment. We have extensive experience in the needs of different countries, such as profile drawing, operation languages, thickness range, instruction manual, installation, after-sales online support. Our equipment is mainly of medium and high configuration, such as famous brand PLC and Motor, Frequency converter, Long Service Life, Remote Control, Multifunctional, Energy saving.
