Our Highway Guardrail Roll Forming Machine manufacturers specialize in providing high-quality equipment for producing road safety barriers. These machines efficiently create durable guardrails for highways, bridges, and urban roads. With advanced technology, our machines ensure precise profile production, meeting safety standards across various road projects. We offer tailored solutions to suit specific production needs and provide full support, from installation to ongoing maintenance. Trusted by manufacturers worldwide, our equipment plays a key role in creating safe, reliable infrastructure.
Finished Product Size:
| Highway guardrail roll forming machine manufacturers parameters | ||

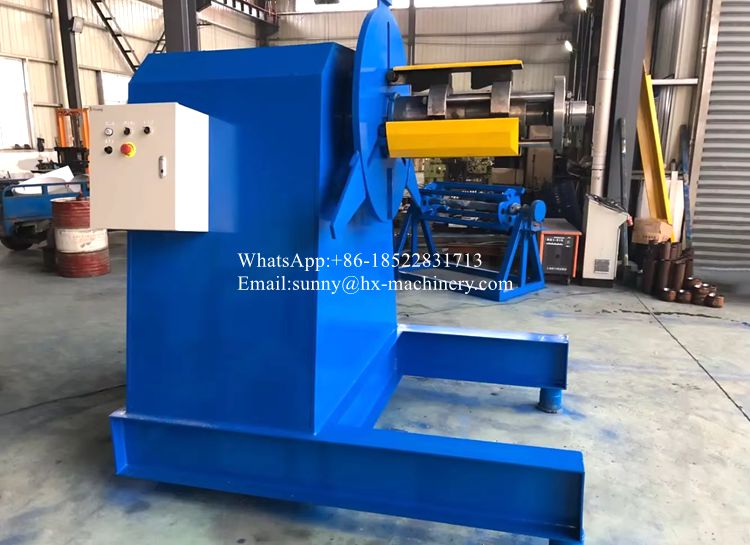

| 1 | Decoiler | 8 Ton single-arm decoiler |
| 2 | Machine body frame | 500H Beams welding |
| 3 | Forming guide feed frame | Side arch type |
| 4 | Forming Machine Type | 55 portal frame with chain drive |
| 5 | Diameter of shaft | Ø120 mm |
| 6 | Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| 7 | Main Motor Power | Dual 22 kW motors with K107 reducer |
| 8 | Forming Speed | 5-15 m/min |
| 9 | Roller station | 15-18 rows |
| 10 | Material of rollers | High-quality CR12, quenched and precision machined |
| 11 | Hydraulic system power | 22 KW with four-valve plunger pump |
| 12 | Cutting Method | Hydraulic triple-blade shearing |
| 13 | Punching Units | Three sets (one for center hole, two for side holes) |
| 14 | Cutting blade | Cr12, Quenched treatment 58℃-62℃ |
| 15 | Forming Thickness | 2.0-4.0 mm ( Length Tolerance: ±2 mm) |
| 16 | Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| 17 | Machine Dimensions | 1400mm*2400mm(L*W) |

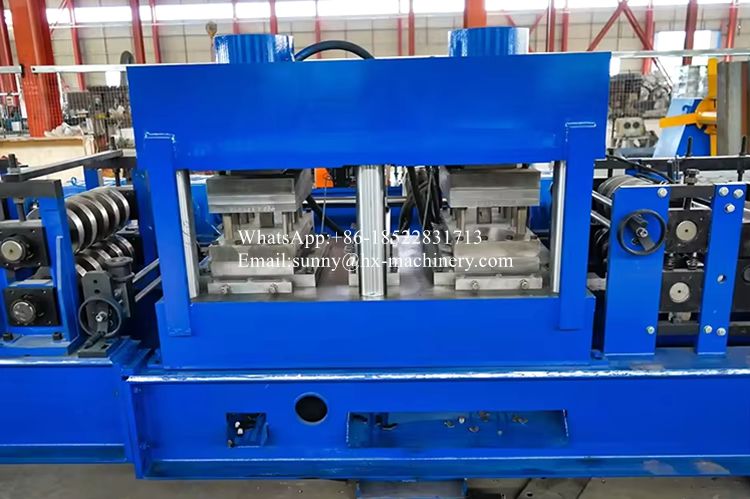

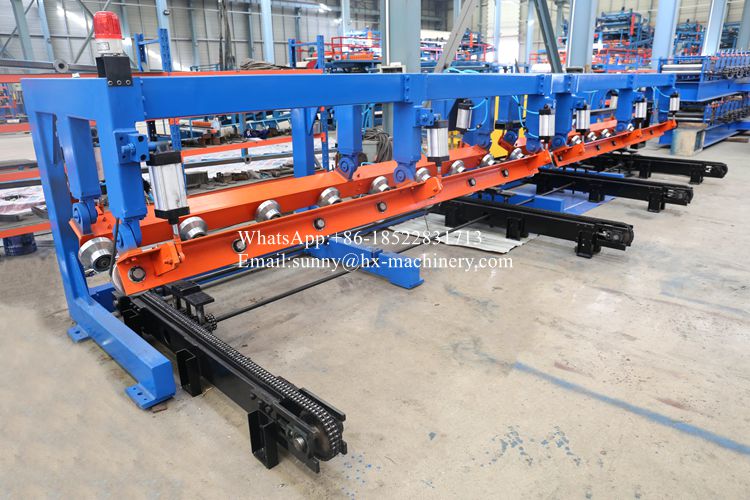

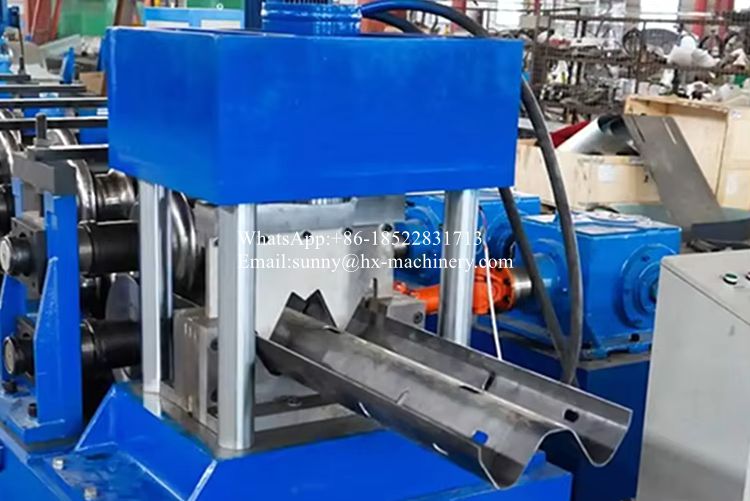

Some photos of highway guardrail roll forming machine:
Perforated Highway guardrail roll forming machine manufacturers loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Advantages of using a Highway guardrail roll forming machine manufacturers include:
| High Precision | Ensures consistent, accurate guardrail profiles |
| Fast Production | Increases output with quick, automated processes |
| Durable | Built to last with strong, high-quality components |
| Energy-Efficient | Low power consumption reduces operational costs. |
| Versatile | Can produce different guardrail shapes and sizes |
| Customizable | Adjustable settings to meet specific design requirements |
