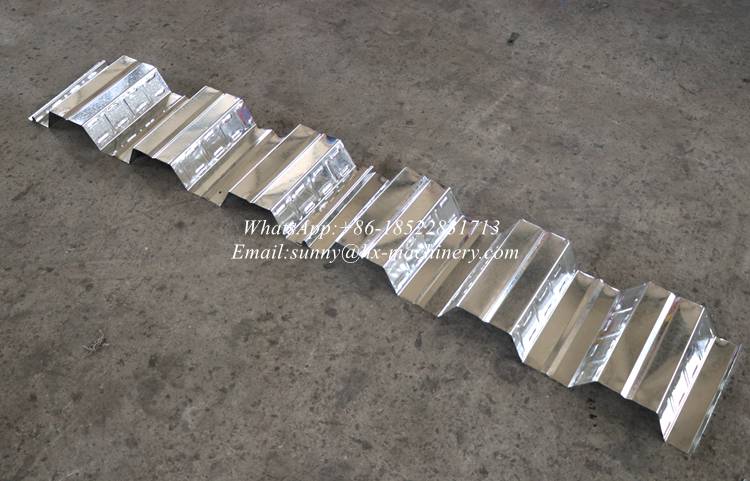

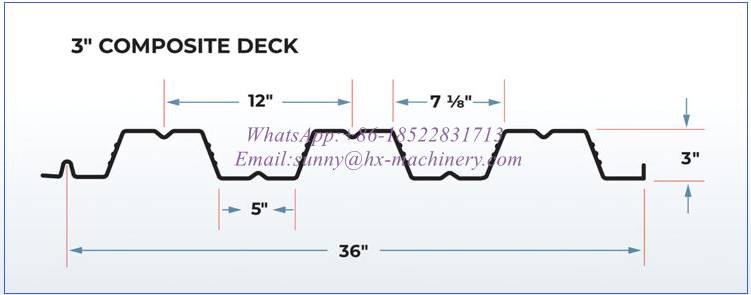

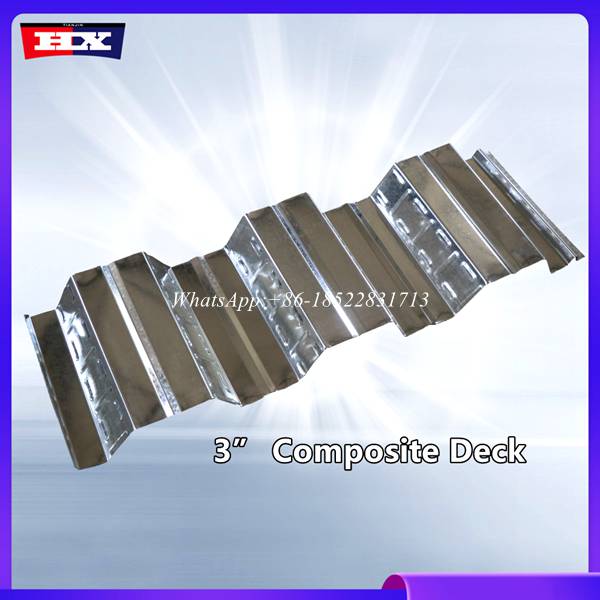

3” Composite metal decking metal deck roll forming machine production the 3″ deck sheet is standard with an interlocking joint and a run-off leg so that the deck can be installed either with a button punched or a side lap fastener. Hanger tabs can be specified for drop ceiling attachment to the bottom of the deck.
deck roll former profile can be customized according to different design requirements to adapt to various complex building structures. Can be easily connected with other components to form a complete building system.
3” Composite metal decking metal deck roll forming machine technical details :
| No. | 3” Composite metal decking metal deck roll forming machine | |
| 1 | Suitable to process | Alu-zinc steel coil/Galvanized steel coil |
| 2 | Rollers | 26 rollers or according to final design |
| 3 | Dimensions | 14.5*1.8*2.0m |
| 4 | Motor Power | 15Kw*2 |
| 5 | Pump Station Motor | 4Kw,Lichao |
| 6 | Thickness of the plate | 0.8-1.5mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ90mm |
| 10 | Weight | About 12850kgs |
| 11 | Main structure of the machine | 450 H Beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Gear driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |

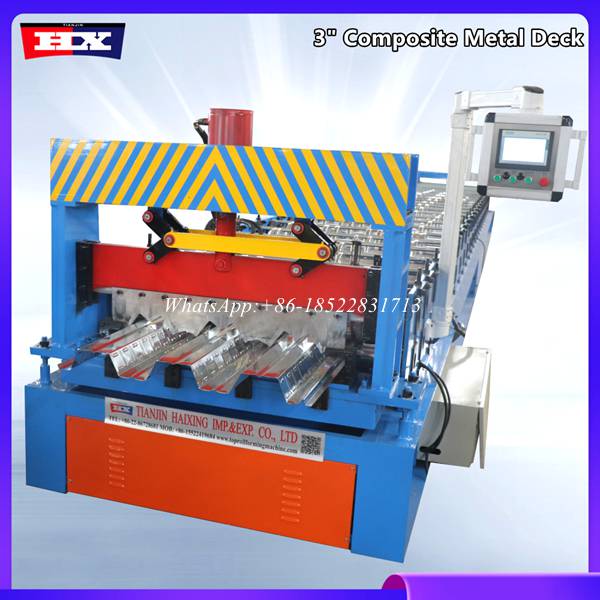

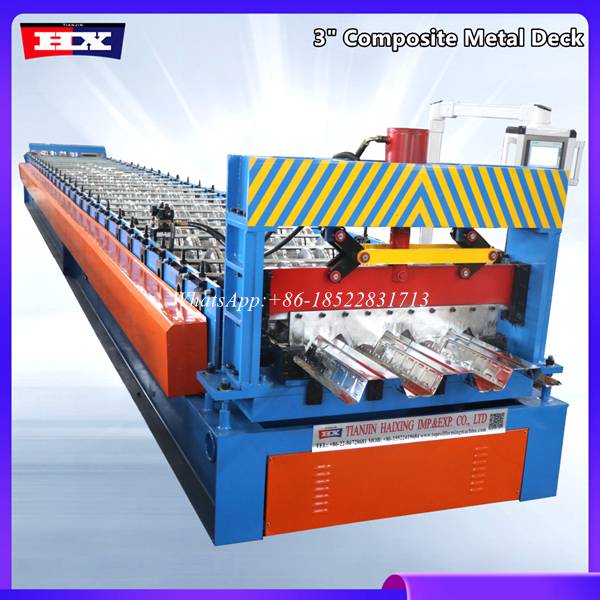

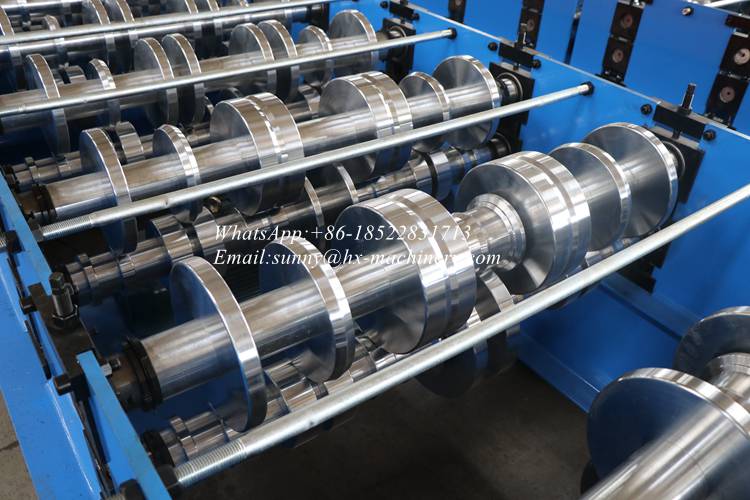

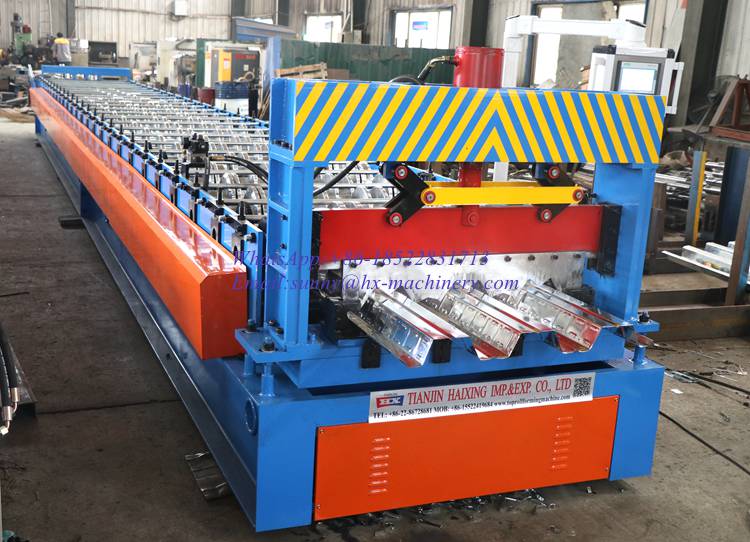

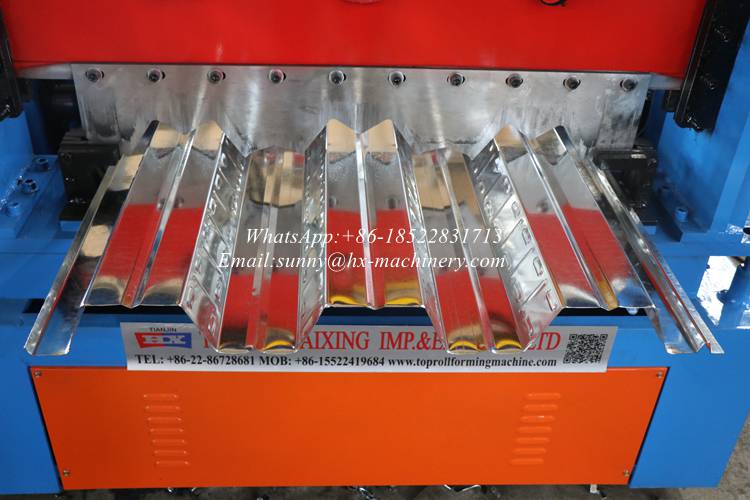

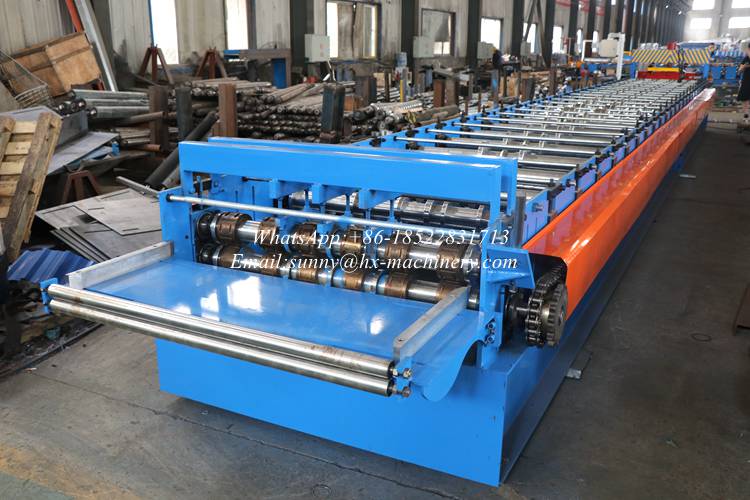

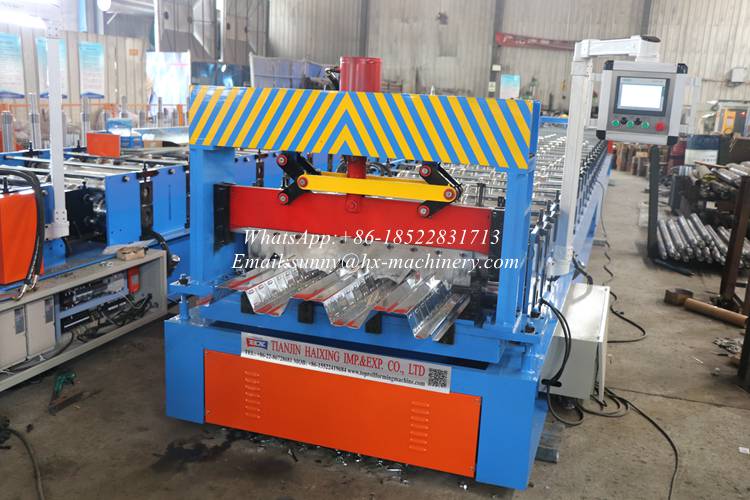

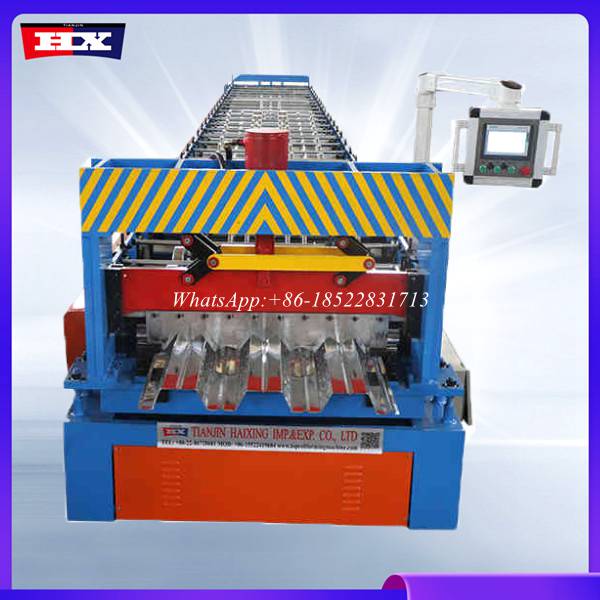

3” Composite metal decking metal deck roll forming machine each parts photos showing

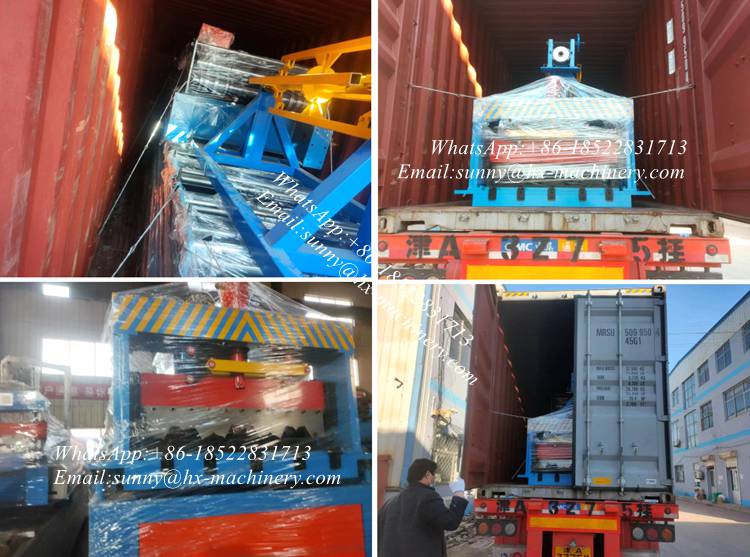

3” Composite metal decking metal deck roll forming machine packages and loading
A.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
B.Rollers and shafts are covered with anti-rust oil.
C.PLC control system and motor pump are packed with waterproof paper and plastic film.
D.Spare parts in a carton box.
E.Manual decoiler was nude packing.
F.The output-table put into a carton box.
G.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire
Installation of metal decking metal deck roll forming machine
If installation is needed,the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine.
The buyer should assist the seller to get the Chinese technician’s visa and should pay for the round trip air ticket ,local accommodation.and $150/day.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
A.Position the machine in the buyer’s factory.
B.Prepare necessary electric wiring.
C.Prepare material of trial running.
D.Provide labors for assistance and installation during installation
