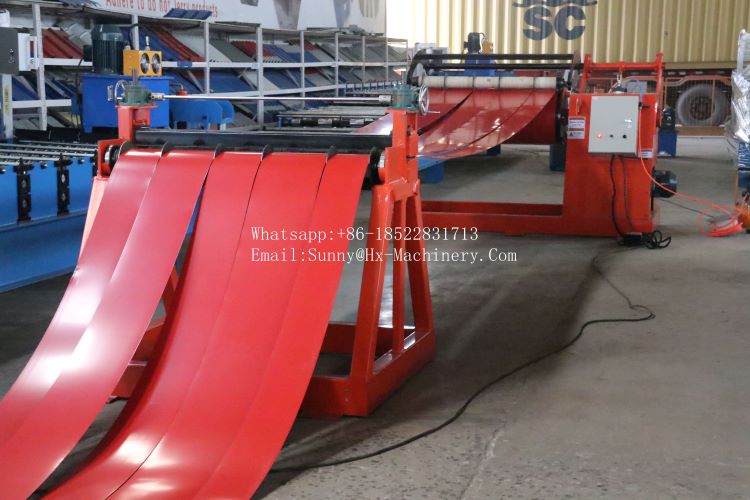

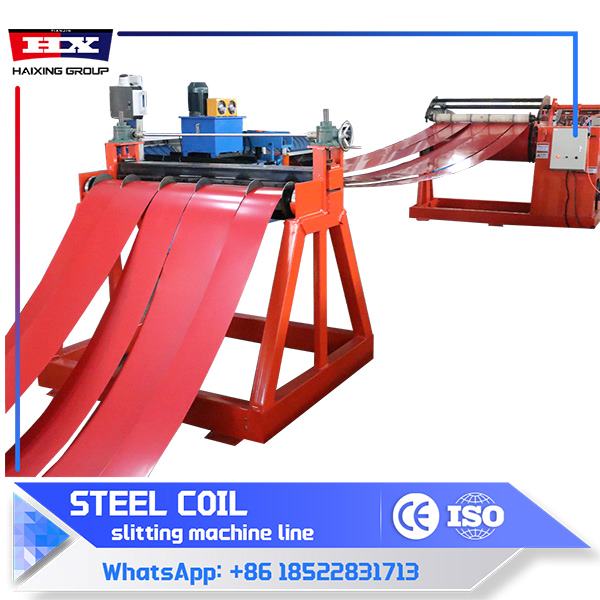

Metal Slitting Machine cuts large metal coils into narrow strips with high precision. It operates quickly, ensuring efficient processing in industries like steel, aluminum, and copper. The machine offers adjustable slitting widths, making it adaptable to various production needs.
Its advanced technology guarantees smooth, accurate cuts while minimizing waste. Easy to operate and maintain, the machine helps improve productivity and reduce downtime. It’s built for high-volume operations, providing reliable performance and consistent results.
| Main parameters of metal slitting machine | |
| Raw materials grade | Galvanized steel coil/Cold rolled coil/Color coil |
| Raw materials thickness | 0.3~3.0mm |
| Raw materials width | 1250mm |
| Raw materials inner diameter | Φ508mm/610mm |
| Raw materials outer diameter | ≤Φ1500mm |
| Raw materials coil weight | 5Tons |
| Slitting speed | 0~25m/min（During normal work） |
| Land occupation area | About 35m×5m |
This line mainly includes: hydraulic uncoiler, slitter and cutter, conveyor, hydraulic recoiler, or with roll forming machine,etc.
Such as：

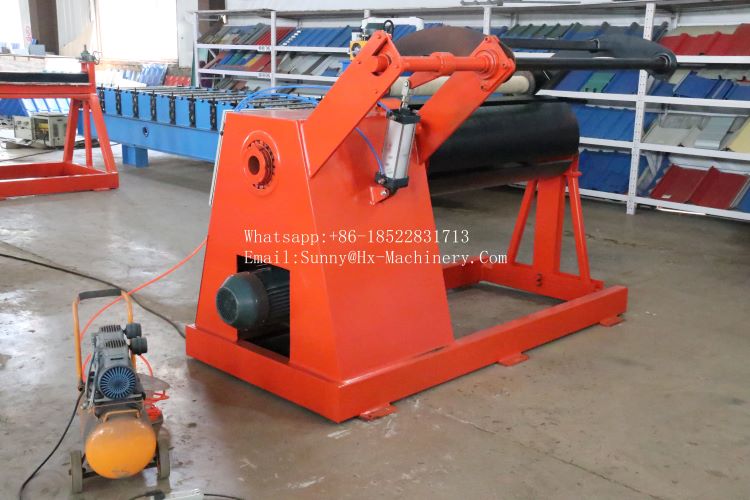

The decoiler in the metal slitting machine has a single cantilever structure with a 5-ton capacity. It supports a 470-530mm range and hydraulic tension. The electric unwinding power is 5.5KW, paired with a 5.5KW frequency conversion motor and a 4KW hydraulic pump for efficient, reliable operation.

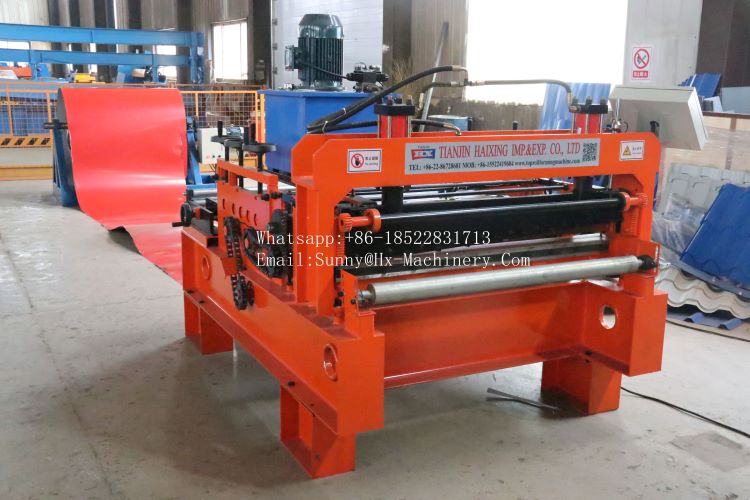

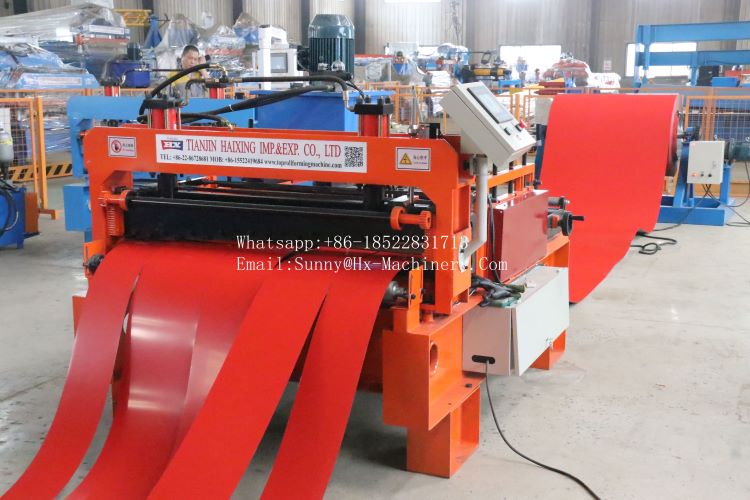

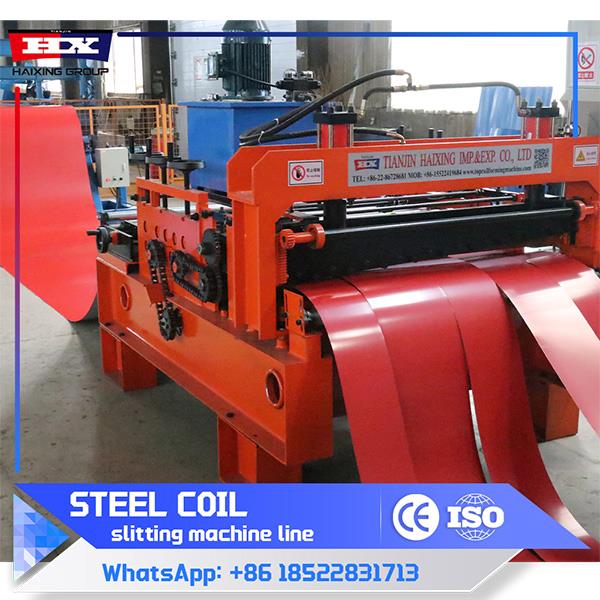

The slitting section of the machine features a slitting roll diameter of 140mm-160mm and a blade tool outer diameter of 240mm-260mm. The main motor provides 7.5KW of power, ensuring efficient and precise cutting for various metal materials.
About Our Company – TIANJIN HAIXING
Tianjin Haixing is a professional manufacturer of cold roll forming machines.Our main products include roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction equipment.
We have extensive experience meeting the needs of different countries.This includes profile drawing, operation languages, thickness range, instruction manuals, installation, and after-sales online support. Our equipment features medium to high configurations, including top-brand PLCs, motors, frequency converters, long service life, remote control, multifunctionality, and energy-saving capabilities.
Click to get more information about our machine and a more favorable price!
