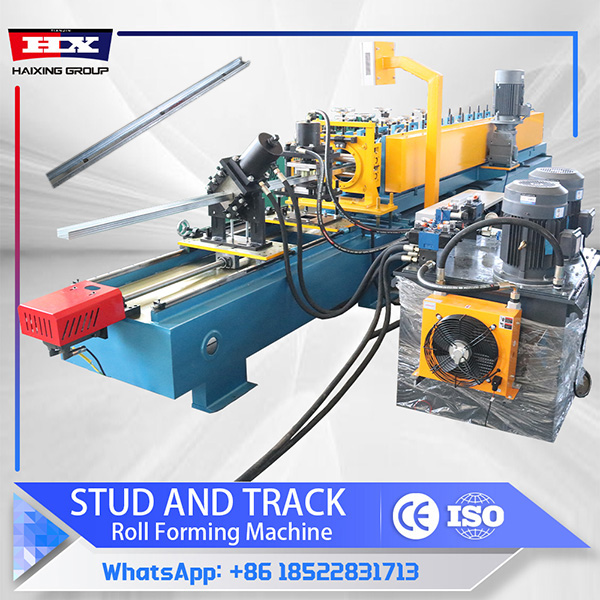

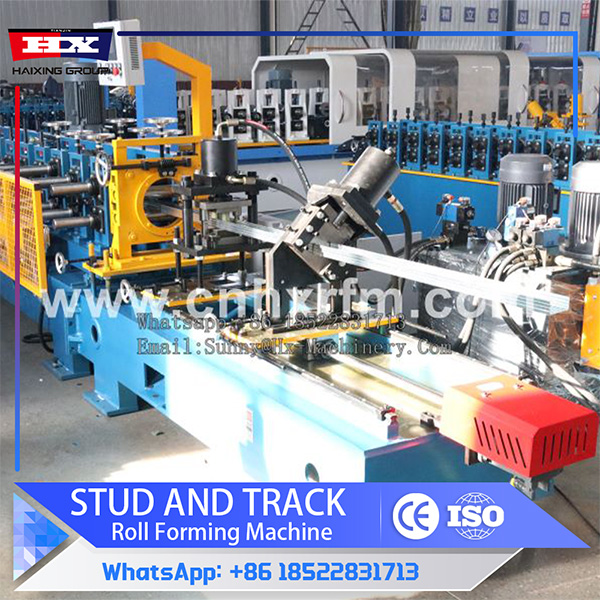

The Metal Stud and Track Roll Forming Machine is a high-performance solution for manufacturing metal studs and tracks used in construction. It offers precision, speed, and flexibility to meet the demands of modern building projects.
| Main data of Metal stud and track roll forming machine | |
| Suitable to process | (Prepainted)galvanized steel strips |

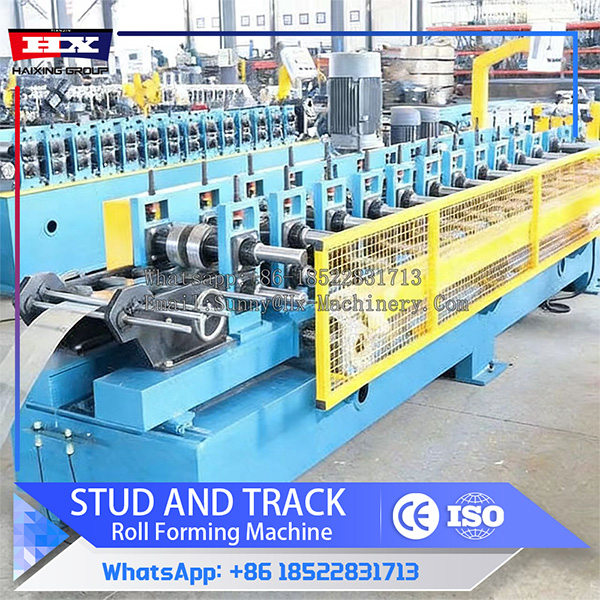

| Rollers | 14 Rollers |
| Main frame | Base frame: welded box plate, aged treatment; work platform precision machined using a large gantry milling machine.Panel thickness 25㎜, Q235 iron plate material (gantry milling plane processing) |
| Transfer method | Gearbox drive (Model T7) |
| Wallboard size | Memorial arch,thickness 42mm |
| Dimensions | 9.5*1.5*1.6m |
| Opening and closing servo motor power | 3KW |
| Weight | About 4.6T |

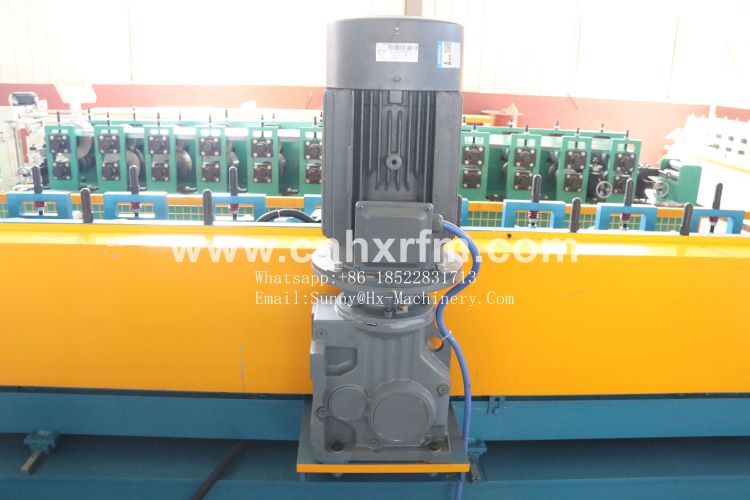

| Main motor power | 15Kw(2 units 7.5KW)，K77 series |
| Servo motor replacement | 3KW |

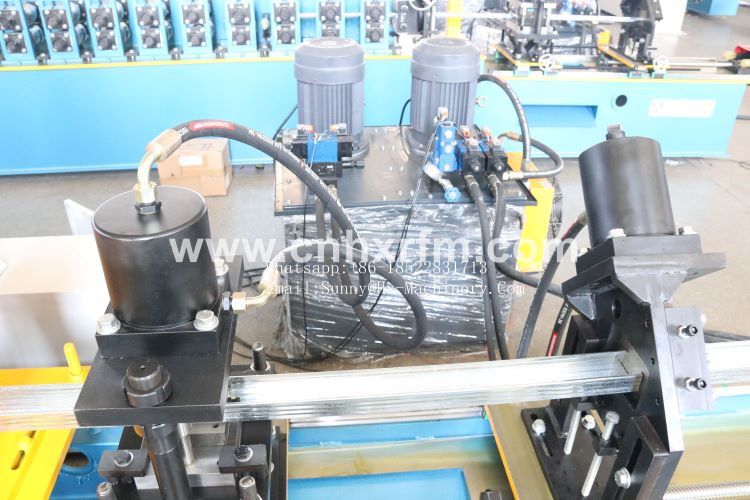

| Hydraulic pump station | 11KW (2 units of 5.5KW with air cooling) |
| Thickness of the plate | 0.4-1.0mm |
| Production speed | C-shaped: ≤40 m/min; U-shapeU-shape: ≤80 m/min |
| Roller diameter | Φ50mm |
| Spacer | 70mm |
| Voltage | 220V 60Hz 3Phases |
| Length tolerance | ±2mm |
Click to know more about our machine or other machine!
Our machine key features：
Fast Production: Achieve high-speed output, reducing overall production time.
Versatile Design: Can create various metal stud and track sizes to fit different project needs.
Long-lasting: Constructed with durable materials, ensuring a long service life with minimal maintenance.
User-friendly: Easy to operate, even for new users, with simple controls and setup.
This machine is perfect for businesses looking to streamline production while maintaining high standards. Improve your manufacturing process and reduce costs with the Metal Stud and Track Roll Forming Machine.
Loading and shipment：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
About us:
We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
Looking forward to more cooperation with new and old friends from all over the world.
