Purlin Forming Machine shapes steel sheets into strong and precise purlins with high efficiency. It features a series of advanced rollers, a durable frame, and accurate control systems that ensure consistent performance. Operators can easily adjust the machine to produce different sizes and profiles, meeting diverse project requirements. The machine runs continuously, reduces material waste, and improves production speed. Its reliable construction minimizes maintenance and keeps operations smooth, making it suitable for factories, workshops, and construction material manufacturers.
This machine delivers fast, stable, and cost-effective purlin production. It helps businesses save time, increase output, and maintain high-quality standards.

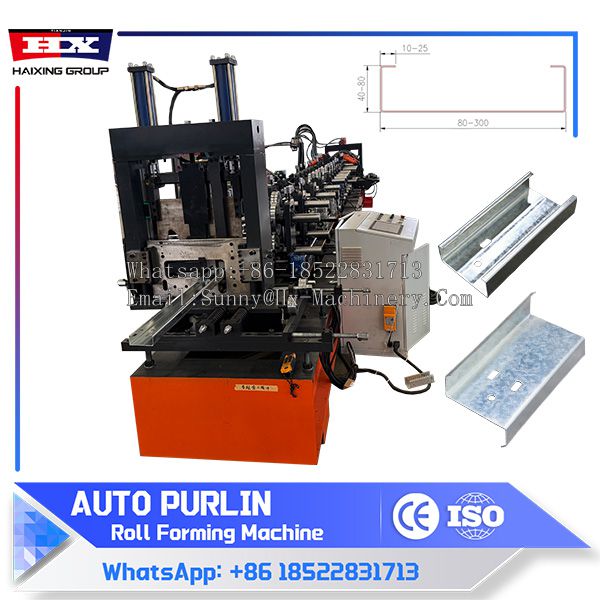

Purlin forming machine Drawing Model：C:Bottom:80-300mm Waist high:40-80mm
Z:Bottom:50-80mm Waist high:120-300mm
| Main data of the Purlin forming machine | |
| Dimensions | 9.5*1.5*2.0m |
| Weight | About 10.5 Tons(not include decoiler weight and spares) |
| Main structure of the machine | 450 H stee,Heat treatment and polishing surface |
| Side panel of machine | 25mm( A3 steel) |
| Suitable to process | Galvanized/Cold steel strips |
| Yield strength of raw material | G350 |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Voltage | 380V 50HZ 3Phase |
| Thickness of the raw material | 1.0-3.0mm |
| Rollers | 18 rollers |
| Diameter of the shaft | Φ80mm(Change sliding part 65mm) |
| Operating Mode | Automatic CZ Free Replacement By Motor Drive |
| Main Motor size | Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L |
| Chain Wheel and Cycle Chain | 2.0 Inch |
Click to know more about us and get a more favorable price！
Our Purlin forming machine is made up of many parts, such as Manual Uncoiler, Cutting Device, Hydraulic Station, Rollers system, Automatic Control System and Receiving Table. At the same time, our machines are also equipped Hydraulic motor drive, it can make have a high precision.

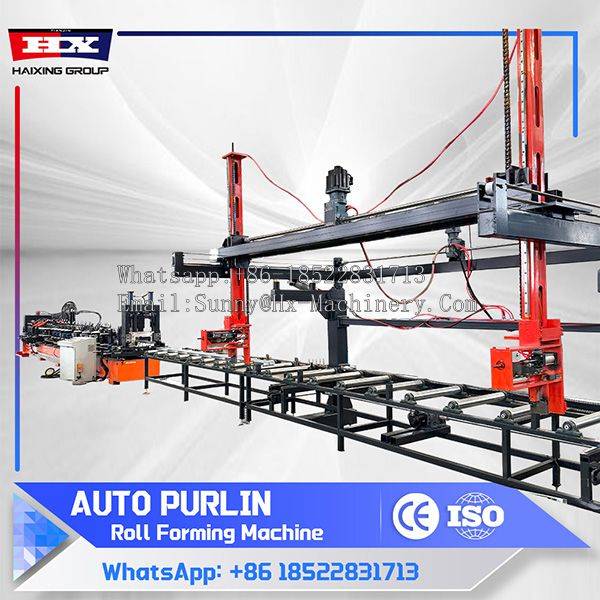

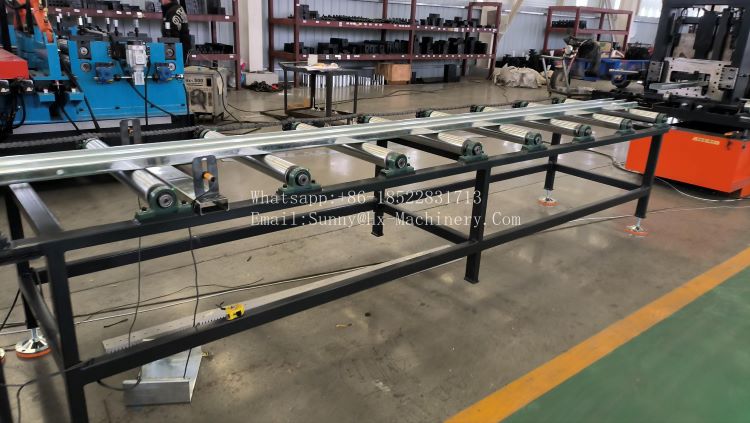

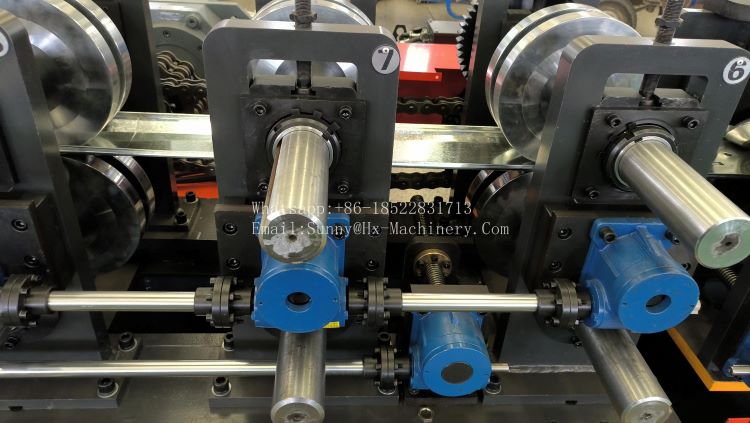

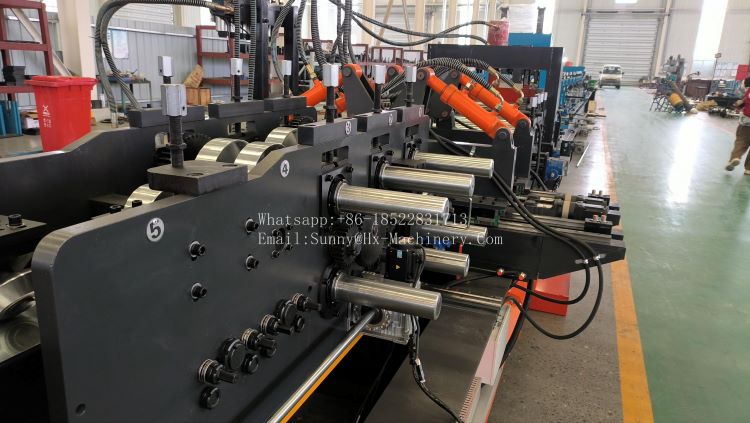

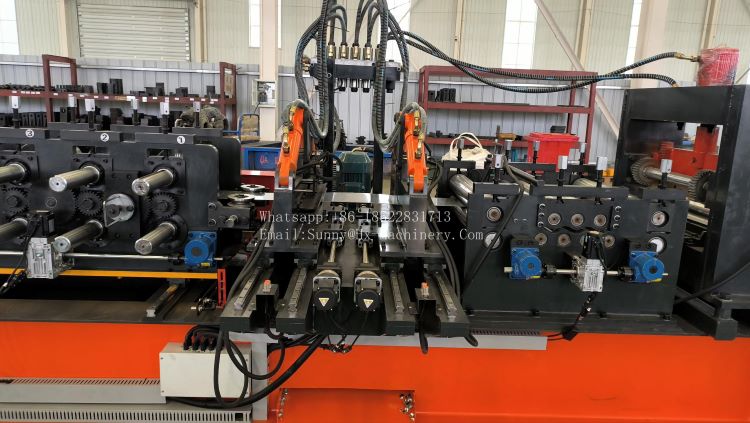

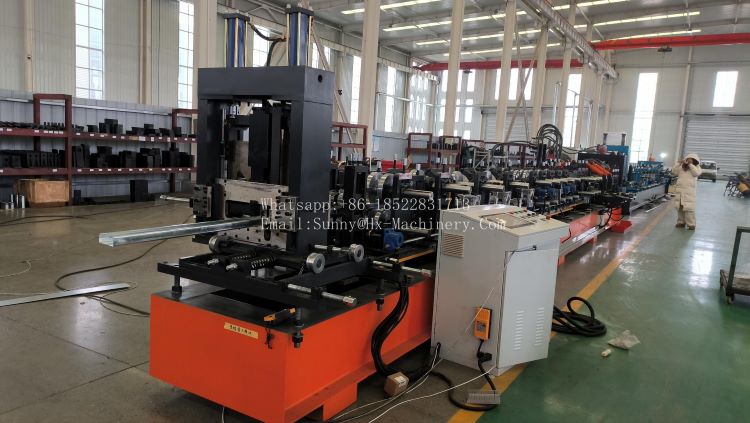

Here are some photos about our Purlin forming machine:
The advantages of Purlin forming machine are as follows:
| 1 | Change purlin sizes without replacing rollers or spacers |
| 2 | Change sizes without replacing the cutter. |
| 3 | Operate easily with minimal maintenance cost. |
| 4 | Simple to operate, with low maintenance costs. |
| 5 | Punch holes anywhere on the purlin web or flange. |
About us：
Our company, Haixing Tianjin, manufactures cold roll forming machines and offers a wide range of products. We focus on roof roll forming machines, light keel roll forming machines, floor deck roll forming machines, purlin machines, leveling and slitting machines, metal fence roll forming machines, gutter roll forming machines, downspout roll forming machines, door frame machines, shutter door roll forming machines, highway guardrail roll forming machines, and other construction machinery.
We have extensive experience serving international markets. Our customers enjoy tailored solutions for profile designs, choice of operation languages, material thickness ranges, detailed instruction manuals, installation guidance, and continuous online after-sales support. Our machines use medium to high-end components, including high-quality PLCs, motors, frequency converters, long-lasting parts, remote controls, multifunctional features, and energy-efficient designs.
