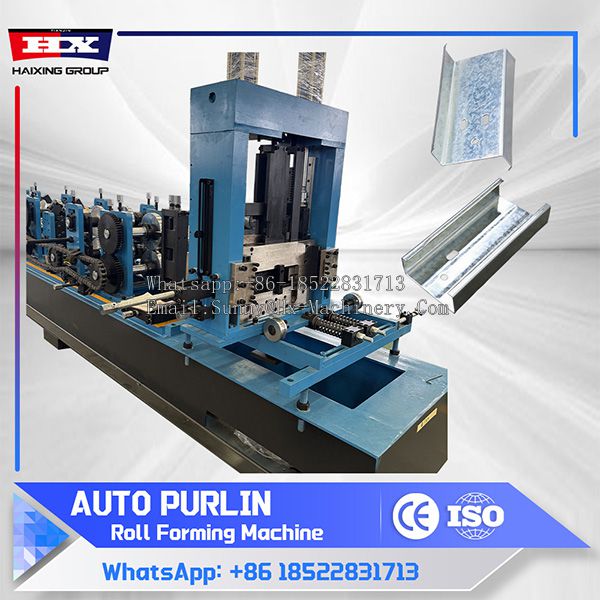

Purlin machine for sale produces strong and precise CZ purlins efficiently. It features advanced rollers, a sturdy frame, and accurate controls. Operators can adjust the machine to create different sizes and profiles. The machine runs continuously, reduces material waste, and improves production speed.
This machine suits factories, workshops, and construction material manufacturers. It delivers high-quality purlins for roofing, wall panels, and structural frameworks. Users benefit from simple operation, low maintenance, and consistent output.
The purlin machine for sale also offers flexibility. It allows punch holes on web and flange sides, changes purlin sizes without replacing rollers, and saves energy. With these features, businesses increase productivity, reduce costs, and maintain stable production.
C and z purlin machine Drawing Model：C:Bottom:80-300mm Waist high:40-80mm
Z:Bottom:50-80mm Waist high:120-300mm
| Main data of the Purlin machine for sale | |
| Dimensions | 9.5*1.5*2.0m |
| Weight | About 10.5 Tons(not include decoiler weight and spares) |
| Main structure of the machine | 450 H stee,Heat treatment and polishing surface |
| Side panel of machine | 25mm( A3 steel) |
| Suitable to process | Galvanized/Cold steel strips |
| Yield strength of raw material | G350 |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching) |
| Voltage | 380V 50HZ 3Phase |
| Thickness of the raw material | 1.0-3.0mm |
| Rollers | 18 rollers |
| Diameter of the shaft | Φ80mm(Change sliding part 65mm) |
| Operating Mode | Automatic CZ Free Replacement By Motor Drive |
| Main Motor size | Change model motor 0.75kw*3, Hydraulic Motor pump station 22Kw,with tank 500L |
| Chain Wheel and Cycle Chain | 2.0 Inch |
Click to know more about us and get a more favorable price！
Detailed Images for reference：

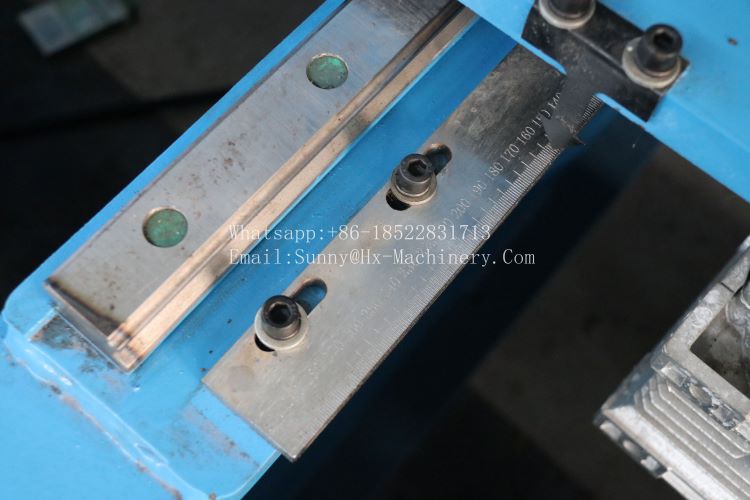

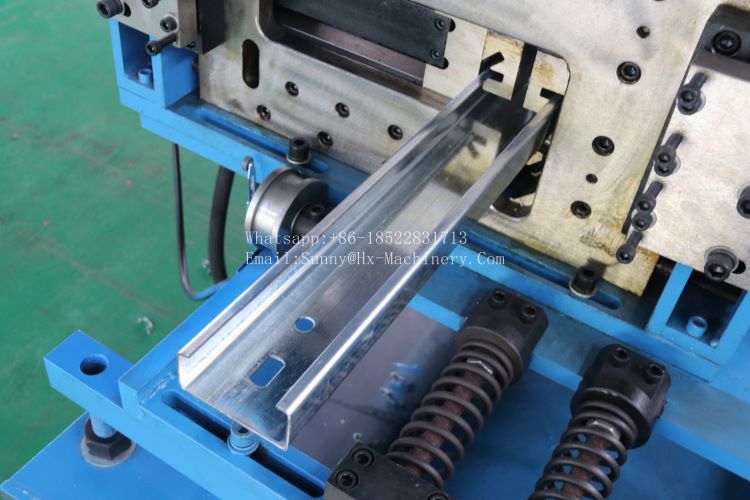

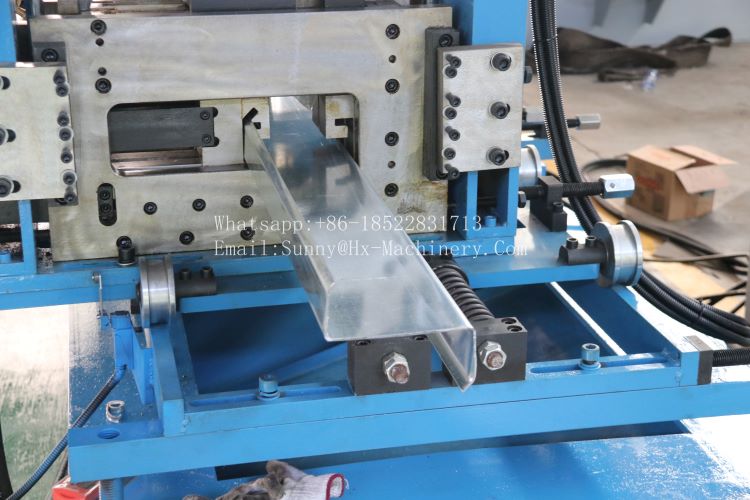

| A.Cutting device
Blade and mold material: Cr12Mov steel with quenched 60-62°C It can decide cut panel dimension,according to the hydraulic drive and PLC computer control system
|

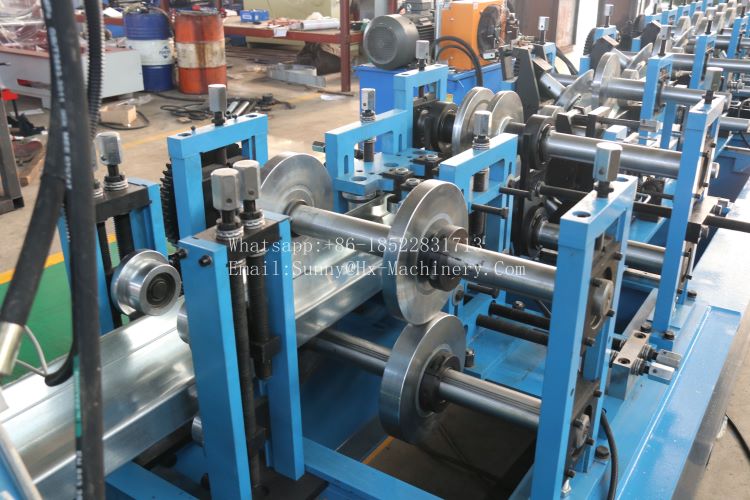

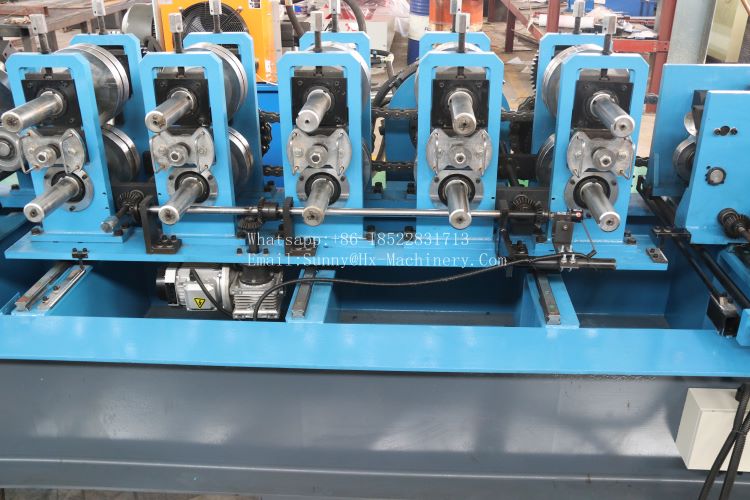

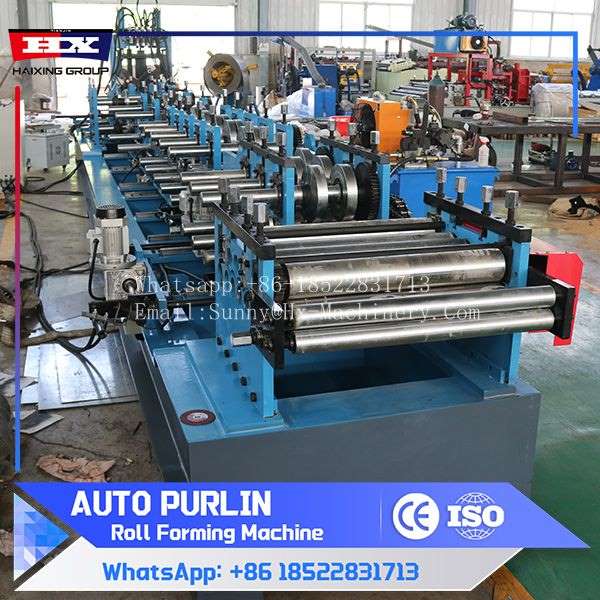

| B.Roller System
Material: GCr15(bearing steel)hard chrome plated after heat treatment
|
| C.Main Drive mode
Hydraulic motor drive for high precision
|

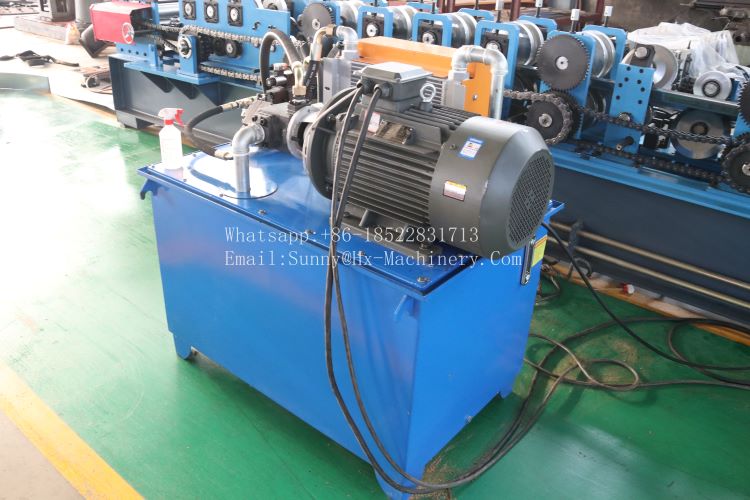

| D.Hydraulic station
Power: depends on final design
|
Perforated Purlin machine for sale loading and shipment :
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
