Rack roll forming machine for pallet rack post is a specialized cold-forming equipment designed for the continuous production of rack components, typically used in storage systems, warehouse infrastructure, and industrial shelving.
Rack roll forming machine for pallet rack post working flow
Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Pallet Rack Post Roll Forming Machine Main Parameters | |
| Forming Rollers | 19rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø90 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | Delta brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 5.5Kw |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

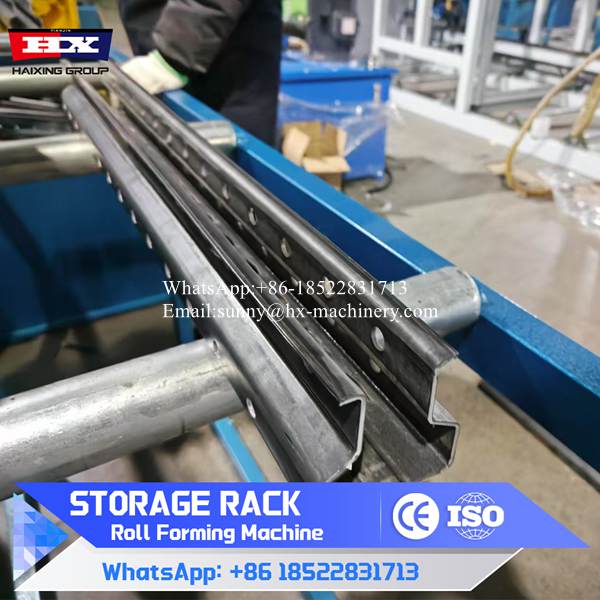

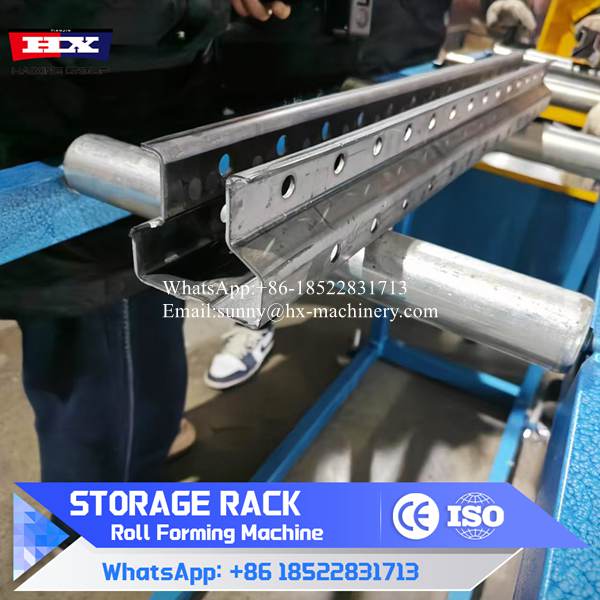

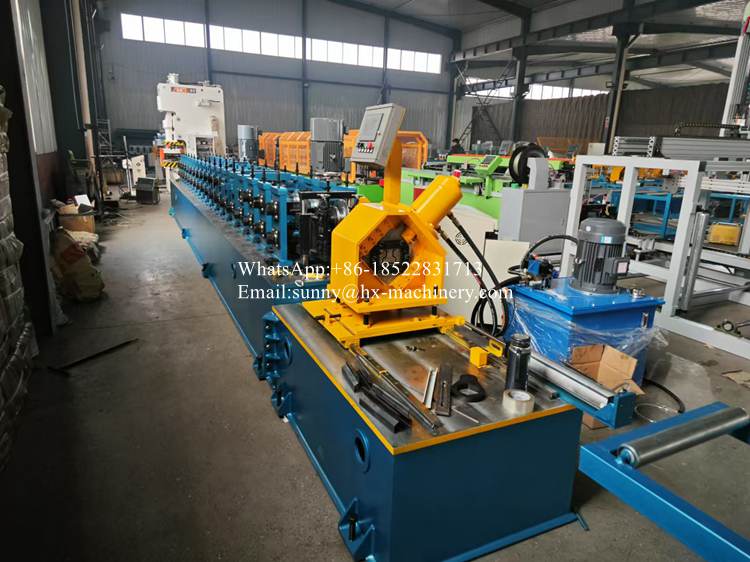

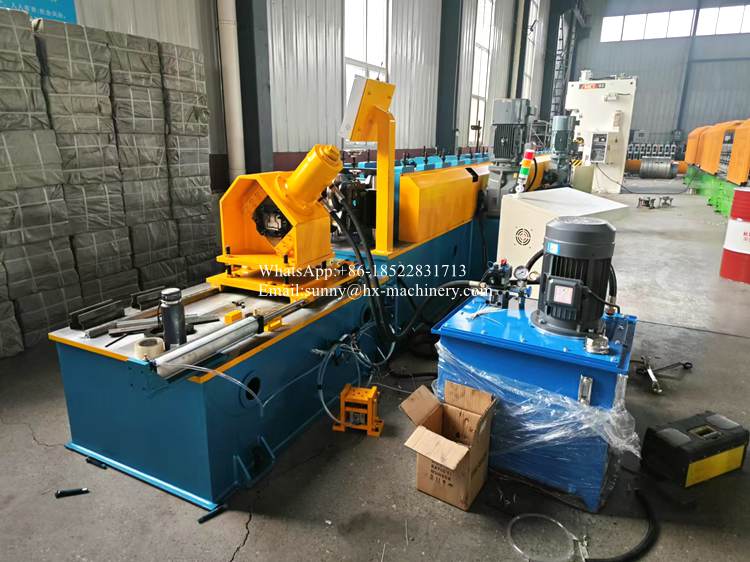

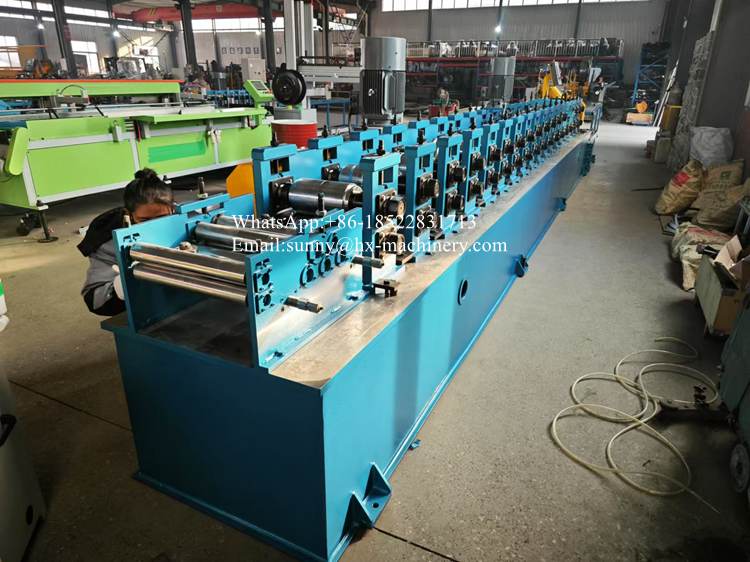

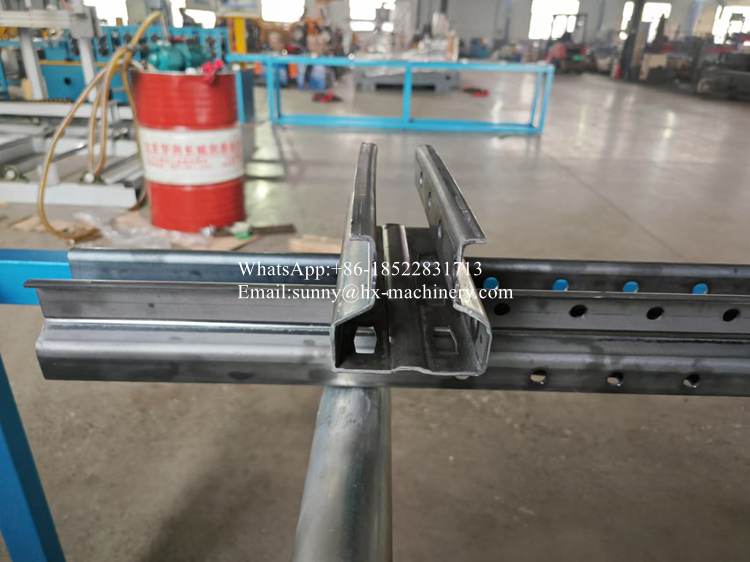

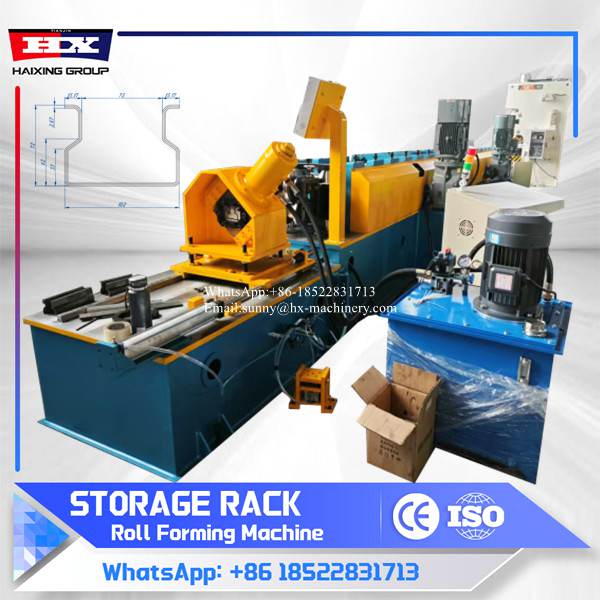

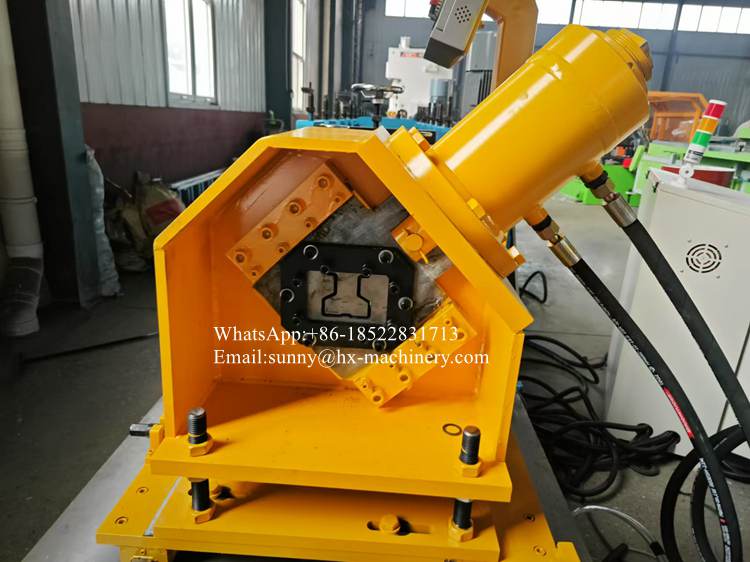

Upright rack roll forming machine photos showing
Rack upright roll forming machine key features:
| Precision Forming | Utilizes a series of synchronized rollers to progressively shape metal strips (cold-rolled steel, galvanized steel, or aluminum) into uniform rack profiles with consistent cross-sections. |
| High Efficiency | Enables high-speed, automated production with minimal material waste, suitable for large-volume manufacturing. |
| Modular Design | Adjustable rollers and tooling allow quick changeovers for producing different rack profiles (e.g., upright columns, beams, brace profiles). |
| Integrated Options | Can include auxiliary systems for punching, notching, cutting, and embossing in a single inline process. |
| Sturdy Construction | Heavy-duty frame and precision-engineered rollers ensure durability, stability, and long-term accuracy. |
