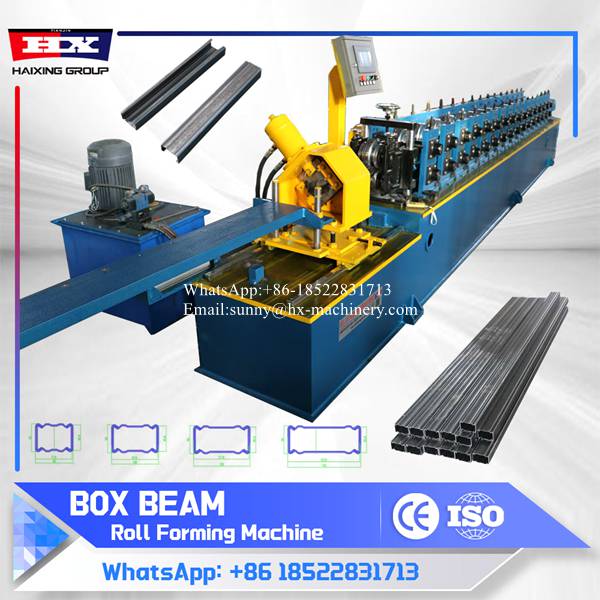

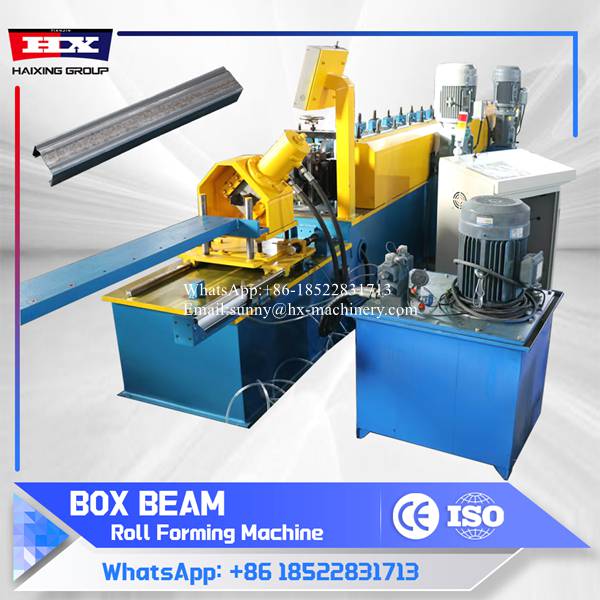

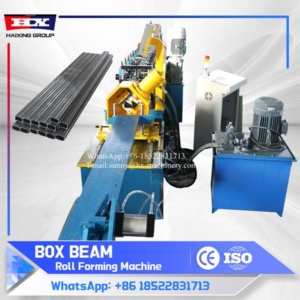

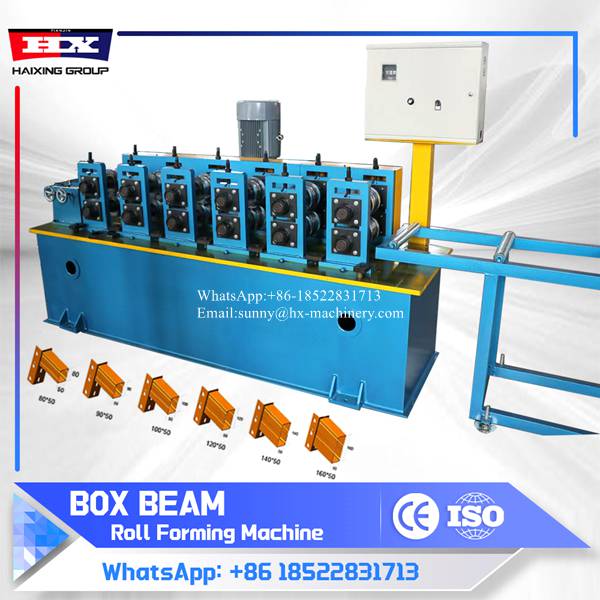

Racking beam roll form machine：Our machine is designed for efficient and precise production of racking beams used in storage systems. With advanced technology, it delivers consistent high-quality beams, offering versatility for different materials and customizable profiles. Ideal for warehouse racks and industrial storage, the machine ensures high efficiency, durability, and low energy consumption, making it the perfect solution for businesses looking to streamline their production processes.
Production Process: Passive discharge—Leveling—Forming—Servo tracking cutoff—Discharg

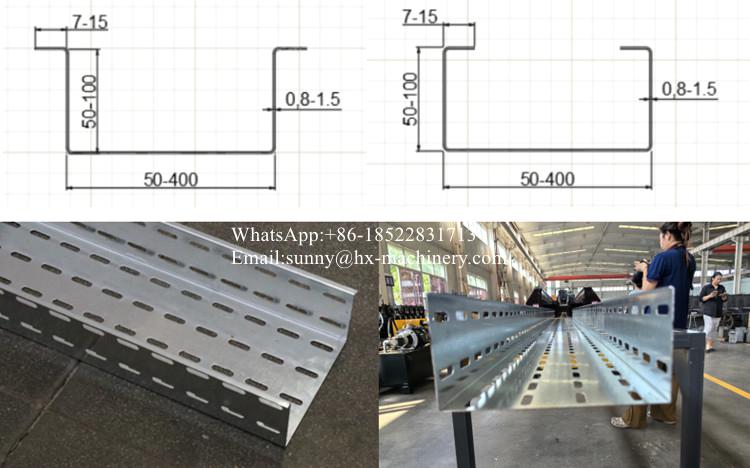

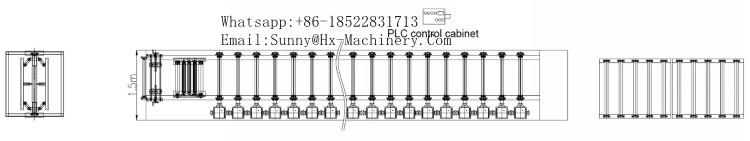

Racking beam roll form machine： Drawing Model：Bottom:80-160mm technical details :
| Beams machine manufacturers parameters | ||
 |
||
| 1 | Equipment area | About 35*1.5*1.5m |
| 2 | Equipment feeding direction | In left and out right |
| 3 | Voltage | 380V 50HZ 3Phase |
| 4 | Hydraulic oil | 46# hydraulic oil |
| 5 | Gear oil | 18# hyperbolic gear oil |
| 6 | Rolling strip width | 450-950 mm |
| 7 | Rolled strip thickness | 1.5(±0.03)—2.0(±0.03) mm |
| 8 | Rolled strip material | Q235 cold rolled strip steel,galvanized coil |
| 9 | Rolling workpiece length | 2000-6000 mm |
| 10 | Produce speed | 6-12m/min |
| 11 | Motor explosion-proof grade | ExdIICT4 |
| 12 | Motor protection grade | IP55 |
| 13 | LCD display | Display Electric |
| 14 | Total installed capacity of equipment | About 25KW |
| 15 | Electrical low voltage control components Control system |
Delixi or Chint |
| 16 | Frequency system | INVT |
| 17 | Bearings | Harbin Bearing |
| 18 | Reducer | Beijing Ruibofeng Reducer Co., Ltd. |
| 19 | Length Tolerance | ±1.5mm |
Racking beam roll form machine manufacturers detailed images for reference
| A.Uncoiler Decoiler
1. Maximum load-bearing capacity: 3T
|
| B.Leveling servo feeding machine
1.5 roller leveling
|

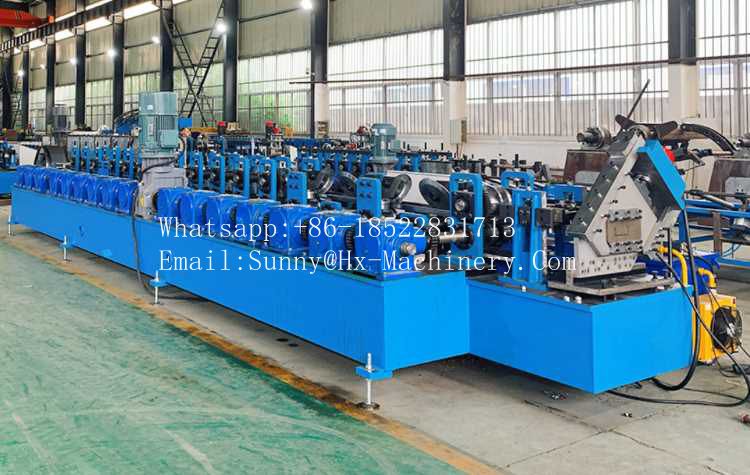

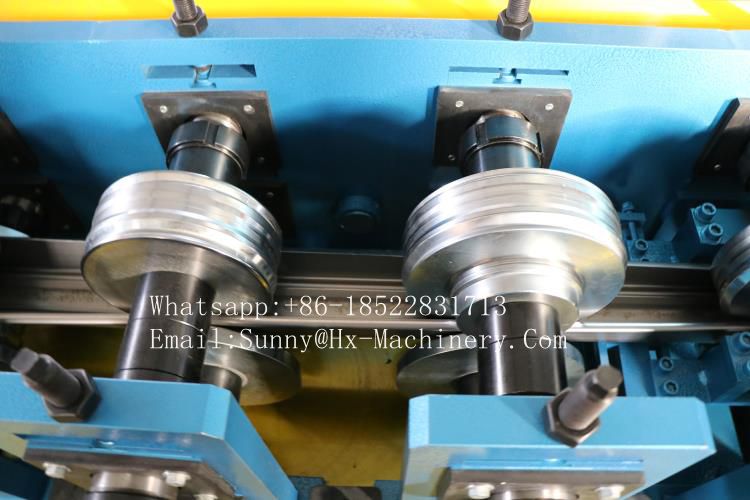

| C.Roll forming part
1. Shaft diameter φ65mm
|

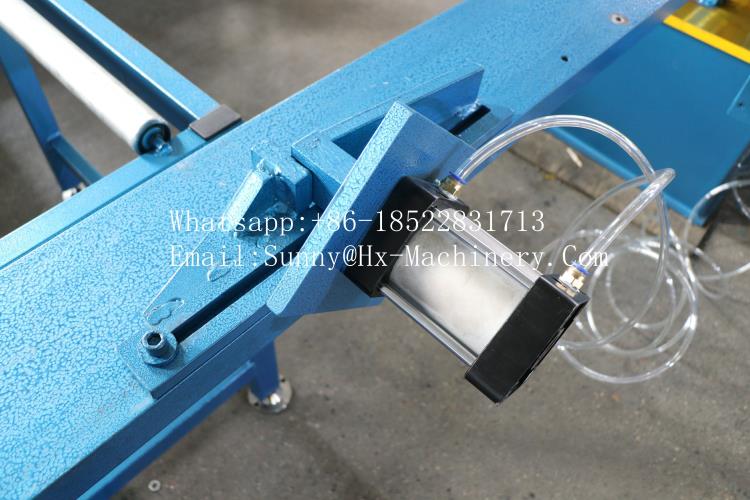

| D.Discharging platform
1. 3m platform
|
Perforated Racking beam roll form machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Advantages of using a Racking Beam Roll Form Machine line for beams roll production include:
| Versatile | Processes various materials like galvanized and cold-rolled steel |
| High Precision | Delivers consistent, accurate beam profiles |
| User-Friendly | Easy-to-operate control system with real-time monitoring |
| Fast Production | Boosts productivity with quick setup and automated processes |
| Customizable | Can be tailored to produce different beam sizes and profiles. |
| Low Maintenance | Requires minimal upkeep and offers reliable operation |
