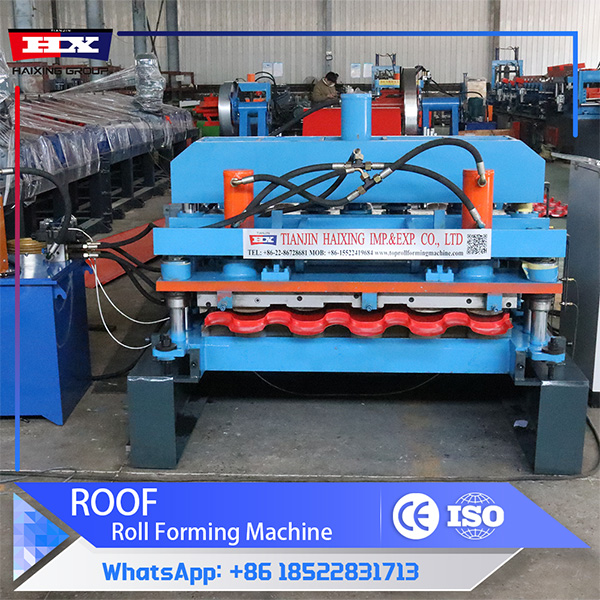

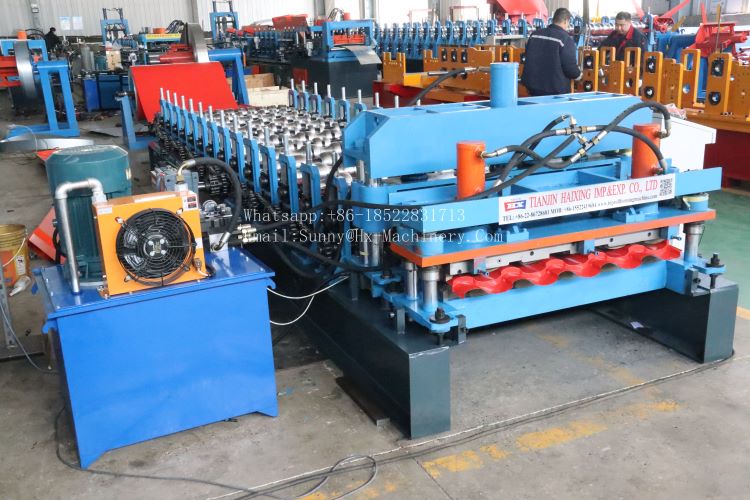

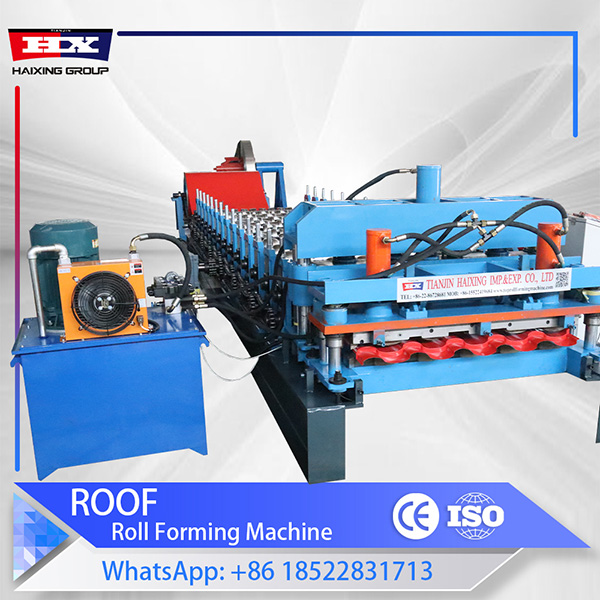

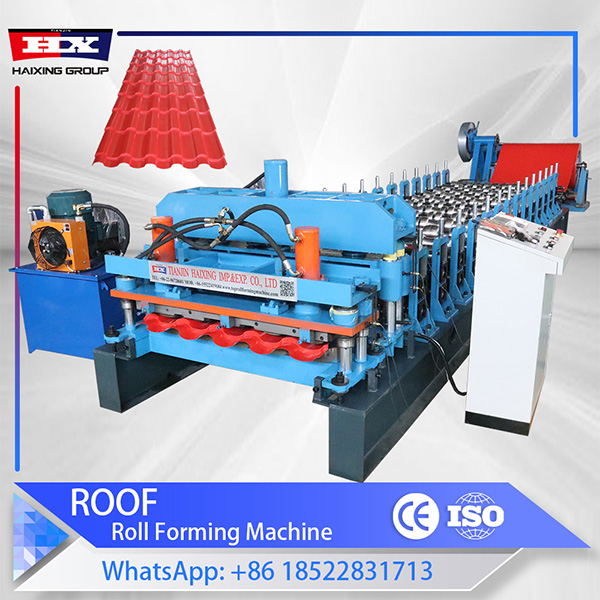

Roof tile forming machine offers a robust and efficient solution for producing high-quality roofing tiles with consistent precision. This advanced equipment streamlines the entire manufacturing process, enabling continuous, high-speed production while maintaining excellent dimensional accuracy and surface finish.
| Parameters of Roof tile forming machine | |
 |
|
| Weight of machine | 5820kg |
| Size of machine | 7100*1900*2000mm |
| Rollers | 15 rollers |
| Chain length | 1 inch |
| Feed Thickness | 0.3-0.8mm |
| Feed width | 1250mm |
| Cutter | Cr12 |
| Shaft diameter | 70mm |
| Material of the wheel | 45# Steel Chrome-Plated |
| Main motor power | 5.5KW |
| Pump motor power | 5.5KW（with fan） |
| Voltage | 380V, 50HZ, 3-phase electricity |
| Shear error | ±1.0mm |
| Cutting Method | Servo Cutting |
| Forming speed | 4-6m/min |
To get a favorable price and more machines of our machine factory!
And our machine has some obvious advantages：

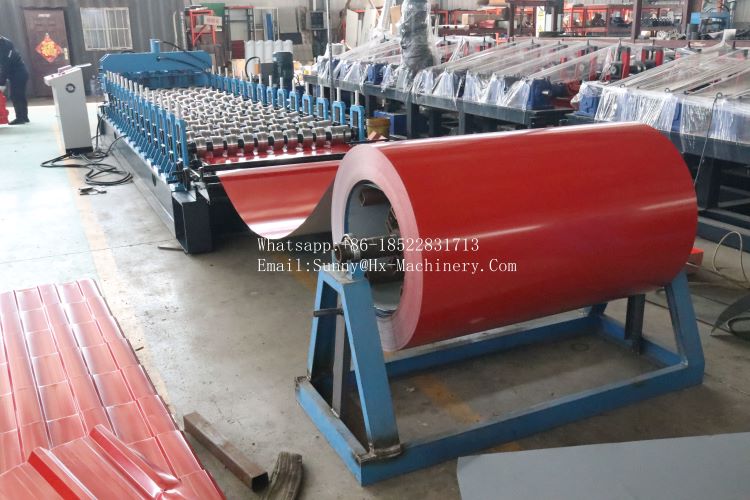

Heavy-Duty Uncoiler – A robust uncoiling unit reliably handles coils weighing up to 8 metric tons, ensuring stable and continuous material feeding.
High-Capacity Stacking – The integrated stacking system organizes finished tiles into neat piles, supporting stack heights up to 6 meters and lengths of 10 meters.

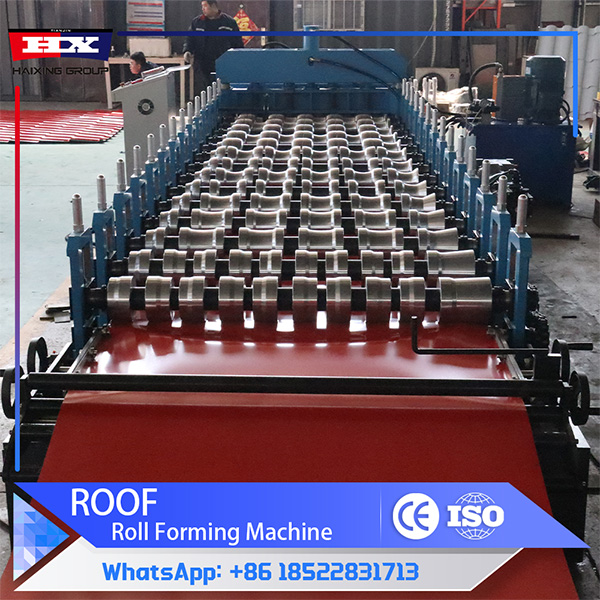

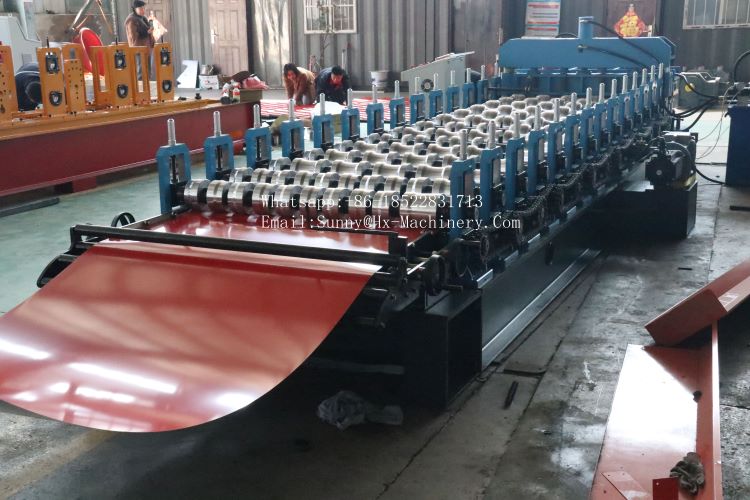

Automated Precision Forming – Advanced servo-driven roll forming units shape roofing tiles with consistent accuracy and repeatability.
We Provide Service：
Our roof tile roll forming machine is designed to provide efficient and reliable performance for your production needs. We offer technical support and services to ensure that your machine operates at its optimal capacity.
Our technical support team is available to assist you with any questions or concerns you may have about the installation, operation, and maintenance of the machine. We can also provide troubleshooting services to help you identify and resolve any issues that may arise.
In addition to technical support, we offer a range of services to help you maximize the productivity of your roof tile roll forming machine. These services include training and education programs to help your team use the machine effectively, as well as maintenance and repair services to keep your machine in top condition.
We offer worldwide shipping for our machine. The shipping cost and delivery time depend on the destination country. They also vary based on the transportation method chosen by the customer. We will provide all necessary documents and information to ensure a smooth and hassle-free delivery process.
About us：
Since 1996 year, HAIXING GROUP main products have evolved from a standard roll forming machine to a customized automated roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners.
Main machine includes roof roll forming machine, light keel roll forming machine, cable tray roll forming machine, strut channel roll forming machine, rack roll forming machine, floor deck roll forming machine, purlin machine, leveling and slitting machine, metal fence roll forming machine, gutter roll forming machine, downspout roll forming machine, door frame machine, shutter door roll forming machine, highway guardrail roll forming machine, and other related construction equipment.
We always adhering to the concept of “honesty is our aim, win win is our pursuit”, insisting on the service principles of “customer first, quality first, service first, after sales first”, efficiently and professionally complete the products required by customers.
