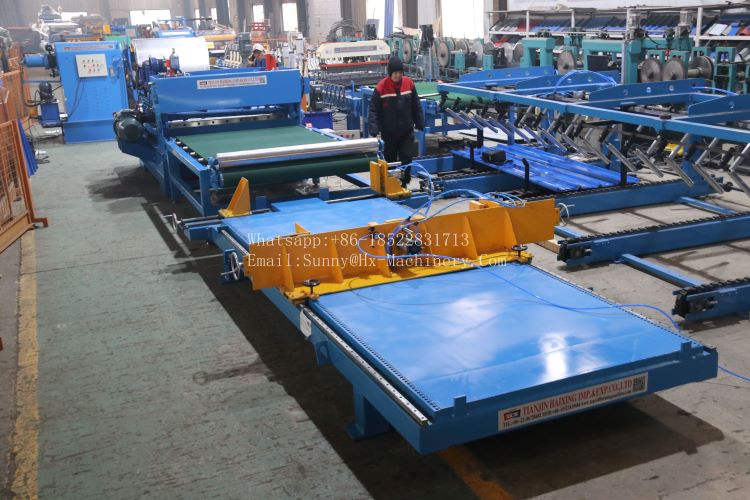

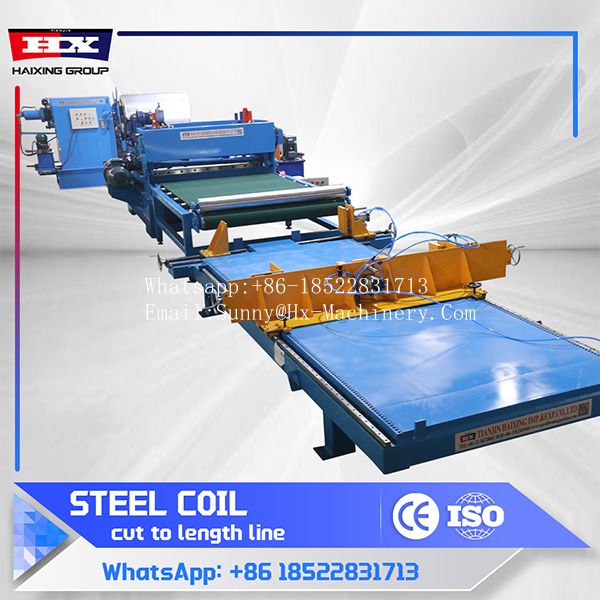

Sheet coil cutting machine is designed to efficiently cut metal coils into sheets of precise lengths. It is ideal for industries that require high-volume production with consistent quality, such as automotive, construction, and manufacturing.
| Main parameter of Sheet coil cutting machine | |

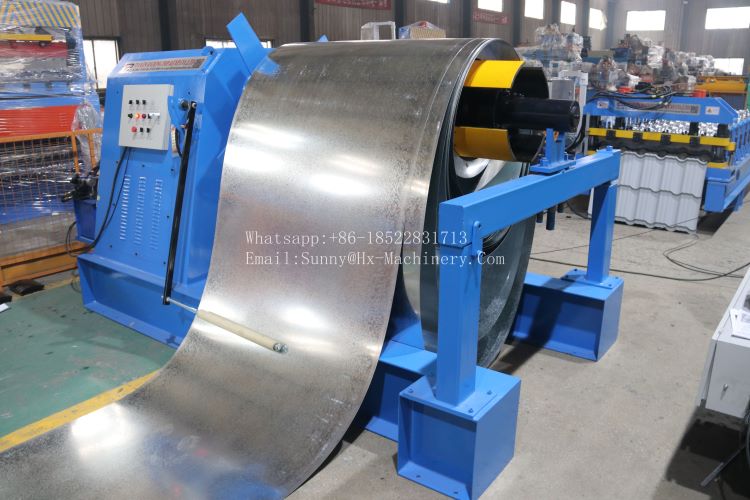

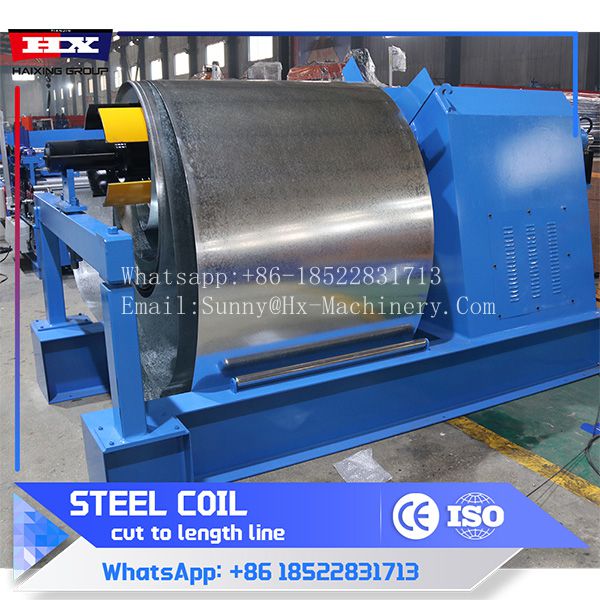

| 1.uncoiling section | |
| Size | 3.6*1.8*1.9meters |
| Weight | About 3.6Tons (Include a coil car) |
| Main axis | Thick-walled seamless steel pipe, Shaft diameter 198*50mm |
| Hydraulic cylinder | Cylinder diameter 125mm |
| The whole box iron plate | 16 mm |
| Main motor | PM250 steel shell reducer (Speed ratio 40:17 ) 5.5Kw |
| Max put weight | 10 tons |
| Coil Inner diameter range | 470-530mm,if ave special need advance notice |
| Power | 380V 50HZ 3phase |
 |
|

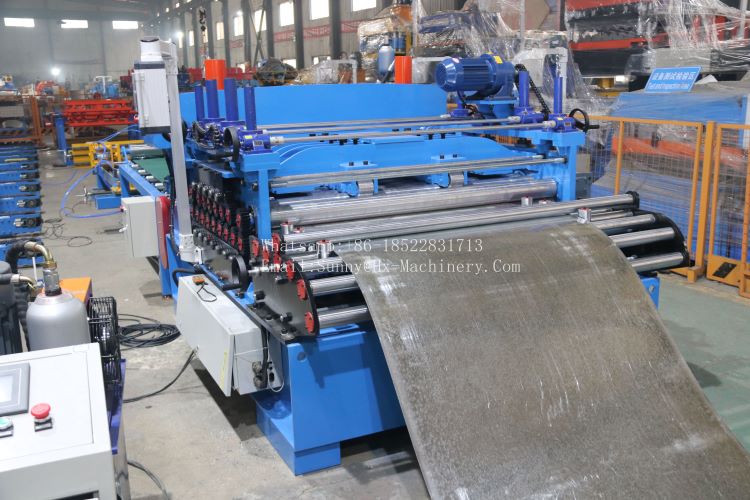

| 2.Leveling section | |
| Thickness of raw material | Max thickness less 2.0mm |
| Materials width | Max 1600mm |
| Max 1600mm | ±2.0mm |
| Roller station | Up :7 rollers Down:8 rollers |
| Speed | 10-15m/min |
| Slitting to min width | 120mm (If need can add ) |
| Voltage | 380V,50HZ,3Phase |
| Main frame | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠110mm |
| Main power | 5.5kw+5.5Kw |
| Machine size | 3000x2000x2000m |
 |
|
| 3.conveying section | |
| Engine power | 2.2Kw |
| Transfer speed | ≤20m/min |
| Conveyor belt size | 3000 mm*1600mm |
| Voltage | 380V,50HZ,3 phase |
 |
|

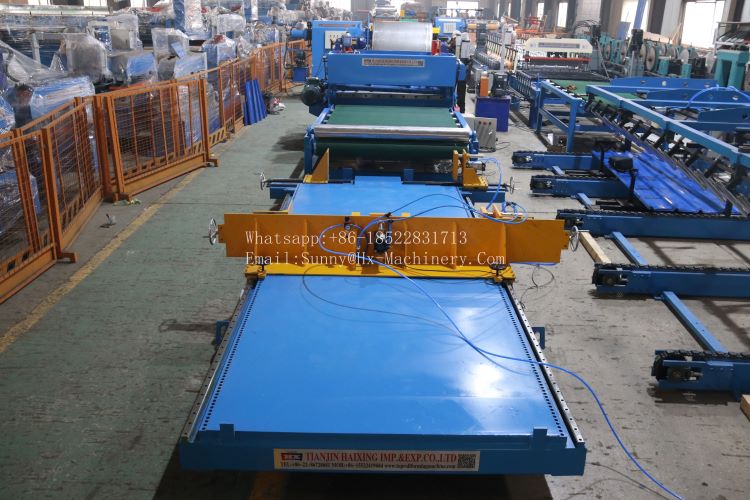

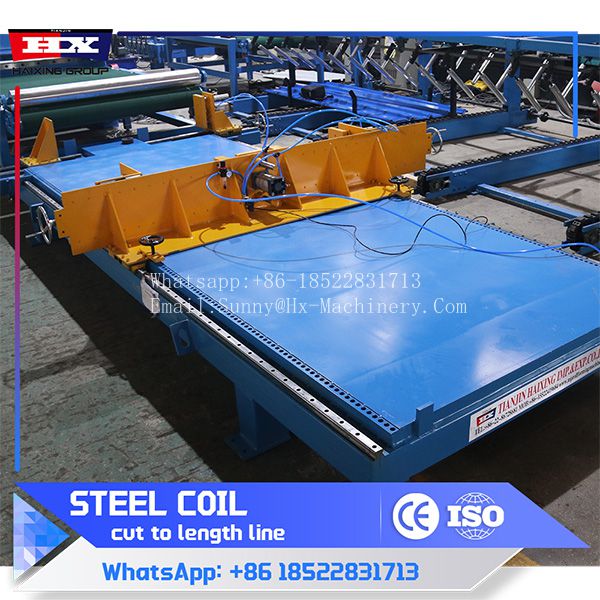

| 4.receiving section | |
| Size | 4000*1250mm |
| Minimum material | 1000*1000mm |
| Voltage | 380V,60HZ,3 phase |
 |
|
Click to know more about our machine and a favorable quote!
Sheet coil cutting machine loading and shipment ：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
