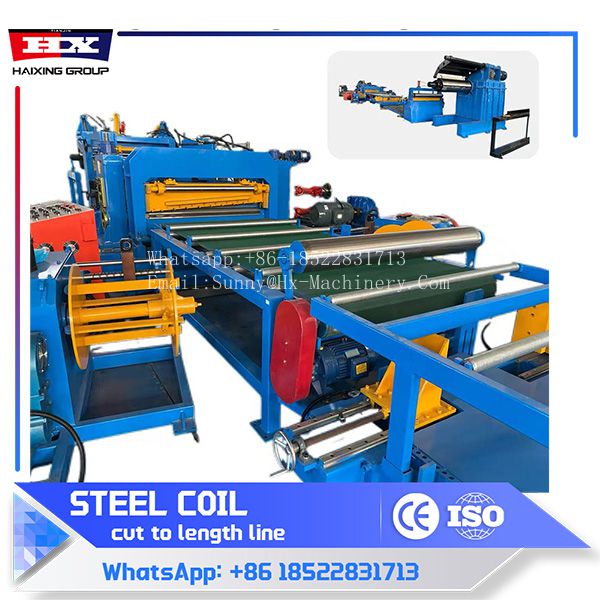

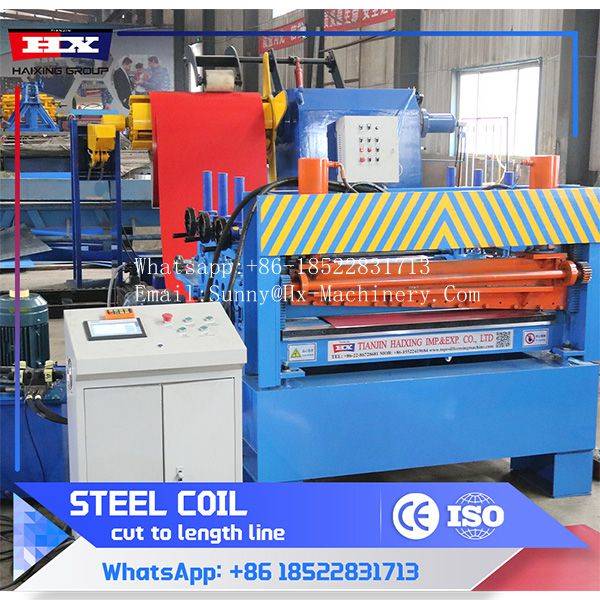

Introduction of Slitting and cut to length line:
Slitting and Cut to Length Line is a versatile and efficient system designed for cutting and slitting steel coils into specific widths and lengths. It combines two essential functions—slitting the coils into narrower strips and cutting them into precise lengths—making it an essential tool in industries that require high-quality, customizable steel sheets.
This steel coil cut to length line divided into several parts, such as the uncoiling section, leveling section, cutting section, conveying section, receiving section and this machine including slitting section. And here are some details and photos of machine parts：

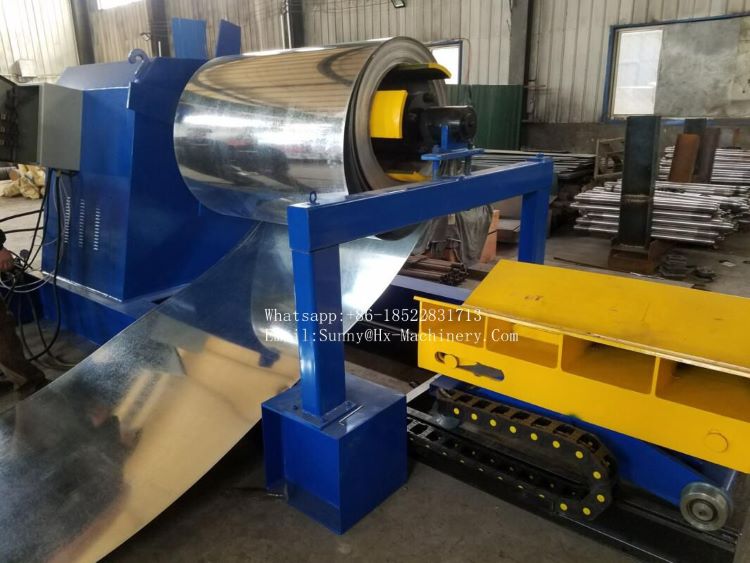

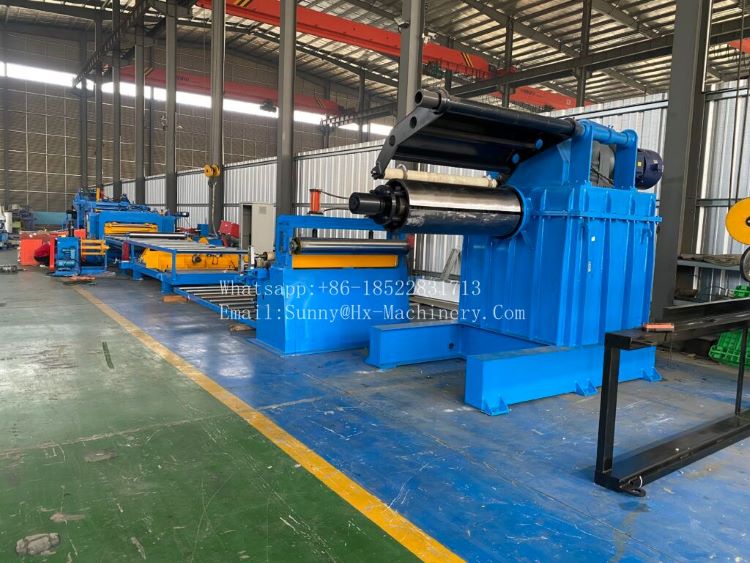

1.10T Uncoiler
Loading-bearing： 10 tons
Support range：¢480mm－￠600mm
Power：4KW

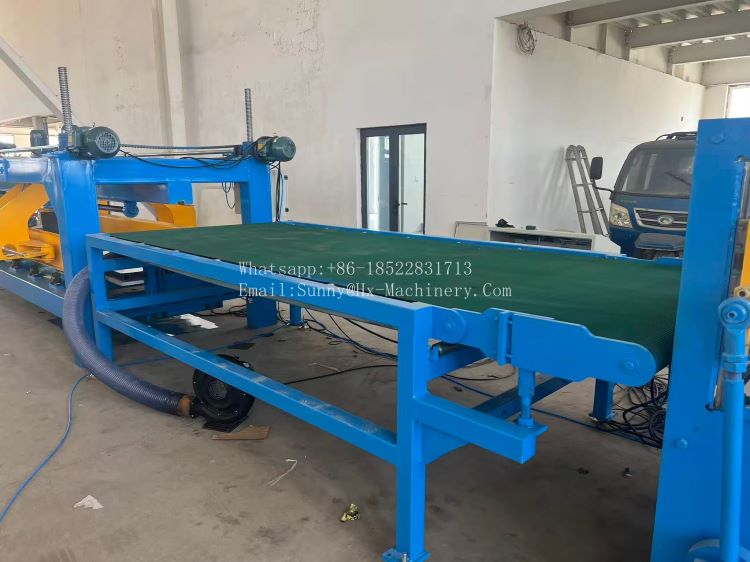

2.conveyor belt
Using an overall scratch-resistant overall belt conveyor,
Length 3000mm, flat belt drive, does not damage the board surface

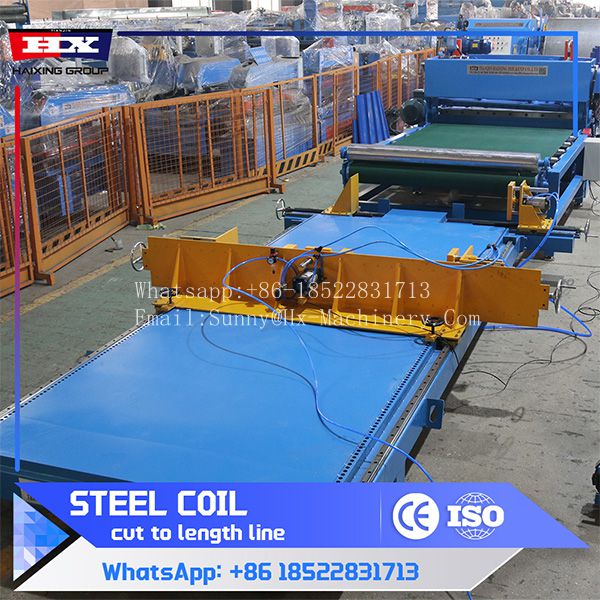

4.Lifting and stacking machine
Make it convenient for packing and hoisting.
Here are parameters of our Slitting and cut to length line：
| Suitable to process | Galvanized/color steel coil |
| Thickness of raw material | ≤1.0mm |
| Materials width | Materials width |
| Accuracy | ±2.0mm |
| Roller station | Up :5 rollers Down:6 rollers |
| Cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Main motor | 4KW |
| Voltage | 380V,50HZ,3Phase |
| 380V,50HZ,3Phase | 350 H beams |
| Side-wall thickness | 40mm |
| Diameter of shaft | ￠90mm |
| Chain size | 1 Inch |
| Hydraulic pump | 4Kw,Lichao |
| Touch screen/PLC | Delta ,Taiwan |
| Transmission | Gear transmission |
| Machine size | 2600x2000x2000m |
| Machine weight | About 2.5Tons |
| Slitting blade | 3 blade 4 pieces |
| Slitting blade materials | Cr12Mov |
If you like our machine click to get a quote and a favorable price！
