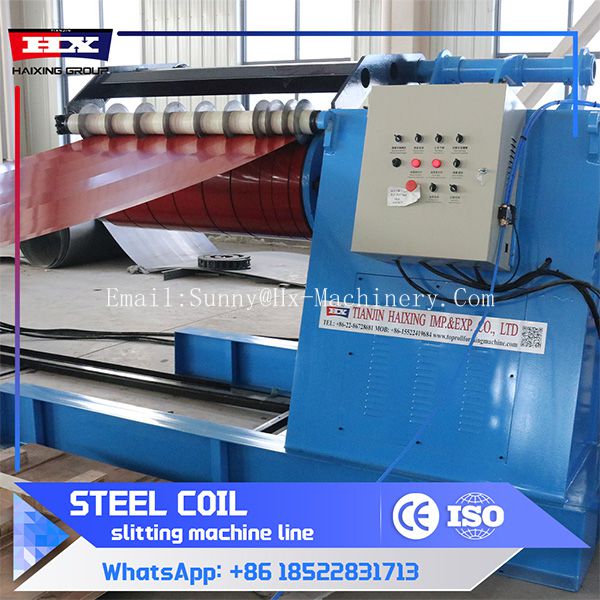

Slitting Line Machine is designed for high-precision slitting of metal coils into narrower strips. It offers quick and accurate cuts, making it ideal for industries like steel, aluminum, and copper processing. The machine features adjustable slitting widths to accommodate various production needs, ensuring flexibility and customization. Built with advanced technology, it operates efficiently at high speeds while maintaining top-quality performance.
| Main parameters of slitting line machine | |
| Raw materials grade | Galvanized steel coil/Cold rolled coil/Color coil |
| Raw materials thickness | 0.3~3.0mm |
| Raw materials width | 1250mm |
| Raw materials inner diameter | Φ508mm/610mm |
| Raw materials outer diameter | ≤Φ1500mm |
| Raw materials coil weight | 5Tons |
| Slitting speed | 0~25m/min（During normal work） |
| Land occupation area | About 35m×5m |
This line mainly includes: hydraulic uncoiler, slitter and cutter, conveyor, hydraulic recoiler, or with roll forming machine,etc.
This machine is perfect for manufacturers who need consistent results and minimal material waste. The slitting line machine’s user-friendly design and low maintenance requirements make it easy to operate and cost-effective in the long run. It enhances productivity in high-volume production environments and ensures that each strip meets precise specifications.
Some parts of the machine：

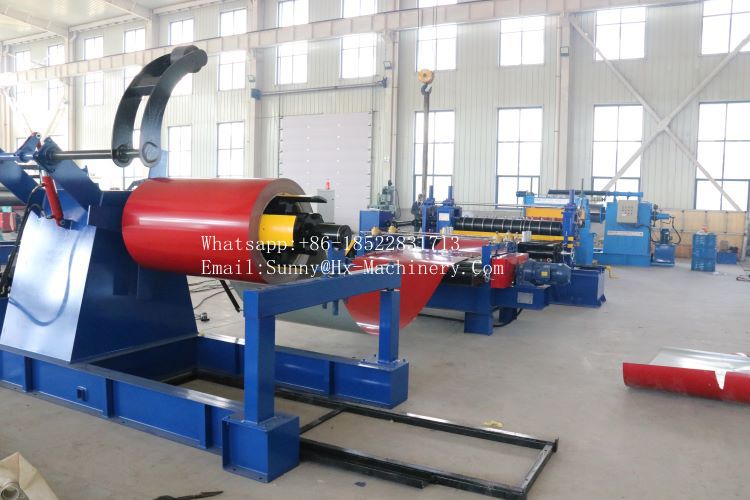

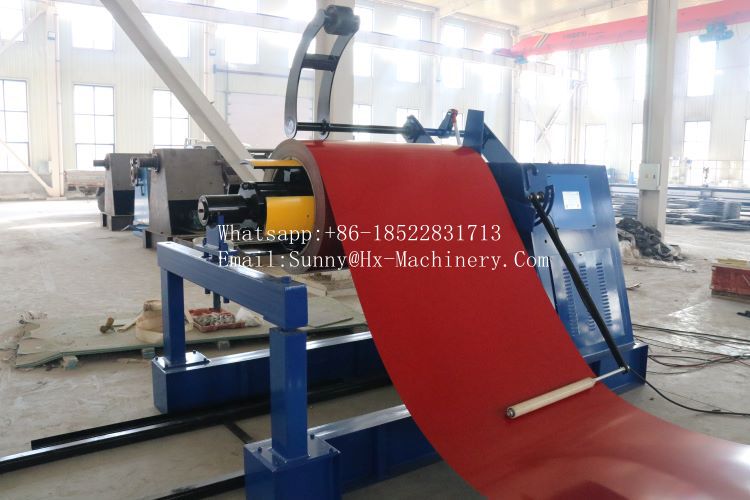

| A.Decoiler
Single cantilever structure bearing capacity 5Tons Support range：470-530mm hydraulic tension electric unwinding power：5.5KW frequency conversion and main motor 5.5KW Hydraulic pump 4KW
|
| B.Leveling
Hydraulic shovel head with two shaftsand total 11rollers(Up 5rows ,down 6rows ) roller diameter 90mm
|

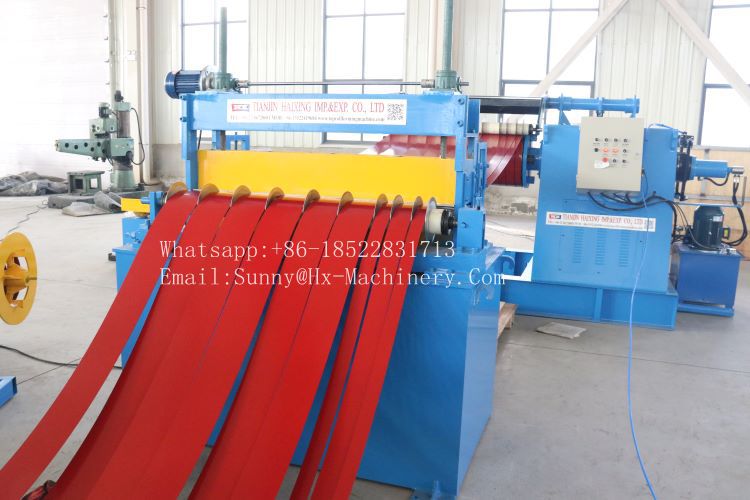

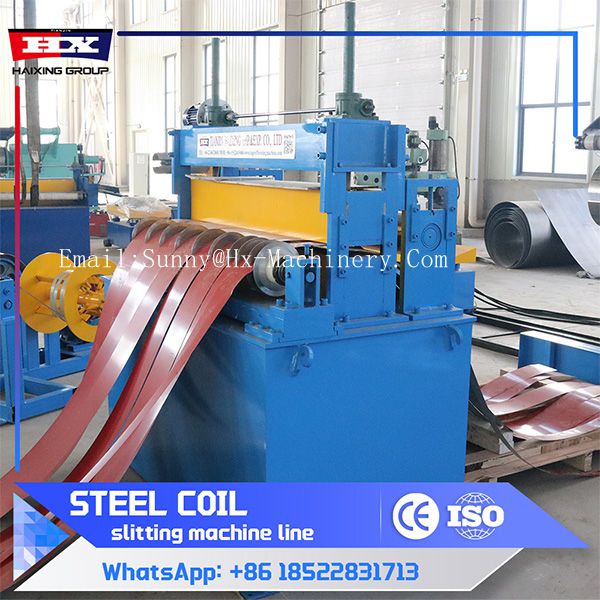

| C.Slitting
slitting roll diameter 140mm-160mm Blade tool outer diameter 240-260mm Main motor power :7.5KW
|
| D.Damping
Double cylinder diameter 80mm Main frame use 10 mm thick iron plate welding Upper and Down iron plates with a thickness of 14 mm
|
| D.Collect waste
Power 2.7Kw*1set
|

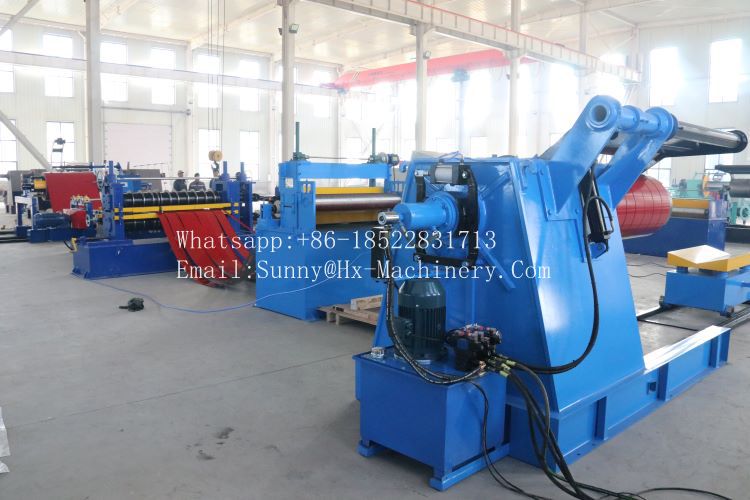

| E. Hydraulic re-decoiler with coil car
|
Click to get more information about our machine and a more favorable price!
Some advantages of slitting line machine：
| High Precision Cutting | Ensures consistent strip width and high-quality cuts for metal coils. |
| Increased Productivity | Fast, continuous operation boosts production capacity and reduces downtime. |
| Reduced Material Waste | Precise cuts optimize material use, minimizing waste and cutting costs. |
| Flexible Adjustments | Adjustable cutting width and speed to accommodate various material specifications. |
| Higher Automation | Automated operation improves efficiency, reduces manual intervention, and stabilizes production. |
