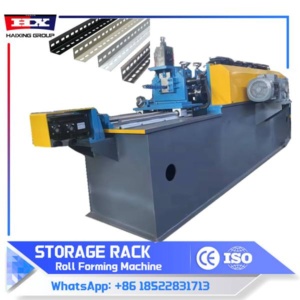

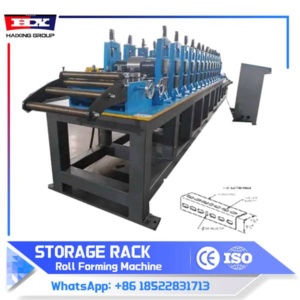

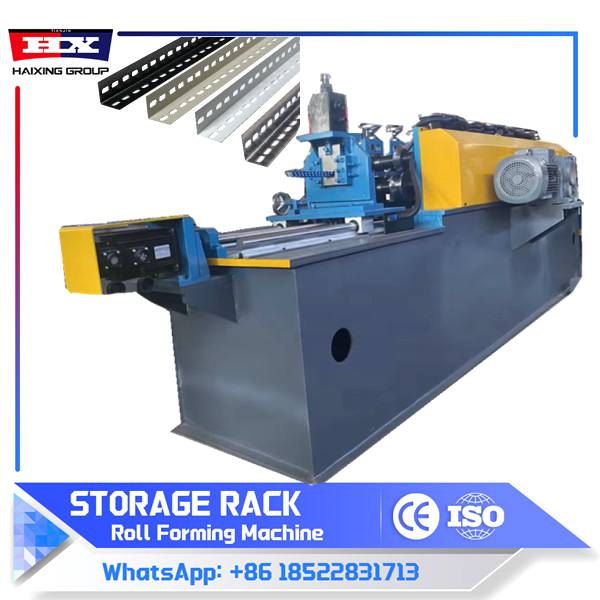

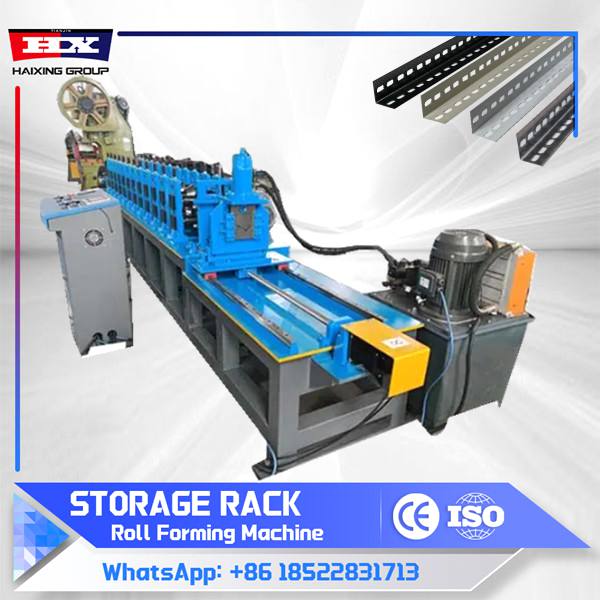

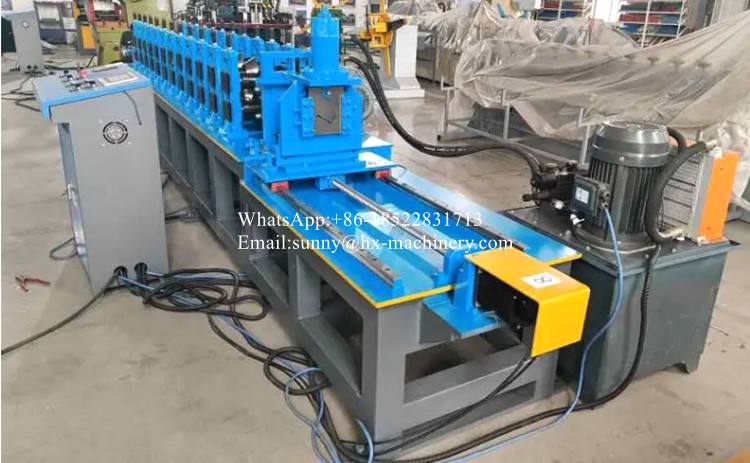

Slotted angle making machine machine

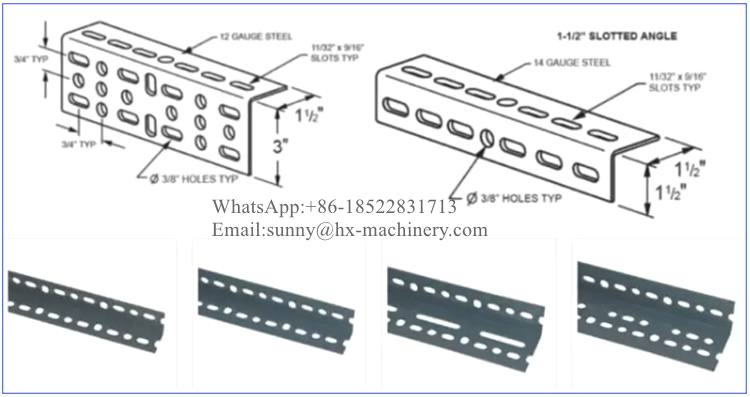

The Slotted Angle Making Machine is a specialized piece of industrial equipment designed for the automated, high-volume production of slotted angles (also known as slotted angle iron, angle brackets, or perforated angles). These versatile steel structural components feature a series of precisely spaced holes or slots along their length, allowing for easy assembly and disassembly using bolts and nuts without the need for welding.

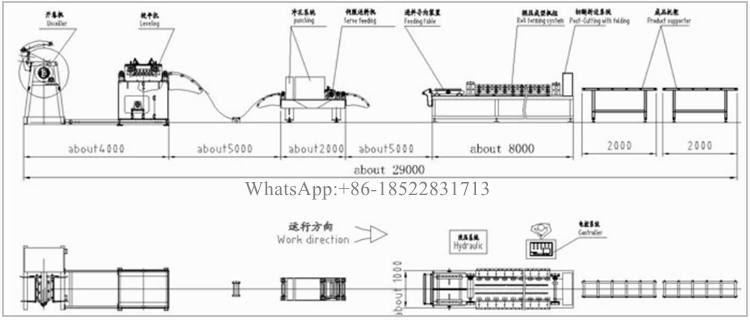

Slotted angle making machine working flow
Uncoiling – high precision punch feeder – high speed punching press (including die)- Precision col rolling forming machine – CNC shear -receiving rack.
| Slotted angle making machine | |
| Forming Rollers | 16rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø70 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 11 kW motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.0-1.5mm |
| Forming Speed | 10-15m/min |
| Inverter | Delta brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 5.5Kw |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |

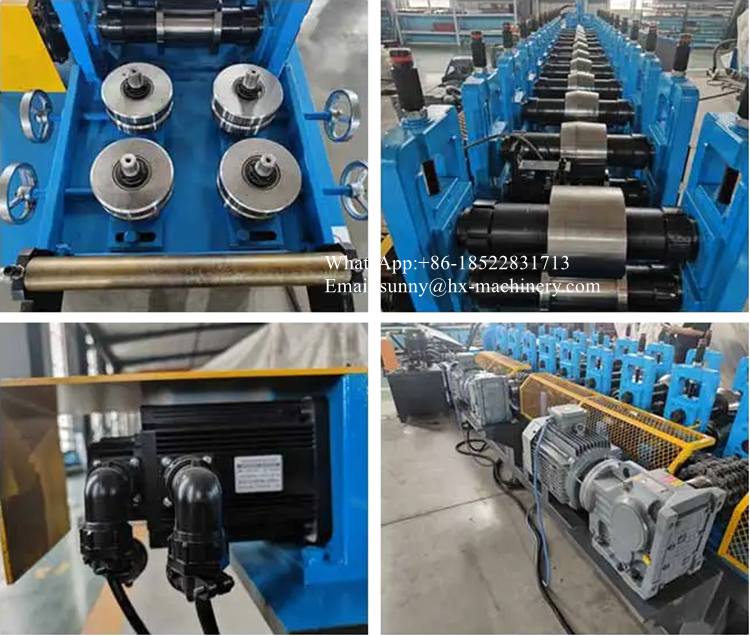

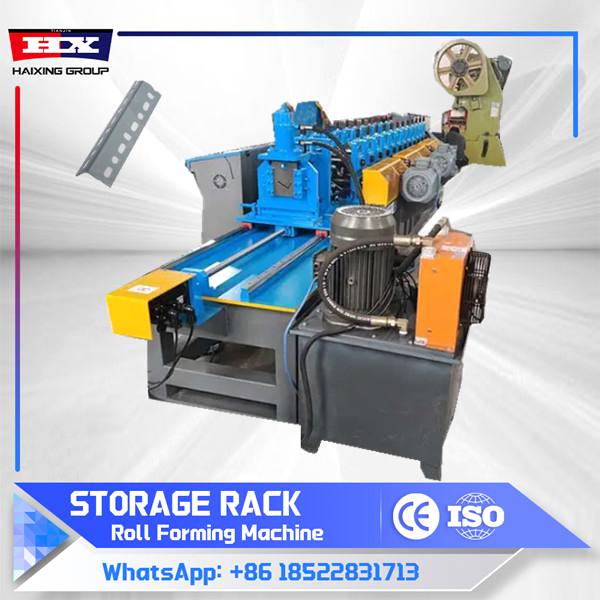

Slotted angle making machine each part photos showing

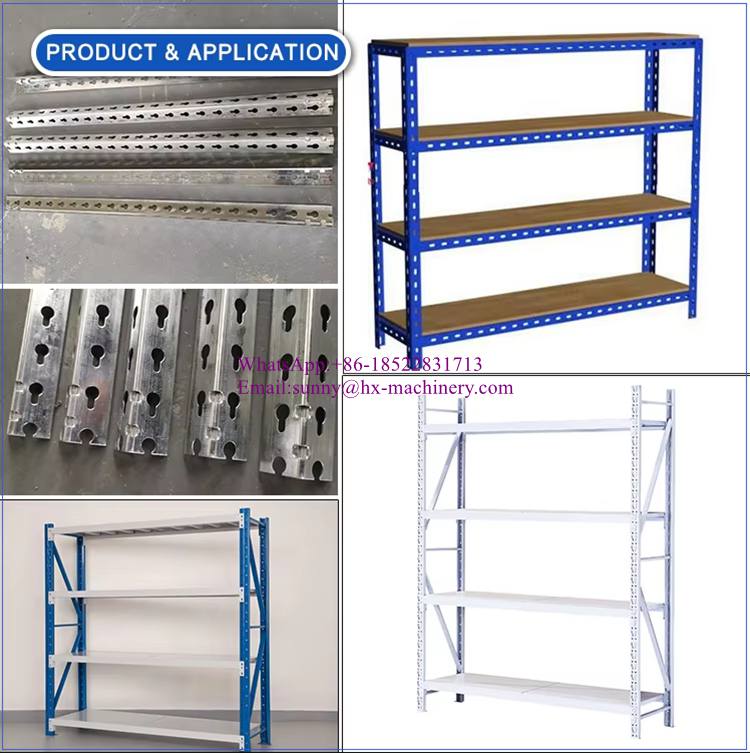

Finished Product Applications
Slotted angles produced by these machines are ubiquitous in light to medium-duty structural frameworks, including:
| Storage Systems | Heavy-duty industrial shelving, warehouse racking. |
| Workshop Furniture | Workbenches, assembly tables, tool stands. |
| Retail & Display | Gondola shelving, display racks, shop fixtures. |
| Construction | Temporary support structures, framework for partitions, mezzanine floors. |
| DIY & General Use: | For creating customizable frames, supports, and enclosures. |
Any need the rack roll forming machine,cable tray roll forming machine ,solar struct forming machine ,please let we know in any time !
