Solar channel roll forming machine belong to High-Performance Solar Channel Roll Forming Machine for 41-Series Profiles.
Our Solar Channel Roll Forming Machine is a state-of-the-art, automated production line engineered for the high-volume manufacturing of structural channels specifically for solar panel mounting systems. It is designed to produce a versatile range of standard C-channel and U-channel profiles, including but not limited to 41x21mm, 41x41mm, 41x52mm, 41x62mm, 41x72mm and 41x82mm, from galvanized steel, aluminum, or other pre-painted coils.
This robust machine integrates precision roll forming, punching, and cutting technologies to deliver consistently accurate, high-strength, and ready-to-install solar support structures with exceptional efficiency.
The strut channel machine line can roll steel products with a maximum thickness of 2.0mm, and can produce steel products with size 41*21/41*41mm/41*52mm/41*62mm/41*72mm,thickness range 1.5(±0.03)~2.5(±0.03) mm
| Solar mounting roll forming machineparameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching) 4 kW pump station (for cutting) 3 kW pump station (for pressing) |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

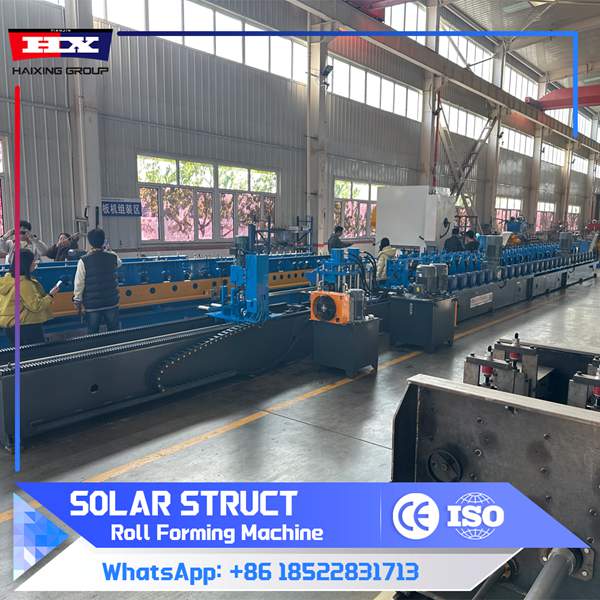

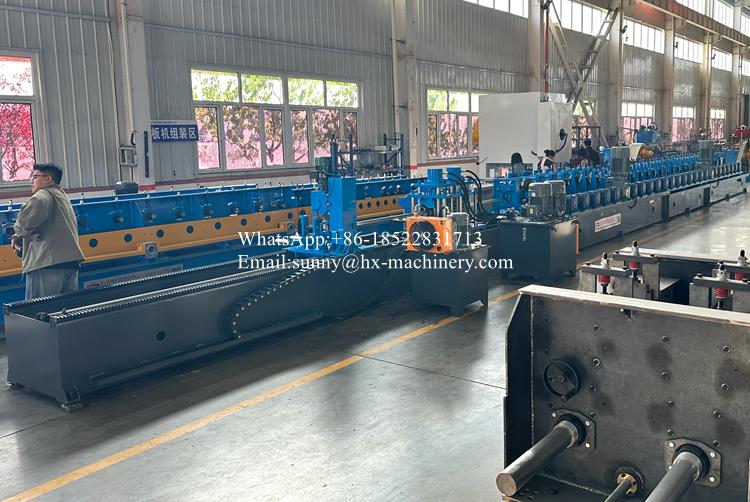

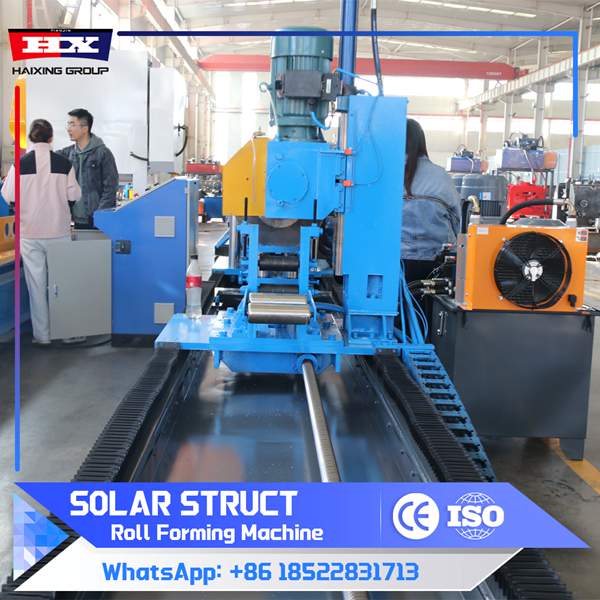

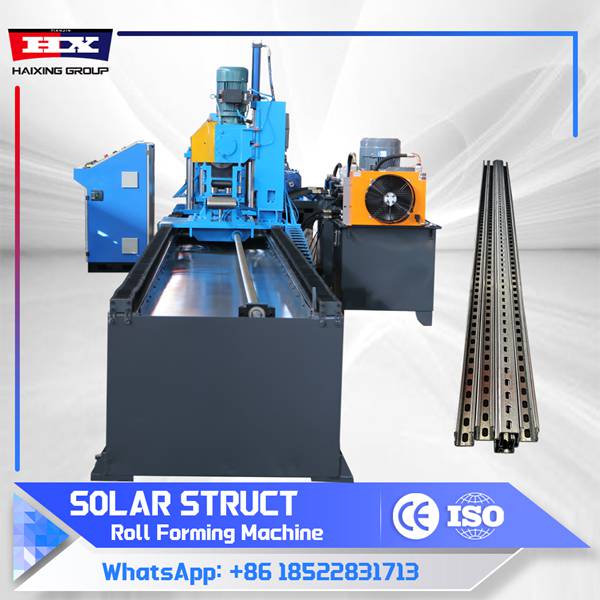

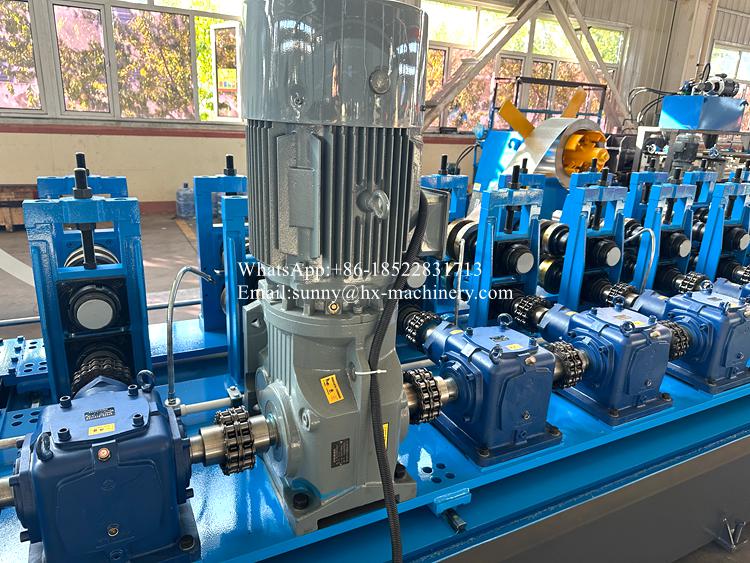

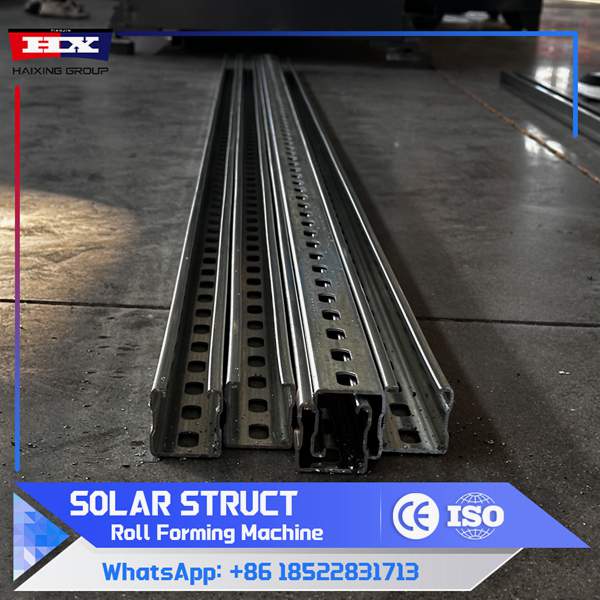

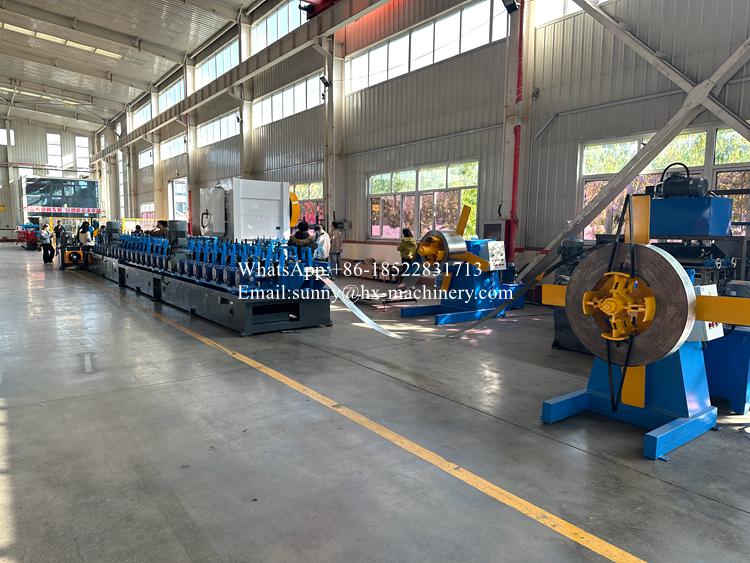

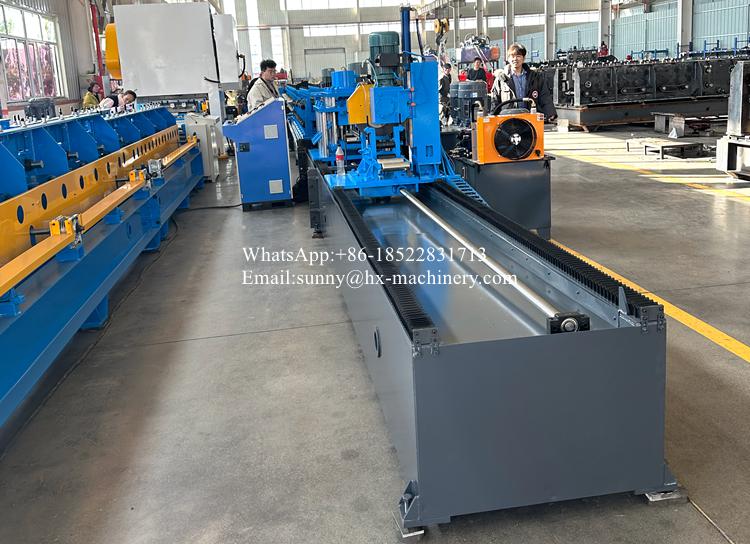

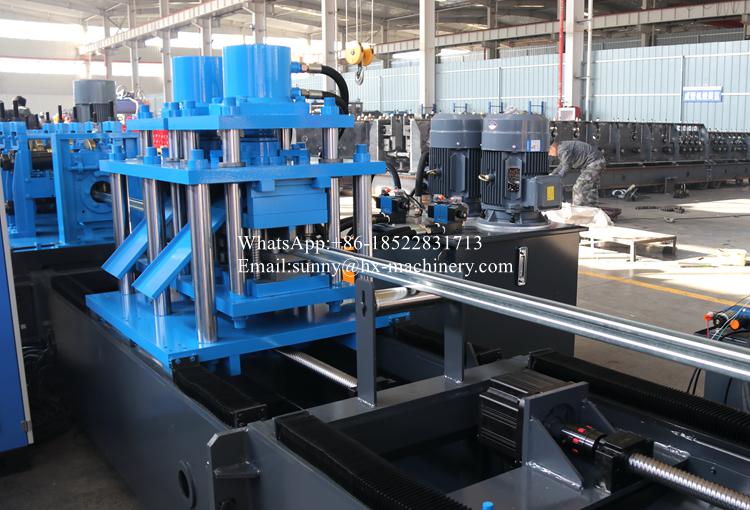

Solar channel roll forming machine more photos showing
Solar mounting roll forming machine loading and shipment
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
Significant Benefits
This Solar Channel Roll Forming Machine represents a pinnacle of efficiency and flexibility for solar mounting structure manufacturers. It is a comprehensive solution that transforms raw coil into finished, high-precision channels in one seamless, automated process, significantly boosting production capacity and ensuring superior product quality for the global solar energy industry.
