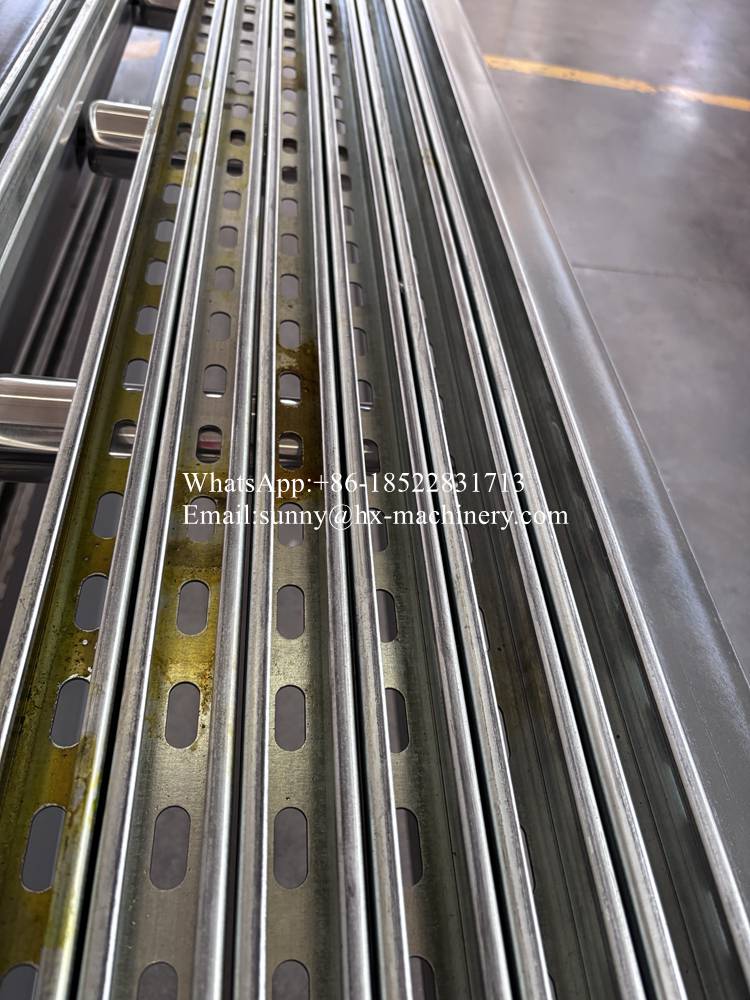

Solar structure machine price economical and affordable .About unistrut C-channel roll forming is a highly efficient, continuous manufacturing process used to produce the metal framing components that form the backbone of modern solar mounting systems. These galvanized steel or aluminum channels are characterized by their consistent C-shaped cross-section, precise slotted holes, and exceptional strength-to-weight ratio.
Solar structure machine capable of producing 41×21, 41×41, 41×52, 41×62, 41×72 and 41×82 profiles or according to customer’s need :
| Solar structure machine price and main parameters | |
| Forming Rollers | 26rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø80 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 18.5 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |

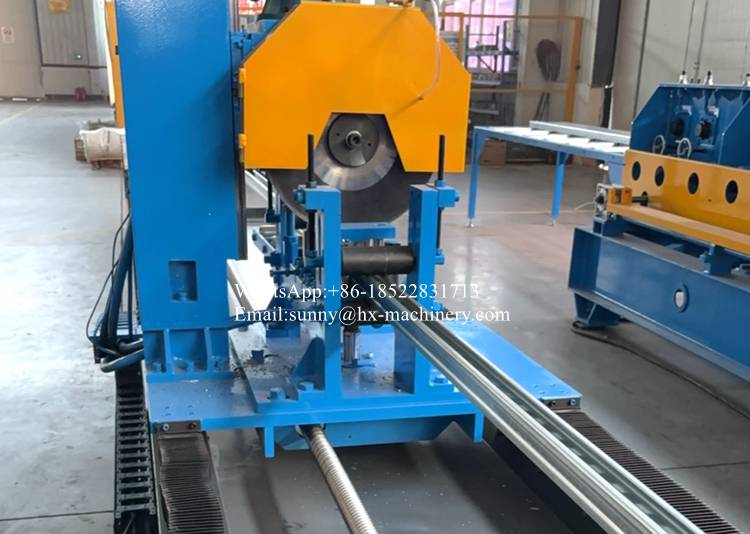

| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | INVT brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 11 kW × 2 pump station (for punching) 4 kW pump station (for cutting) 3 kW pump station (for pressing) |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

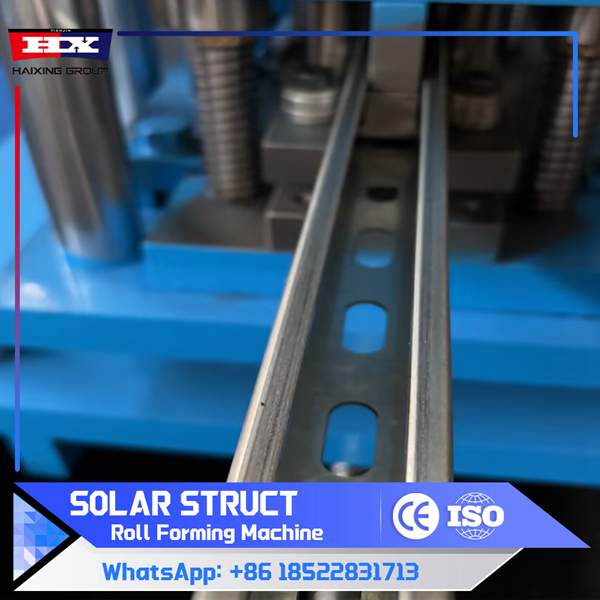

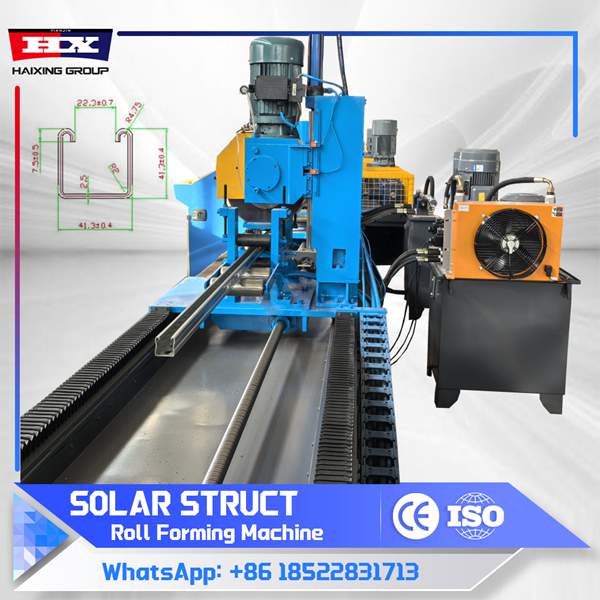

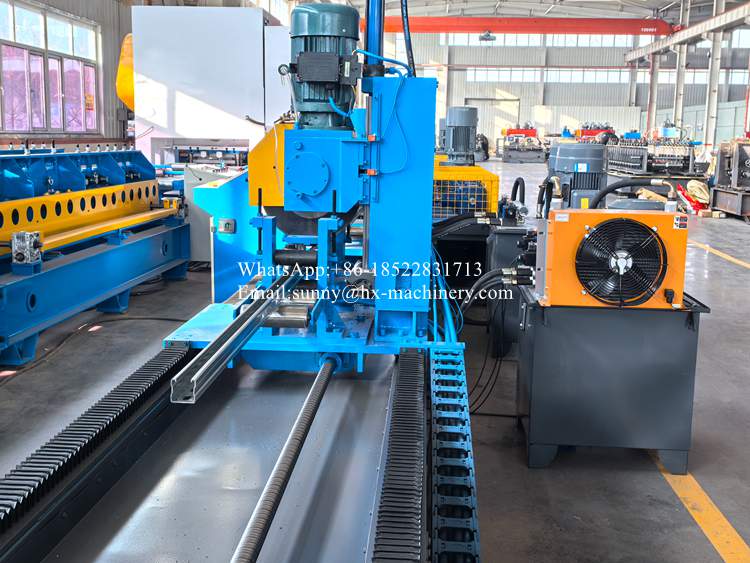

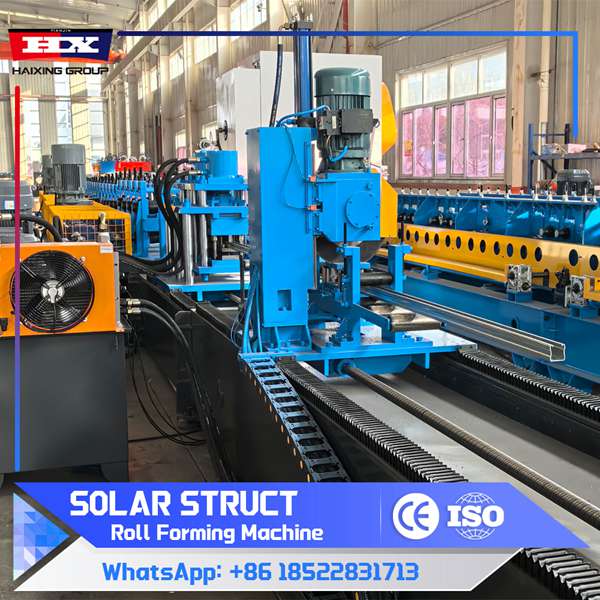

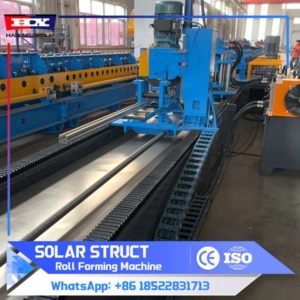

Solar structure machine price more photos showing

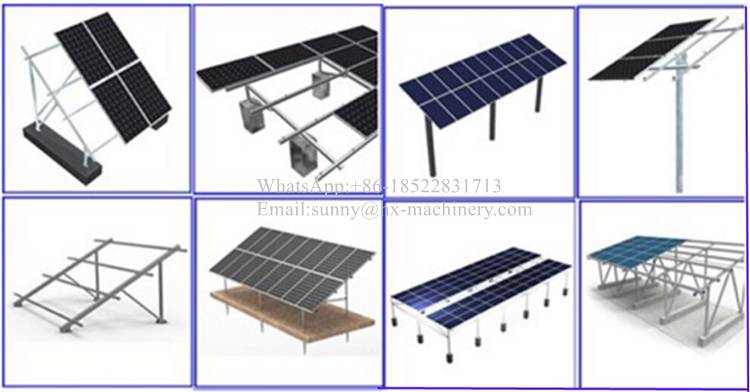

Solar structure making machine Applications For Solar Mounting Structures
| Panel Mounting Rails | The primary horizontal or vertical supports to which solar panels are directly attached. |
| Purlin & Framing Members | Used as structural elements to create the support truss or frame for larger arrays. |
| Tracking System Framing | Forms the movable structure for single-axis or dual-axis solar trackers. |
| Equipment Supports | For mounting inverters, combiner boxes, and cable management systems. |
