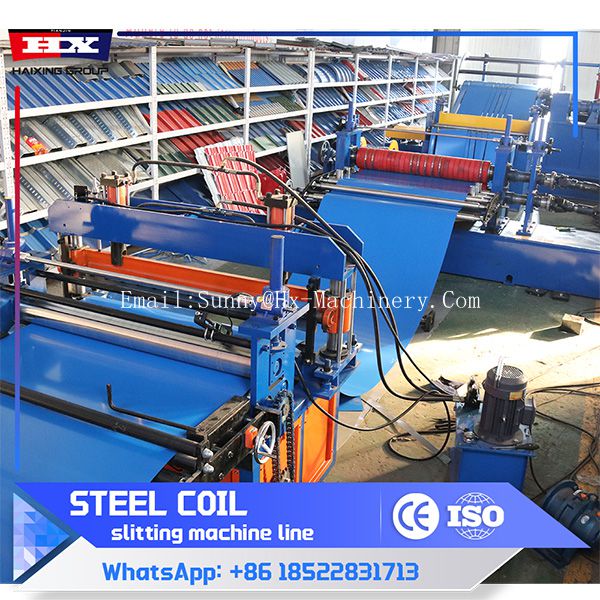

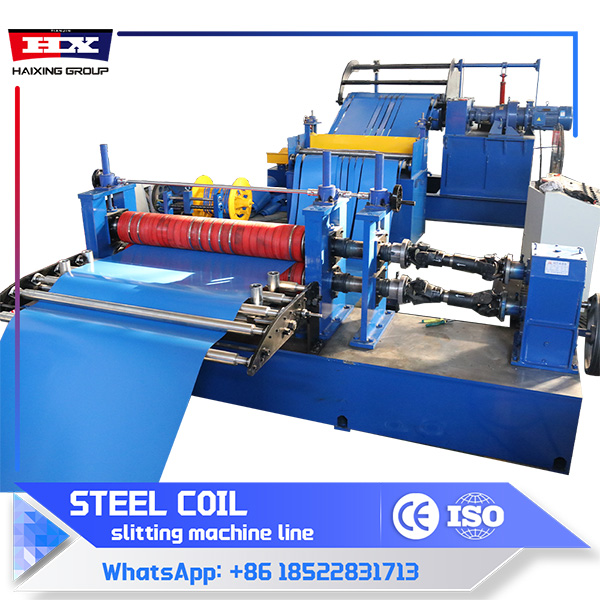

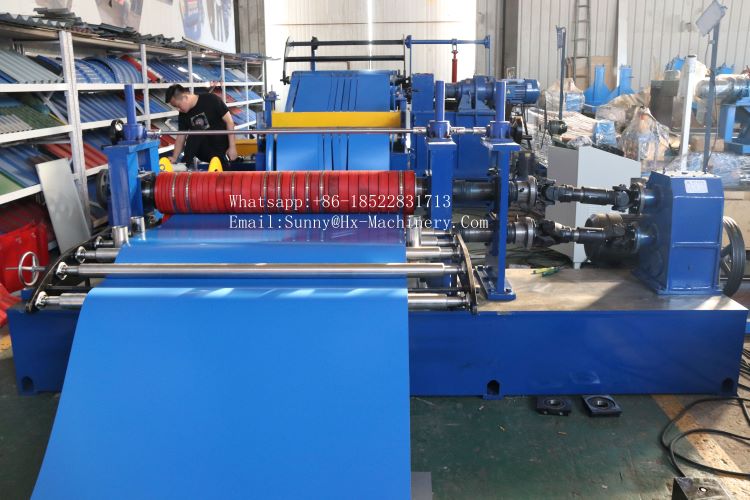

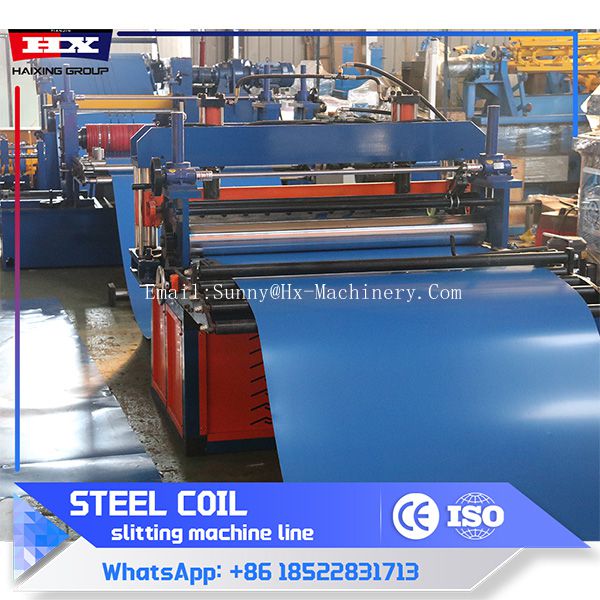

Steel coil slitting machine cuts wide steel coils into narrower strips. It handles different steel grades and thicknesses with ease. The machine is designed for precision and speed, ensuring smooth operation in high-demand environments. It improves productivity and offers flexibility for various applications, from automotive to construction industries. Simple to operate, it delivers consistent results and enhances workflow efficiency.
| Main parameters of steel coil slitting machine | |
| Raw materials grade | Galvanized steel coil/Cold rolled coil/Color coil |
| Raw materials thickness | 0.3~3.0mm |
| Raw materials width | 1250mm |
| Raw materials inner diameter | Φ508mm/610mm |
| Raw materials outer diameter | ≤Φ1500mm |
| Raw materials coil weight | 5Tons |
| Slitting speed | 0~25m/min（During normal work） |
| Land occupation area | About 35m×5m |
Our machines are of excellent quality，there are a part of our machine：

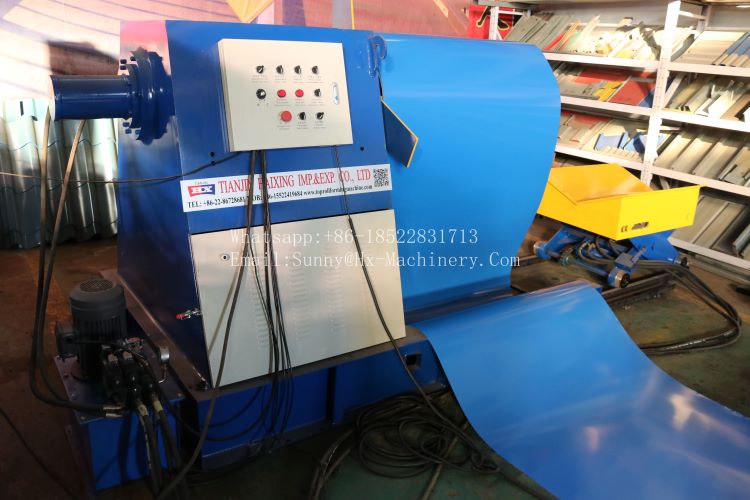

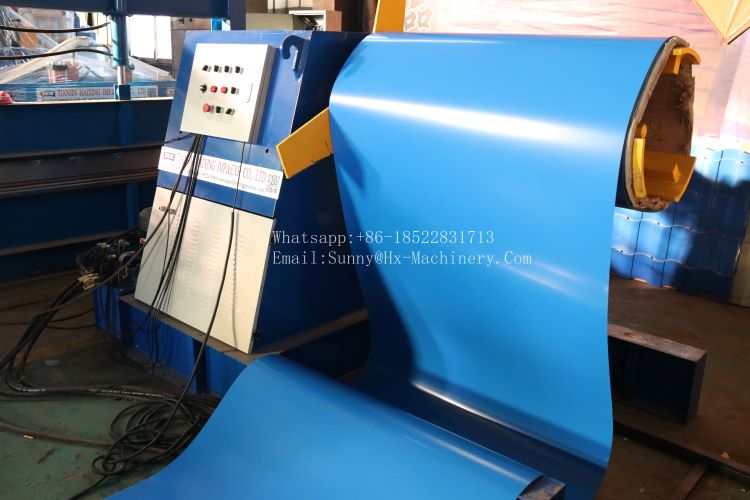

Decoiler
Single cantilever structure bearing capacity 5Tons
Support range：470-530mm hydraulic tension
electric unwinding power：5.5KW
frequency conversion and main motor 5.5KW
Hydraulic pump 4KW
Leveling
Hydraulic shovel head with two shaftsand total 11rollers(Up 5rows ,down 6rows )
roller diameter 90mm
Collect waste
Power 2.7Kw*1set
Perforated loading and shipment：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
To get more information and a more favorable price！
Some advantages of steel coil slitting machine：
| High Precision Cutting | Ensures consistent strip width and high-quality cuts for metal coils. |
| Increased Productivity | Fast, continuous operation boosts production capacity and reduces downtime. |
| Reduced Material Waste | Precise cuts optimize material use, minimizing waste and cutting costs. |
| Flexible Adjustments | Adjustable cutting width and speed to accommodate various material specifications. |
| Higher Automation | Automated operation improves efficiency, reduces manual intervention, and stabilizes production. |
