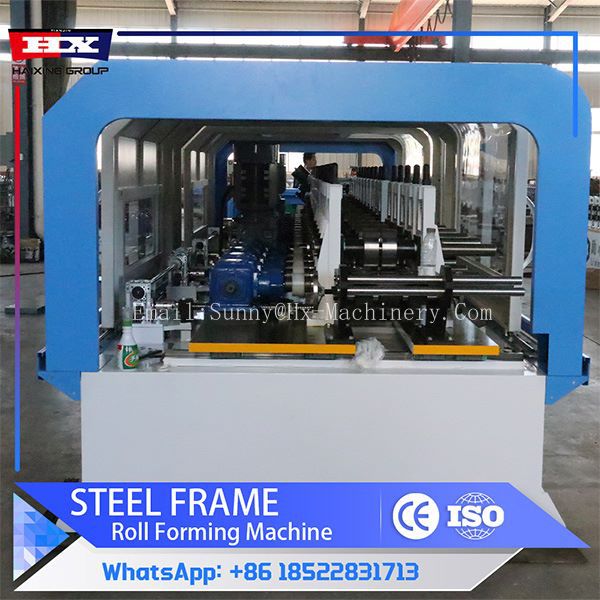

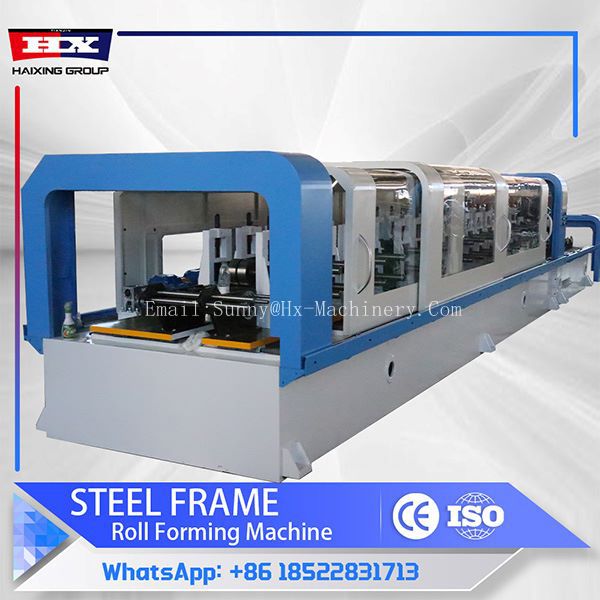

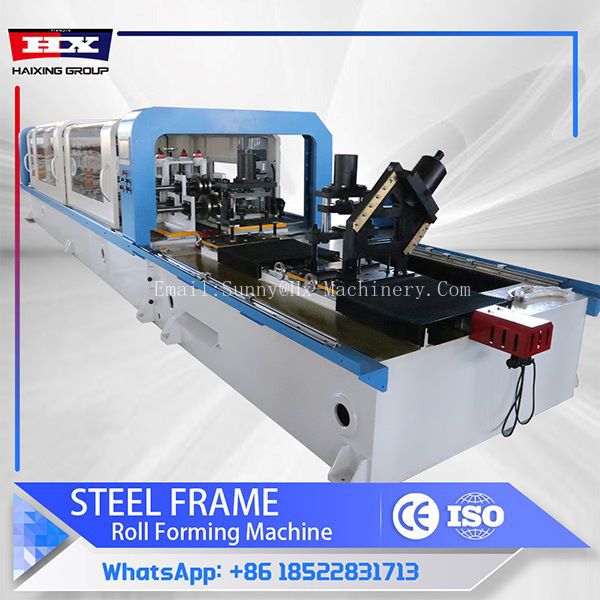

Our Steel Frame Roll Forming Machine is designed to produce high-quality steel frames for construction and industrial applications. The machine efficiently shapes steel coils into precise frame profiles with consistent strength and durability. Our company has over 20 years of experience in export trade. We can help you resolve any issues when importing machines.

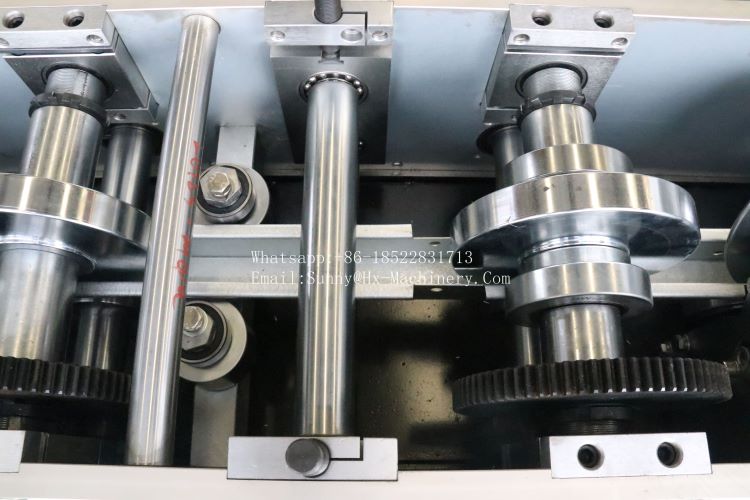

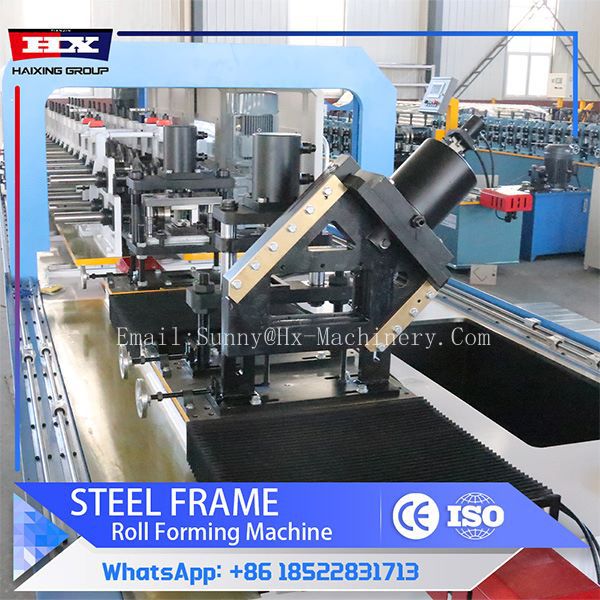

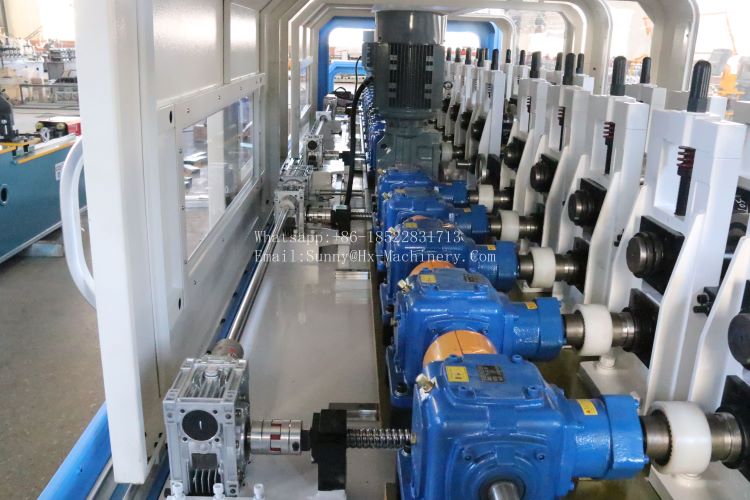

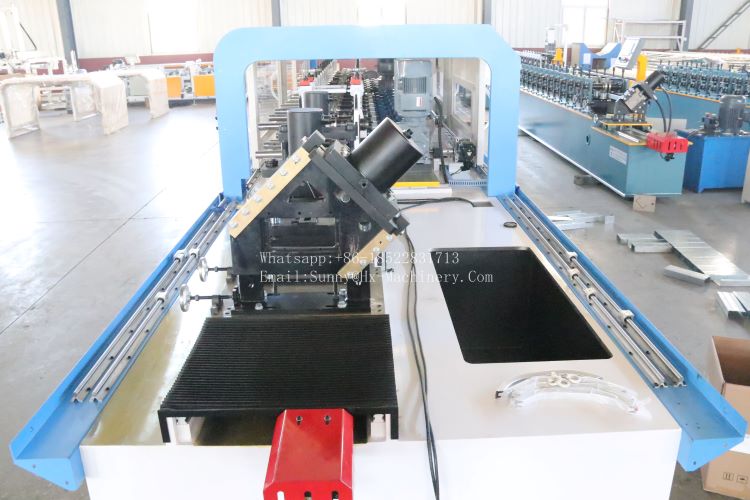

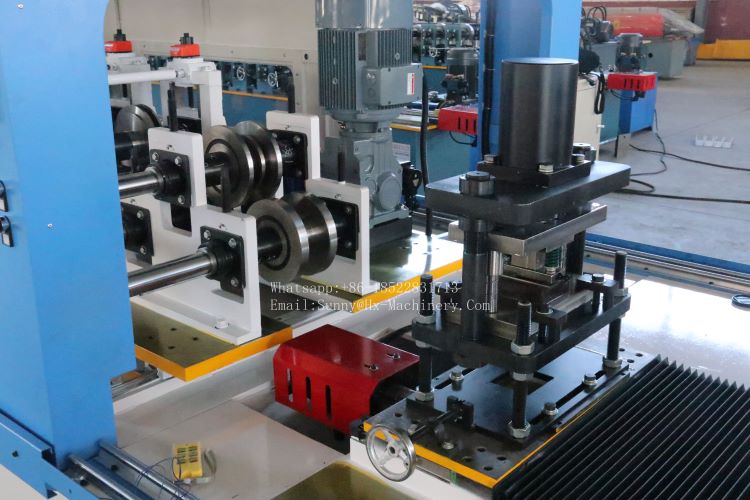

Our steel frame roll forming machine features hydraulic punching, cutting, and feeding, with vacuum heat-treated rollers. It is driven by a gear box, and we use control cabinets from well-known brands.
| Details of Steel frame roll forming machine | |
| Size | 10*1.8*1.6m |
| Weight | 4t |
| Feeding thickness | 0.5-0.8mm |
| Cut-off mode | Servo cut-off |
| Servo motor power | 9kw |
| Load-bearing of loading rack | About 3t |
| Forming speed | Vertical: 55m/min(Selectable) /heaven and earth keel:70m/min(Selectable) |

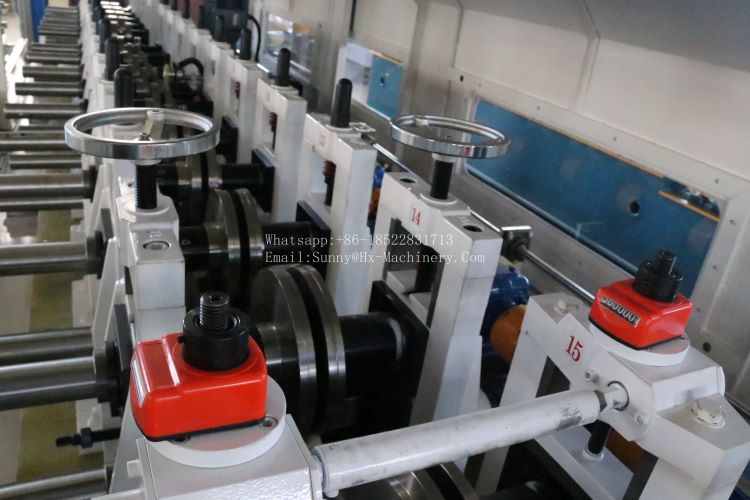

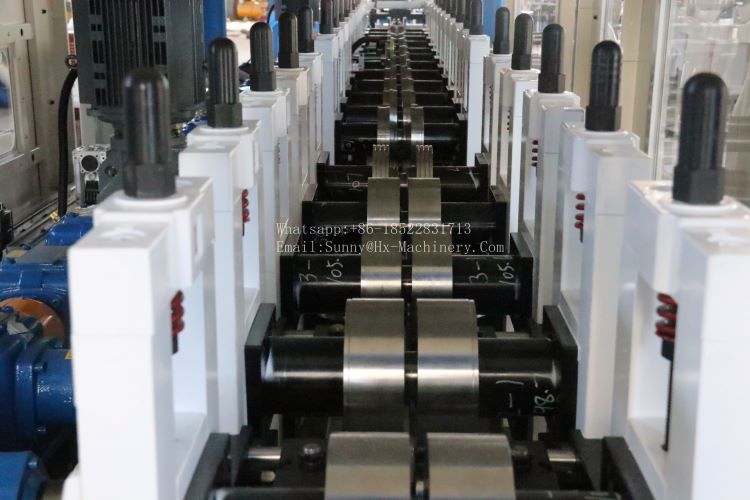

| Forming rollers | 18 Rollers |
| Shaft material | 45# steel |
| Material of wheel | Cr12 mov |
| Main motor power | 7.5kw*2 |
Click to know more about our machine or other machine!
Key Features of machine:
| High Precision | The machine uses advanced technology to ensure accurate frame dimensions and smooth finishes |
| Durability | Built with strong materials, it guarantees a long service life and minimal maintenance |
| Efficiency | It operates at high speeds, allowing you to produce large quantities of frames in a short period |
| Customizable | The machine can be adjusted to create various frame shapes and sizes, making it versatile for different projects |
| User-Friendly | Designed with an intuitive control system, it is easy to operate and maintain |
Why choose us?
| 1 | We have sufficient export experience and reliable technical support |
| 2 | Our machines are of excellent quelity |
| 3 | We have complete after-sales service |
