Storage rack roll forming machine is a continuous, automated production line that forms high-strength steel coils into the specific profiles required for warehouse storage rack components, primarily upright columns and beams, through a series of rolling stations.
Rack upright roll forming machine working flow
Uncoiling → Leveling → Roll forming system→ Punching system→ Cutting system → Products receiving table
| Storage rack roll forming machine main parameters | |
| Forming Rollers | 19rollers |
| Roller Material | Cr12 mold steel, vacuum quenching treatment, hardness HRC58–62 |
| Main Shaft Diameter | Finished diameter Ø90 mm |
| Main Shaft Material | 45# steel with quenching and tempering treatment |
| Motor Power | 11 kW *2 motors, K97 series hard-tooth gearbox |
| Transmission | Gearbox drive, coupled with universal couplings |
| Machine Frame | Cast iron archway 48 |
| Servo Punching | Non-stop servo punching,dual-module reverse punching |
| Cutting Method | Flying tracking saw cutting (with scrap) |
| Discharge Table | 3 m × 2 Pieces, roller-type support |
| Forming Thickness | 1.5-2.5mm |
| Forming Speed | 10-15m/min |
| Inverter | Delta brand |
| LCD Screen | Display Control Electric |
| Low-Voltage Electrical Components | Delixi or Chint |
| Hydraulic System | 5.5Kw |
| Bearings | Harbin Bearings |
| Reducer | Ruibofeng Reducer Co., Ltd. |
| Decoiler | Motorized decoiler with hydraulic expanding mandrel, load capacity 5 tons Inner diameter: 480–520 mm Max. outer diameter: 1600 mm |
| Leveling Section | 1.5 rollers 2. Leveling shaft diameter 70 mm 3. Material 40Cr high frequency quenching |

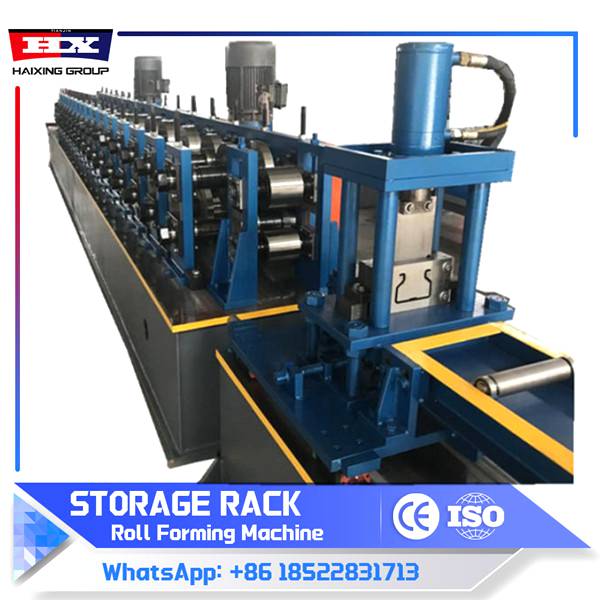

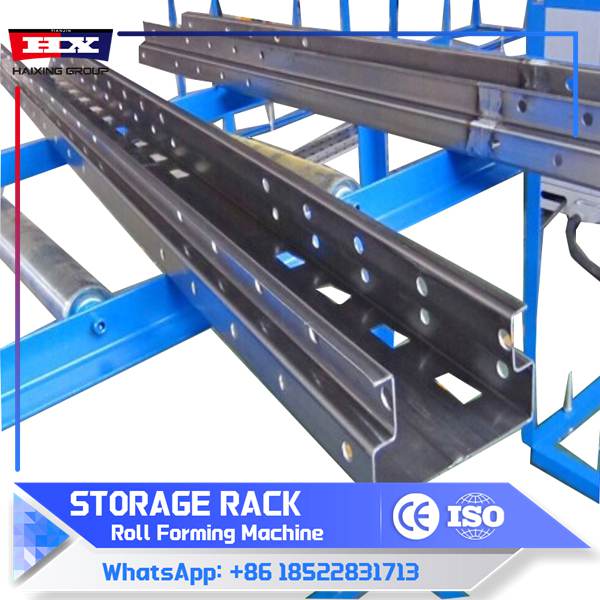

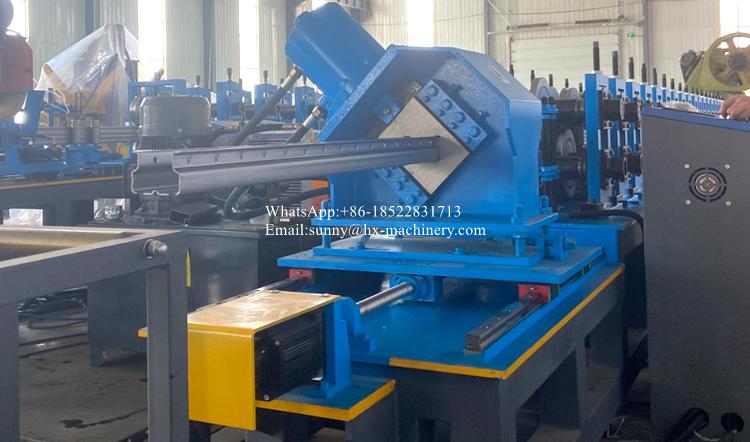

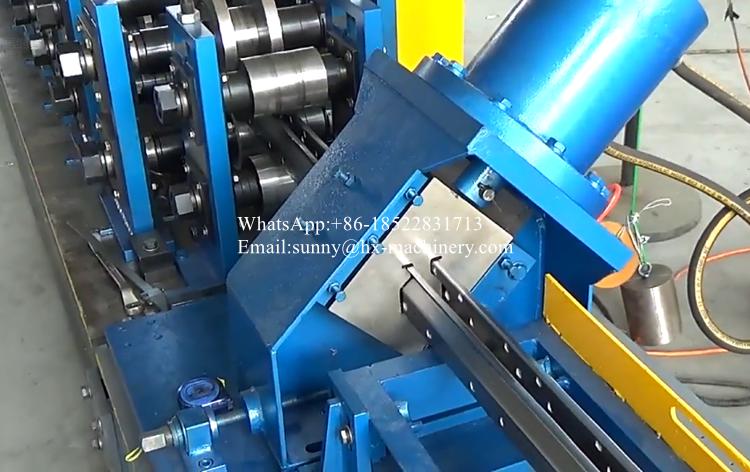

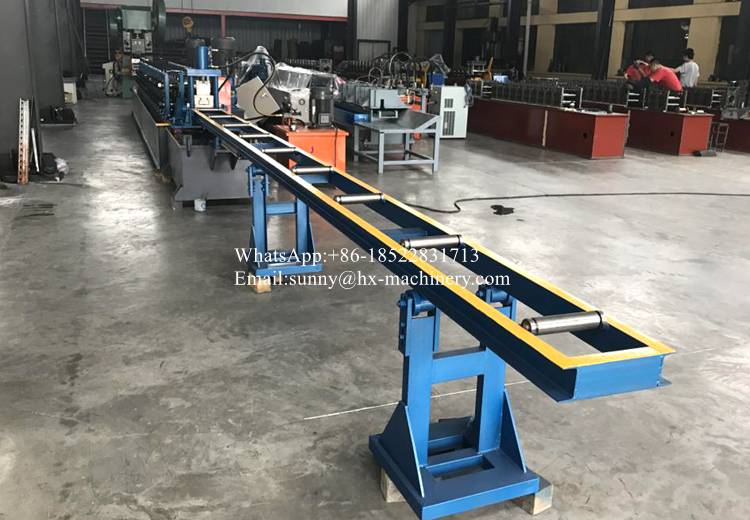

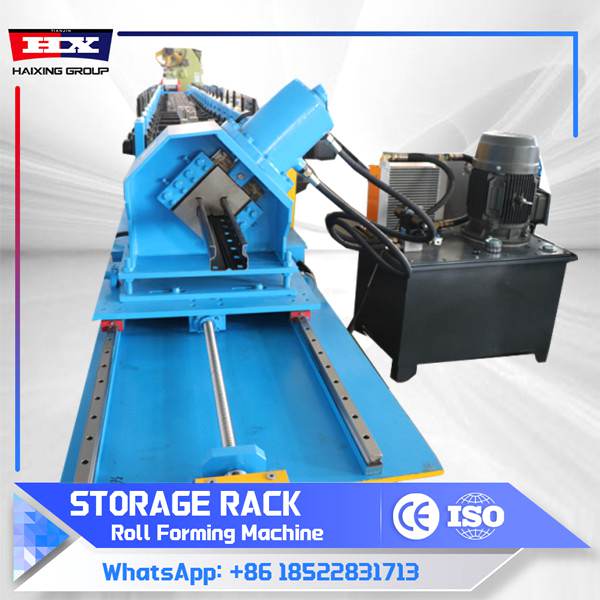

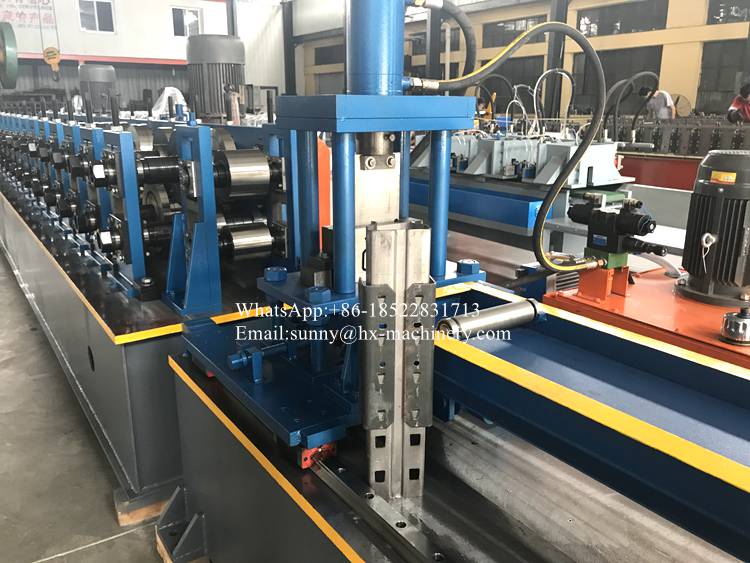

Rack upright roll forming machine photos showing
Specialized & Emerging Applications For Storage rack roll forming machine
| Shelf Panels | This equipment produces shelf panels for supermarkets, warehouses, and other similar applications. It can process shelves of varying widths. |

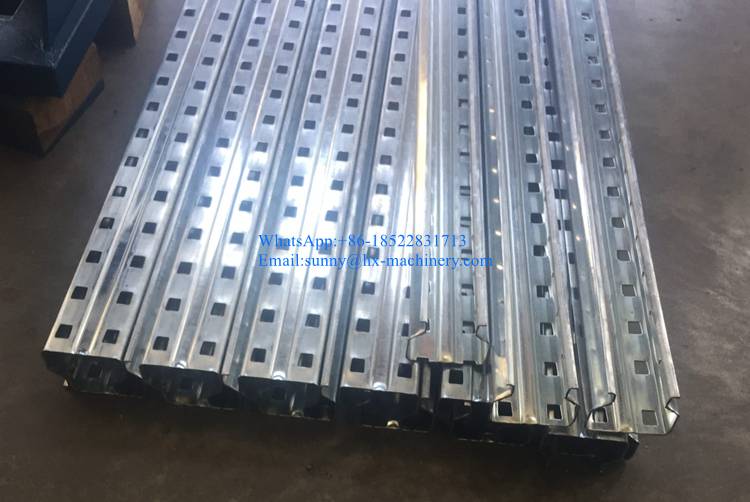

| Uprights/Posts | The vertical support columns for manufacturing shelving are typically punched in-line to allow for later height adjustments. |
| Rack Beams | Produces main load-bearing components for connecting columns, load-bearing shelves, or pallets. |
| Pallet Racking | This type of racking is used to manufacture pallet-bearing racks, drive-in racks, and similar systems. These racks have high load-bearing capacity and high storage density. |
| Tool Racks | Specialized storage equipment for manufacturing heavy molds that can withstand hundreds of kilograms to several tons. |
