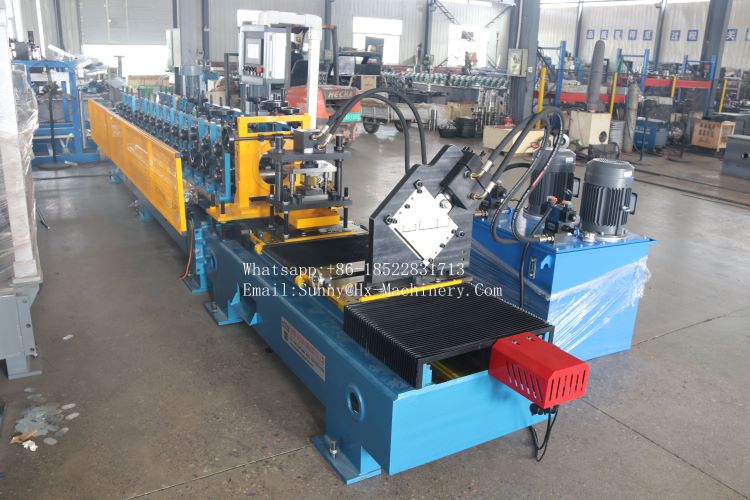

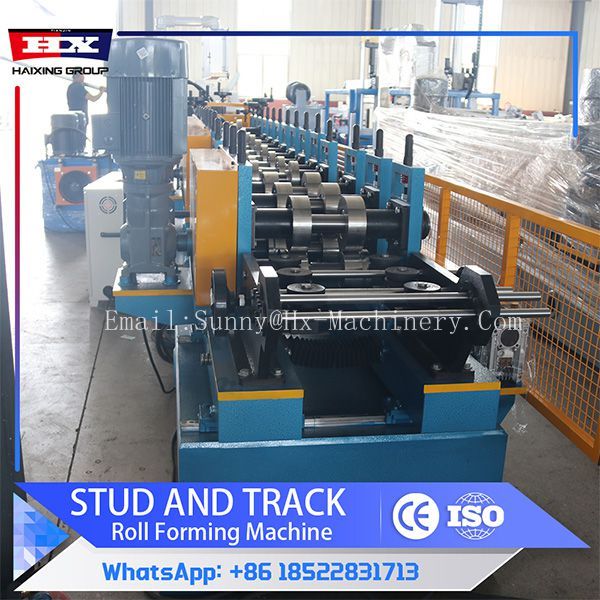

Stud and Track Machine boosts efficiency and accuracy in producing steel studs and tracks for construction framing. This machine provides an innovative solution for manufacturers looking to streamline their production process while maintaining high-quality standards. Built with advanced technology, the stud and track Machine ensures precise cuts, consistent bends, and uniform lengths, resulting in framing components that meet exact specifications. Whether you’re working on residential, commercial, or industrial projects, this machine enhances productivity and reduces production time.
| Details of Stud and track machine | |
 |
|
| Suitable to process | (Prepainted)galvanized steel strips |

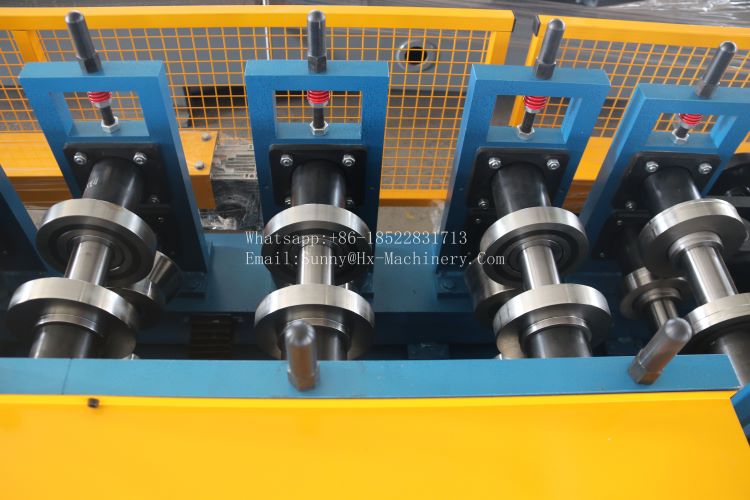

| Rollers | 14 Rollers |
| Main frame | Welding of Type 300 Channel Steel Frame Panel thickness 25㎜, Q235 iron plate material (gantry milling plane processing) |
| Transfer method | Gear transmission (gear high quenching heat treatment, thickness 50mm) |
| Wallboard size | Memorial arch,thickness 35mm |
| Dimensions | 6.5*1.2*1.6m |
| Board size | Arch thickness 35mm (front and rear arch double bearings) |
| Weight | About 3.6T |
| Main motor power | 11KW |
| Servo motor replacement | 2.3KW |

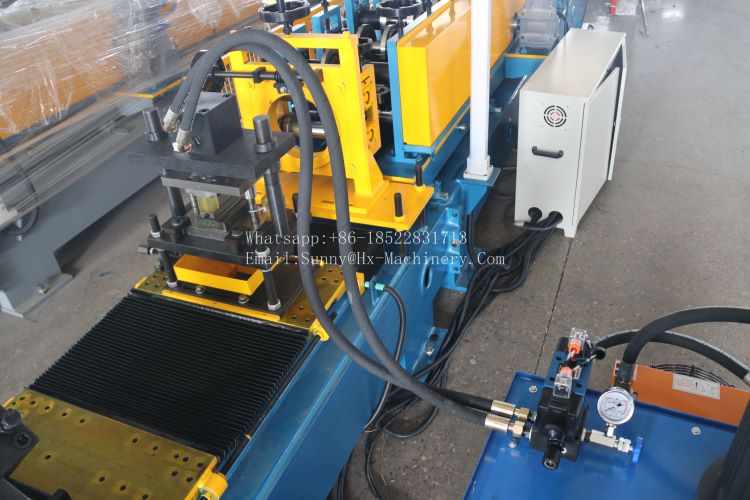

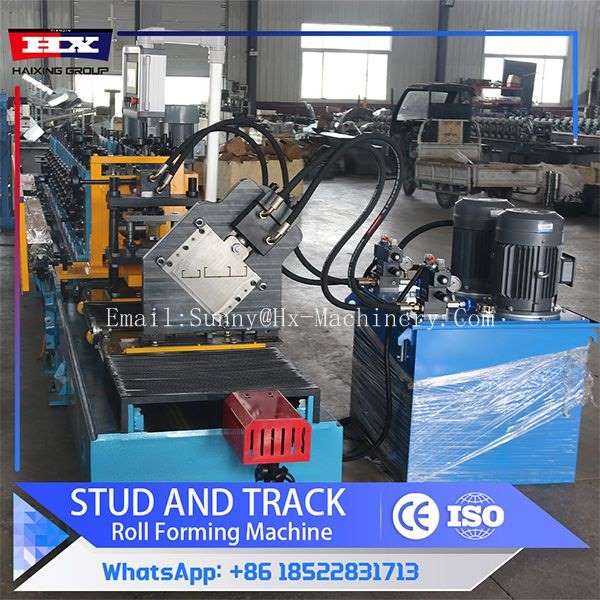

| Hydraulic pump station | 7.5KW |
| Thickness of the plate | 0.4-1.2mm |
| Production speed | 50-60m/min |
| Roller diameter | Φ50mm |
| Spacer | 70mm |
| Voltage | 380V 50Hz 3Phases |
Click to know more about our machine or other machine!
Key Features of machine:
| High-Speed Production | The machine operates at impressive speeds, allowing for large volumes of studs and tracks to be produced in less time |
| Precision Engineering | With advanced technology, the machine ensures accurate cuts and bends, maintaining consistency in every unit |
| Versatile Design | It efficiently handles both studs and tracks, making it adaptable to different project requirements |
| User-Friendly Interface | Simple controls allow operators to set up and run the machine with minimal training, reducing errors and increasing efficiency |
| Durable and Reliable | Built with high-quality materials, the machine ensures long-term reliability and minimal downtime, making it a valuable investment |
Loading and shipment：
| Host packaging | Naked in a container, or with a steel structure base and fixed with a wooden box or wooden frame |
| Electronic control system | Packed in protective film or placed in individual wooden boxes |
| Precision parts | They are usually placed in special wooden boxes and filled and wrapped with foam, paper scraps or oil paper. |
| Spare parts and tools | All spare parts are placed in wooden boxes |
| Packaging labeling | There are usually clear markings on the outside of the box |
